DOSPEL OPTIMAL Series Guida

rev:12.07.17

MAINTENANCE MANUAL

WARRANTY CARD

AIR HANDLING UNIT

OPTIMAL

Below documentation shall be kept by user!

In case of not following the conditions of this document, the warranty

expires.

rev:12.07.17

1. GENERAL INFORMATION................................................................................

1.1. Purpose................................................................................................

1.2. Technical specification..............................................................................

2. ASSEMBLY.................................................................................................

2.1. Required exploitation conditions..................................................................

2.2. Pre-assemblyrequirements.........................................................................

2.3. Unit location..........................................................................................

2.4. Assembly of condensaation dreinage system....................................................

2.5. Connecting to ventilation...........................................................................

2.6. Connecting to power grid...........................................................................

3. STARTING THE UNIT.....................................................................................

3.1. General remarks.....................................................................................

3.2. Connecting contol panel...........................................................................

3.3. Starting the unit.....................................................................................

3.4. Usage and maintenance...........................................................................

3.5. Summer mode (OPTIMAL 400 bypass/600 bypass).............................................

3.6. Working with carbon monoxide sensor (option)...............................................

4. EXPLOITATION RECOMMENDATION..................................................................

5. ELECTRICAL CONNECTION - AUTOMATION MODULE..............................................

5.1. Assembly and disassembly of automation module.............................................

5.2. Connection scheme................................................................................

6. AC2800 DIGITAL CONTROLLER.......................................................................

7. WARRANTY..............................................................................................

CONTENTS

Optimal 400/600

rev:12.07.17

198mm

400m /h 3

600m /h

0-450 Pa0-340 Pa

48,8 kg 49,8 kg

838 mm x 631 mm x 583 mm

Dimensions

Air flow (100 Pa)

Diameter of ventilating connectors

Disposal compression

Max power consumption

Heat recovery efficiency

Power supply voltage

Motor rational speed

Type of motor bearing

Acoustic pressure

Insulation class

Internationl protection rating

Weight

roller bearing

max. 52dB(A)/1m

IP40

max. 53dB(A)/1m

1400 rpm 1650 rpm

up to 95%

OPTIMAL

400 BYPASS

OPTIMAL

600 BYPASS

OPTIMAL air handling unit is destined for air exchange in residential buildings.

The purpose of the unit is to bring fresh air from the outside and to siphon off used air from the rooms

with simultaneous heat recovery.

1. GENERAL INFORMATION

1.1. Purpose

1.2. Technical specification

Optimal 400/600

min. 20W / max. 150W min. 20W / max. 250W

230 VAC / 50Hz

rev:12.07.17

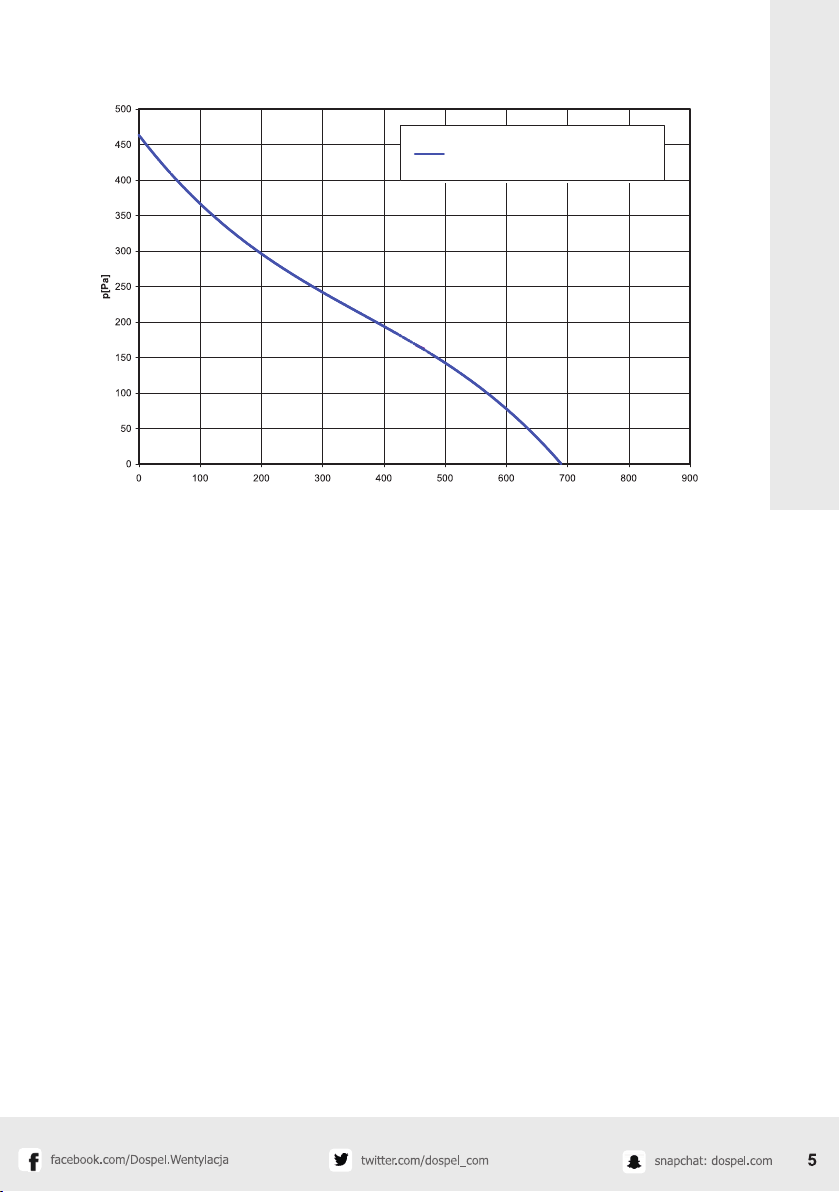

2. Flow efficiency characteristics OPTIMAL 400 bypass

Optimal

400 BYPASS

v [m /h]

Optimal 400/600

1. Nominal dimensions of OPTIMAL

583

570

375

175

838

725

198

178

478 625

rev:12.07.17

3. Flow efficiency characteristics OPTIMAL 600 bypass

Optimal

600 BYPASS

v [m /h]

Optimal 400/600

rev:12.07.17

2. ASSEMBLY

2.1. Required exploitation conditions

The unit and ducts should be assembled in rooms with temperature 5°C - 30C and heat-separated

form surroundings.

Not following above conditions will cause liquefaction of condensate and cumulate it inside and outside

of the unit which may cause dampness in the room or damage to the unit.

2.2. Pre-assembly requirements

While planning the assembly of the unit consider:

- ensuring the expliotation conditions of the unit

- possibility of bringing about ventilation pipes to the device

- possibility of siphonning of steam condensate

- possility of bringing about electric energy

- easy access to maintenance and repairs

WARNING!

1. Ventilation installation and other belonging elements must be in accordance with Polish Norms

referring to ventilation in residential and public utility buildings.

2. The unit is not destined for drying the unseasoned houses.

3. In case of damage to elements arising from not following the above instructions,

they will be not repaired under warranty.

4. Due to design reasons there is a possibility of mixing the air inside the unit with amount

not exceeding 2%.

Prior to connecting the unit check elements condition, including casing and wiring. In order to avoid any damage,

the unit should be kept in safe place in original packaging.

2.3. Unit location

The unit is destined for assembly under dry roofed rooms with basements (attics, utility room).

The unit should be assembled in a way to allow free drain condensate from the tub.

WARNING!

Manufacturer does not include assembly elements with the unit. Buyer should purchase elements separately.

After unit is placed, it shoud be leveled. It has an essential meaning for proper work of the condensate

drainage system.

Optimal 400/600

rev:12.07.17

2.4. Assembly of condensaation dreinage system

Steam condensation can be observed during unit's work. It is completely normal and it is not an abnormality

in working. In order to siphon out condensate the unit is equipped with stub pipe placed on the right side.

It is essental to properly connect the pipe siphoning out the condensate.

Exemplary way of conneting the pipe is shown below. The pipe should have adequate diameter to the stub-

pipe (1/2"). It shoud be bent into letter "U" and suffused with water until stabilizing its level.

Shipon should be palced around 150 mm from the unit and radius should not be less than R=30 mm.

Given measures should be taken as minimal.

Optimal 400/600

4. Proper positioning of the unit. It is essential to keep level of the base

5. Exemple of pipe assembly to siphon out condensate

water level

rev:12.07.17

Inner stub-pipes diameters are 198mm and are fitted to standard Termoflex ducts 200 mm.

Ventilation ducts should be assembled carefully with the use of OZ duct clip (4 pcs).

In case of assembly in temparature below 12°C and above 32°C it is recommended to insulate ventilation

ducts with mineral wool of min. thickenss 30 mm. Such operation will assure efficient work

of the ventilation system.

2.5. Connection to ventilation

Optimal 400/600

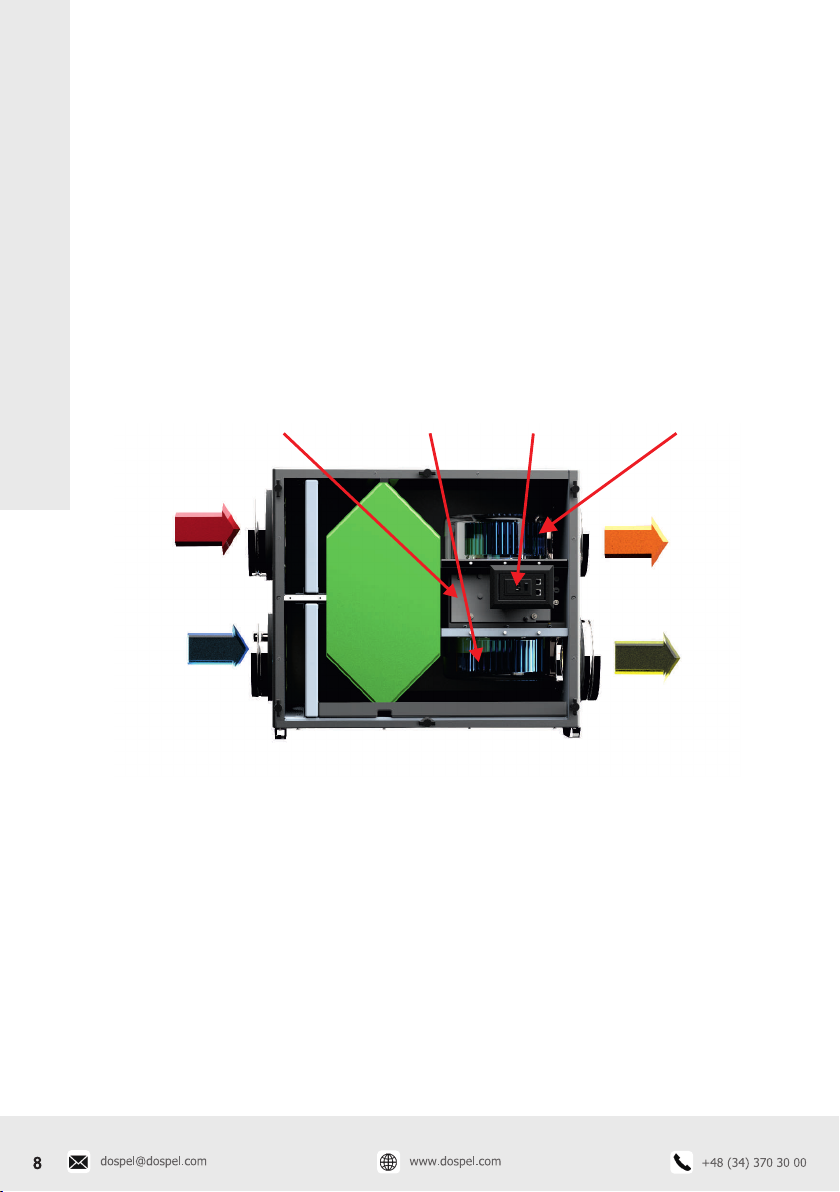

6. Designation of the unit with stub-pipe description

Automation module

From rooms To rooms

From intake port To launcher

Exttract fan Intake fanSupply voltage

rev:12.07.17

2.6. Conneting to power grid

Unit should be connected directly to one phase outlet 230V/50Hz in the most accessible place.

All electrical matter should be perfomed by authorized person.

WARNING!

Prior to maintenance work or repairs, unit should be disconnected from the power outlet

by pulling the plug out.

In case of damaging the wire, replacement can only be performed by authorized person.

1. Prior to starting the unit read the manual.

2. Check if there is no objects present in the ducts which may damage the unit or endanger health.

3. It is recommended to test the working mode of the unit prior to connecting it to ventilation.

3. STARTING THE UNIT

3.1. General remarks

Optimal 400/600

7. Manner of conneting power cord

rev:12.07.17

WARNING!

While testing the installation follow the safety rules in order to avoid improper direction of airflow,

i.e. open chimney duct or other devices with open fire towards room.

3.2. Connecting control panel

Air handling unit is equipped with weekly controller.

Control panel is delivered with 20 m connection cord ended with plug type RJ11.

Control panel should be placed on a wall, but you should previosuly plan how to lead cord from unit to panel.

WARNING!!! Cord cannot be less than 5m long.

3.3. Starting the unit

1. Read the manual

2. See if there is no damage

3. Place unit in wanted place

4. Connect control panel

5. Connect connection cord to power grid 230 V

6. Turn on the unit using control panel ot turn on "TURBO" mode for 3 minutes

7. Check if there is air flow at the stub-pipes (WARNING! Do not put hands inside the stub-pipes

- may results in injuries!)

8. Turn off the unit using control panel

9. Unplug power cord from grid

10. Disconnect control panel from unit

11. Mount the unit in ventilation system

12. Lead control panel's cord from unit to destined mounting place

13. Mount control panel

14. Connect unit to control panel

15. Connect power cord to power grid

16. Turn on control panel and set weekly program

17. Control air intake efficiency in accordane with project

Once all above is performed, the unit can be used.

Optimal 400/600
