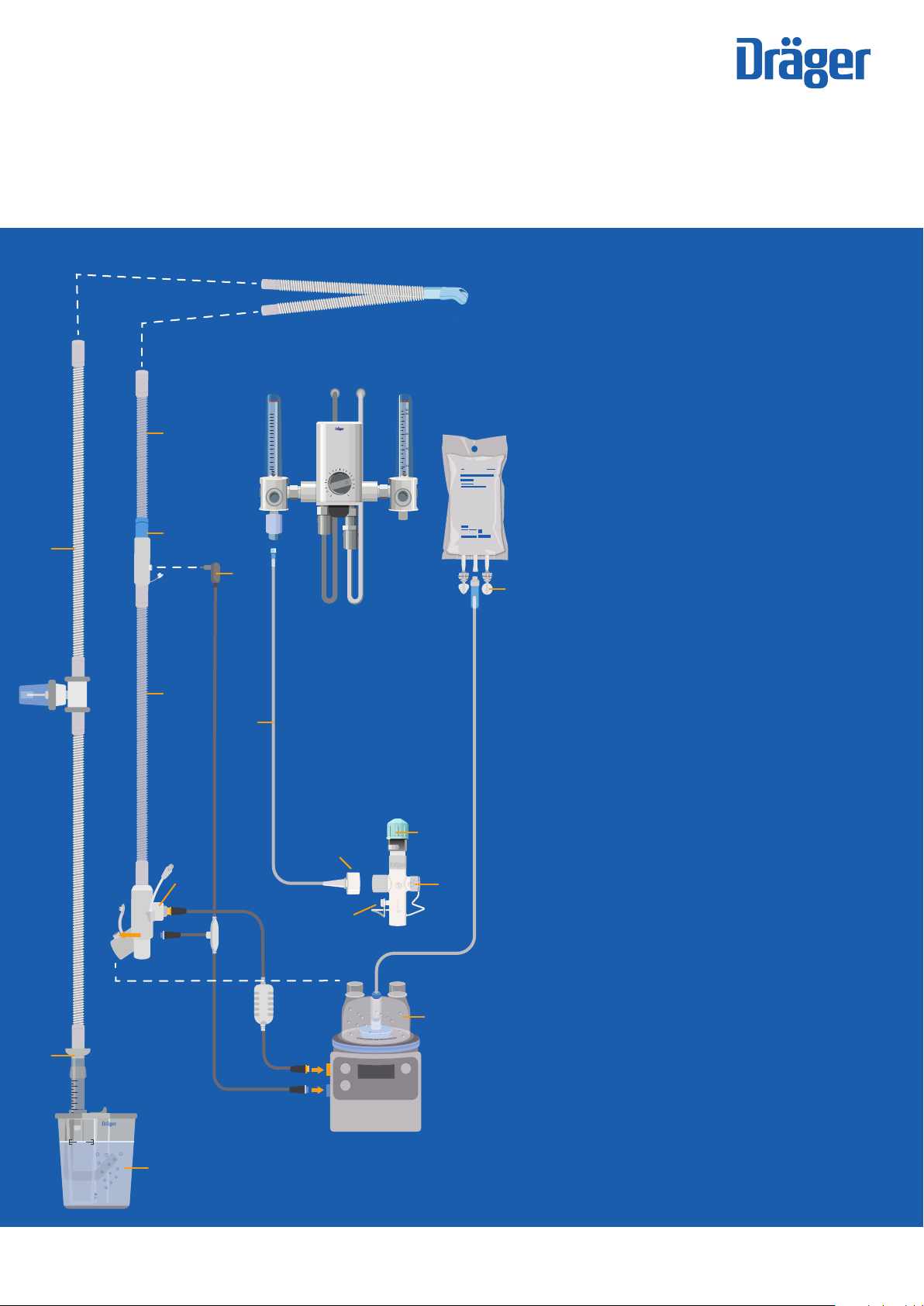

Seattle PAP plus – Bubble CPAP System

A Hose extention

B Heated inspiratory hose (blue)

C Connector for inspiratory hose

D Patient-side temperature sensor

E Humidifier-side temperature sensor

F Connector for inspiratory hose

heater

G O

2 hose

H Connector for attaching the O2

hose to the blender

I Connection port for a pressure

measuring line

J Water bag port

K Connector with premounted

pressure relief valve (Opening

pressure at 8 L/min 17+-3 mbar)

L Connector for an oxygen

measurement device

M Humidifier chamber

N Bubble CPAP chamber

O Swiveling filling funnel and

connector for expiratory hose

P Expiratory hose with water trap

Q BabyFlow plus

> 80 cm (31,5 in)

O2 21

50 60 70

100%

3,2

Correct Water Level

Please note: This Quick Reference Guide is not a replacement or substitute for the

instructions for use. Any use of the medical device requires full understanding and

strict observation of the instruction for use.

17 cm H₂O

Dräger. Technology for Life®

17 cm H₂O

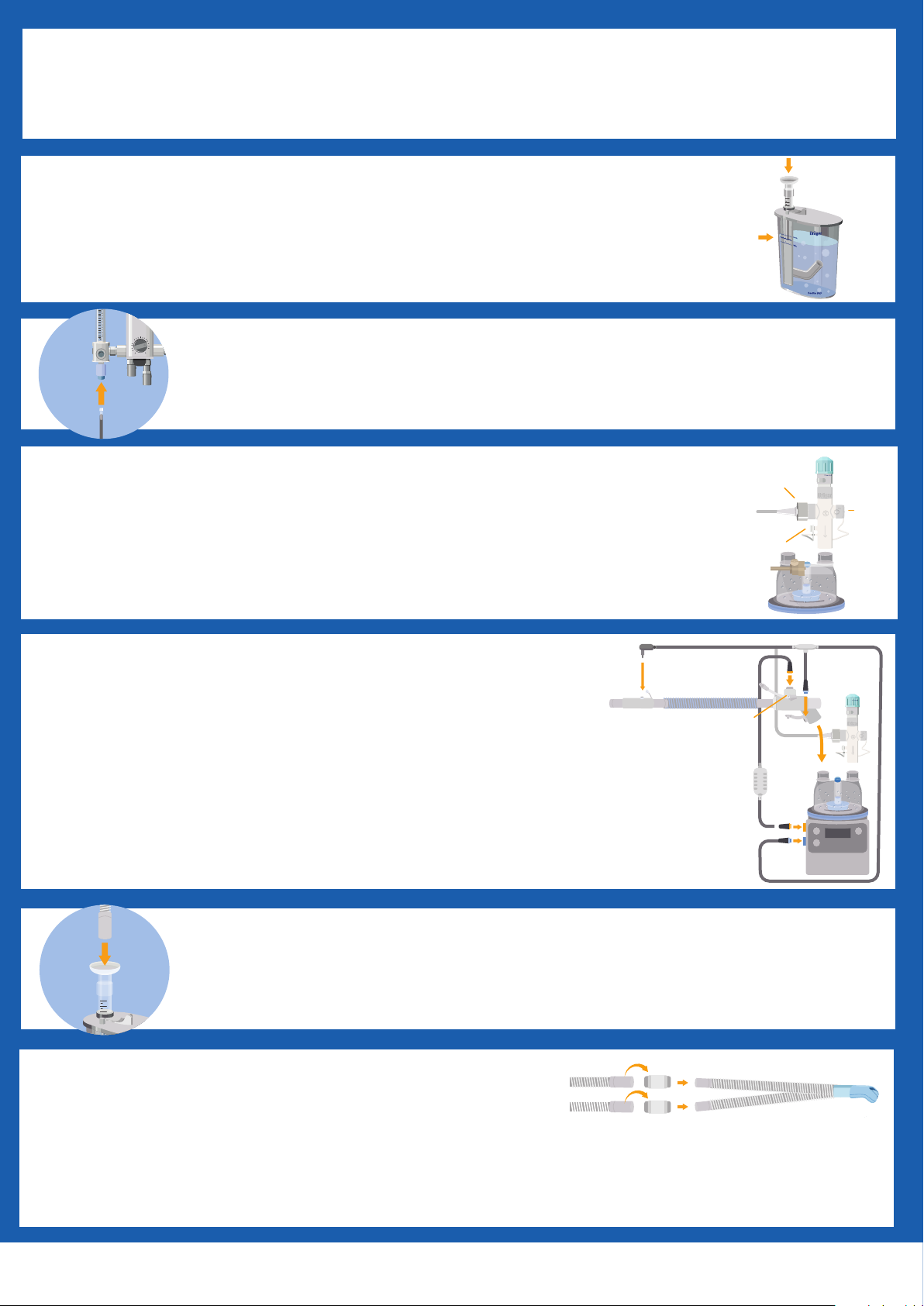

Connect the heated inspiratory hose (B) to the humidifier chamber.

Connect the two temperature sensors (D, E) to the inspiratory hose (B).

Set the flow and the oxygen concentration to the required values.

Permitted flow limits: 4 to 12 l/min. Recommended 8 l/min.

Insert the humidifier chamber in the Fisher & Paykel humidifier MR850 and remove the caps.

Puncture the water bag with distilled water and open the vents of the water supply hose.

Ensure that the humidifier chamber fills with water.

Use the funnel to fill the water reservoir with max. 0.9 l of distilled water.

To adjust the water level, use a syringe to add or remove distilled water until the

correct water level line is reached.

Connect the adapter of the O2 hose (H) to the lateral opening of the connector

with the pressure relief valve (fixed limit of 17 cm H2O).

The lateral opening (L) of the connector can be used for oxygen measurement

if necessary. The opening (I) can be used for external pressure measurement.

Connect the O2 hose to the blender.

Set the CPAP value at the bubble CPAP chamber and lock it in place

with the safety tube lock.

Connect the expiratory hose of the breathing circuit to the filling funnel.

Performing a leakage test by closing the BabyFlow adapter for prongs or neo masks using the thumb.

Set the CPAP value to 10 cm/H2O and the flow to 1 l/min. Proper setup will be indicated by bubbles in the

bubble CPAP device.

Start CPAP therapy.

Connect BabyFlow plus directly to the breathing hoses.

50 60 70

100%

3,2
