Dr.Prepare D-SP004 Manuale utente
CATALOGUE
English User Manual
German User Manual
Espanol User Manual
01-07
08-14
15-22
22-28
Japanese User Manual
Model: D-SP004
20000mAh
PORTABLE SOLAR
CHARGER
Manual
- 01 -
PRODUCT OVERVIEW
1
2
3
4
5
6
USB-A Output
Flashlight
Hook
USB-A Output
LED Solar Indicator
Water-resistant Silicone Cover
Input
Temperature Indicator
Solar Panel
On/Off Button
LED Power Indicators
8
9
10
11
7
- 02 -
60 cm / 24 in
Micro USB Cable
64
3
9
76
1
2
5
8
11
10
SPECIFICATIONS
1 LED On
2 LEDs On
3 LEDs On
4 LEDs On
Battery level at 0% - 25%
Battery level at 26% - 50%
Battery level at 51% - 75%
Battery level at 76% - 100%
Lithium Polymer
20000mAh / 74Wh
1W LED (3 Light Modes: Bright, Strobe,
and SOS)
65-75 Hours
4 Hours (when simultaneously recharged
with both USB inputs)
65 Hours (when recharged via direct
sunlight)
7.08 x 3.94 x 0.98 in / 18 x 10 x 2.5 cm
15.91 oz / 451g ± 10g
Battery Type
Capacity
Flashlight Power
Battery Life of Flashlight
Recharging Time
Dimensions
Weight
General
Input
Output
DC 5V / 3.4A Total (Each 2.4)
USB-A
Solar Panel
Micro USB
DC 5V / 300mA Max
DC 5V / 2.4A Max
- 03 -
Note: When the temperature is too high, the Temperature Indica
tor will flash.
• 1 x 20000mAh Portable Solar Charger
• 1 x Micro USB Cable (60 cm / 24 in)
• 1 x Carabiner
• 1 x User Guide
Recharged via the sunlight.
Place the solar panel under direct sunlight. Recharging will start
with the green LED Solar Indicator turning on and the blue LED
Power Indicators lighting up one by one according to the battery
levels.
RECHARGING THE PORTABLE CHARGER
Note: The recharging time may vary according to the intensity of
sunlight.
PACKAGE INCLUDES
- 04 -
5LED Solar Indicator

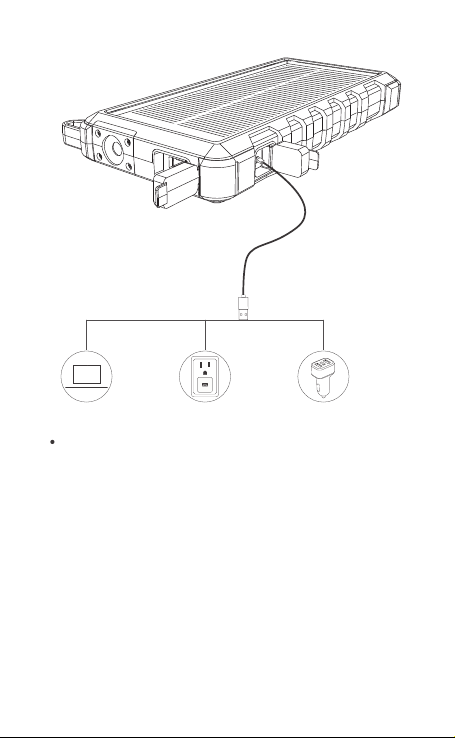

Recharged via the USB input port.
Use the included USB cables to recharge the portable charger
through electrical outlets or other power sources until all 4 LED
Power Indicators become solid blue.
- 05 -
CHARGING THE DEVICES
Connect your devices to the output ports of portable charger
with USB cables and charging will start automatically. The blue
LED Power Indicators will turn on to show the battery levels.
Note: we recommend you to use certified Apple cables to
charge Apple products.
FLASH LIGHT OPERATIONS
Long Press the On/Off Button to turn on the flashlight. Press the
On/Off Button again to switch light modes.
- 06 -
On/Off Button
CAUTION
CUSTOMER SUPPORT
WARRANTY
Do not drop, knock, or disassemble the product.
Do not keep metal objects around the portable charger.
Avoid exposure to static electricity, strong magnetic fields, and
radiation.
Stop using the portable charger if you notice unusual smells,
heating, distortion, or any other abnormalities.
Keep the product out of reach of children.
Keep the product away from water, liquids, and moist.
Dispose of the product according to the local recycling and
environmental regulations.
Dr.Prepare products are covered by a 12-month limited warranty
from the original purchase date. If any problems occur, please
contact our support team.
We only provide after-sales services for products that are sold
by Dr.Prepare or retailers and distributors authorized by Dr.Pre-
pare. If you have purchased your unit from other channels,
please contact your seller for more information about return and
warranty.
Keep the product away from fire, heat sources, or high tempera-
tures in case of shortened lifespan or damages.
If you have any questions or concerns, please give us a call at
- 07 -
