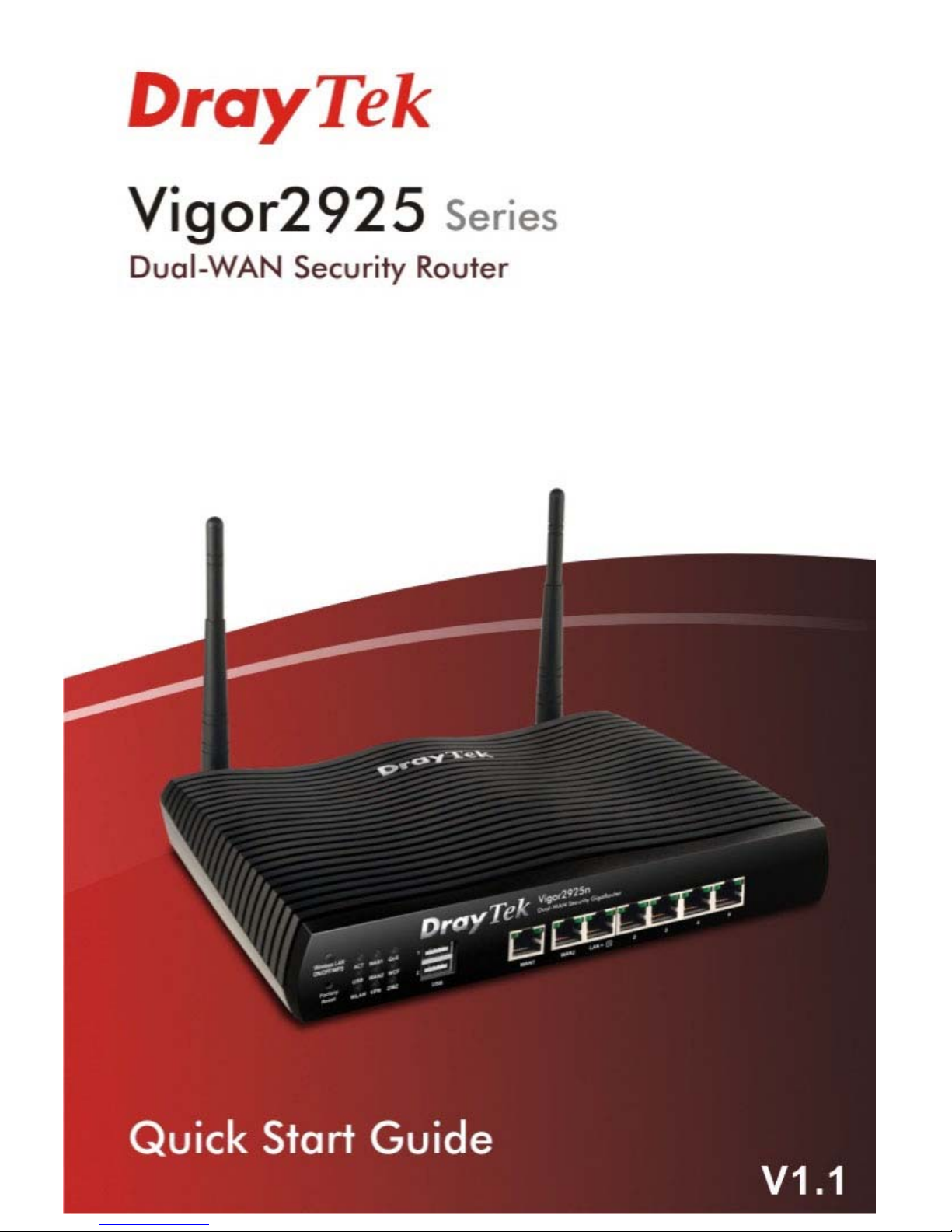

Vigor2925 Series Quick Start Guide

Vigor2925 Series Quick Start Guide ii

Vigor2925 Series Quick Start Guide

Vigor2925 Series

Dual-WAN Security Router

Quick Start Guide

Version: 1.0

Firmware Version: V3.7.2_RC3a

(For future update, please visit DrayTek web site)

Date: 17/06/2013

Vigor2925 Series Quick Start Guide ii

Declarations

protected by copyright. No part may be reproduced, transmitted, transcribed,

stored in a retrieval system, or translated into any language without written

permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

zMicrosoft is a registered trademark of Microsoft Corp.

zWindows, Windows 95, 98, Me, NT, 2000, XP, 7 and Explorer are

trademarks of Microsoft Corp.

zApple and Mac OS are registered trademarks of Apple Computer Inc.

zOther products may be trademarks or registered trademarks of their

respective manufacturers.

Safety Instructions and Approval

Safety Instructions

zRead the installation guide thoroughly before you set up the router.

zThe router is a complicated electronic unit that may be repaired only be

authorized and qualified personnel. Do not try to open or repair the router

yourself.

zDo not place the router in a damp or humid place, e.g. a bathroom.

zDo not stack the routers.

zThe router should be used in a sheltered area, within a temperature range

of +5 to +40 Celsius.

zDo not expose the router to direct sunlight or other heat sources. The

housing and electronic components may be damaged by direct sunlight or

heat sources.

zDo not deploy the cable for LAN connection outdoor to prevent electronic

shock hazards.

zKeep the package out of reach of children.

zWhen you want to dispose of the router, please follow local regulations on

conservation of the environment.

arrant

We warrant to the original end user (purchaser) that the router will be free from

any defects in workmanship or materials for a period of two (2) years from the

date of purchase from the dealer. Please keep your purchase receipt in a safe

place as it serves as proof of date of purchase. During the warranty period, and

upon proof of purchase, should the product have indications of failure due to

faulty workmanship and/or materials, we will, at our discretion, repair or replace

the defective products or components, without charge for either parts or labor, to

whatever extent we deem necessary tore-store the product to proper operating

condition. Any replacement will consist of a new or re-manufactured

functionally equivalent product of equal value, and will be offered solely at our

discretion. This warranty will not apply if the product is modified, misused,

tampered with, damaged by an act of God, or subjected to abnormal working

conditions. The warranty does not cover the bundled or licensed software of

other vendors. Defects which do not significantly affect the usability of the

product will not be covered by the warranty. We reserve the right to revise the

manual and online documentation and to make changes from time to time in the

contents hereof without obligation to notify any person of such revision or

changes.

Be a Registered

Owne

Web registration is preferred. You can register your Vigor router via

http://www.draytek.com.

Firmware & Tools

Updates Due to the continuous evolution of DrayTek technology, all routers will be

regularly upgraded. Please consult the DrayTek web site for more information on

newest firmware, tools and documents.

http://www.draytek.com

Vigor2925 Series Quick Start Guide

iii

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County,

Taiwan 303

Product: Vigor2925 Series Router

DrayTek Corp. declares that Vigor2925 Series of routers are in compliance with the following essential

requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS

2011/65/EU.

The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive

2004/108/EEC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying

with the requirements set forth in EN60950-1.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct the interference

by one of the following measures:

zReorient or relocate the receiving antenna.

zIncrease the separation between the equipment and receiver.

zConnect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

zConsult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) This device may accept any interference received, including interference that may cause undesired

operation.

Please visit http://www.draytek.com/user/SupportDLRTTECE.php

This product is designed for the 2.4GHz WLAN network throughout the EC region.

Vigor2925 Series Quick Start Guide iv

Vigor2925 Series Quick Start Guide

1. Introduction ........................................................................................1

1.1 Panel Explanation ...................................................................................... 2

1.1.1 For Vigor2925 ........................................................................................... 2

1.1.2 For Vigor2925n ......................................................................................... 4

1.2 Package Content........................................................................................ 6

2. Installing Your Router........................................................................7

2.1 Hardware Installation................................................................................. 7

2.2 Printer Installation...................................................................................... 8

3. Initial Settings...................................................................................15

3.1 Accessing Web Page............................................................................... 15

3.2 Basic Configuration – Quick Start Wizard ............................................. 16

3.2.1 For WAN1/WAN2.................................................................................... 18

3.2.2 For WAN3 (USB)..................................................................................... 26

3.3 Wireless Configuration............................................................................ 28

3.3.1 Basic Wireless LAN Concept .................................................................. 28

3.3.2 General Setup......................................................................................... 29

3.3.3 Security Settings..................................................................................... 30

4. Trouble Shooting..............................................................................33

4.1 Checking If the Hardware Status Is OK or Not....................................... 33

4.2 Checking If the Network Connection Settings on Your Computer Is OK

or Not............................................................................................................... 34

4.3 Pinging the Router from Your Computer ............................................... 37

4.4 Checking If the ISP Settings are OK or Not ........................................... 38

4.5 Backing to Factory Default Setting If Necessary................................... 38

4.6 Contacting Your Dealer ........................................................................... 40

Vigor2925 Series Quick Start Guide vi

Vigor2925 Series Quick Start Guide

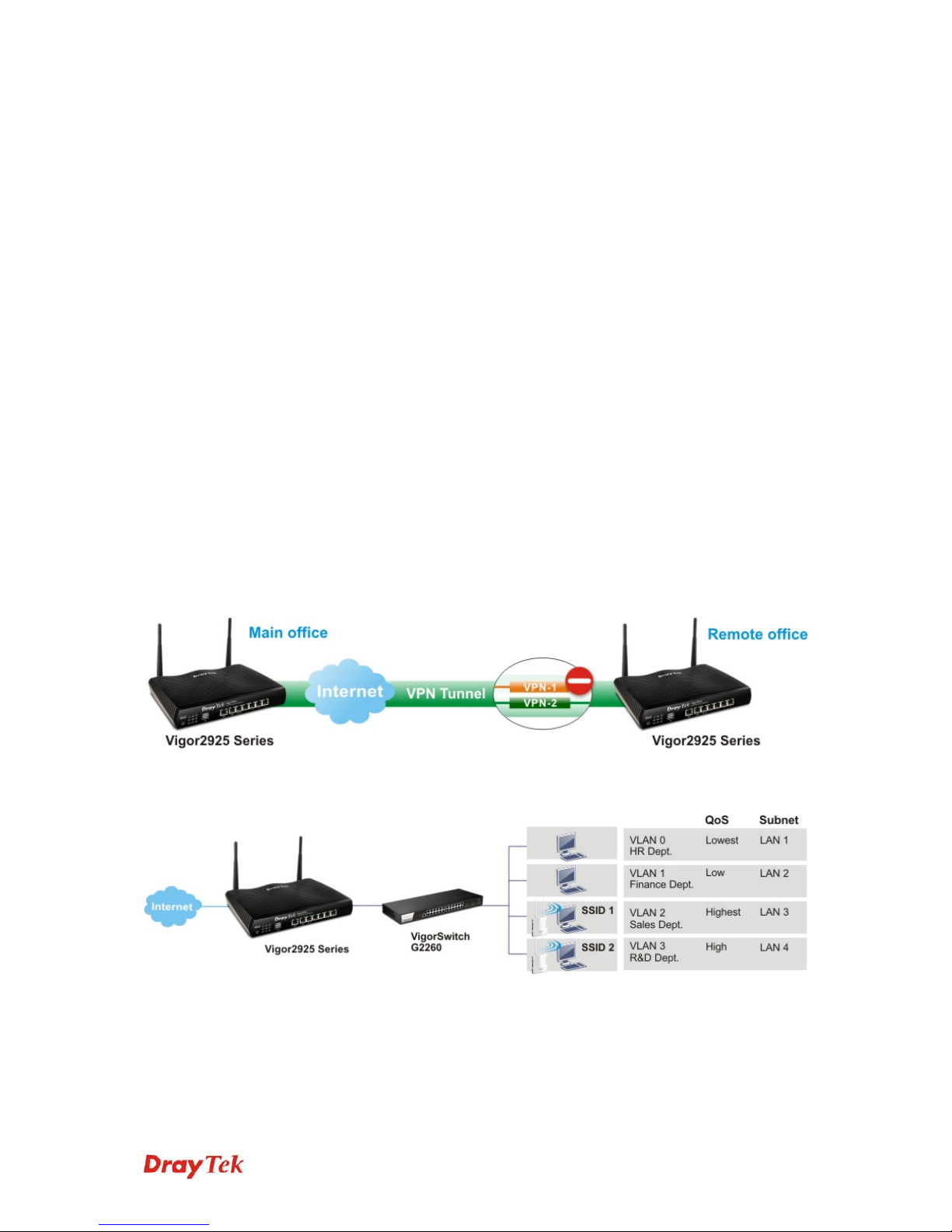

Vigor2925 series is a broadband router which integrates IP layer QoS, NAT

session/bandwidth management to help users control works well with large

bandwidth.

By adopting hardware-based VPN platform and hardware encryption of

AES/DES/3DES, and hardware key hash of SHA-1/MD5, the router

increases the performance of VPN greatly and offers several protocols (such

as IPSec/PPTP/L2TP) with up to 32 VPN tunnels.

The object-based design used in SPI (Stateful Packet Inspection) firewall

allows users to set firewall policy with ease. CSM (Content Security

Management) provides users control and management in IM (Instant

Messenger) and P2P (Peer to Peer) more efficiency than before. In addition,

DoS/DDoS prevention and URL/Web content filter strengthen the security

outside and control inside.

Vigor2925 series supports USB interface for connecting USB printer to

share printing function, 3G USB modem for network connection, or

connectivity for network FTP service.

Vigor2925 Series Quick Start Guide 2

LED Status Explanation

Blinking The router is powered on and running

normally.

ACT (Activity)

Off The router is powered off.

On USB device is connected and ready for use.USB1~USB2 Blinking The data is transmitting.

On Internet connection is ready.

Off Internet connection is not ready.

WAN1~WAN2

Blinking The data is transmitting.

VPN On The VPN tunnel is active.

QoS On The QoS function is active.

WCF On The Web Content Filter is active. (It is

enabled from Firewall >> General

Setup).

On The DMZ function is enabled.

Off The DMZ function is disabled.

DMZ

Blinking The data is transmitting.

LED on Connector

On The port is connected.

Off The port is disconnected.

Left

LED Blinking The data is transmitting.

On The port is connected with 1000Mbps.

WAN1~

WAN2

Right

LED Off The port is connected with 10/100Mbps

On The port is connected.

Off The port is disconnected.

Left

LED Blinking The data is transmitting.

On The port is connected with 1000Mbps.

LAN1~

LAN5

Right

LED Off The port is connected with 10/100Mbps
