Operation and Maintenance Guide

DriTec™4000i Desiccant Dehumidifier

Model F533-115V

DRI-EAZ PRODUCTS, INC.

15180 Josh Wilson Road, Burlington, WA 98233

Phone: 800-932-3030 Fax: 360-757-7950 http://DriTec.DriEaz.com

This document is a supplement to the DriTec 4000i Owner’s Manual supplied with the unit.

Please refer to the Owner’s Manual for important safety information.

Patents: http://www.LBpatents.com

READ AND SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This unit’s plugs must be inserted into an appropriate outlet that is properly installed and grounded in accordance with all

local codes and ordinances.

WARNING! Improper connection of the equipment-grounding conductor can result in a risk of electric shock.

Check with a qualified electrician or service person if you are in doubt as to whether the outlets are properly

grounded. Do not modify the plugs provided with the appliance – if the plugs do not fit the outlets, have proper

outlets installed by a qualified electrician.

This equipment is for use on circuits with a nominal rating of no more than 120V.

Handle the unit carefully

Always operate the unit on a stable, level surface. Do not drop, throw, or place where it could fall. Rough treatment can

damage the unit, and may create a hazardous condition or void the warranty.

This unit intended for household and commercial use.

BEFORE FIRST USE

TOOLS REQUIRED

•3mm Allen wrench and/or bits and cordless drill

The unit is shipped with two duct rings and an adaptor

kit, two power cords, and the Owner’s Manual packed

inside the storage compartment.

F533-115V 1 Dri-Eaz Products, Inc.

Required:

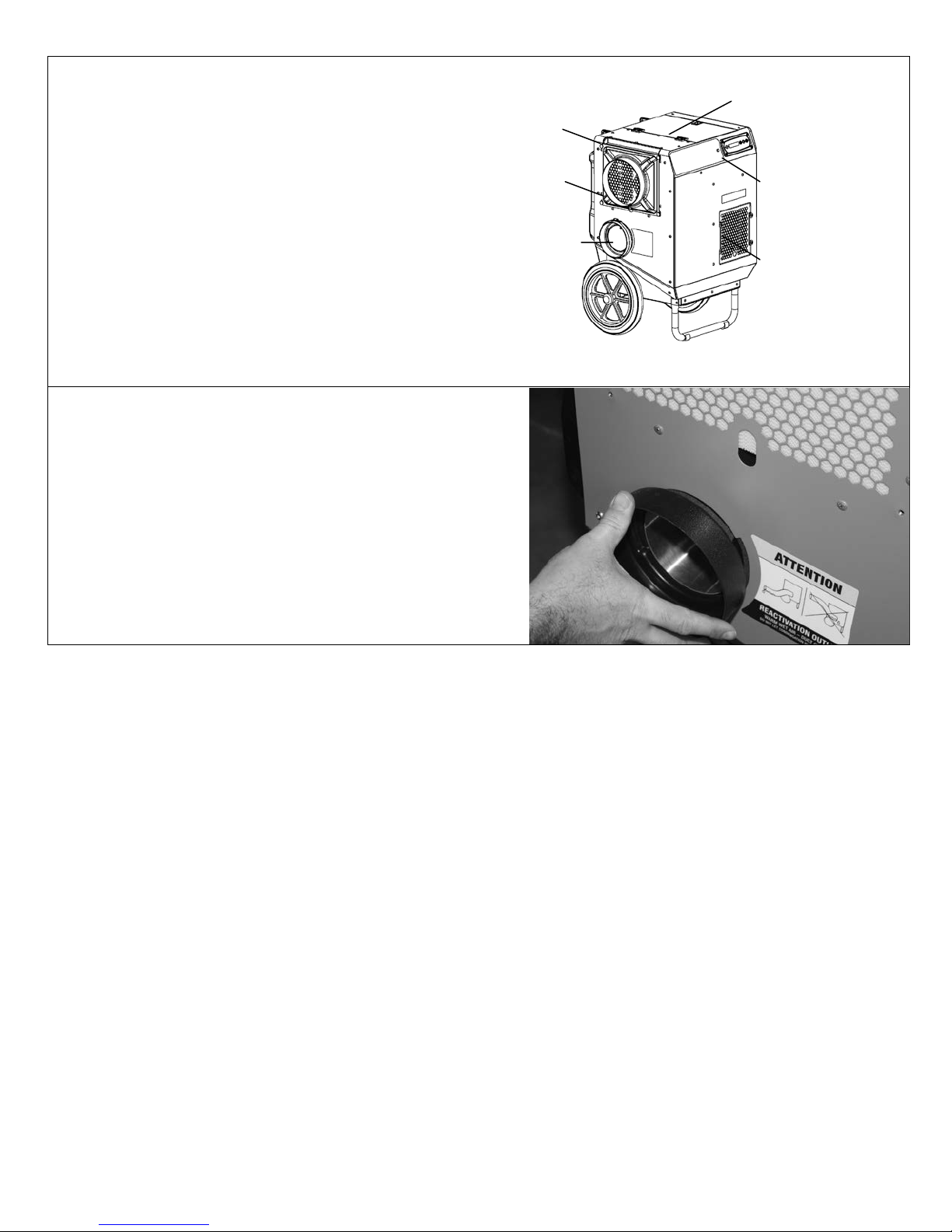

Install Reactivation Air Outlet duct ring. Note: The

unit must always be operated with the react duct ring

and ducting provided.

Insert duct ring into circular slot and rotate clockwise

until snug.

Parts Identification

Air filter

Power sockets inside

compartment. Stor-

age for power cords,

react ducting.

Air inlet

Reactivation

Air Outlet

(installation

of duct re-

quired)

Control panel

Process Air Out-

let (optional duct

attachment kit

provided)

F533-115V 2 Dri-Eaz Products, Inc.

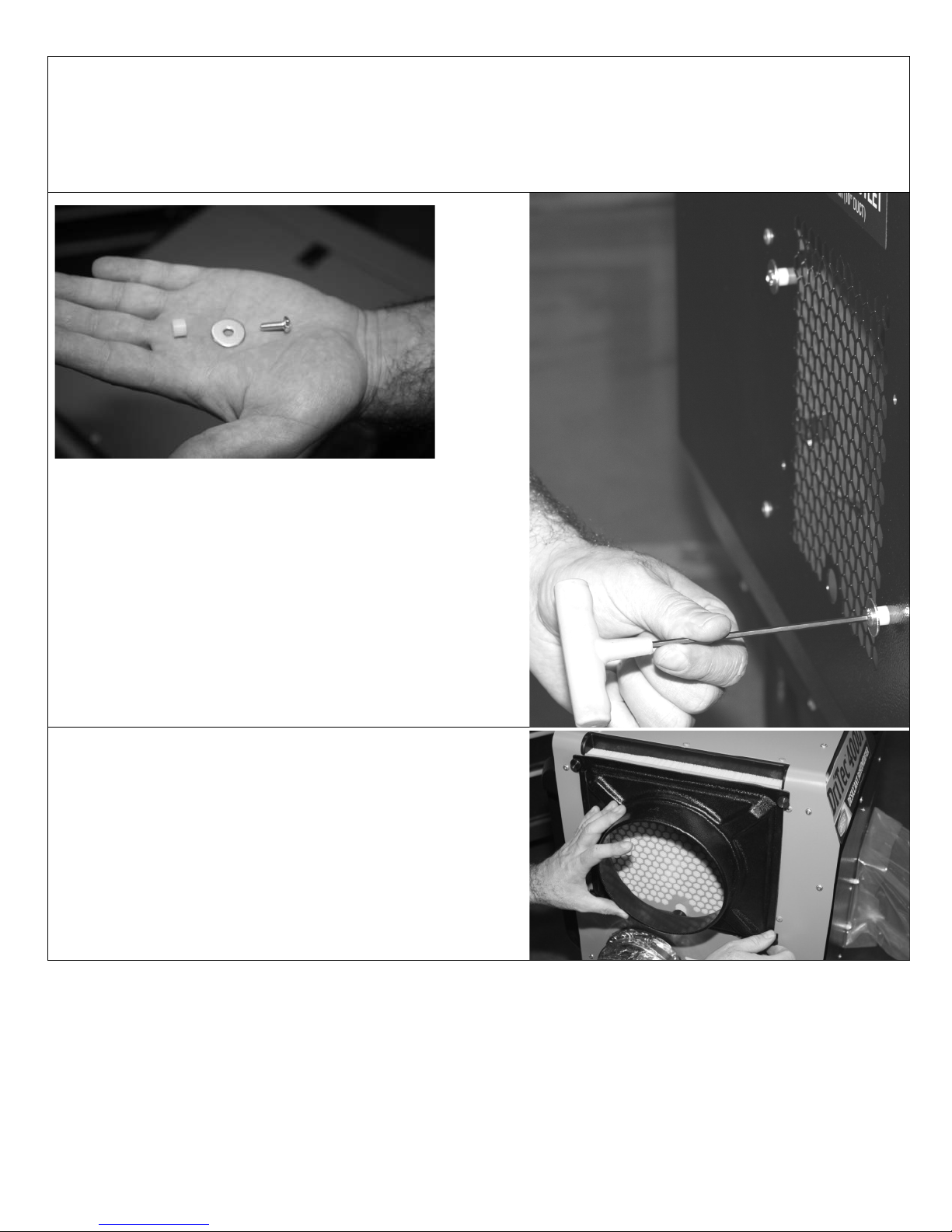

Optional:

Install Process Outlet Duct Ring

Install the 4 offset screws provided. Note the correct

placement of the washer and spacer on the screw. Do

not overtighten.

Optional:

Install Air Inlet Duct Ring

Attach to inlet with the thumbscrews provided.

F533-115V 3 Dri-Eaz Products, Inc.

SETUP AND OPERATIONS

Positioning the Dehumidifier

For best results, operate your dehumidifier in an en-

closed area. Close all doors and windows that open

to the outside to maximize water removal efficiency.

Place your dehumidifier away from any obstructions

that could block airflow into and out of the unit. Duct

reactivation outlet outdoors through window adapter

or dryer vent.

Plug in electrical cords

Always plug the cords firmly into the sockets in

the top compartment first, then into the wall out-

lets. Ensure that the cords are routed properly

through the cord cutout notch before closing the

storage compartment lid.

NOTICE: The power cords of the DriTec must be

plugged into separate GFCI-protected 120V outlets

rated for at least 15A.

NOTICE: Connect to two separate 15A circuits ON-

LY. A bright green light on the front of the unit indi-

cates correct connections. No light will show when

using only one cord or if both power cords are

plugged into the same power circuit.

If a second circuit is not available, the unit may

be operated on a single power cord. Plug into

Circuit 1. Note that the unit will operate at 50% of

the rated performance when using a single pow-

er cord.

Startup display and normal display modes

When unit is first plugged in, the control panel dis-

play will briefly cycle through a series of readouts.

This is part of the unit’s self-diagnosis procedure and

no user intervention is required.

NOTICE

Condensation may collect in the reactivation duct during opera-

tion. Do not allow water to run back into the unit. This could

cause a shock hazard or damage to the unit.

F533-115V 4 Dri-Eaz Products, Inc.

Ducting Setup

For ducting configurations, see “Ducting Options,” p. 5.

Reactivation Outlet Ducting

The reactivation air should always be ducted to the

outside.

Reactivation outlet ducting should not exceed 20 ft.

(6 m) in length. Do not operate unit without reactivation

outlet ducting in place.

NOTICE: Temperatures inside React Out ducting

can reach 150°F (66°C). Use only heat-rated ducting

as provided.

React ducting should always be ducted out-of-

doors.

Process Outlet Ducting (Optional)

The process out air may be ducted where more fo-

cused drying is required. Use with layflat ducting only.

Process outlet ducting should not exceed10 ft. (3 m) in

length.

1. Insert the layflat ducting through the process outlet

duct bracket and fold over as shown in photo to the

right.

F533-115V 5 Dri-Eaz Products, Inc.

2. Then gently squeeze the bracket to fit on the inside

of the offset screws and under the washers. Bracket

will snap into position and hold the ducting securely in

place.

Inlet Air Duct Ring (Optional)

Use a hose clamp to attach 8 in. ducting to the inlet air

duct ring. Ducting and ring purchased separately

Inlet air ducting should not exceed 30 ft. (9.1 m) in

length.

For ducting setup configurations, see “Ducting Options,” p. 6.

CONTROL PANEL

Press the ON/OFF to turn the unit on.

ON/OFF When the machine is turned on, the display normally reads PLEASE WAIT WARMING

UP. Once the unit completes the warm-up procedure, the display shows

UNIT ON XXX HRS and cycles between INLET XXX°F and INLET XX% (RH).

DISPLAY MENU

Cycles through the display of additional dehumidifier conditions and User Settings. To

return to the main menu, press the ON/OFF key once.

MENU SELECTION / UP

KEY Change system settings. The MENU SELECTION key acts as the “UP” key for cycling

through the setpoints.

WATER REMOVAL

Press and release to show a calculated average of water removal in pints/day. The unit

will display WATER REMOVAL XXX PINTS/24H after 5 minutes of run time. The dis-

play will automatically return to the “Unit On” display after a few seconds.

F533-115V 6 Dri-Eaz Products, Inc.

USER SETTINGS

Only menu items followed by a greater-than symbol (>) may be adjusted. If no keys are selected for 5 minutes the display will return to

normal display mode. Items without the symbol (>) are for information only and cannot be changed or reset.

MAIN MENU: Press

DISPLAY MENU

to proceed to the

next menu item. ↓

SUBMENUS: Press MENU SELECTION to proceed

to the next submenu item. →

JOB HOURS

RESET? > JOB HOURS

XX.X Press to reset to 0.

INLET OUTLET

000° 00% 000°00% For information only.

REACT

000° 00% For information only.

HEATER1 CURRENT

00 A For information only.

HUMIDISTAT MODE

OFF > HUMIDISTAT MODE

ON > Press to display ON or OFF. Press to accept.

HUMIDISTAT

SETPOINT 00% > Press to cycle through 5 – 60% at 5% increments. Press to accept.

RH MIN SETPOINT

00% > Press to cycle through 0 – 30% at 5% increments. Press to accept.

LANGUAGE

ENGLISH > IDIOMA

ESPANOL > SPRACHE

DEUTSCH > LANGUE

FRANCAIS >

Press to display lan-

guage options. Press to

accept.

TEMP UNITS

°F > TEMP UNITS

°C> Press to display °F or °C. Press to accept.

LIFE HOURS

00000 HRS For information only.

(Returns to

top menu item.)

The following section available only on wireless-equipped units.

SENSOR ID

000000000 > SENSOR TYPE

00000 > SENSORREVISION

00000 > SENSORCONFREV

00000 >

(Returns to

top menu item.)

F533-115V 7 Dri-Eaz Products, Inc.

Ducting Options

F533-115V 8 Dri-Eaz Products, Inc.

TRANSPORTATION AND STORAGE

NOTICE: Handle the unit carefully. Rough treatment can damage this equipment and may create a hazardous condition

or void warranty.

•Do not expose the control panel to moisture, snow or rain.

•Store and transport securely to avoid any damaging impact to internal parts.

•Secure during transport to prevent sliding and possible injury to vehicle occupants.

MAINTENANCE

WARNING! ELECTRIC SHOCK HAZARD. Unplug unit before cleaning or servicing.

WARNING: Risk of dust and contaminants exposure. Use of respirator mask and gloves is recommended. If unit

has been exposed to potentially dangerous contaminants, clean thoroughly and disinfect before reuse.

Tools and supplies required:

•3 mm Allen wrench and/or bit and cordless drill

•Clean cloths

•Vacuum cleaner with soft brush tool and/or a high pressure air nozzle

As Needed (Exterior items)

Air Filter. Slide upward and out to inspect and vacu-

um as necessary. Replace the HAF filter whenever

it has been vacuumed clean and reused three

times. See “About 3M High Air Filters” for more in-

formation.

To maintain appearance, wipe interior and exterior

surfaces with a damp cloth.

As Needed (Interior items)

NOTICE: Electric shock hazard. Unplug unit before removing side panels.

NOTICE: The unit is fitted with sensitive electronic sensors. Protect the sensors and their lead wires from damage and do

not expose them to water or cleaning solution.

F533-115V 9 Dri-Eaz Products, Inc.

Remove side panel. Using the 3 mm Allen wrench

or bit, remove the screws from the react out / air inlet

panel.

IMPORTANT: The inlet temp/RH sensor cable is

attached to the interior of the panel and must be

detached before setting the panel aside. To re-

move the cable, first unclip the plug and then slide the

cable down and out of the cable tie. Once the cable is

free of the panel, set the panel aside.

F533-115V 10 Dri-Eaz Products, Inc.
