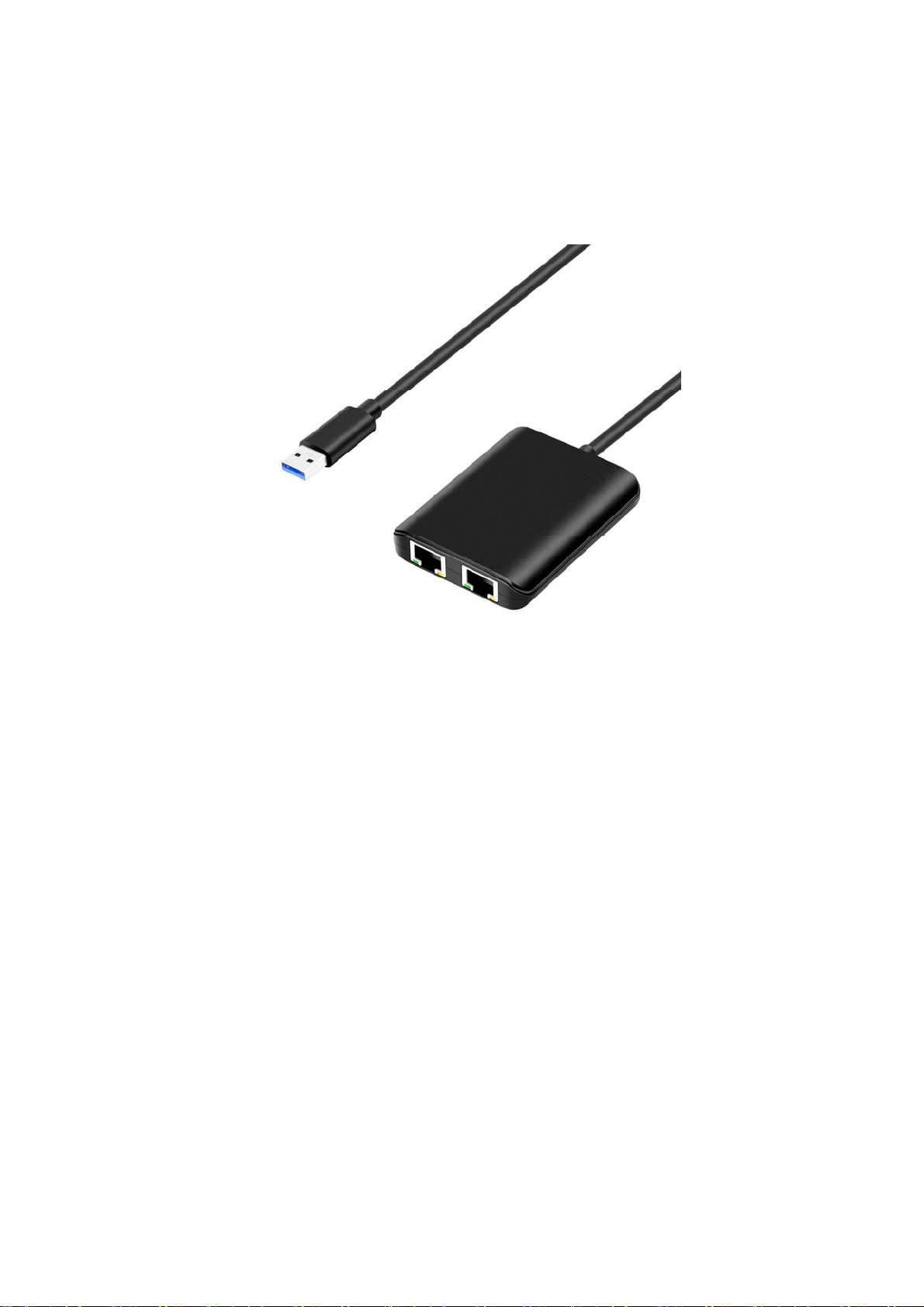

USB 3.0 to Dual Gigabit Ethernet Adapter with
USB Pass-Through Port
CU200
*actual product may vary from photos
DE: USB 3.0 auf Dual Port Gigabit Ethernet LAN Adapter mit USB-Port
ES: Adaptador Tarjeta de Red NIC Externa USB 3.0 2 Puertos Gigabit Ethernet RJ45 y Puerto USB
FR: Adaptateur réseau USB 3.0 vers 2 ports Gigabit Ethernet - Convertisseur USB vers 2x RJ45
IT: Adattatore USB 3.0 a doppia porta Ethernet Gigabit NIC con porta USB
JP: USB 3.0－2ポート Gigabit Ethernet LAN アダプタ (USB ポート x1 付き)
Copyright and Trademarks
YANX is a registered trademark of YanXiang Electronics CO., Limited. Other brands and product names
are trademarks or registered trademarks of their respective holders.
Copyright©2019
Introduction
Packaging Contents
• 1 x USB 3.0 Dual Network Adapter
• 1 x Driver CD
• 1 x Instruction Manual
System Requirements
• Available USB port
• Windows® 10 / 8 / 7
Mac OS 10.6 - 10.8
Linux kernel 2.6.25 ~ 3.5.0
Installation
Driver Installation
NOTE: The drivers for the USB Hub will be automatically installed by the host computer’s operating
system. Only the driver for the Ethernet port needs to be installed.
Windows / Mac
1. Insert the provided CD into your DVD/CD-ROM drive.
2. Open the contents of your CD/DVD drive and browse to x:\LAN\AX88179\ (where x:is your CD/DVD drive
letter), then select the appropriate folder for your operating system.
3. For a Windows install, run the “AX88179_Setup.exe” application to launch the driver installation (For
Mac OS, run the “MAC OS X\AX88179_178A.dmg” application).
4. Follow the on-screen instructions to complete the install.
NOTE: You may be prompted to restart at the end of the install
Hardware Installation
1. Connect the USB 3.0 Dual Network Adapter to an available USB port.
NOTE: If connected to a USB 2.0 host port, the pass-through port will only operate at USB 2.0 speeds and
network performance may be limited.
2. The host computer’s operating system should detect the hub immediately and automatically install the
USB drivers.
3. Once installation is complete, USB 1.x/2.0/3.0 devices should be able to be connected to the hub and
recognized.
Verifying Installation
Windows
1. Open the Device Manager by right-clicking on Computer, and then select Manage. In the new
Computer Management window, select Device Manager from the left window panel (For Windows 8, open
the Control Panel and select Device Manager).
2. Expand the “Network adapters” section. On a successful install, you should see the following devices
installed with no exclamation points or question marks.
Mac OS
1. Open the System Profiler by clicking the Apple symbol in the top left corner, selecting About this Mac,
then select System Report
2. Expand the “Network” section. With the adapter connected, you should see the following devices in
the list.
Specifications
Host Interface USB 3.0
Chipset ASIX -
AX88179 (2) VIA -
VL811
Connectors
2 x RJ-45 Female
1 x USB 3.0 type A Male
1 x USB 3.0 type A Female
LED Indicators 2x 10/100 Link/Activity (Green)
2x Gigabit Link/Activity (Amber)
Maximum Data Transfer Rate USB 3.0: 5 Gbps LAN: 1
Gbps (per port; Full-Duplex)
Supported Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
Supported Network Link Speeds 10/ 100/ 1000 Mbps
Ethernet Full Duplex Support Yes
Auto MDIX Yes
Power USB-Powered
Enclosure Material Plastic
Operating Temperature
0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Dimensions 263 x 87 x 34 mm
Humidity 5~85% RH
Weight 50g
Compatible Operating Systems
Windows® 10 / 8 / 7
Mac OS 10.6 - 10.8
Linux kernel 2.6.25 ~ 3.5.0
