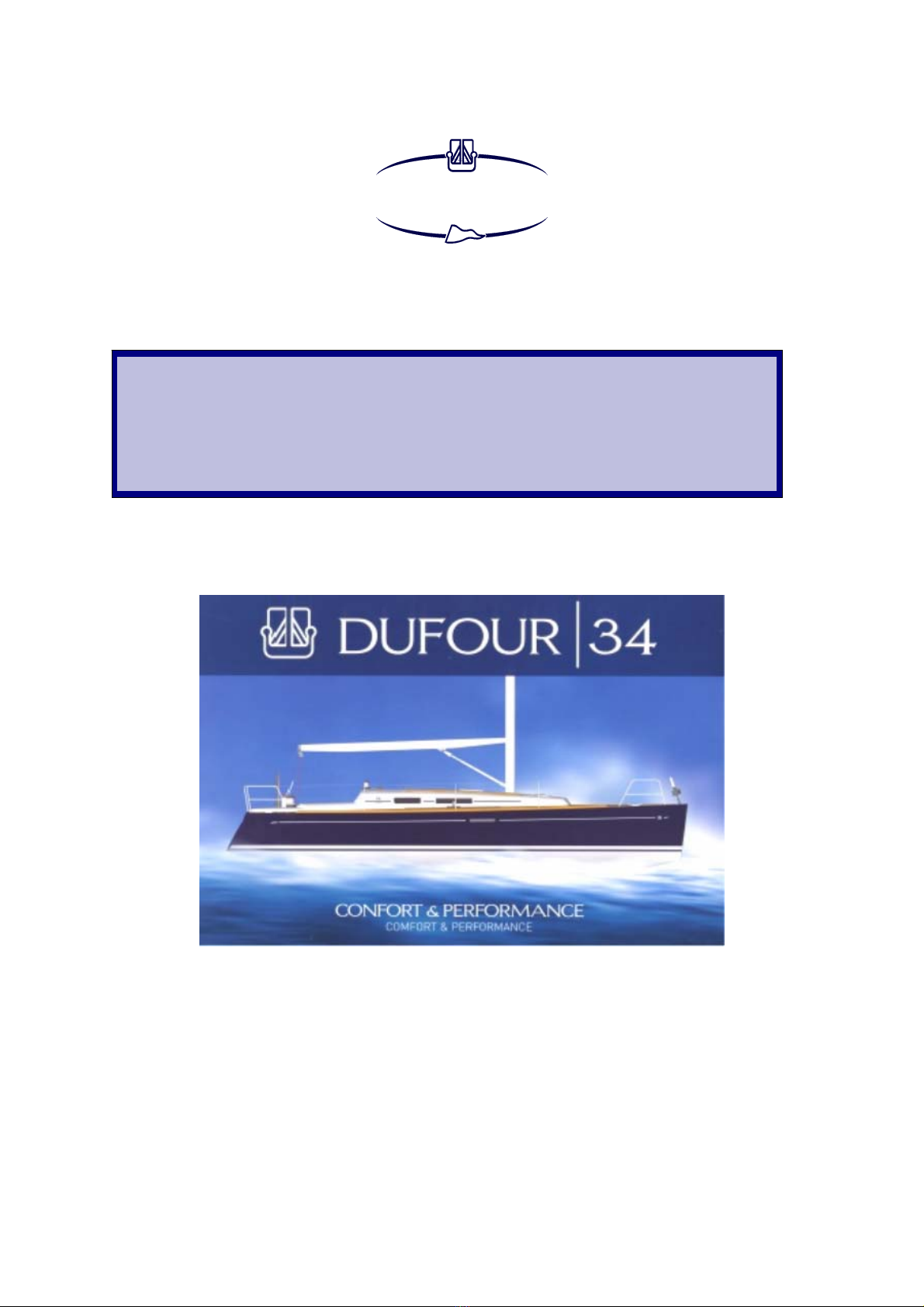

DUFOUR YACHTS

LA ROCHELLE

OWNER'S MANUAL

ENGLISH 15-02-03 Page 1

DUFOUR 34

ENGLISH 15-02-03 Page 2

DUFOUR 34

Your agent

Name

Address

is DUFOUR YACHTS' representative and will give you all the help you need to solve

any problems you might have during launching and masting, as well as with technical checks

for bringing your boat into service and maintaining it. If necessary, he will help you with the

administrative process of registering your boat.

As soon as you become the owner, familiarize yourself with the manual supplied with your

boat, sign and date the receipt acknowledgements below, and give (or send) the last one to

your agent.

Owner's Manual receipt acknowledgement to be kept in your Manual

I, the undersigned:

Name

owner of DUFOUR 34 no.

confirm that I have received the DUFOUR 34 Owner's Manual and accept its being written

in the French language.

On:

Signature:

Detach along dotted line

…………………………………………………………………………………………………………………

Owner's Manual receipt acknowledgement to be returned to DUFOUR YACHTS

Z.I.- 1, Rue Blaise Pascal- 17187 PERIGNY CEDEX- FRANCE

I, the undersigned:

Name

Address

owner of DUFOUR 34 no.

confirm that I have received the DUFOUR 34 Owner's Manual and accept its being written

in the French language.

On:

Signature:

CONTENTS

ENGLISH 15-02-03 Page 3

DUFOUR 34

Introduction

1. Design category of yacht

2. Specifications

3. Electrical systems

4. Gas installation

5. Drain and sanitation system

6. Flooding

7. Fire protection

8. Engine

9. Fuel installation

10. Steering system

11. Sailing

12. Lightning protection

13. Environmental protection

14. Safety facilities

15. Handling, transporting, haulout

16. Guarantee Conditions – Transfer of Ownership

DRAWINGS

1 Presentation

2 Layout

3 Deck fittings

4 Sail plan

5 Halyard and sheet rigging plan

6 110 V circuit

7 220 V circuit

8 Charging and power circuit

9 12 V electrical panel

10 12 V electrical panel terminals

11 12 V electrical installation

12 220 V electrical installation

13 Steering system

14 Gas system

15 Abandoning ship

16 Fresh water system

17 Drainage system

18 Skin fittings

19 Engine installation

20 Holding tank (Option)

21 Sea and inland waterways charter

22 SNSM (National Sea Rescue Society) page

ENGLISH 15-02-03 Page 4

DUFOUR 34

INTRODUCTION

DUFOUR YACHTS is delighted to present you with this manual that will enable you to

get to know your boat better.

This manual has been produced to help you enjoy the use of your boat in complete safety.

Read it carefully, in particular to avoid fire and flooding risks, and familiarize yourself with

your boat before using it.

If this is your first boat, or if you are changing to a type of boat you are unfamiliar with, for

your convenience and safety, make sure you gain experience in handling and use before

taking command of your boat. Your agent, your national yachting federation or your yacht

club will be more than happy to recommend local sailing schools or qualified instructors.

KEEP THIS MANUAL IN A SAFE PLACE AND PASS IT ON TO THE NEW

OWNER IF YOU SELL YOUR BOAT.

NOTICE: Our boats are regularly improved in the light of our customers' experiences and

research by the shipyard, and so the specifications given in this Owner's Manual are not

contractually binding and may be changed without notice and without any obligation to

update.

This manual is intended to cover as much information as possible, so certain equipment or

paragraphs might not apply to your boat. In case of doubt, please refer to the inventory

which should have been given to you by your agent when you placed your order.

ENGLISH 15-02-03 Page 5

DUFOUR 34

1. DESIGN CATEGORY OF YACHT

Your DUFOUR 34 comes under the OCEAN-GOING design category (category A).

In normal conditions of use, your boat is designed for sailing with effective wave heights up

to 7 m and winds of Beaufort Force 10 or less, and to withstand the severest conditions.

This sailing capability is equally dependent on the skills of the crew, their physical capacities,

the maintenance of the boat and its equipment.

So always take care before putting to sea.

DUFOUR YACHTS is not able to guarantee perfect functioning of the boat in exceptional sea

conditions (violent storms, hurricanes, cyclones, waterspouts,...)

DESIGN CATEGORIES

Design

Categories Type of sailing Wind strength

(Beaufort) Wind

speed Effective height

of wave to be taken

into account

A Ocean-going Up to and

including 10 Up to 28 m/s Up to 7 m

B Open sea Up to and

including 8 Up to 21 m/s Up to and including 4

C Inshore Up to and

including 6 Up to 17 m/s Up to and including 2

D Sheltered waters Up to and

including 4 Up to 13 m/s Up to and including

0·3 m

2. BOAT SPECIFICATIONS

2.1. General specifications

Model: DUFOUR 34

Designer: Umberto Felci

Design category A

Notified organization no. CE/0609

LOA: 10.60 m

Hull length: 10,28 m

LWL: 9.13 m

Maximum beam: 3.48 m

Draught short / long: 1.49 m /1.92 m

Mast height clearance: 15.00 m

Ballast weight short / long: 1 750 / 1 670 kg

Light displacement: 5 944 / 5 864 kg

ENGLISH 15-02-03 Page 6

DUFOUR 34

Standard mainsail area (approximate) 29,30 m²

Roller-furl genoa area (approximate) 32,50 m²

Water capacity excluding water-heater

(approximate) 285 L

Diesel capacity (approximate) 90 L

Holding tank (depending on option) 42 L/ 45L

Engine battery (depending on version) 75 Ah

Auxiliary battery (standard version) 75 Ah

Primary means of propulsion Sail

Maximum permissible on-board engine power 23 kw

2.2. Maximum loading

Category A B C

Number of people 8 people 8 people 8 people

Crew weight (75 kg/person) 600 600 600

Basic safety equipment 61 61 61

Stores & cargo 160 160 160

Life-raft

(not included in standard kit) 69

Max. recommended loading (kg):

Indicated on information plate. 890

890

NB: The recommended maximum loading does not include the contents of the various tanks installed on board

by the builder.

ENGLISH 15-02-03 Page 7

DUFOUR 34

3. ELECTRICAL SYSTEMS

3.1. Safety and operating instructions for the electrical system

WARNING

Always:

−Check the condition of the batteries (charge and electrolyte level) and the charging

−system before putting to sea.

−Disconnect and remove batteries for wintering.

−Do not let battery voltage drop below 10·5 V during wintering.

−Carry spare lamps for all navigation lights and interior lighting.

−Respect power ratings, particularly for navigation lights.

−Check operation of the navigational instruments.

−Check operation of navigation lights before night sailings

Never:

−Work on an electrical installation that is live.

−Make any modification to an installation and the relevant diagrams, unless it is

carried out by an electrician qualified in marine electrics.

−Change or modify the breaking capacity of overload protection devices.

−Replace electrical apparatus or equipment with units exceeding the rated capacity

without uprating wiring and protection.

−Leave the boat unattended when the electrical installation is powered, with the

exception when applicable of the automatic bilge pump and the fire or theft

protection circuits.

If a fuse or circuit-breaker blows continually, a specialist must be consulted to

determine the origin of the short-circuit.

3.2. Installing new equipment

Since the 1st January 1996, electrical equipment is subject to the European

"electromagnetic compatibility" directive (Ref 89/336/CEE). Hence it is necessary to

install new equipment meeting this standard and bearing the CE mark. Equipment must

also be supplied with a compliance certificate and instructions for use.

In the case of 220 or 110 V installations, use only double-insulated or earthed

equipment. When such equipment is being installed, respect the fitting instructions

(conductor size, protection).

To avoid maintenance problems, be sure to mark in the manual and modifications that

may be made to the electrical diagram.

ENGLISH 15-02-03 Page 8

DUFOUR 34

3.3 Batteries

The battery capacity has been designed to meet the power requirements of the on-board

accessories. To avoid any problems, it is necessary to keep a close eye on the

maintenance and correct charging of the batteries.

NOTE

- When installing new electrical appliances, take care that the overall consumption of

these appliances remains within the capacity of your batteries.

-Always disconnect the -ve battery terminal before the +ve terminal

-Never allow a conductive object (tools, etc…) to bridge the two battery terminals

-When handling batteries, keep them horizontal to avoid spillage of electrolyte. Wear

gloves and protective clothing that will prevent any risk of contact with electrolyte

in the event of a leak.

-In the event of electrolyte splashes, rinse the affected part of the body copiously and

consult a doctor.

3.4 Electric winch

NOTE

It is essential to run the engine with the throttle slightly open when using the electric

winch.

ENGLISH 15-02-03 Page 9

DUFOUR 34

3.5 220/110 Volt installation

DANGER

The on-board 220 or 110 V installation is protected by a circuit breaker and fitted with a

residual current device. The wiring of additional 220 or 110 V on-board accessories

must be carried out by professionals, with uprating of the master circuit-breaker if

necessary.

DANGER

Your boat is not supplied with a shore/boat supply cable or a male plug for the shore

outlet. The cable must be suitable for outdoor use. Its cross-sectional area must be

adjusted according to its length and the rating of the main circuit-breaker (see

electrical diagram). The plug must be suitable for the female socket on the shore (if

necessary, seek the advice of a professional)It should be as near as possible to the IP

67 / IEC529 type

-Switch off the shore supply at the on-board isolator before connecting or

disconnecting the shore/boat supply cable.

-Connect the shore/boat supply cable at the boat end before connecting it to

the shore outlet

-Disconnect the shore/boat supply cable at the shore outlet before

disconnecting it at the boat end

-Close the shore outlet cover properly

ENGLISH 15-02-03 Page 10

DUFOUR 34

4. GAS INSTALLATION

4.1 Operating advice

−Read the instructions for the cooker and regulator carefully.

−Ensure that the gas cylinder and regulator are in accordance with the requirements of

the cooker (flow rate, pressure, type of gas).

−Ensure that the gas cylinder complies with the regulations in force in the country

where it is being used.

−Appliances burning fuel use up the oxygen in the cabin and release combustion

products into the boat. Ventilation is required when appliances are alight. Open the

coachroof ports while you are cooking.

−Do not use the oven as a heater.

−Do not obstruct quick access to the elements of the gas installation (cylinder locker,

shut-off valve).

−The gas cylinder must always be stowed in the space provided

−Never leave the boat unattended when gas appliances are alight.

−Close all valves in the circuit when the boat is left empty (shut-off valve, regulator

valve), even if the cylinder is considered to be empty.

−After the boat has been shut up, never smoke when going below, and ensure that

there is no smell of gas.

−If you smell gas, close the circuit valves and the cooker taps, ventilate the boat, and

find the leak before using the installation again.

WARNING

In the event of an emergency, the circuit valves must be closed immediately.

Indice

Altri manuali Dufour Yachts Barca

Dufour Yachts

Dufour Yachts 460 Manuale utente

Dufour Yachts

Dufour Yachts Dufour 385 Manuale utente

Dufour Yachts

Dufour Yachts 500 Grand Large Manuale utente

Dufour Yachts

Dufour Yachts 382 Grand Large Manuale utente

Dufour Yachts

Dufour Yachts DUFOUR 382 Grand Large 2019 Manuale utente

Dufour Yachts

Dufour Yachts Grand Large 445 Manuale utente

Dufour Yachts

Dufour Yachts 350 Grand Large 2015 Manuale utente

Dufour Yachts

Dufour Yachts 365 Grand Large Manuale utente

Dufour Yachts

Dufour Yachts 560 DUFOUR Grandlarge cruising escape Manuale utente

Dufour Yachts

Dufour Yachts 56 Exclusive Manuale utente

Dufour Yachts

Dufour Yachts Grand Large 455 Manuale utente

Dufour Yachts

Dufour Yachts 40 Performance Manuale utente

Dufour Yachts

Dufour Yachts 360 Grand Large Manuale utente

Manuali Barca popolari di altre marche

Raymarine

Raymarine ST70 Instrument Manuale utente

Pro-Line Boats

Pro-Line Boats Pro Line 19 Sport Manuale utente

Jeanneau

Jeanneau CAP CAMARAT 8.5 CC Manuale utente

Tiara Yachts

Tiara Yachts C49 2024 Manuale utente

Monterey Boats

Monterey Boats Sport Yacht 330 Manuale utente

J 105 Manuale utente

PURSUIT

PURSUIT OS 335 Manuale utente

Boston Whaler

Boston Whaler CONQUEST 345 Manuale utente

Jeanneau

Jeanneau SUN ODYSSEY 41 DS Manuale utente

Meridian

Meridian 490 Pilothouse Manuale utente

Advanced Elements

Advanced Elements AdvancedFrame Expedition AE1009 Manuale utente

Robo Marine Indonesia

Robo Marine Indonesia GEOMAR Manuale utente

Swallow Boats

Swallow Boats BayRaider Manuale utente

Intex

Intex Excursion 5 Set Manuale utente

X SHORE

X SHORE EELEX 8000 Manuale utente

ISLAND PACKET

ISLAND PACKET 370 Manuale utente

Sea Ray

Sea Ray 175 Sport Manuale utente

Regal

Regal 2300 Manuale utente
