DUKANE AV Products
FEATURES
!Long 20” neck to reach more locations
!Stronger neck than others
!Large stable base
!Long, 10 foot video cable between the
camera and the TV or VCR
!High resolution image, over 400 lines
A/V Products
PROJECTING YOU INTO THE FUTURE
www.dukane.com/AudioVisual/
Form Number 11488-E-00
Model 28A101
Video Camera
Camera 101

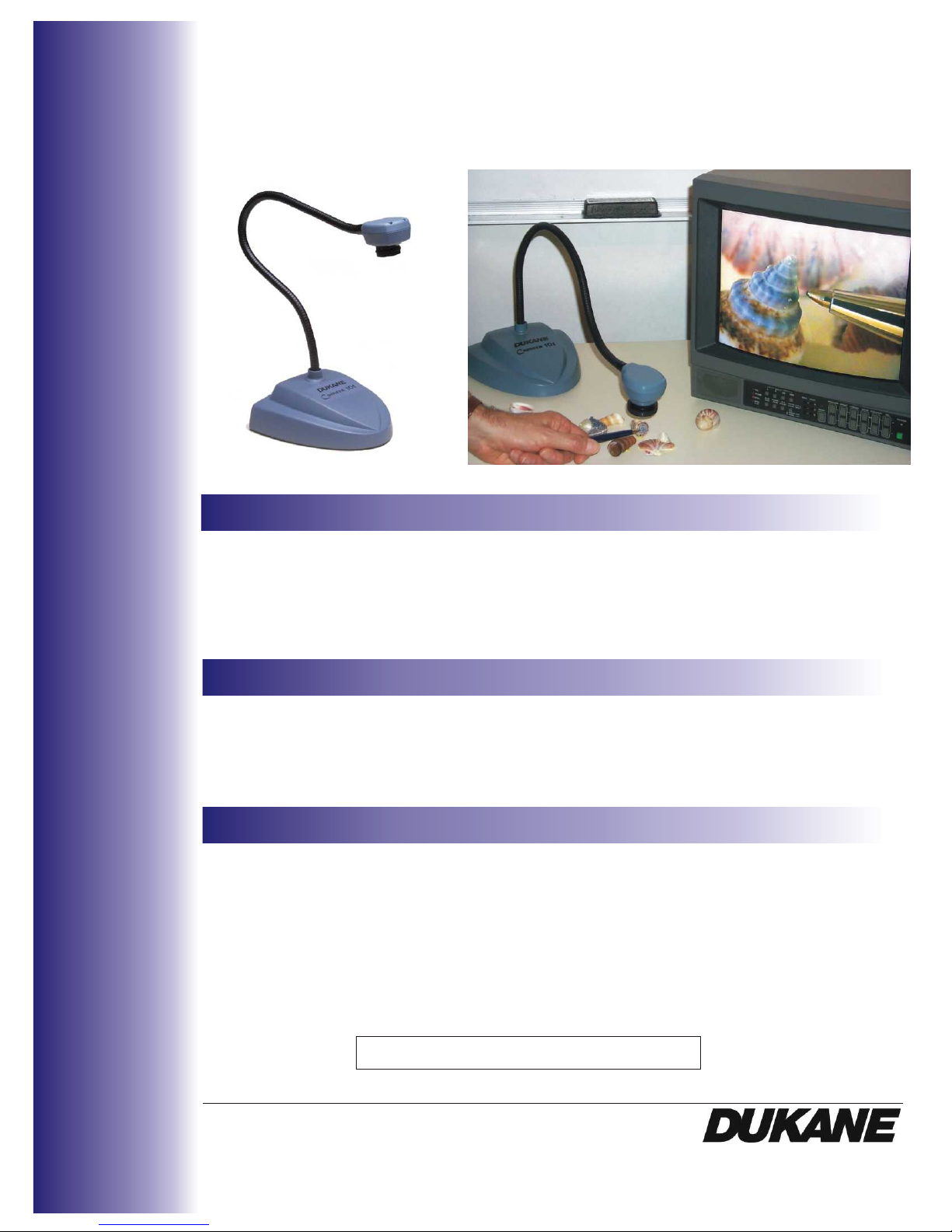

Camera 101 in a typical set-up viewing a small object.
SPECIFICATIONS
CCD- Color Array - 542 X 542 Picture Array - Auto Adjusting Light Range - 1.5 Lux Low light Level -
Automatic White Balance - 6 mm FL Manual Focus Lens - 0.5 inch to infinity Focus Range - Fast
Focus ring with Flex Grip - Up to 50 X Magnification - 20 inch Flexible Neck - +/- 90 Degrees
Head Rotation - Composite, NTSC Video Output - 10 Feet Video Cable - Video out, RCA male, -
Power, - Wall Mount Transformer, 120 VAC, 6.75 Watt 9VDC output - 6 feet Power Cable with DC
jack - Power Switch on unit base with indicator LED - Weight 4 lbs. 3 oz. 4 lbs. 10 oz/with power
supply - Shipping Weight 5 lbs. 8 oz. - Base size 7.5” x 7” x 2.5” Head size 2” x 2.5” x 2” - Carton
Size 8” x 8” x 13” - UL listed - Made IN USA
!DSP (digital signal processing) for sharper,
higher contrast images
!Easy to use, only two connectors and focus,
the rest is automatic
!The lens cannot be accidentally removed
!Great low light level imaging ability
Capture and display scenes in industry or the classroom. Look at graphics, laboratory experiments,
test results, groups, individual images or any other objects with this small camera. It provides the
flexibility to see and show. A 10 ft. video cable lets the camera go anywhere and capture images
from any position. It is an ideal partner to the Dukane ImagePro projectors and provides the means
to show a new hidden world.
DESCRIPTION
One Year Limited Warranty on Parts and Labor in North America.
(For other locations, local warranties apply.)
CAMERA 101CAMERA 101
CAMERA 101CAMERA 101
CAMERA 101
Image UnitImage Unit
Image UnitImage Unit
Image Unit CCD- Color Array
Picture ArrayPicture Array
Picture ArrayPicture Array
Picture Array 542 X 582
ResolutionResolution
ResolutionResolution
Resolution 400 + TV Lines
Light RangeLight Range
Light RangeLight Range
Light Range Auto Adjusting
Low Light LevelLow Light Level
Low Light LevelLow Light Level
Low Light Level 1.5 Lux
White BalanceWhite Balance
White BalanceWhite Balance
White Balance Automatic
LensLens
LensLens
Lens 6mmFL, manual focus
Focus RangeFocus Range
Focus RangeFocus Range
Focus Range 0.5 inch to infinity
Focus AdjustmentFocus Adjustment
Focus AdjustmentFocus Adjustment
Focus Adjustment Fast focus ring, with flex grip.
MagnificationMagnification
MagnificationMagnification
Magnification Up to 50 X
Flexible neckFlexible neck
Flexible neckFlexible neck
Flexible neck 20 inch length
Head RotationHead Rotation
Head RotationHead Rotation
Head Rotation +/- 90 degrees
Video OutputVideo Output
Video OutputVideo Output
Video Output Composite, NTSC
Video cableVideo cable
Video cableVideo cable
Video cable 10 feet
Cable ConnectorCable Connector
Cable ConnectorCable Connector
Cable Connector Video out, RCA male,
Power, DC jack
Power SupplyPower Supply
Power SupplyPower Supply
Power Supply Wall mount transformer, 120
VAC, 6.75 Watt 9VDC
output
Power CablePower Cable
Power CablePower Cable
Power Cable 6 feet with DC jack
Power SwitchPower Switch
Power SwitchPower Switch
Power Switch On unit base with indicator
LED
WeightWeight
WeightWeight
Weight 4 lbs. 3oz
4 lbs. 10 oz with power
supply
Shipping WeightShipping Weight
Shipping WeightShipping Weight
Shipping Weight 5 lbs. 8oz
SizeSize
SizeSize
Size Base 7.5” x 7” x 2.5”
Head 2” x 2.5” x 2”
Carton SizeCarton Size
Carton SizeCarton Size
Carton Size 8”x8”x13”
SafetySafety
SafetySafety
Safety UL Listed
Video Camera OperationVideo Camera Operation
Video Camera OperationVideo Camera Operation
Video Camera Operation
Specifications (Specifications are subject to change without notice)
This is an exceptionally easy camera to set up and use. Just
plug in the transformer, insert the two cable connectors, and
push the power switch. The camera does all the rest.
It is a high resolution NTSC video out, full color camera
mounted on a flexible neck. The camera is self adjusting to
the image conditions using a DSP ( digital signal process-
ing) system.
Camera101 automatically operates whether viewing in bright
sunlight or low light levels down to 1.5 Lux. It can focus on
objects with a 50 times magnification or look out to infinity. It
will image fabric texture or the moon.
With its long flexible 20” neck and rugged sturdy base the
camera can be easily positioned to view a variety of objects.
For rapid image positioning, the head can be rotated 180
degrees on the neck.
The resulting image is NTSC baseband which can be conve-
niently shown on monitors or by LCD projectors. It can also
be recorded via a VCR or digitized for computer display
Capture and display scenes in industry and classroom. Look
at graphics, laboratory experiments, test images, groups or
individual images or any other objects with this small cam-
era. It provides the flexibility to see and show. A 10 ft. video
cable lets the camera go anywhere and capture images from
any position. It is an ideal partner to the Dukane ImagePro
projectors and your ability to show the hidden world.
Camera101
Video Camera
Model 28A101
FormNo:11488-H-00
Audio Visual Products
Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174
Toll Free (800) 676-2485 or 2486
Fax (630) 584-5156
e-mail: [email protected]
Camera 101
One year Limited Warranty on Parts and Labor in North
America (for other locations, local warranties apply).
