Specifications
Five (5) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply).
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av ImagePro is a registered trademark of Dukane Corporation
Toll-free: 800-676-2485
Fax: 630-584-5156
#11628-B-05
Model. Camera 220S
Image Unit 1/3" CCD Progressive Scan
Picture Array 1077 (H) x 788 (V)
Effective Pixels 1024 x 768, XGA
Lens F 3.6, f=5.0 mm, manual focus
Shooting Area 13.0" x 9.8" (max)
1.3" x 0.9" (min)
Frame Rate 20 Frame/Sec
Lighting CCFL, Cold Cathode
Fluorescent Lamp
White Balance Auto
Exposure Auto/Manual
Digital Zoom 15 X
Image Mode Normal / Film / Gray
Gamma Photo / Text
Image Flip 0 deg / 180 deg
Freeze Yes
Built in Storage 32 Frames
Output Signal 60Hz/75Hz (XGA), 60Hz/75Hz
(SVGA), NTSC/PAL
Input Connections VGA Passthrough, Shared with
DVI connector
Output Connections VGA, HD-SUB, 15 Pins Female
DVI, Digital & Analog Connector
C-Video, RCA jack
USB Type B
DC 12V Output, DC jack
Camera Color Metallic Silver
Power Supply 100-240 Vac
Power Consumption 18 Watts
Weight 5.3 lbs
Dimensions 8" (L) x 5.6" (W) x 15" (H)
Shipping Weight 7.8 lbs
Carton Size 14.5" x 7" x 12"
Safety UL Listed
Accessories Included Power cord, VGA cable, USB cable,
C-Video cable, DVI adapter, Image
Software, Users manual and
Remote control
5YR

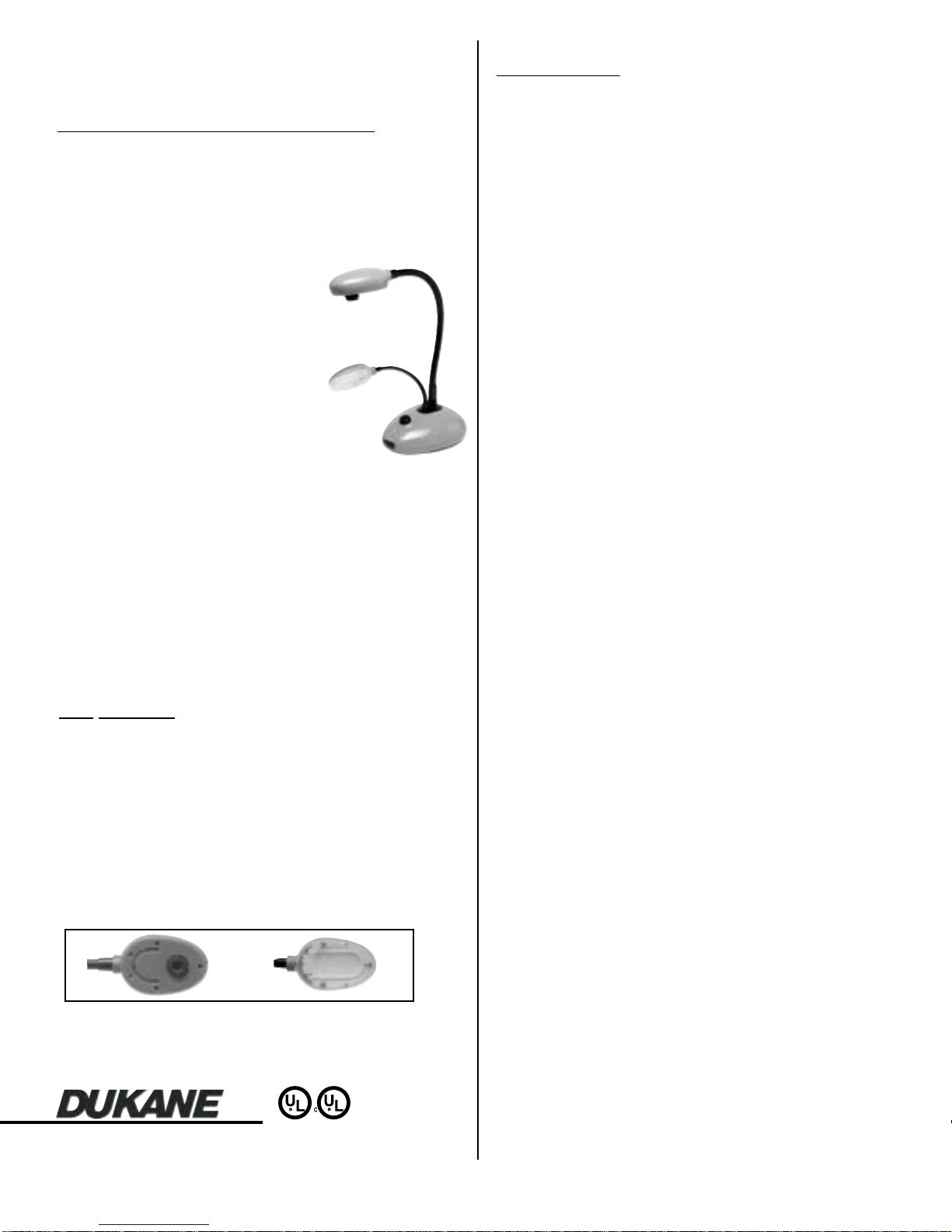

Dukane Camera 220S
Digital Visulizer Camera
Great Data and Super Video Images
The Dukane Camera 220S is a digital visualizer
designed for ease of use. It is a true plug and play
device that leaves no room for human error. The cam-
era is equipped with a high performance CCD that
provides superior image quality. The 1024 x 768
XGA resolution assures you of vivid images. The lens
is designed for high field depth performance that
ensures razor sharp images of 3D
objects. The convenient pass
through function allows simple sig-
nal source selection from either the
visualizer itself or from your computer
without interrupting your presentation.
The Camera 220S is an extremely
functional stylish visualizer, that
goes well into any boardroom. Use it to
capture, save and display scenes in indus-
try, boardroom or the classroom. Look at
graphics, laboratory experiments, test results,
groups, individual images or any other objects with
this stylish visualizer. The Camera 220S is the ideal
partner to the Dukane ImagePro™ projectors and
provides the means to display the hidden world.
The Camera 220S has a smart gooseneck design
that simplifies complicated mechanical visor adjust-
ments. The lens head and the light head may be
rotated 360 degrees, allowing images to be cap-
tured at all angles. In addition, the lamp is built on
an adjustable swivel that can be rotated to avoid
glare and shadow effects caused by external
illuminants.
Individual heads for both the light and camera. The
flexible camera head allows images to be viewed
and captured at all angles.
Key features:
• Exceptional Image Quality
• High resolution, XGA 1024 x 768
• Digital zoom, 15x
• Full connectivity, DVI out
• Fluorescent lamp
• Image flip up/down selectable
• Remote control
• Image capture and built-in storage
• Extremely easy to use
