Dunkirk 95M-200 Guida

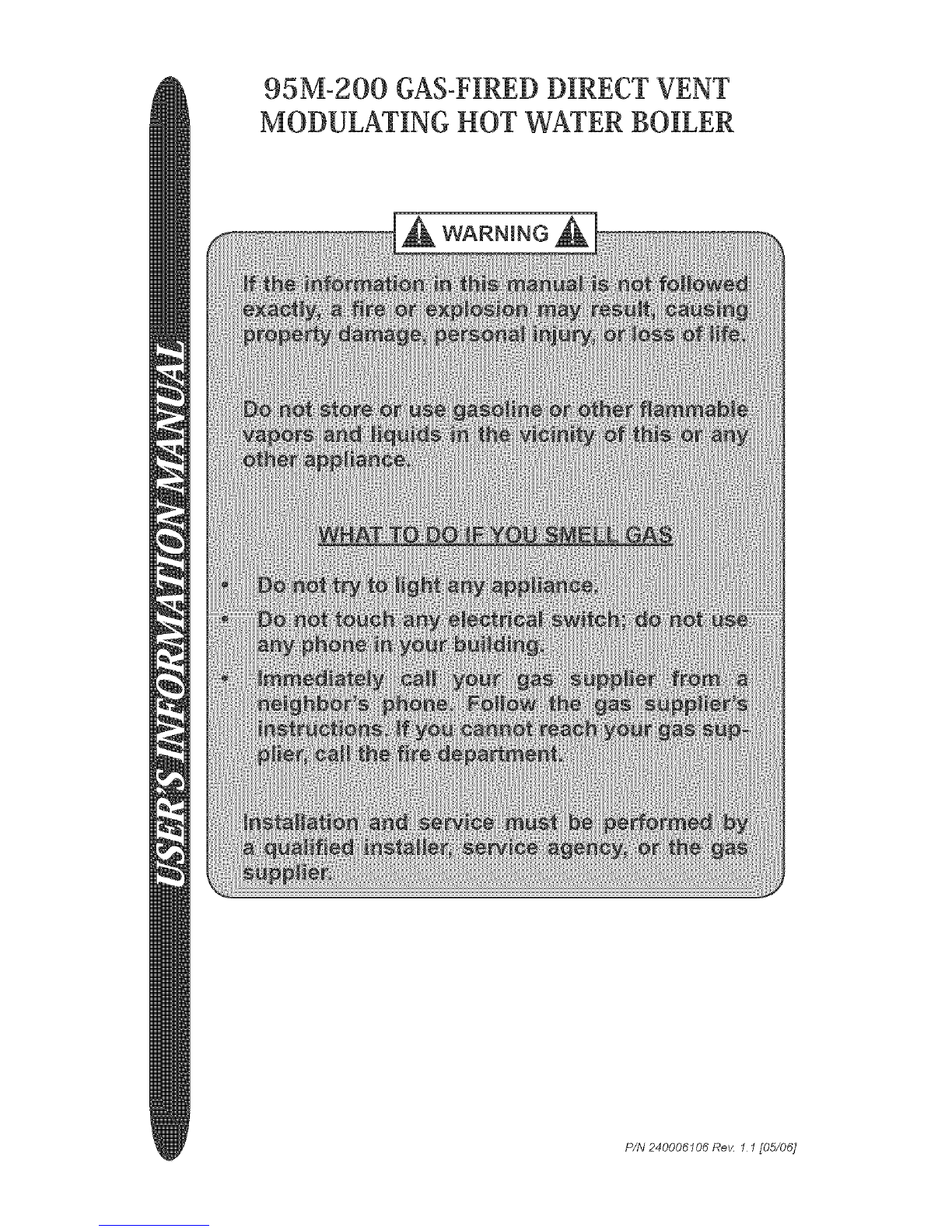

95M-200 GAS-FIRED DIRECT VENT

MODULATING HOT WATER BOILER

Pff'J 240006106 Re,z I I [05/06]

Do not store or use gasoline or other flammable vapors

and liquids in the vicinity of this or any other appliance.

A. This appliance does n have a pilot. It is equipped with an igni-

tion device which automatically lights the burner. Do not try to light

the burner by hand.

B. BEFORE OPERATING smell aal around the appliance area for

gas. Be sure to smell next to the floor because some gas is heavier

than air and wiRRsettle on the floor.

f WHAT TO DO IF YOU SMELL GAS "_X

_,. reach your gas supplier, carl the fire department.

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone

in your building.

Immediately call your gas supplier from a neighbor's

phone. Follow the gas supplier's instructions. If you cannotJ

C. Use only your hand to push in or turn the gas control knob. Never

use tools. If the knob will not turn by hand, don't try to repair it. Call

a qualified service technician. Force or attempted repair may result

in a fire or explosion.

D. Do not use this appliance if any part has been under water. Im-

mediately call a qualified service technician to inspect the appliance

and to replace any part of the control system and any gas control

which has been under water.

1.STOP!Readthesafetyinformationaboveinthismanual.

2.Setthethermostattothelowestsetting.

3.Turnoffallelectricpowertotheappliance.

4. Thisapplianceis equippedwith an ignitiondevicewhichauto-

maticallylightstheburner.DONOTTRYTOLIGHTTHEBURNER

BYHAND.

5. Removethefrontjacketpanel.

6.Turnthegascontrolvalveclockwisef_ to "OFF". The handle of

the valve should be perpendicular to the pipe in the "OFF" position.

Control 'Valve "ON"

Control 'Valve "OFF"

7. Wait five (5) minutes to clear out any gas. Then smell for gas,

including near the floor. If you smell gas, STOP! Follow "B" in the

safety information above in this manual. If you don't smell gas, go

to the next step.

8. Turn the gas control valve counterclockwise _ to the "ON" posi-

tion. The handle of the valve should be parallel to the pipe in the

"ON" position.

9. Replace the front jacket panel.

10. Set the thermostat to the desired setting.

11. Turn on all electric power to the appliance.

12.If theappliancewill not operate,followthe instructionsunder

"ToTurnOffGasToTheAppliance"andcallyourservicetechnician

orgassupplier.

1.Turnoffallelectricpowertotheapplianceif serviceisto be per°

formed.

2.Setthethermostattothelowestsetting.

3. Removethefrontjacketpanel.

4.Turnthegascontrolvalveclockwisef_ to "OFF". The handle of

the valve should be perpendicular to the pipe in the "OFF" position.

5. Replace the front jacket panel.

THRDTTLE

INLET

PRESSURE_

TAP

INLET

IvlE]LEX

HEADER

VALVE

The Blocked Flue/Vent Safety Shutoff shuts off main burner gas in

the event that the flow of combustion products through the flue ways

is reduced. In the event of blocked flue ways, enough air will not be

available to support combustion, and boiler control will lockout due

to loss of proper air flow.If the boiler can not be restored to normal

operating condition by resetting the control, contact a qualified sero

vice agency to check the flue ways and vent pipe for blockage.

Regularserviceand maintenanceby a qualifiedserviceagency

must be performed at least once every 12 months (preferably at

the start of each heating season) to assure safe, trouble free op-

eration and maximum efficiency. The boiler owner SHOULD NOT

attempt these procedures.

This annual service should include at a minimum:

o Examining the flue passages between boiler sections, burn-

er, and condensate lines, and cleaning if necessary.

o Inspecting venting and air intake system and cleaning if nec-

essary.

o Placing the boiler in operation and performing the checkout

procedure.

o Inspecting the condensate drain pipe and cleaning if neces-

sary.

o Checking all gasketed and threaded joints for leakage, and

repairing if necessary.

Particular attention should be given to potential deterioration from

corrosion or other sources. Detailed procedures can be found in

Section XII, "Maintenance and Cleaning," of the Installation Manual

(PIN# 240006103).

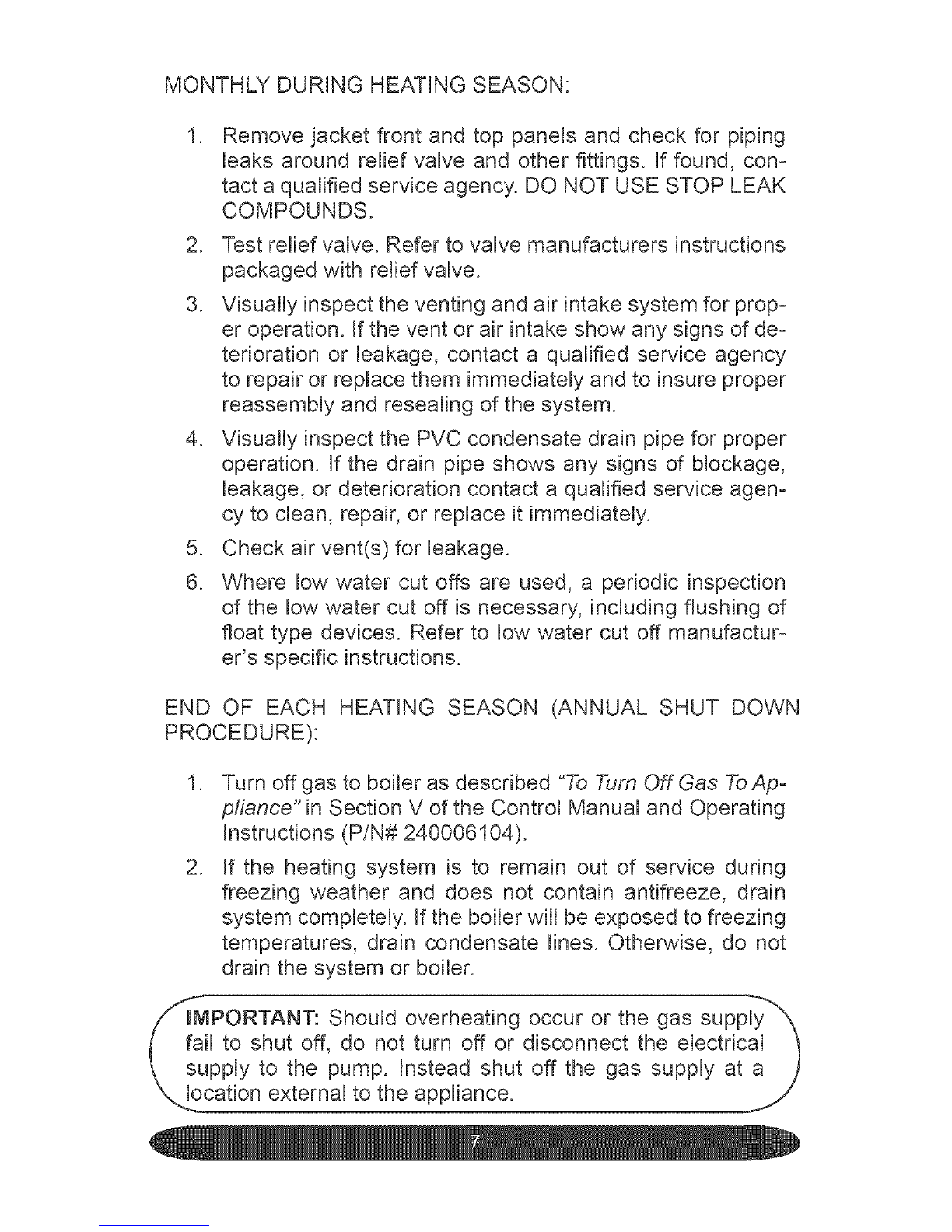

The boiler owner SHOULD perform the following periodic

maintenance procedures.

DALLY DURING HEATING SEASON:

1. Check for and remove any obstruction to the flow of com-

bustion air or venting of flue gases.

2. Check that boiler area is free from combustible materials,

gasoline, and other flammable vapors and liquids.

MONTHLYDURINGHEATINGSEASON:

.Remove jacket front and top panels and check for piping

leaks around relief valve and other fittings. If found, con-

tact a qualified service agency. DO NOT USE STOP LEAK

COMPOUNDS.

2. Test relief valve. Refer to valve manufacturers instructions

packaged with relief valve.

3. Visually inspect the venting and air intake system for prop-

er operation. If the vent or air intake show any signs of de-

terioration or leakage, contact a qualified service agency

to repair or replace them immediately and to insure proper

reassembly and resealing of the system.

4. Visually inspect the PVC condensate drain pipe for proper

operation. If the drain pipe shows any signs of blockage,

leakage, or deterioration contact a qualified service agen-

cy to clean, repair, or replace it immediately.

5. Check air vent(s) for leakage.

6. Where low water cut offs are used, a periodic inspection

of the low water cut off is necessary, including flushing of

float type devices. Refer to low water cut off manufacturo

er's specific instructions.

END OF EACH HEATING SEASON (ANNUAL SHUT DOWN

PROCEDURE):

Turn off gas to boiler as described "To Turn Off Gas ToAp-

pliance" in Section V of the Control Manual and Operating

Instructions (PIN# 240006104).

If the heating system is to remain out of service during

freezing weather and does not contain antifreeze, drain

system completely. If the boiler will be exposed to freezing

temperatures, drain condensate lines. Otherwise, do not

drain the system or boiler.

_cPORTANT: Should overheating occur or the gas supply\

I to shut off, do not turn off or disconnect the electrical 1

pply to the pump. Instead shut off the gas supply at a J

ation external to the appliance. _/
