Durabook R11 Manuale utente
R11 Office Dock
Product Overview
Front
Rear
*Please contact dealer for appropriate adapter.
Installing the Stand
Align the stand holes with the holes at the bottom of the docking cradle as shown in the illustration. Then
secure it with the four supplied screws.
No.
Item
1
Latch
2
Alignment port (x2)
3
Docking connector
No.
Item
1
LAN (RJ-45) port
2
USB3.0 port (x2)
3
USB2.0 port (x2)
4
HDMI port
5
Serial port (RS-232)
6
DC-in jack *
7
Kensington lock slot
R11 Office Dock
Docking the R11 Tablet PC

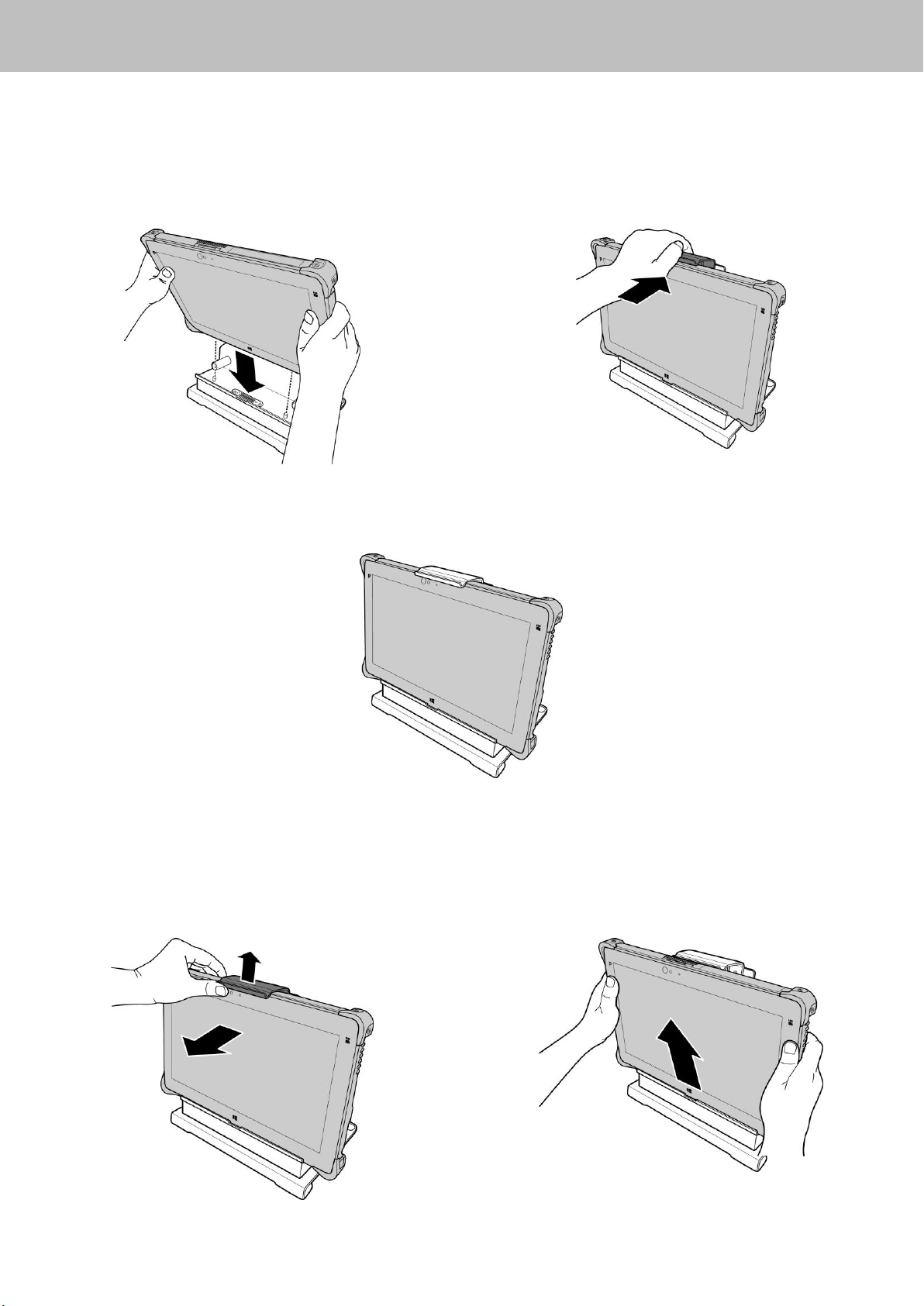

1. With screen side facing out and docking
connector down, install the R11 tablet PC into
the alignment ports on docking cradle.
2. Using one hand, carefully push the top of the
R11 tablet PC backward until the latch is fully
engaged.
3. Ensure the R11 tablet PC is tightly secured to the docking cradle.
Undocking the R11 Tablet PC
1. While pushing the latch upward, pull the R11
tablet PC forward until the latch is fully
disengaged.
2. Remove the R11 tablet PC from the docking
cradle.
