Quick Start Guide
Rev: 11/22
Copyright © Digital Watchdog. All rights reserved.
Specifications and pricing are subject to change without notice.

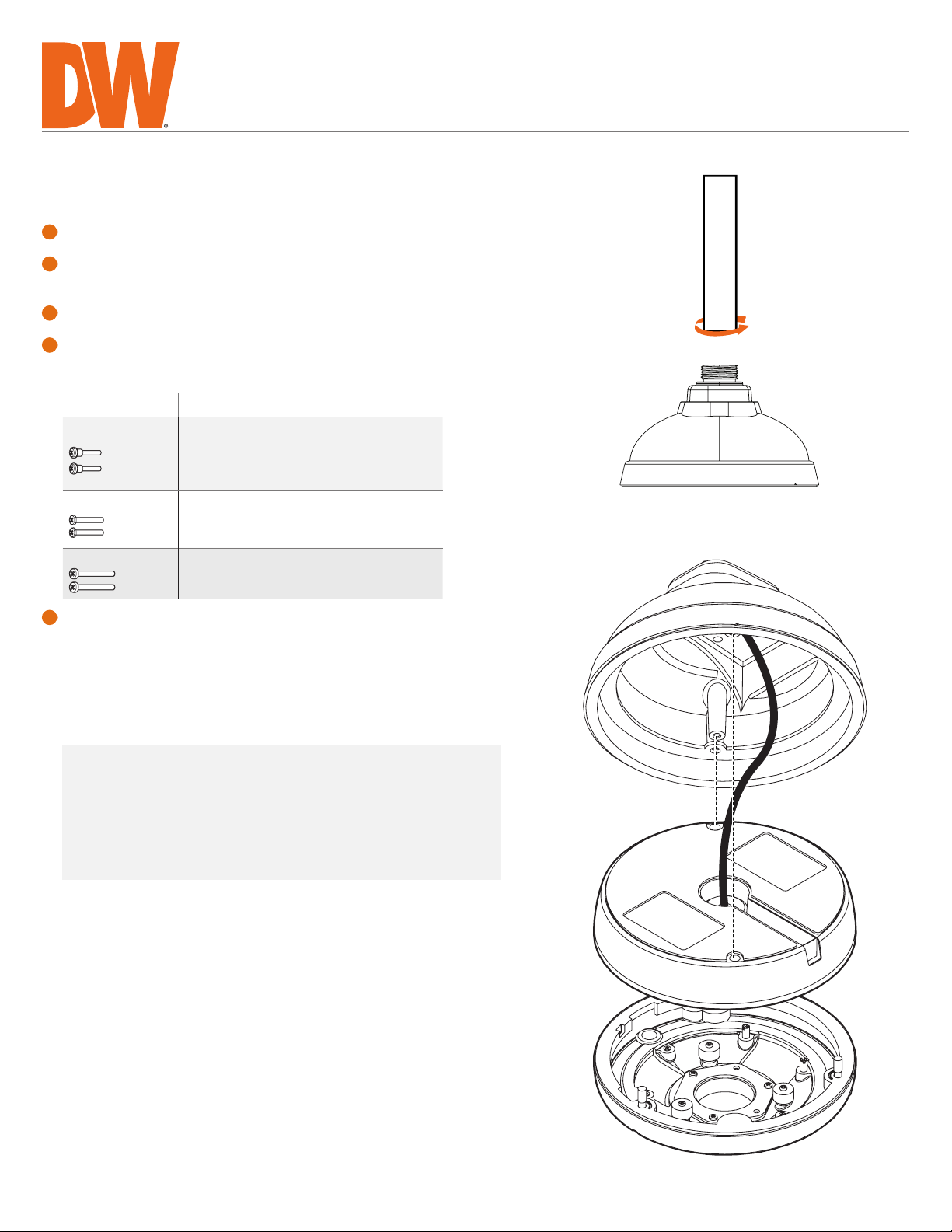

1Secure the hanging mount to the pole (NTP ¾ thread).
2Before attaching the camera to the hanging mount, remove the dome
from the camera base.
3Pass wires through and make all necessary connections.
4Use the camera mounting screws (included with bracket) to secure
the camera to the mount cap. See the table below for the length of the
screws and compatible cameras.
Screw size Compatible camera
20mm screws DWC-MV8 and DWC-MPV8 models
DWC-MVC and DWC-MPVC models
DWC-PVF and DWC-PPVF models
DWC-MF and DWC-MPF models
23mm screws DWC-VA models
DWC-MVA models
DWC-MPVA models
35mm screws DWC-MVD and DWC-MPVD models
6
Adjust the camera lens module’s position and secure the dome cover to
the camera. See the camera’s QSG for camera setup information.
INSTALLATION
* NOTE: How to tell what MF, V8 or PVF hardware you have:
If the camera’s mounting holes are located on the outer edge
of the camera’s base, use the 20mm screws WITHOUT the
washers.
If the camera’s mounting holes are located on the inner edge
of the camera’s base, use the 20mm screws with the rubber
washers included.
NTP 3/4 TAP
Pipe
Mount Cap
