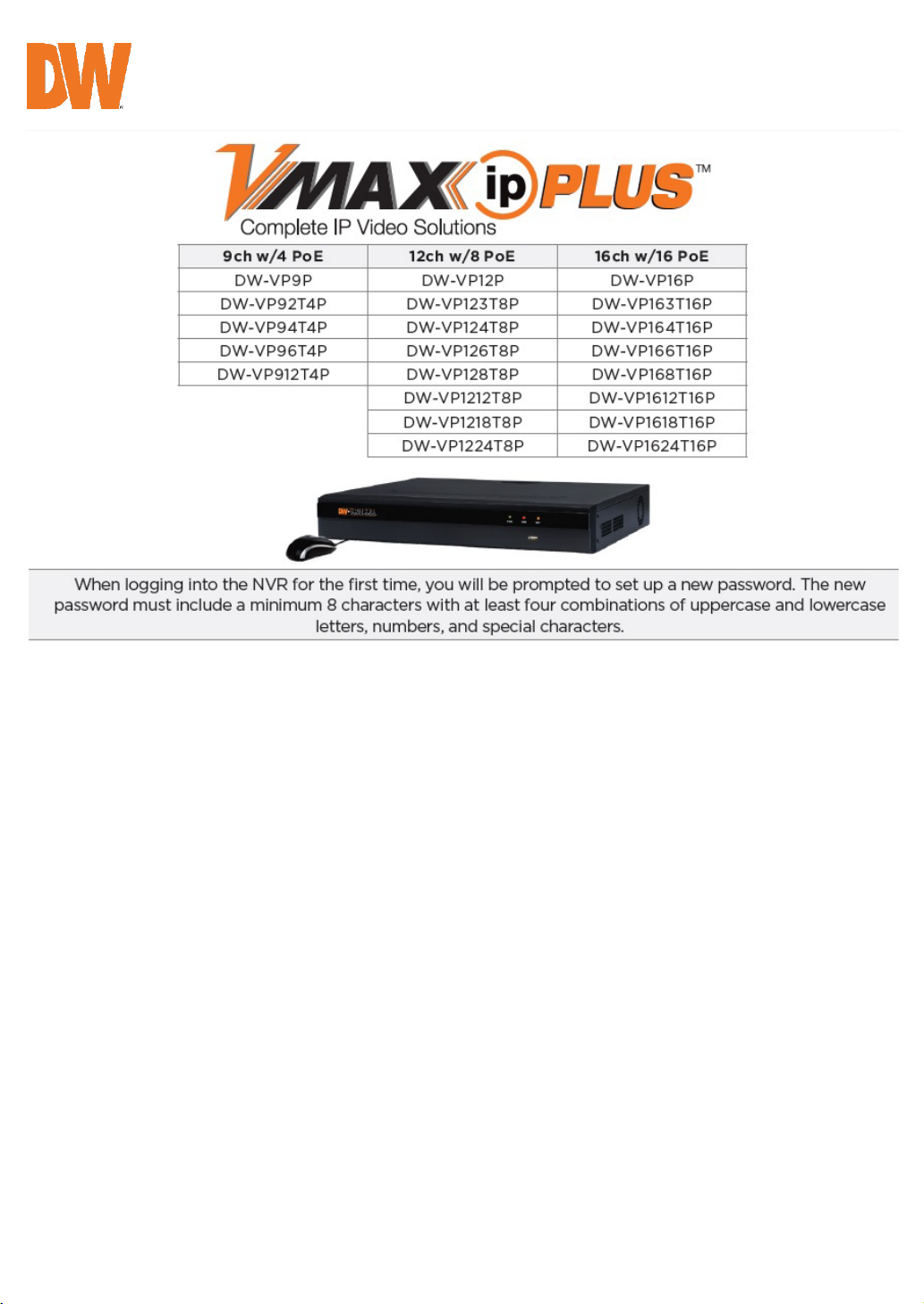

DW VMAX IP Plus DW-VP9P Manuale utente

※The picture might differ according to the specification and model.

※Contents of this user manual are protected under copyrights and computer program laws.

Rev: 06/22

Before operating the system, please read this User Manual and retain it for future

reference.

USER MANUAL

VMAX®IP Plus™

WARNING

TO REDUCE FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THE UNIT TO RAIN OR MOISTURE.

The installation should be made by a qualified service

person and conformed to all local codes.

VMAX® IP Plus™

Cautions

Read Before System Operation. Follow these details to prevent material damage or personal injury.

Signs of Caution and Warning

Warning: This sign indicates that the user could die or be seriously wounded if not used or installed properly.

Caution: This sign indicates that the user could be wounded or expect property damage if not used or installed properly.

Warning: Do not expose the product to fog, rain, or too much humidity to decrease the danger from electric shock or fire.

General Warning

Warning

1. Use the power cord, which is supplied or recommended by the supplier, or it may cause a fire.

2. Do not disassemble or reassemble the product. It may cause malfunction or fire.

3. Enquire your vendor for repair. It may cause electric shock or fire if the repair is not done properly.

4. Do not touch the product with wet hands. It may cause malfunction or electric shock.

5. Product installation must be ensured by a professional for product installation, or it may cause malfunction, electric shock, or fire.

6. Ground applies to video products equipped with a 3-wire grounding type plug having a third (grounding) pin. This plug only fits into

a grounding-type power outlet. If grounding is not done, it may cause malfunction or electric shock.

7. Ground connection must not touch gas or water pipes or telephone lines. If grounding is not done properly, it may cause electric shock.

8. Prevent metallic foreign substances from going inside the product. It may cause malfunction or electric shock.

9. Do not spray insecticide or flammable spray while driving. It may cause a fire.

10. Place the system in an open place where air ventilation is guaranteed, or it may overheat and cause considerable damage to the system.

11. Prevent water from instilling inside electrical parts. Clean with a dry towel or malfunction or electric shock could result.

Caution

1. Use the power cord, which is supplied or recommended by the supplier. The internal fan rotates at high speed and may cause an

accident.

2. Do not drop, give strong vibration, or shock the product. It may cause malfunction.

3. The air inhaler of the front panel and air outlet of the back panel must not be blocked during installation.

The internal temperature of the product would be greater than allowable and could cause malfunction or fire.

4. Do not touch the product or the power cord when there is thunder. It may cause an electric shock.

5. Do not install the product near or on top of the heating source. The internal temperature of the product would be greater than allowable

and could cause malfunction or fire.

6. Do not install the product in an inclined or unstable location or where vibration could be committed. It may cause malfunction.

Cautions about the Power

Warning

1. Must use the outlet of the grounding to connect the power cord, or it may cause a fire.

2. Do not connect in the middle of the power cord or use an extension cord. It may generate heat or cause a fire.

3. Do not touch the power cord with wet hands. It may cause an electric shock.

4. Keep the power cord dry and protect it from humidity. It may generate heat or cause a fire. The power cord is not waterproof.

5. Hold the body of the plug while removing the power. Do not pull the power cord. Damage to the power cord may cause overheating

or a fire.

6. Check the power plug regularly. Humidity and moderation in smoking may cause a fire.

7. Remove the power cord from the outlet when the product is not used for a long time. It may cause short-circuit or electric shock.

Caution

1. Do not turn off the power by removing the power plug. To turn off the power, click the power button from the front panel. When the

system stops abnormally, the power button might not work. Click the power button for 5 full seconds to turn the power off.

2. Do not cut off the power artificially, or shock or vibrate the unit while the HDD is active. It may cause hard disk failure or loss of data.

Remarks

※Pictures and buttons, functions, or configurations are subject to change or modification per the different models.

VMAX®IP Plus™

Table of Contents

1. GETTING STARTED ..................................................................................................................................... 5

1.1 CHECKING SUPPLIED ITEMS........................................................................................................................................5

1.2 SYSTEM START UP ........................................................................................................................................................6

1.3 SYSTEM SHUTDOWN ...................................................................................................................................................7

1.4 SYSTEM EXPLANATION ...............................................................................................................................................7

2. STARTUP WIZARD..................................................................................................................................12

2.1 LANGUAGE ................................................................................................................................................................ 12

2.2 DATE/TIME ............................................................................................................................................................... 12

2.3 HDD FORMAT .......................................................................................................................................................... 13

2.4 NETWORK ................................................................................................................................................................. 14

2.5 CAMERA MANAGEMENT ........................................................................................................................................... 16

2.6 PRODUCT REGISTRATION &FINISH.......................................................................................................................... 17

3. OPERATION..............................................................................................................................................18

3.1 USER LOG-IN ............................................................................................................................................................ 18

3.2 CAMERA REGISTRATION ........................................................................................................................................... 18

3.3 DELETING CAMERAS................................................................................................................................................ 22

3.4 CAMERA SETUP ....................................................................................................................................................... 23

3.5 LIVE DIS P L AY MODE................................................................................................................................................ 25

3.6 PTZ OPERATION ..................................................................................................................................................... 29

3.7 PL AY B AC K RECORDED IMAGES ...............................................................................................................................30

3.8 SEARCH RECORDED IMAGE ..................................................................................................................................... 32

3.10 SPECIAL CAMERA SEARCH ......................................................................................................................................37

3.11 DST SETTING AND IMAGE PL AY B AC K .................................................................................................................... 38

3.12 MEGAPIX®IVA™ ANALYTICS ................................................................................................................................. 39

4. SETTING ...................................................................................................................................................43

4.1 SYSTEM .....................................................................................................................................................................44

4.2 DEVICE .....................................................................................................................................................................50

4.3 ALARM.......................................................................................................................................................................57

4.4 RECORD..................................................................................................................................................................... 61

4.5 NETWORK ................................................................................................................................................................ 65

4.6 EXPORT .....................................................................................................................................................................74

5. WEB SURVEILLANCE THROUGH INTERNET EXPLORER ........................................................77

5.1 WEB LOGIN...............................................................................................................................................................77

5.2 WEB MONITORING................................................................................................................................................... 78

5.3 WEB PLAY B AC K ...................................................................................................................................................... 79

5.4 SETUP .......................................................................................................................................................................80

6. WEB SURVEILLANCE THROUGH BROWSERS (OTHER THAN INTERNET EXPLORER)..81

6.1 WEB LOGIN ............................................................................................................................................................. 81

6.2 WEB MONITORING .................................................................................................................................................. 81

6.3 WEB PL AY B AC K ..................................................................................................................................................... 82

6.4 SETUP ...................................................................................................................................................................... 82

7. Q & A.........................................................................................................................................................84

8. SPECIFICATIONS....................................................................................................................................86

9. WARRANTY INFORMATION ................................................................................................................88

10. LIMITS AND EXCLUSIONS....................................................................................................................89

VMAX® IP Plus™

1. Getting Started

1.1 Checking Supplied Items

Make sure that you have the following items supplied with your NVR. If any of these items are missing

or damaged, notify your vendor immediately. Keep the packing utilities for moving or storage purposes

afterward.

Items


Quantity

Quick setup guide and

download instruction card

9CH models: 48V D/C

adaptor and power cable.

12CH and 16CH models:

power cable.

USB mouse

VMAX®IP Plus™

1.2 System Startup

After connecting peripheral devices such as cameras, monitors and a mouse to the NVR, power up

the NVR by connecting the DC48V adaptor/ power cable to the power jack on the rear panel. The

boot logo will display. Please wait until the boot process completes.

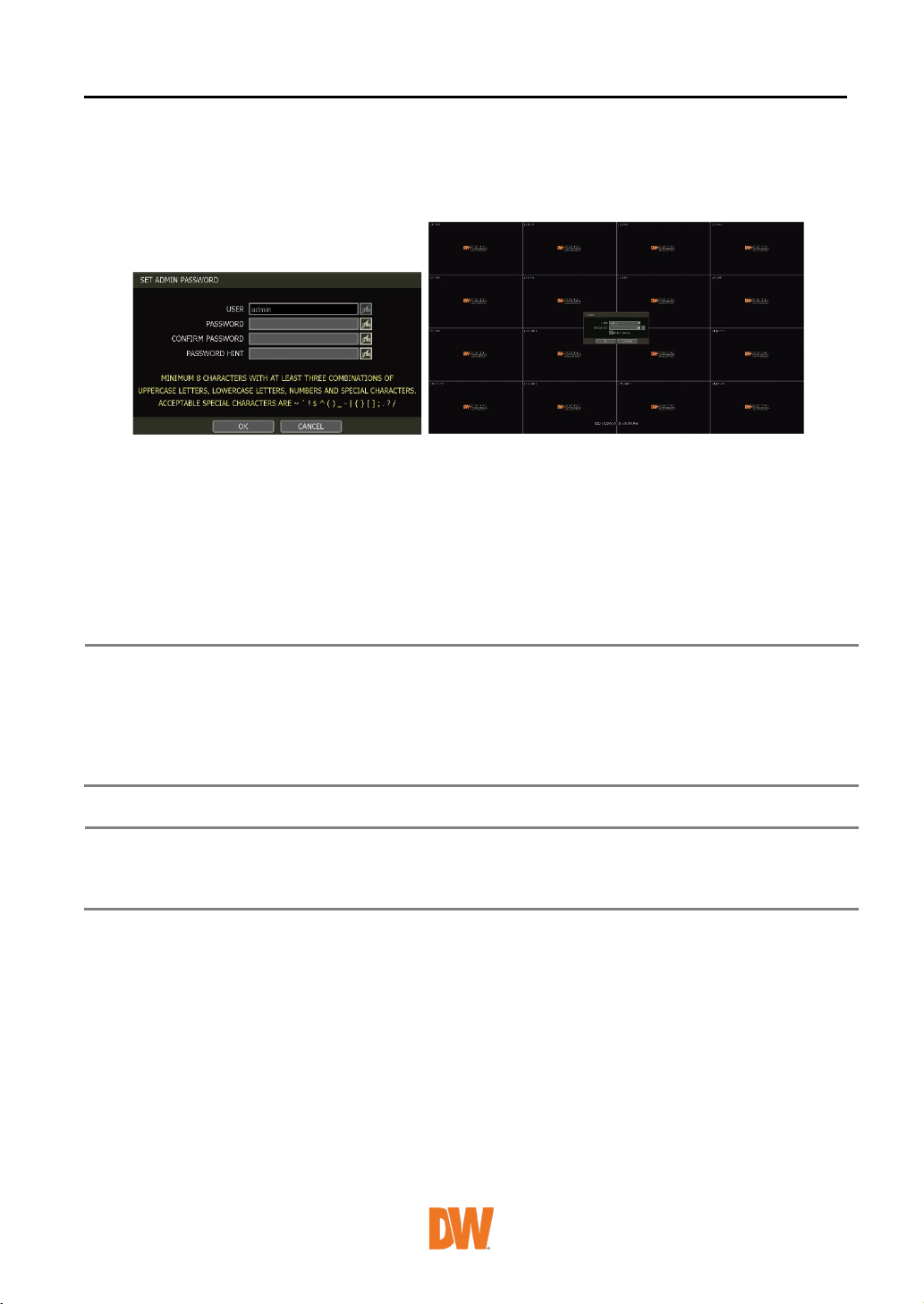

When the system is starting, the password change window is displayed. When you log in to your unit

for the first time, you will be asked to setup a new password. The password must be a minimum of 8

characters with at least 3 combinations of upper-case letters, lower case letters, numbers and special

characters. Acceptable special characters are 『~ ‘ ! $ ^ ( ) _ - | { } [ ] ; . ? /』. To login, right-click anywhere

on the screen and enter the username and password in the popup screen. There is only one

Administrator Account configurable in the NVR. It is assigned with an unchangeable User ID marked as

‘admin’. The administrator account has full access to the NVR and its configurable parameters and can

also create new users and assign rights to the new user accounts.

If NVR is set as AUTO LOGIN, the login process is not necessary.

Caution

1) It may take a few minutes to start up the system after turning on the power, in

case the user sets the network configuration as DHCP mode but under the

situation that there is no DHCP server in the network or the network is not

connected.

2) The mouse is included. In case you need to replace it, it is highly recommended

to choose well-known major brands such as DELL, MICROSOFT, LOGITECH, or

SAMSUNG.

Note

1) Do not forget the administrator’s password that was set for the first time. In case

you forget your password, contact your local dealer for help.

2) Refer to “Section

Error! Reference source not found.

User” for AUTO LOGIN and

AUTO LOGOFF.

VMAX® IP Plus™

1.3 System Shutdown

To turn off the power, click the exit button [ ] the Toolbar and then click [SHUTDOWN] in the pop-

up screen as below. Do not pull off the power by pulling the power plug.

Input the password and click [OK] to shut down the system. Click [YES] to confirm shutdown.

Note

Users can input passwords by the virtual keyboard, IR remote control, or front

numeric buttons (if available).

1.4 System Explanation

Front Panel

** Front panel may differ according to the model.

1. Power button (On the back side)

2. LED indicator: indicates system status for power, record and network status.

3. USB port: for backup and upgrade.







User Manual | 8

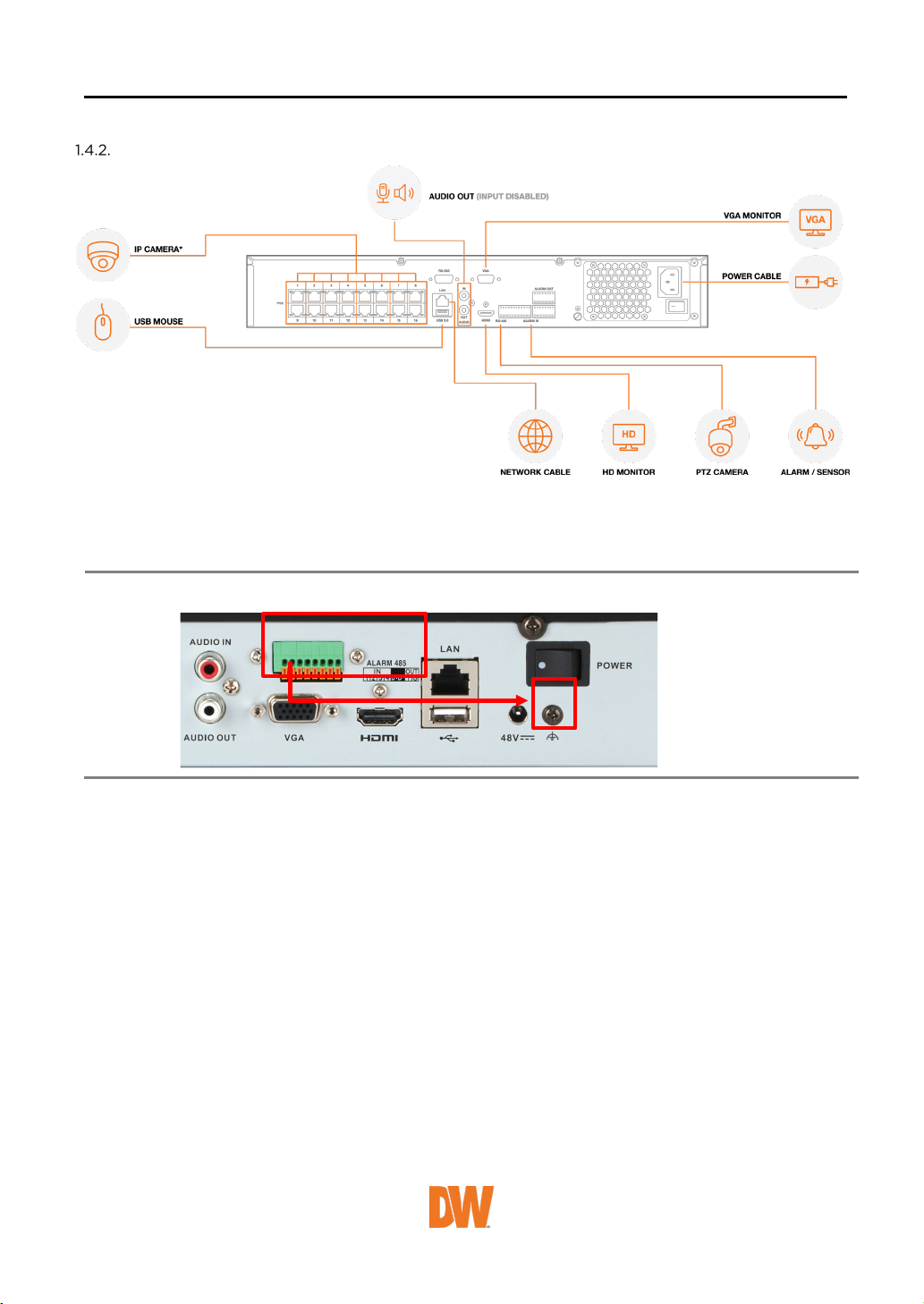

Back Panel Connection Diagram

* Back panel ports and location may differ according to the model. The model shown in the diagram

above is the 16CH DW-VP16xT16P NVR.

** The audio input port in the NVR is disabled by default. For audio recording, use an audio input

supported IP camera.

Note

On DW-VP9xT4P models, users must use the case’s ground when connecting alarm inputs

to the NVR.

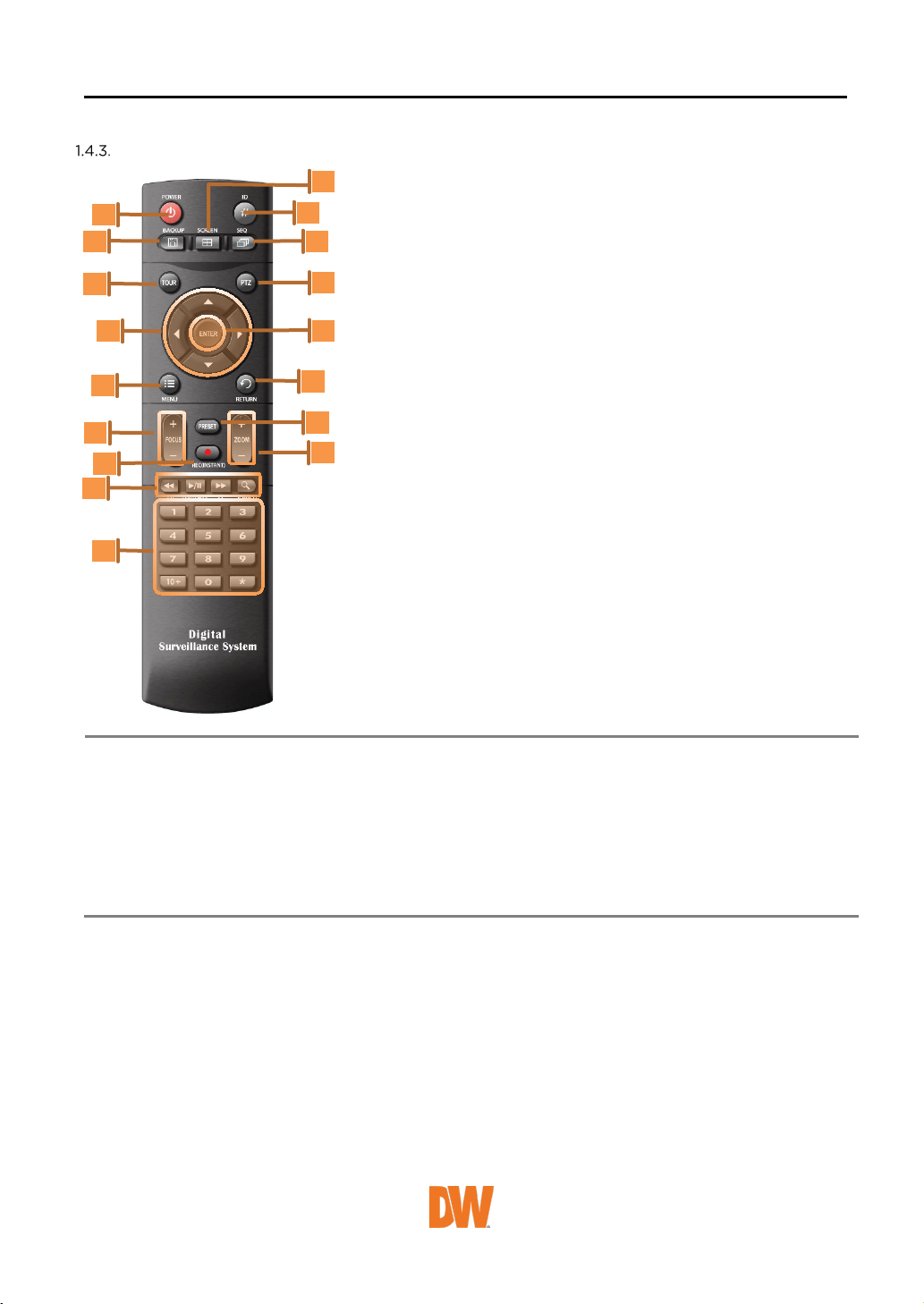

IR Remote Controller (DWSP-VACREMOTE - Optional Item)

1. Power: System ON/OFF

2. NVR ID Selection

3. Numeric Button: Channel selection or Password input

4. PTZ Button

5. Preset Button: Select Preset in PTZ mode

6. Focus Button: Focus IN/OUT in PTZ mode

7. ZOOM Button: Zoom IN/OUT in PTZ mode

8. Preset Tour: Tour ON/OFF in PTZ mode

9. Direction Button

10. Enter Button

11. Menu Button

12. Return Button

13. Playback Buttons on Search mode

14. Emergency Recording Button

15. Auto-Sequence Button in Live mode

16. Screen Mode Button

17.

Backup Button

Note

Users can control multiple NVRs with one IR remote controller.

To control multiple NVRs, each NVR must have a different remote ID.

(The default remote ID is “0”.)

To setup the ID # in the IR remote controller

1) Press and hold the ID selection button () for 5 seconds.

2) Set the new ID by pressing the numeric button on the IR remote controller. The ID

number range is from 000 up to 255.

3) Press the numeric button in a three-digit number format. For example, press “000” for

0, “023” for 23, and “234” for 234.

User Manual | 10

The Toolbar in Live Mode

In live view, move the mouse cursor to the bottom of the screen to show the menu bar.

Click on the menu button to access NVR’s main menu screen. See “3.12. Setting” for details.

Display Mode

Select the display split mode from the available options. Select 1CH, 4CH, 9CH, or 16CH mode.

Sequence

Start/stop the sequence mode in live mode. The sequence is disabled if all channels are displayed.

Channel

Switch to a single-channel view of a specific channel by pressing the corresponding number.

Emergency Recording

The system records all channels with the full-frame rate at the maximum resolution regardless of the

recording setting. To stop the emergency recording, click the same icon again.

Backup

Backup recorded video to an external device. See “0 Backup” for details.

Playback

Switch to playback mode. See “3.7 Playback Recorded Image” for details.

Open the search options screen. See “3.6 Search Recorded Image” for details.

Exit

Exit the NVR with three different options: Log Off, Reboot and Shutdown.

When selected, the NVR’s menu bar remains on the screen permanently.

Altri manuali per VMAX IP Plus DW-VP9P

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali DW Hardware di rete

DW VMAX IP G4 DW-VG494P Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

ADC

ADC DSX-1 Manuale

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente
