WHAT THE DYMO LETRATAG XR CAN

DO FOR YOU

With the LetraTAG XR you can print a wide range of

high-quality labels in dierent sizes and styles.The

LetraTAG can print on coloured, transparent, metallic

and iron-on fabric tapes. See the list of DYMO cassettes

available for the LetraTAG XR at the end of this guide.

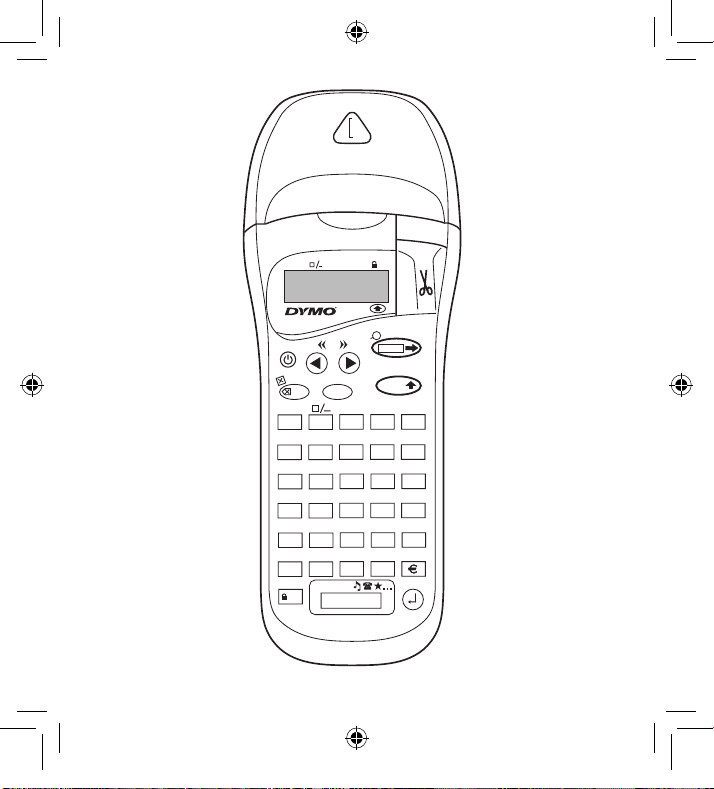

HOW TO USE YOUR DYMO

LETRATAG XR

Getting started: your rst label in six

easy steps

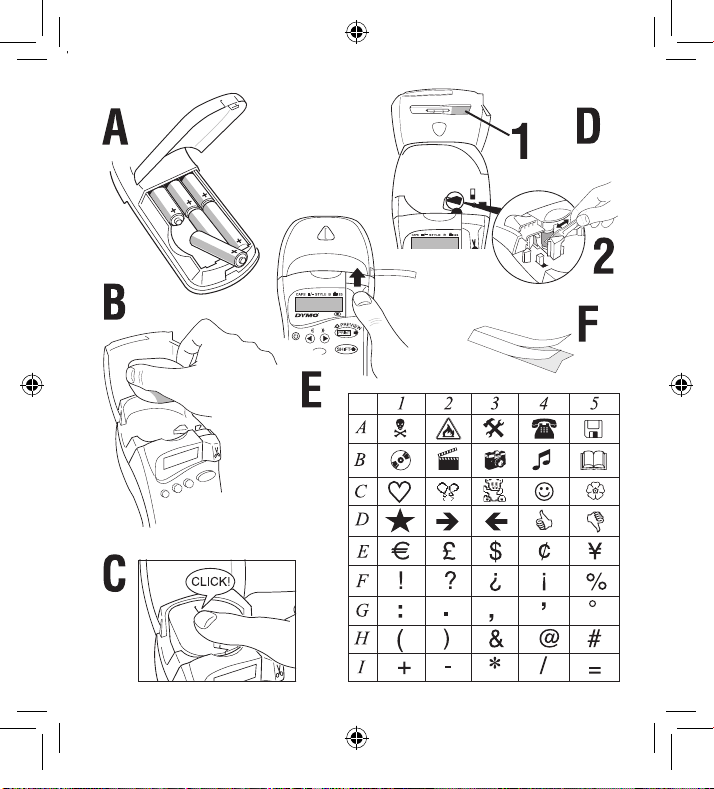

Step One - insert the batteries

- Remove the battery cover (Fig A)

- Insert six size AA alkaline batteries, observing the

polarity markings and close the cover.

- Remove the batteries if the LetraTAG is to remain

unused for some time.

Step Two - insert the cassette

Open the cassette door Insert cassette (Fig B). and

gently press on the centre of the cassette until it clicks

into place (Fig C).

Check the cassette is correctly positioned before

closing the cassette door.

Step Three - switch on

Press the red button to switch on.

Note: the label maker switches o automatically after

2 minutes if no keys are pressed.

Step Four - type a label

Type a simple label rst to try the machine. Learn more

about formatting in the following pages.

Step Five - Print your label

Press “print”to print your label.

Step Six - Cut the label

Use the cutter button on the right-hand side of the

LetraTag to cut the label (Fig E)

Congratulations ! You’ve just printed

your rst label !

Setting the language

Setting the language will dene which extra

characters your LetraTAG can print, so that you have

fast access to the accented characters or currency

symbols you need in your language or country. It will

also specify the language in which error messages

appear on the display.

Press LANGUAGE (

SHIFT

CAPS

). An abbreviation of

a language will appear. Use Q or R to scroll through

the alphabetical list of language abbreviations until

you reach the one you require.Then press

to select.

Note that the starting point for the list of languages

depends on the model:

Keyboard model starting point

EU OFF

US US

LT XR UK-HUN-TR.indd 5 14-02-2006 09:35:31

Note: whenever you change the batteries, you will

have to reset the language.

Typing labels

Typing normal characters

If you want to type numbers, press

SHIFT

and the key.

Or use the number lock as a useful alternative to the

shift key.

Press

123

to set this feature which makes F-O become

1-0, press

123

again to exit.

If you make a mistake, press

DEL

and the cursor will

delete the character on the left of the current cursor

position, and will move one place to the left.

The

CAPS

key is a toggle key. Press it to start typing in

capitals.You will see the CAPS indicator is highlighted

on the display. Press it again when you want to drop

back to lower case.

The

SPACE

key inserts a blank space within your

label.

Extra characters

LetraTAG XR also stores a large number of extra

characters (such as other letters or accented letters). It

uses RACE technology, like a mobile phone keyboard.

If you tap the same key repeatedly within a short

time, you can scroll through a sequence of characters

based on that letter. For example, pressing the Ekey

repeatedly in the French-language version will scroll

through e - é - è - ê - ë. If you wait for more than one

second, the character will be selected, and the cursor

will move on to the next position.

Example:

Type atwice, and the letter àappears. If you tap

the key again within one second, áwill appear.

Pause for a second, and the letter áwill be selected,

and the cursor will move on to the next position.

Graphic symbols

You can also insert a number of graphic symbols.To

insert a symbol, press SYMBOL (

SHIFT

SPACE

)

The display will show: A-I?

Press

DEL

to cancel or press a letter key‘A’to‘I’until

you nd the line of symbols required. See table.

Use Qor Rto select a symbol. Press

to place the

symbol in the label.

Text over two lines

You can add a second line to your label by pressing

If the display shows Abc

123, your label will print:

Abc

123

Thetext will becentredonthelabel.Notethatyoucannot

print two-linelabelsincertainformats(bigfont, vertical).

If you try this, the message Error 5 will alert you.

LT XR UK-HUN-TR.indd 6 14-02-2006 09:35:37

Checking what you’ve typed

The display will show six characters of the text you

have typed, plus the cursor.The PREVIEW function

(press

SHIFT

) will automatically scroll

through entire text of the label.You can also scroll

manuallythroughthelabelusingtheQand Rkeys.

If you want to edit the label, use the Qand Rkeys

to move the cursor through the text to the place you

want, then type or delete.

Adding a break between two labels

The

--ll--

function (SHIFT + D) is a‘label break’.You can

use this to end one label’s text and start another.

Storing text: the text buer

You can store up to 70 characters in the text buer

of your LetraTAG XR, in as many as 20 labels. These

characters will remain in the buer, even if you switch

o. If you try to type when the text buer is full, the

message ERROR 4 will appear. You will then have

delete part or all of the text in the buer in order to

make a new label.

You can quickly move to the beginning of the buer by

pressing << (

SHIFT

+ Q). Go to the end of the

buer by pressing >> (

SHIFT

+ R).

To delete the entire contents of the buer, press CLEAR

(

SHIFT

DEL

)

Formatting labels

You can use a wide range of formatting

options to change the font style in your

printed label, such as font size, bold, italic,

boxed, vertical etc. The way you format these

characters is shown by a combination of

indicators above the text display.

Display indicators

STYLE B

CAPS

123

There are 6 display indicators.When one or more of

these indicators is highlighted, it shows the relevant

formatting option is active:

CAPS: Characters are typed as capital letters

The label will be printed underlined or in a

certain type of box.

STYLE The label will be printed in a certain

selected text style.

BThe label will be printed in Big Font size.

123

Numbers are selected instead of the

characters.

SHIFT The shifted numbers or functions can

now be accessed

If you try a combination of formats which the machine

cannot produce, an error message will appear. See

error message list inTroubleshooting.

LT XR UK-HUN-TR.indd 7 14-02-2006 09:35:45

Selecting the text size

Pressing the SIZE key (

SHIFT

+ A) will display the

size menu, with four options:

STYLE B 123CAPS

narrow (condensed)

normal

wide (extended)

Bbig font (highly visible labels using the entire print

height)

You can use Narrow, Normal and Wide fonts in two-

line labels, where they will be reduced to half their

normal height.

Move the cursor to the required size with the Qand R

keys, and press

to select.

Selecting the text style

Pressing STYLE (

SHIFT

+ C) will display the style

menu, with six options:

STYLE B 123CAPS

Normal

Outline

Italic

You cannot combine these dierent text styles, or use

these styles with the big font setting.

Move the cursor to the required style with the Qand R

keys, and press

to select.

Underlining or boxing text

Pressing the key will display the box/underline

menu, with eight options:

1. no box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

2. underlined

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

3. square box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

4. Rounded box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

5. shaded box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

6. pointed box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

7. zigzag box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

8. crocodile box

1normal-=DYMO

2Underlined-=DYMO

3Square box-=DYMO

4Round corners-=DYMO

5Shaded-=DYMO

6pointed-=DYMO

7zigzag-=DYMO

8Crocodile-=DYMO

You cannot combine dierent underlining or box

settings, or use them with the big font setting.

Move the cursor to the required setting with the Q

and Rkeys, and press

to select.

LT XR UK-HUN-TR.indd 8 14-02-2006 09:35:55

To exit from a menu

Press

DEL

to exit from a menu or cancel an action

(except printing).

Clearing formatting and other settings

Use CLEAR (

SHIFT

DEL

)to delete the entire

content of the text you have stored in the buer.This

will delete the text, and restore all settings to their

default values (except for the language settings you

have selected).This means that:

• Style is reset to normal

• Box is reset to no boxes

• Size is reset to wide

• CAPS are on

Note: if you want to change the language settings,

press LANGUAGE (SHIFT + caps) and scroll through the

language list. Press

to select your language.

Printing labels

Previewing your label(s)

Before printing, you can preview the text you have

typed. Press PREVIEW (

SHIFT

), and the

label will scroll over the display once.

Printing a label

Make sure the cursor is inside the text of the label you

want to print, and press

. During printing the

message Print... will be displayed.

Cutting your label

The cutter button is on the right of your machine. To

cut a label push the cutter forward (Fig E).The label

backing is split down the middle for easy removal.

LT XR UK-HUN-TR.indd 9 14-02-2006 09:35:56

TROUBLESHOOTING

Error messages

Error Message Error description What to do

ERROR 1 Tape jammed or battery low Remove jam (seeTroubleshooting below),

or replace batteries

ERROR 2 Big font can not be selected with Try another format

characters in the buffer

ERROR 3 Big font can not be selected with Try another format

style/box_underline/2line or lower case

ERROR 4 Buffer is full Delete some or all of the buffer text

ERROR 5 2 line cannot be selected with the Try another format

selected editing function

Display blinks Beyond end of buffer Your cursor cannot go any further to the right

Display blinks Beyond start of buffer Your cursor cannot go any further to the left

Display blinks Wrong key pressed in editing mode

Display blinks Wrong key pressed in menus

LT XR UK-HUN-TR.indd 10 14-02-2006 09:35:57

Altri manuali per LetraTag XR

Indice

Lingue:

Altri manuali Dymo Etichettatrice

Dymo

Dymo Junior Manuale utente

Dymo

Dymo LabelManager Wireless PnP Manuale utente

Dymo

Dymo LabelManager 120P Manuale utente

Dymo

Dymo RHINO 6000 Manuale utente

Dymo

Dymo LabelWriter DUO Manuale utente

Dymo

Dymo 11944 Manuale utente

Dymo

Dymo LabelPOINT 350 Manuale utente

Dymo

Dymo LabelManager Series Manuale utente

Dymo

Dymo LabelWriter 310 Manuale del proprietario

Dymo

Dymo LetraTag Plus LT-100H Manuale utente

Dymo

Dymo Rhino 1000 Manuale utente

Dymo

Dymo LabelManager 420P Manuale utente

Dymo

Dymo LabelPoint 200 Manuale utente

Dymo

Dymo LabelManager Wireless PnP Manuale utente

Dymo

Dymo MobileLabeler Manuale utente

Dymo

Dymo LabelWriter 400 Manuale utente

Dymo

Dymo LabelWriter 450 Duo Label Printer Manuale utente

Dymo

Dymo LabelWriter 450 Twin Turbo Manuale utente

Dymo

Dymo LabelWriter 450 Duo Label Printer Manuale utente

Dymo

Dymo RhinoPRO 1000 Manuale utente

Dymo

Dymo LabelManager Wireless PnP Manuale utente

Dymo

Dymo M1011 Manuale utente

Dymo

Dymo LabelManager Wireless PnP Manuale utente

Dymo

Dymo DYMOLM200 Manuale utente

Manuali Etichettatrice popolari di altre marche

Brother

Brother P-Touch 2420PC Manuale utente

newell

newell Dymo LabelManager 210D Manuale utente

Brother

Brother TD-4000 Manuale utente

U-Line

U-Line BROTHER H-8754 Manuale utente

Tharo Systems

Tharo Systems H-435+ Manuale utente

Brother

Brother E300 Manuale utente

Godex

Godex RT700 SERIES Manuale utente

ID Technology

ID Technology 252 Manuale utente

Labelmate

Labelmate MC-11 Manuale utente

CAB

CAB XD4M/300 Manuale utente

Avery Dennison

Avery Dennison Pathfinder 6057 Manuale di servizio

Brother

Brother P-touch PT-9700PC Manuale utente

TSC

TSC PEX1000 Series Manuale utente

Adkins

Adkins Label Master Manuale utente

Epson

Epson LabelWorks LW-400 Manuale utente

Primera

Primera 510212 Manuale utente

Brady

Brady BradyPrinter S3100 Manuale utente

DuraLabel

DuraLabel LabPRO Manuale utente
