1XTL™500
User Guide
About Your New Label Maker
With the DYMO®XTL™500 electronic label maker, you can design and print
multiple label types, including barcode labels, panel labels, and heat shrink tubes.
The label maker uses DYMO XTL™label cartridges in label widths of 1/4”, 3/8”,
1/2”, 3/4”, 1”, 1 1/2”, or 2” (6 mm, 9 mm, 12 mm, 19 mm, or 24 mm, 41 mm, or
54 mm). Labels are available in a full range of temperature, chemical, and UV-
resistant materials, including continuous tape and pre-sized labels.
Visit www.dymo.com for information on obtaining labels and accessories for your
label maker.
Registering Your Label Maker
Visit www.dymo.com/register to register your label maker online. During the
registration process you will need the serial number, which is located under the
label compartment cover.
Register your label maker to receive these benefits:
Notification of software upgrades by email
Special offers and new product announcements
Getting to Know Your Label Maker
Become familiar with the parts of your label maker.
1Power and USB connectors 5Label compartment cover release
2On/Off (Cancel printing) 6Label compartment
3Touch screen display 7Battery compartment
4Label exit slot
2
4
36
7
1
5
Figure 1
2XTL™500
User Guide
Connecting the Power
The label maker is powered by a rechargeable, lithium-polymer (LiPo) battery.
The battery installed in your label maker ships partially charged. For best results,
fully charge the battery before using the label maker for the first time.
See Power Status on page 10 for information about visually determining the
battery charging status.
Charging the Battery
Fully charging a discharged battery will
take approximately three and a half hours.
You can continue to work as long as the
power adapter is connected.
Make sure to read the LiPo Safety
Precautions found on page 56.
To charge the battery
1On the left side of the label maker,
gently lift and turn the connector
cover to expose the power
connector. See Figure 2.
2Plug the power cord into the power adapter. See Figure 3.
3Plug the barrel end of the power adapter into the power connector.
4Plug the power cord into a power outlet.
The power status will show charging in the upper right corner of the
label maker’s display.
Figure 2
Lift and turn
Power adapter
Power cord
Figure 3
Power connector
3XTL™500
User Guide
Removing and Replacing the Battery
The LiPo battery is designed to provide years of
service. In the unlikely situation that you need to
replace the battery, a replacement battery can
be ordered from www.dymo.com.
Make sure the power adapter and USB cable
are disconnected before handling the LiPo
battery.
To remove the battery
1Press and hold for approximately five
seconds to turn the power completely off.
2Disconnect the power adapter and USB
cable.
3Using a #1 Phillips head screwdriver,
loosen the screw holding the battery cover
in place. See Figure 4.
The screw is attached to the battery cover. Do not remove the screw
completely from the cover.
4Lift off the cover.
5Pinch the sides of the battery
connector to release and gently
pull up to disconnect the battery.
See Figure 5.
6Remove the battery.
7Insert the new battery and gently
press the connector into place.
8Replace the cover over the battery
compartment.
9Tighten the screw only until the
battery cover is secure.
Make sure to read the LiPo Safety Precautions found on page 56.
About Labels
The label maker uses DYMO XTL®label cartridges in label widths of 1/4”, 3/8”,
1/2”, 3/4”, 1”, 1 1/2”, or 2” (6 mm, 9 mm, 12 mm, 19 mm, or 24 mm, 41 mm, or
54 mm). Labels are available as continuous tape or pre-sized labels for specific
applications.
The label cartridge that is inserted in the label maker determines the type of labels
you can create and print. For example, if you have a 1” continuous label cartridge
inserted, you will not be able to create a heat-shrink tube or laminated cable wrap
label.
See Using the Label Applications on page 14 for information about the types of
labels you can use with each label application.
Visit www.dymo.com for information on obtaining labels for your label maker.
Figure 4
Pinch and
pull up
Figure 5
4XTL™500
User Guide
Inserting the Label Cartridge

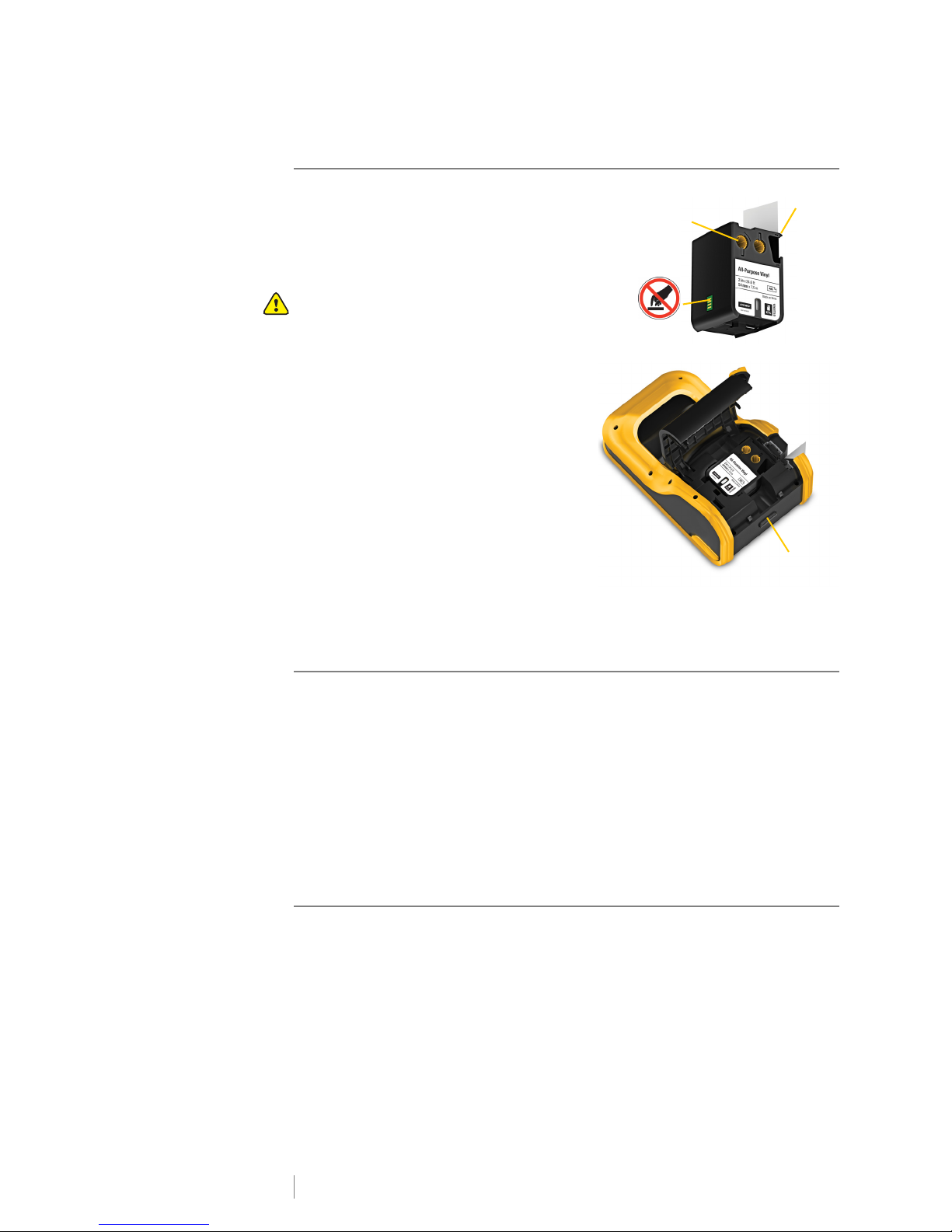

A sensitive electronic chip is embedded in the
side of each label cartridge. This chip contains
information that is read by the label maker and
DYMO ID™software. This chip must be kept
clean to function properly.
Do not touch the electronic chip in the side of
the cartridge; oils from your hand may prevent
the chip from working properly. See Figure 6.
To insert the label cartridge
1Press the label compartment release
and lift the cover. See Figure 7.
2Make sure the tape and ribbon are taut
across the mouth of the label cartridge
and that the tape passes between the
label guides. See Figure 6.
To tighten the ribbon, turn the ribbon
rewind spool in the direction indicated
by the arrow on the cartridge.
3Insert the cartridge and press firmly until
the cartridge ‘clicks’ into place.
4Close the label compartment cover.
Removing the Label Cartridge
You can design labels without a label cartridge inserted in the label maker. Just
remember to insert a compatible label cartridge before attempting to print. See
Using the Label Applications on page 14.
To remove the label cartridge
1Press the label compartment release and lift the cover. See Figure 7.
2Remove the label cartridge.
You can now create labels using any of the label applications. When you start a
new label, you will be asked to select a label cartridge to use.
Selecting a Label Cartridge
You can design any type of label when the label compartment is empty. Each time
you select a label application, you are asked to select the properties for your new
label.
To select a label cartridge
1Remove the label cartridge from the label maker.
You are warned that the label compartment is empty.
2Select a label application from the Home screen.
You are asked to select a label cartridge.
Figure 6
Do not
touch!
Ribbon
rewind
Label
guides
Press to
release
cover
Figure 7
5XTL™500
User Guide
The labels available for you to choose from are filtered to show only those
label cartridges appropriate for the label application you selected.
3Do one of the following:
• Enter the part number of the label cartridge you wish to use.
• Scroll through the list of labels and select a specific label.
• Select Enter cartridge properties. You are asked to select the properties
for the label you wish to create.
Removing the Label Backing
DYMO XTL™continuous labels have an easy-to-peel split
back for easy removal of the label backing.
Does not apply to heat-shrink tubing or pre-sized labels.
To remove the continuous label backing
1Locate the split on the label backing.
2Gently pinch the label lengthwise, folding toward the
printed side of the label. The label backing will separate.
3Carefully peel away the backing from the label.
To remove pre-sized labels from the backing
Gently lift the corner of the label and peel the label from
the backing.
Remove split
backing
Continuous labels
Figure 8
Pre-sized labels
Peel label
from backing
Figure 9
Altri manuali per XTL 500
1
Indice
Altri manuali Dymo Etichettatrice
Dymo
Dymo LetraTag Manuale utente
Dymo
Dymo 2000 Manuale utente
Dymo
Dymo Label Blaster Guide Manuale utente
Dymo
Dymo LabelWriter 450 Turbo Manuale utente
Dymo
Dymo LabelPOINT 100 Manuale utente
Dymo
Dymo LabelWriter 400 Manuale utente
Dymo
Dymo LabelManager 350 Manuale utente
Dymo
Dymo LabelManager 360D Manuale di servizio
Dymo
Dymo LabelWriter 4XL Label Printer Manuale utente
Dymo
Dymo LabelManager 500TS Guida all'installazione
Dymo
Dymo LabelManager Wireless PnP Manuale utente
Dymo
Dymo RhinoPRO 6000 Manuale utente
Dymo
Dymo LabelWriter 450 Duo Label Printer Manuale del prodotto
Dymo
Dymo Rhino 1000 Manuale utente
Dymo
Dymo LabelManager 210D+ Manuale utente
Dymo
Dymo RHINO 6000 Manuale utente
Dymo
Dymo RhinoPRO 1000 Manuale utente
Dymo
Dymo LetraTag XR Manuale utente
Dymo
Dymo LabelPOINT 350 Manuale utente
Dymo
Dymo LabelManager 500 Touch Screen Label Maker Manuale utente
