Dynalink A 3135F Manuale utente
HDMI 2.0 1x4 HDMI Splitter
Operating Instructions
A 3135F
Supports HDCP2.2, 3D, 4Kx2K@60Hz (YUV 4:4:4), 18GBPS,
HDR, EDID
Thank you for purchasing this product. For optimum performance and safety, please read
these instructions carefully before connecting, operating or adjusting this product. Please
keep this manual for future reference. The information in this document is subject to change
without notice. Every effort has been made in the preparation of this document to ensure
accuracy of the contents, but all statements, information, and recommendations in this docu-
ment do not constitute the warranty of any kind, express or implied.
• Simultaneously displays an UItra Hi-Def source on up to four UItra HD
displays • Video Resolutions up to UItra HD 4Kx2K (3840x2160p)@60Hz
YUV 4:4:4. • Three kinds of EDID handling abilities
• HDCP2.2/1.4 Compliant • 36 bit Deep Color • LPCM 7.1, Dolby TrueHD,
Dolby digital Plus, and DTS-HD Master Audio • Bandwidth 18Gbps
• Supports HDR • Online rmware upgrade via Micro USB Port
PACKAGE CONTENTS: 1 x HDMI Splitter, 1 x 5V/1A DC USB Adapter, 1 x User Manual
1
Dynalink® A 3135F HDMI Splitter
OVERVIEW
This is a high performance 1x HDMI input to 4x HDMI output switcher which is powered via a USB port.
The system supports all 3D TV formats in addition to all HDTV formats up to 4K Ultra HD (3840 x 2160p)
@60Hz video. It also supports HDCP 2.2 compatibility.
SPECIFICATIONS
Note: 4K x 2K means 3840 x 2160p Ultra High Denition (UHD) resolution, which is often shortened to 4K
UHD, or even just 4K.

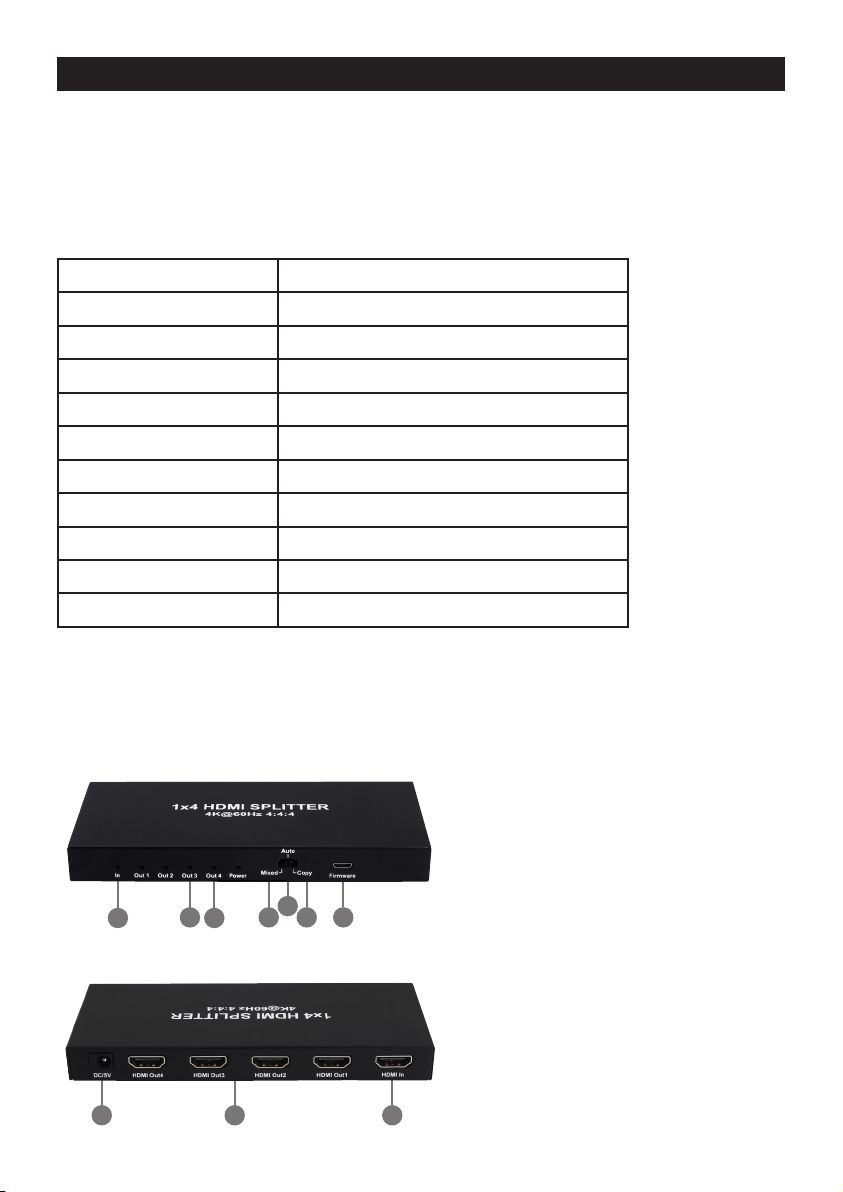

PANEL DESCRIPTIONS
1) Indicator of HDMI input
2) Indicator of HDMI output
3) Indicator of power input
4) Switch to “Mixed EDID” mode
5) Switch to “Auto EDID” mode
6) Switch to “Copy EDID” mode
7) Firmware port
8) Power input
9) HDMI output ports
10) HDMI input port
123456 7
8
2
9 10
Operating Temperature
Operating Humidity
Bandwidth frequency
HDCP
Input ports
Output ports
Resolution outputs
Dimensions (LxWxH)
Power consumption
Transmission Distance
Net Weight
-5 to +40°C
5 to 90%RH (No Condensation)
18Gbps
HDCP2.2
1xHDMI (female)
4xHDMI outputs (female)
up to 4Kx2K (3840x2160@60Hz YUV 4:4:4)
150x64.2x17mm
2W (Max)
15m (Maximum) over standard HDMI
245g
Dynalink® A 3135F HDMI Splitter
EDID FUNCTIONS:
Copy: Output 4 is prior port
a) When output 4 is connected to one display, another display which is connected to output 1/2/3 will fol-
low the Resolution of output 4, which could be lower than 4K UHD.
Auto: Default 4K UHD@60Hz on both HDMI outputs
Mixed: Always follows the lowest resolution of the displays connected to the 4 outputs, so that the dis-
plays both show the source properly.
NOTE: The HDCP Version is prior to EDID, when the source is HDCP2.2. If the TV supports HDCP2.2, it
will output 4K@60Hz. If the TV doesn’t support HDCP2.2, it will output 1080p. Please see table below:
Support HDR under copy EDID and Mixed EDID mode!
Connecting and operating:
1) Connect the HDMI input source to input port of HDMI splitter.
2) Connect the HDMI splitter output ports to the displays.
3) Power up splitter, source and displays.
CONNECTION DIAGRAM
3
Input source
HDCP2.2 4K@60Hz
HDCP2.2 4K@24Hz
HDCP1.4 4K@24Hz
HDMI Display Support HDCP2.2
HDCP2.2 4K@60Hz
HDCP2.2 4K@24Hz
HDCP1.4 4K@24Hz
HDMI Display Doesn’t Support HDCP2.2
HDCP1.4 1080p@60Hz
HDCP1.4 1080p@24Hz
HDCP1.4 4K@24Hz
