Dynalink WLG25USB Manuale utente
User Manual
WLG25USB
WLAN USB Adaptor
I . Introduction 2
Package Contents 2
Minimum System Requirements 2
II. Connecting the Wireless Adapter 3
III. Status LEDs 4
III. Installing the Wireless Adapter 5
IV. Uninstalling the Wireless Adapter 8
V. Configuring the Wireless Adapter 10
Connecting to an Existing Network 10
Configuration 11
Table of Contents
2004-09-03
2
Thank you for purchasing the Wireless Adapter.. This Wireless Adapter is easy to use and
easy to setup. If you are tired of all those messy wires needed to connect a lap-top to your
Home network, then take your networking to the next level with the Wireless Adapter. You will
be able to share files, printers and even your High-Speed Internet access wirelessly.
Package Contents
Make sure the following items came in this package:
!Wireless Adapter
!Wireless Adapter Installation and User’s Manual CD
Minimum System Requirements
!Microsoft Windows 98 Second Edition (SE), Windows ME, Windows XP, or Windows
2000 installed
Introduction
3
1. Your computer can be on or off, it will not affect the installation process. Locate an
available USB slot on your PC. If you are not sure where this may be, please consult your
computer’s User Manual.
2. Insert the Wireless Adapter into the appropriate USB slot. Your hardware is now installed.
Connecting the Wireless Adapter
4
LED MEANING
POWER Indicates that the Wireless Adapter is powered on when the LED lights up.
LINK Indicates link status. If the light is blinking, it means there is data
sending or receiving via wireless.
Status LEDs
5
Note: If you have installed the Wireless Adapter driver before, please uninstall the old version
first.
1. After you have installed the Wireless Adapter your computer will display a Found New
Hardware Wizard screen, click Cancel to continue.
2. Insert Wireless Adapter Installation and User’s Manual CD into your CD-ROM, then the
installation will be activated automatically. Or you may go to the directory where the
Wireless Adapter Installation stored, then double-click InstallShield Setup Launcher to
begin the installation.
Installing the Wireless Adapter
6
3. RALINK Wireless Network Card Setup will install the driver on your system, click Next to
continue.
4. Select the Country Channel, and click Next to continue.
7
5. The installation is now complete. Please click Finish.
Note: When you complete the installation, the utility icon will appear on the system
tray. If not, it means that the installation failed. Please uninstall the driver and repeat
the process.
6. Right-click the utility icon , Utility Selection screen will display, select the utility you
want to use.
8

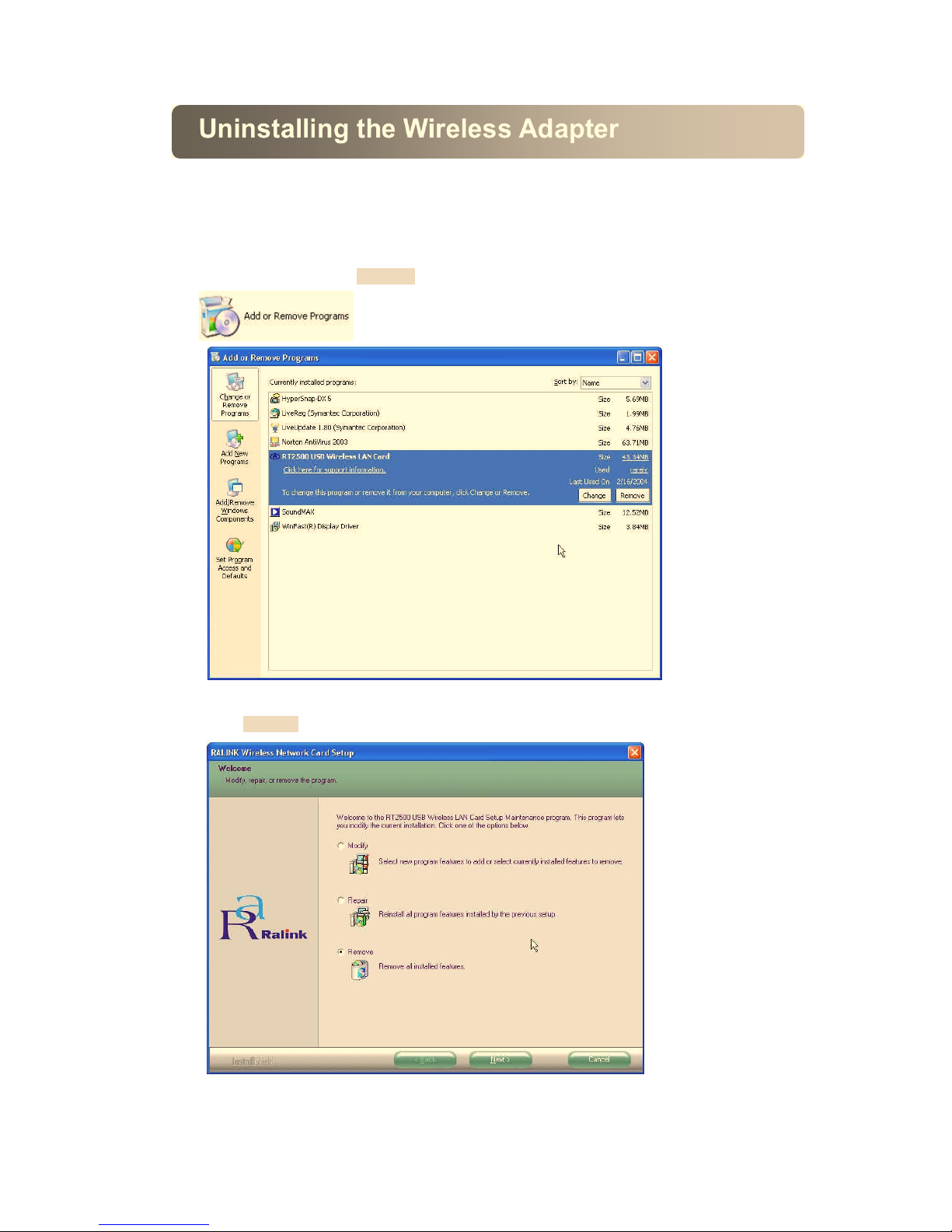

1. For uninstalling the Wireless Adapter, please go to: Start -> Settings -> Control Panel ->
Add or Remove Programs -> RT2500 USB Wireless LAN Card under Windows
environment. Then click Remove.
2. Select Remove to uninstall the Wireless Adapter.
Uninstalling the Wireless Adapter
9
3. The Confirm Uninstall screen will display, click OK to confirm.
4. After completing the uninstallation, click OK.
