Инструкция для

Cessna 182 SkyTrainer RTF

Dynam

Перейти в карточку товара

8 800 775 98 98

Instruction Manual

Specification

Wingspan:1280mm

Fuselage Length:1000mm

Flying weight:1000g

Servo:9gX4

Battery:11.1v 2200mAh 20C Li-Po

ESC:40A

Motor:KV950

Wing loading:43.5g/dm

RTF INCLUDING

RTF including:

fuselage

wing

elevator

landing gear

Vertical stabilizer

plastic parts set

Push rod

Elevator

Propeller

glue

decal

balance charger

LI-Po battery (11.1V 2200mAh 20C)

transmitter

Adaptor

wing support

Bolt Pipe

Fairing

ESC

Slide the nose gear into the slot from

the bottom of the fuselage.

Remove the tape from both sides of

fuselage head.

Push undercarriage mounting plate in

position and fix in place with PA 2.5*8

mm screws.

Use a hexagon screwdriver to tighten

the screw.

Install the cowl in place.

Remove the tape from the undercarriage

cover. Press the cover in position as

shown.

Install the propeller.

Insert the horizontal stabilizer and

vertical stabilizer in place.

Insert the pushrod into rudder

quick-controller and tighten the

screw(the servo should be in center

position).

Fix the stabilizers with PA 2.3*20mm

screw.

Repeat the steps for the elevator(the

servo should be in center position).

Install spinners.

Insert the direction pushrod into the hold of

quick-controller and tighten clamp connectors.

Apply the foam glue on the joiner of the

left and right wings.

Connector the aileron servos with

Y wires.

Fix the wing struts with PA 2.5*8mm

screw

Put the battery in position.

Fix the wing on fuselage with PA

2.3*20mm screw.

Installing the Battery position.

Apply the foam glue on the antenna and

insert it in the main wing as shown.

Glue left and right main wings together.

19 20

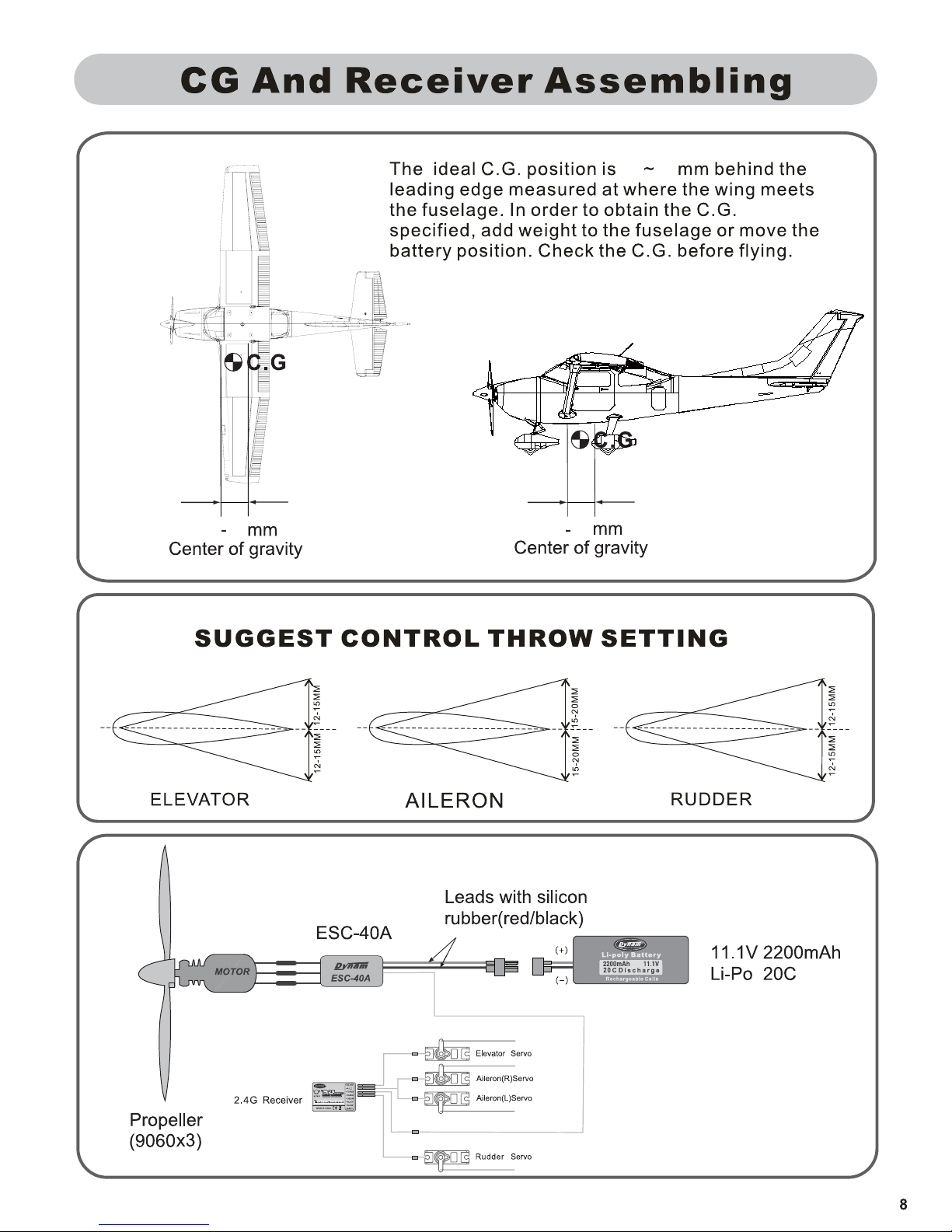

(Remark: The servo should be in center position)

THROTTLE

RUDDER

ELEVATOR

AILERONS

airplane action

control plane

movement

control plane

movement

Aileron

movement

STICK OPERATION

MODE 1 MODE 2 MOVEMENT

55 60 55 60
