Dynex IN-CS101 Manuale utente

OWNER’S MANUAL

Mobile Audio System

RE G

yPLL Synthesizer Stereo Radio

yDigital Compact Disc Player/MP3 Player/WMA Player

yAutomatic Memory Storing

yFold Down Detachable Panel

yPreset Equalization

yElectronic Shockproof (ESP) Function

yUSB Interface

yCD Changer Control (FOR CD CHANGER VERSION ONLY)

yAuxiliary Input Function (FOR AUX IN VERSION ONLY)

yRemote Control (OPTIONAL)

88-C2177-00

CONTENTS

Installation...........................................3

Take out screw before installation.........3

DIN Front-Mount (Method A)................. 3

Installing the unit ...............................3

Removing the unit .............................4

DIN Rear-Mount (Method B) .................5

Using the detachable front panel ......6

Wiring Connection ..............................7

For 4 x 25W or 4 x 40W system............ 7

For 4 x 7W or 2 x 25W system..............8

ISO connection .....................................9

Operation.............................................10

Location of keys....................................10

Switching on/off the unit (For LCD

version only) .........................................11

Switching on/off the unit and

illuminating (For VFD Version only) ......11

Faceplate release .................................11

Sound adjustment.................................11

Loudness ..............................................11

Set the clock .........................................11

Mute......................................................11

Equalization ..........................................11

Subwoofer (Optional)............................11

Liquid crystal display (For LCD

version only) .........................................11

Vacuum fluorescent display (For VFD

version only) .........................................11

Flashing LED ........................................12

Remote sensor (Optional).....................12

ESP function .......................................12

Reset function....................................... 12

Radio operation ....................................12

Switching to radio mode .................... 12

Selecting the frequency band............ 12

Selecting station................................12

Local/distance ...................................12

Automatic memory storing&

program scanning .............................12

Station storing ...................................12

Mono/stereo ......................................12

Scan.................................................. 13

CD operation ........................................ 13

Switching to CD mode ...................... 13

Selecting tracks................................. 13

Pausing playing................................. 13

Previewing all tracks ......................... 13

Repeating the same track ................. 13

Playing all tracks in random .............. 13

Ejecting a disc................................... 13

CDC operation (For CDC

version only) ......................................... 13

Switching to CDC mode.................... 13

Selecting tracks................................. 13

Pausing playing................................. 13

Previewing all tracks ......................... 13

Repeating individual tracks or

whole CDs......................................... 14

Playing all tracks in random .............. 14

Selecting disc.................................... 14

MP3 operation ...................................... 14

Switching to CD (MP3) mode............ 14

Ejecting a disc................................... 14

Selecting tracks in single step........... 14

Selecting directory up/down .............. 14

Pausing playing................................. 14

Previewing all tracks ......................... 14

Repeating the same track ................. 14

Playing all tracks in random .............. 14

Selecting tracks by

AMS/MP3 button............................... 14

Display information ........................... 16

WMA operation ..................................... 16

USB play operation............................... 16

Record operation .................................. 16

Mixed-CD operation (For with mixed-CD

operation version only) ......................... 17

Supported MP3/WMA

decoding modes ................................... 17

SD/MMC operation (optional) ............... 17

Disc notes............................................. 18

Specification ....................................... 19

Trouble shooting ................................ 20

INSTALLATION

Notes:

yChoose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

yBefore finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

yUse only the parts included with the

unit to ensure proper installation. The

use of unauthorized parts can cause

malfunctions.

yConsult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

yInstall the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

yIf installation angel exceeds 30°from

horizontal, the unit might not give its

optimum performance.

yAvoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front” (conventional DIN

Front-mount) or “Rear”(DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis). For details,

refer to the following illustrated installation

methods.

TAKE OUT SCREW BEFORE INSTALLATION

Before install the unit, please remove the

two screws.

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard

having an opening as shown below:

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off, and

then disconnect the cable from the

vehicle battery’s negative (-) terminal.

2. Disconnect the wire harness and the

antenna.

3. Press the release button on the front

panel and remove the control panel

(see the steps of “to detach the front

panel”).

4. Lift the top of the outer trim ring then

pull it out to remove it.

5. The two supplied keys release tabs

inside the unit’s sleeve so you can

remove it. Insert the keys as far as

53mm

182mm

Take out screw

before installation.

INSTALLATION

they will go (with the notches facing up)

into the appropriate slots at the middle

left and right sides of the unit. Then slide

the sleeve off the back of the unit.

6. Mount the sleeve by inserting the

sleeve into the opening of the

dashboard and bend open the tabs

located around the sleeve with a

screwdriver. Not all tabs will be able to

make contact, so examine which ones

will be most effective. Bending open the

appropriate tabs behind the dashboard

to secure the sleeve in place.

Tabs

Screwdriver

Sleeve

Dashboard

7. Reconnect the wire harness and the

antenna and be careful not to pinch any

wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the

back of the unit in place. Use the

supplied hardware (Hex Nut (M5mm)

and Spring Washer) to attach one end of

the strap to the mounting bolt on the

back of the unit. If necessary, bend the

metal strap to fit your vehicle’s mounting

area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain

Washer) to attach the other end of metal

strap to a solid metal part of the vehicle

under the dashboard. This strap also

helps ensure proper electrical grounding

of the unit.

Note to install the short threading

terminal of the mounting bolt to the back

of the unit and the other long threading

terminal to the dashboard.

Mounting Bolt

Spring Washer

Plain Washer

Tapping Screw

Hex Nut

Metal Strap

10. Reconnect the cable to the vehicle

battery’s negative (-) terminal. Then

replace the outer trim ring and install

the unit’s front panel (see the steps of

“to install the front panel”).

Removing the unit

1. Make sure the ignition is turned off, then

disconnect the cable from the vehicle

battery’s negative (-) terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

3. Press the release button to remove the

front panel.

Outer Trim Ring

Front Panel

L Key

Sleeve

R Key

INSTALLATION

4. Lift the top of the outer trim ring then pull

it out to remove it.

5. Insert both of the supplied keys into the

slots at the middle left and right sides of

the unit, then pull the unit out of the

dashboard.

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota), N

(Nissan) located on both sides of the unit to

fasten the unit to the factory radio mounting

brackets supplied with your vehicle.

Dashboard or Console

Screw

Factory Radio

Mounting Bracket

Side View showing

Screw Holes marked

T, N

Screw

To fasten the unit to the factory radio

mounting brackets.

Align the screw holes on the bracket with

the screw holes on the unit, and then

tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the

metal strap are not used for method B

installation.

To Detach the Front Panel

1. Press the (open) button, then the

front panel will be folded down.

OPEN

2. To remove the front panel, lift it up at a

little angle from horizontal position, then

first pull out the right side and then pull

out the left side.

Front Panel

The right side

3. For safekeeping, store the front panel in

the supplied protective case

immediately after being removed.

To Install the Front Panel

1. To install the front panel, first insert the

left side into proper position then insert

the right side into place.

The left side

Front Panel

The right side

2. When the two sides fixed into place,

push the front panel into main unit.

3. Note that if the front panel fails to lock in

position properly, pressing control button

may not function and the display may be

missing some segments. Press the

(open) button and then reinstall the front

panel again.

Precautions when handling

1. Do not drop the front panel.

2. Do not put pressure on the display or

control buttons when detaching or

re-installing the front panel.

3. Do not touch the contacts on the front

panel or on the main unit body. It may

result in poor electrical contact.

4. If any dirt or foreign substances

adhered on the contacts, they can be

removed with a clean and dry cloth.

5. Do not expose the front panel to high

temperatures or direct sunlight in

anywhere.

6. Keep away any volatile agents (e.g.

benzene, thinner, or insecticides) from

touching the surface of the front panel

7. Do not attempt to disassemble the front

panel.

USING THE DETACHABLE FRONT PANEL

WIRING CONNECTION

SPEAKER

REAR Lch

BACK-UP (B+)

GROUND (B-)

ANTENNA

SPEAKER

FRONT Lch

IGNITION

FOR 4x25W OR 4x40W SYSTEM

ANTENNA CONNECTOR

SWITCH (ACC+)

POWER

MEMORY

REAR Rch

SPEAKER

Rch RED

Lch WHITE

FRONT Rch

SPEAKER

Lch WHITE

Rch RED

(FOR CD CHANGER VERSION ONLY)

CONNECTOR

CD CHANGER

Rch RED

Lch WHITE

SOCKET

(GREY)

WHITE/BLACK

GREEN

GREEN/BLACK

WHITE

BLUE

(FOR RCA LINE OUT VERSION ONLY)

GREY/BLACK

VIOLET/BLACK

VIOLET

REAR RCA CABLE

GREY

MAIN UNIT

YELLOW

RED

BLACK

FUSE

FUSE SUBWOOFER CABLE

(FOR SUBWOOFER VERSION ONLY)

FRONT RCA CABLE

AUX IN CABLE

(FOR AUX IN VERSION ONLY)

(BROWN)

(GREEN)

(BLACK)

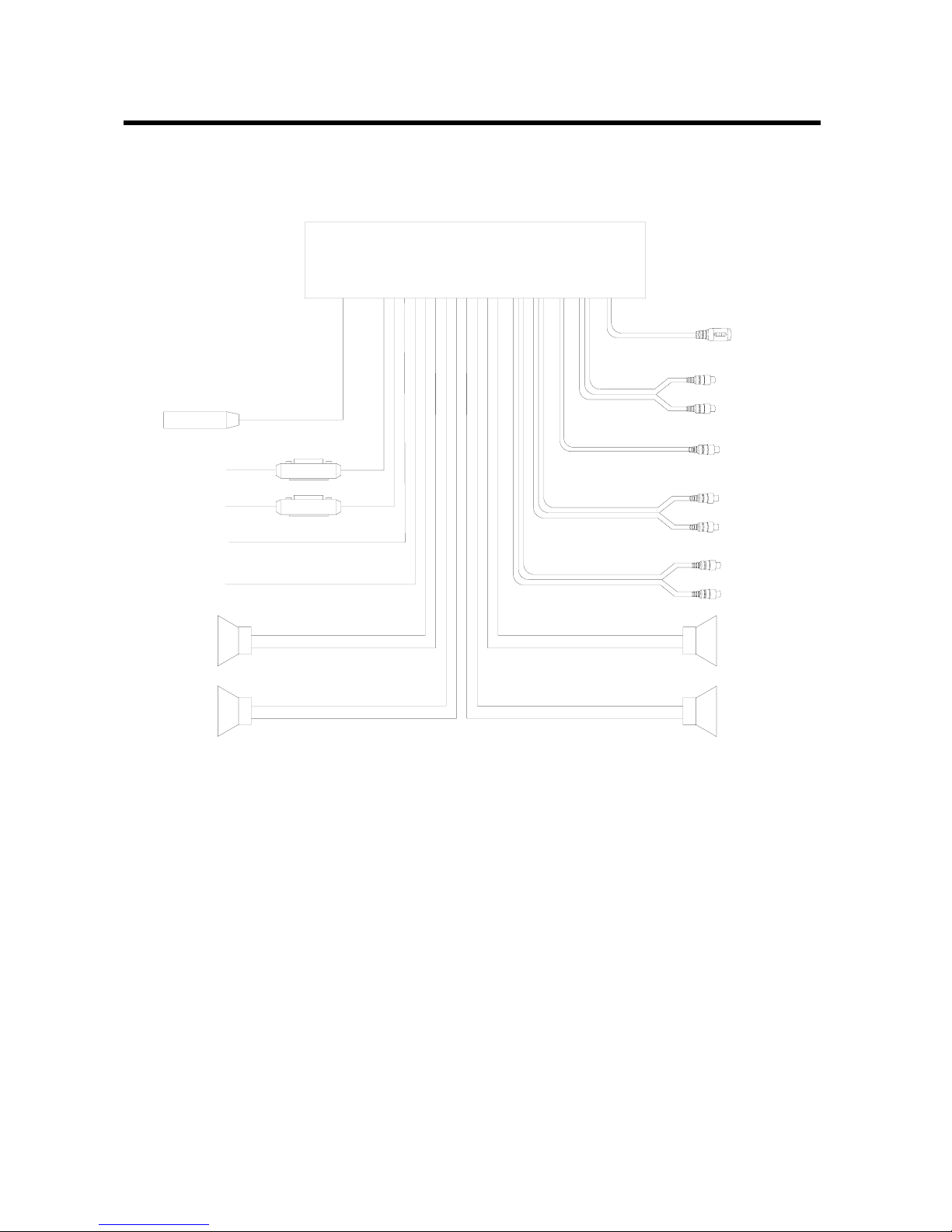

WIRING CONNECTION

FOR 4x7W OR 2x25W SYSTEM

2.For 2-speakers system, keep the fader indicater at center position to maintain the

1.For 2-speakers system, green, violet, white/black and grey/black wire leads are

GREEN/BLACK

2-SPEAKERS SYSTEM

BACK-UP (B+)

ANTENNA CONNECTOR

SWITCH (ACC+)

Note:

Lch

SPK. -

POWER

ANTENNA

GROUND (B-)

MEMORY

IGNITION

existing volume level.

(FOR CD CHANGER VERSION ONLY)

(FOR RCA LINE OUT VERSION ONLY)

Rch RED

2-SPEAKERS SYSTEM

VIOLET/BLACK

Lch WHITE

CONNECTOR

CD CHANGER

Rch RED

Lch WHITE

Rch RED

SOCKET

4-SPEAKERS SYSTEM

unconnected and isolated.

WHITE

REAR

Lch SPK.

FRONT

Lch SPK.

GREEN/BLACK

WHITE/BLACK

GREEN

WHITE

BLUE

BLACK

YELLOW

RED

FUSE

4-SPEAKERS SYSTEM

VIOLET/BLACK

GREY/BLACK

VIOLET +

GREY +

REAR

Rch SPK.

FRONT GREY

SUBWOOFER CABLE

(FOR SUBWOOFER VERSION ONLY)

REAR RCA CABLE

FRONT RCA CABLE

(FOR AUX IN VERSION ONLY)

(GREY)

(BROWN)

(GREEN)

MAIN UNIT

AUX IN CABLE

(BLACK)

Rch

-SPK.

WIRING CONNECTION

ISO CONNECTION

(GREEN)

Speaker

(GREEN) +

(WHITE)

(GRAY)

(GRAY/BLACK)

(WHITE/BLACK)

(VIOLET/BLACK)

+12V Accessory/Switch (Red)

Power Antenna/Amplifier Turn On (Blue)

+12V Constant Power Supply (Yellow)

Ground Wire (Black)

(VIOLET) (VIOLET)

Rear Right

Speaker

(GRAY/BLACK)

(VIOLET/BLACK)

++ Speaker

Front Right (GRAY) ++

--Rch

(WHITE/BLACK)

Front Left

Speaker

-- -

(WHITE) +

Lch

4-SPEAKER SYSTEM

(GREEN/BLACK)

Part C

Part B

Part A

(FOR RCA LINE OUT VERSION ONLY)

BLUE

Rear Lch WHITE

Antenna Socket

Rear Rch RED

Front Lch WHITE

Front Rch RED

(GREEN/BLACK)

Rear Left

2-SPEAKER SYSTEM

2x25W

FUSE (15A)

BROWN GREEN

(FOR SUBWOOFER VERSION ONLY)

CDC SOCKET

(FOR CDC VERSION ONLY)

GREY

(FOR AUX IN VERSION ONLY)

SUBWOOFER CABLE

AUX IN CABLE

Lch WHITE

Rch RED

Amplifier Turn On

REG

15 11 101719 8 26

16252423142221201318632

OPERATION

LOCATION OF KEYS

Indice

Altri manuali Dynex Ricevitore per auto

Dynex

Dynex DX-G1113 Manuale utente

Manuali Ricevitore per auto popolari di altre marche

Motorola

Motorola VWA63 Manuale utente

Nextar

Nextar D3201 Manuale utente

Alpine

Alpine CDE-163BT Manuale utente

Pioneer

Pioneer DEH-P645R Manuale utente

Axxera

Axxera XDMA7600 Istruzioni operative

XM OnyX Manuale utente

Sound Storm

Sound Storm STM93R Manuale utente

Soundstream

Soundstream VIR-5000 Manuale utente

Avson

Avson MKT Platform Manuale utente

Sony

Sony MEX-1HD - Audio Library System Manuale utente

Pioneer

Pioneer DVH-P500UB Manuale utente

JVC

JVC KD-AHD69 Manuale utente

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuale utente

Sony

Sony CDX-4160 - Cd Receiver Manuale utente

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuale utente

VDO

VDO CD 2253 Manuale utente

Volvo

Volvo 13 84 580 Manuale utente

ZENEC

ZENEC ZE-160DVD Manuale utente
