Dynex DX-CRCF12 Manuale utente

USER GUIDE

GUIDE DE L’UTILISATEUR • GUÍA DEL USUARIO

Compact Flash Card

Reader/Writer

Lecteur/enregistreur de carte Compact

Flash

Lector de tarjetas Compact Flash

DX-CRCF12

DX-CRCF12_07-261 - combined.fm Page 1 Monday, July 2, 2007 3:51 PM

2Contents

Dynex Compact Flash Card

Reader/Writer DX-CRCF12

Contents

Introduction ..............................................................2

Important safety instructions....................................3

Card reader components............................................4

Connecting the card reader .......................................5

Using your card reader...............................................6

Troubleshooting ......................................................11

Specifications ..........................................................13

Legal notices ...........................................................13

Warranty .................................................................15

Français.......................................17

Español .......................................33

Introduction

Your card reader accepts standard Compact Flash™ (CF) and IBM®

Microdrive flash memory cards. It can be connected to any external USB

port and does not require an external power adapter.

DX-CRCF12_07-261 - combined.fm Page 2 Monday, July 2, 2007 3:51 PM

Important safety instructions 3

Features

Your card reader features:

• A small palm-sized form factor

• USB-powered operation (an external power adapter is not

needed)

• Compliance with the USB (Universal Serial Bus) 2.0

specification

• Compliance with the USB mass storage device class

specification

• Hot-swappable, Plug & Play capability

• Support for media card icons for easy drive recognition

Important safety instructions

Before getting started, read these instructions and save them for later

reference.

• Before you install your card reader into your computer, read

this user guide. In some operating systems, the driver must

be installed before you install your card reader.

• Do not drop or hit your card reader.

• Do not install your card reader in a location that is subject

to strong vibrations.

• Do not disassemble or try to modify your card reader.

Disassembly or modification may void your warranty and

could damage your card reader leading to a fire or electric

shock.

• Do not store your card reader in a damp location. Do not

allow moisture or liquids to drip into your card reader.

Liquids can damage your card reader leading to a fire or

electric shock.

• Do not insert metal objects, such as coins or paper clips,

into your card reader.

DX-CRCF12_07-261 - combined.fm Page 3 Monday, July 2, 2007 3:51 PM

4Card reader components

• Do not remove a card when theLED indicator shows data

activity is in progress. You may damagethe card or lose

data stored on the card.

• Your card reader is for general computer use. Do not use

your card reader in a computer that requires exceptional

reliability, especially if a breakdown or malfunction of your

card read might jeopardize life or health, such as aerospace

equipment, atomic power control systems, traffic-related

equipment, transportation equipment, industrial robotics,

combustion equipment, safety devices, and life-support

systems.

Card reader components

Package contents

Make sure that you received:

• CompactFlashcard™ card reader (1)

• Mini-USB 5-pin cable (1)

•UtilityCD(1)

•Userguide(1)

Minimum system requirements

• IBM-compatible PC

• Pentium 133 MHz or higher processor

•CDdrive

• 2 MB of hard drive space

• One available external USB port

•Windows

®2000, Windows®XP, or Windows®Vista™,

Mac OS9 or higher.

DX-CRCF12_07-261 - combined.fm Page 4 Monday, July 2, 2007 3:51 PM

Connecting the card reader 5

Connecting the card reader

To connect your card reader, plug the small end of the included USB cable

into your card reader and the other end into an available external USB

port.

If your computer uses Windows XP, Windows 2000, Windows Vista, or

Macintosh OS 10.1 or higher, your computer automatically installs the

correct driver, and two new drive icons appear in the My Computer and

Windows Explorer windows. If you want to customize the card reader

drive icons, see “Customizing drive icons” on page 8.

Installing the driver

Note: If your computer uses Macintosh OS 9.x, you need to install a driver.

To install the driver in Macintosh OS 9.x:

1Save all files and close all programs.

2Insert the utility CD into your CD or DVD drive.

3Open the “Mac driver” folder , then locate the Alcor

Generic.sit file and and drag it onto the desktop.

4Double-click Alcor Generic.sit (Mac’s compress file

format).

DX-CRCF12_07-261 - combined.fm Page 5 Monday, July 2, 2007 3:51 PM

6Using your card reader

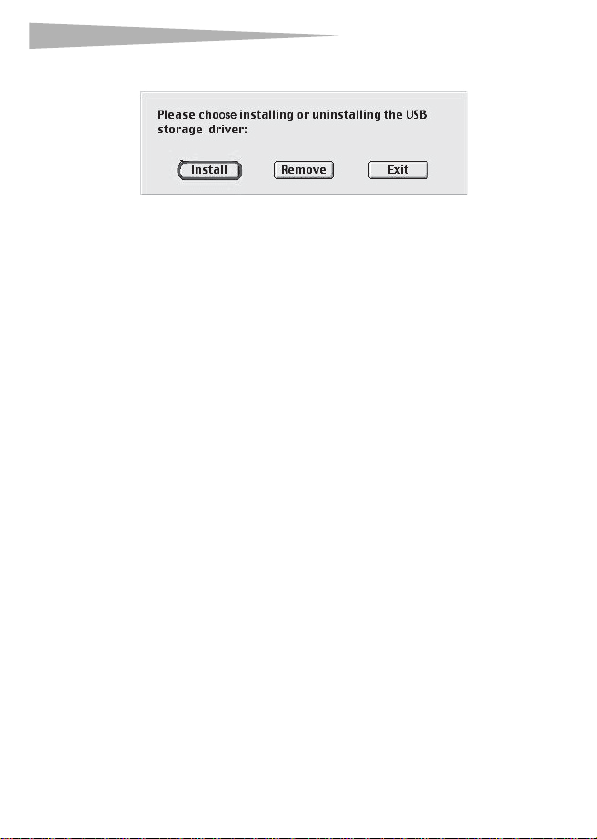

5Double-click the DriverInstaller file.

6Click Install to install the card reader driver.

7After the driver installation is complete, restart your

computer.

Using your card reader

To use a media card:

1Insert your memory card into the appropriate slot, as

shown in the table on page 7.

Caution: Cards must be inserted into the correct slot and in the correct direction.

Otherwise you may damage the card or the slot.

2Open the My Computer or Windows Explorer window, then

double-click the drive icon for the slot you are using.

3To access files and folders on the inserted card, use normal

Windows procedures for opening, copying, pasting, or

deleting files and folders .

4When you have finished working with the files on a

memory card,right-click the memory card icon, then select

Eject. The light on the memory card reader must be OFF

before the card is removed.

Caution: Do not remove memory cards while the data LED on the reader is

flashing or blinking.

DX-CRCF12_07-261 - combined.fm Page 6 Monday, July 2, 2007 3:51 PM

Using your card reader 7

Feature Description

LED Indicates when a slot is reading from or

writing to a card.

LED off-Your card reader is not being

used.

Power LED on (green)-Your card reader is

powered on.

Data LED on (green)-A card is inserted in

the slot.

LED flashing-Data is being transferred to

or from the memory card and the

computer.

CF/MD slot

Note: The arrow shows the

direction you insert the card into

the slot.

Insert Compact Flash™ (type I/II), IBM™

Micro Drive, or MagicStor cards into this

slot.

DX-CRCF12_07-261 - combined.fm Page 7 Monday, July 2, 2007 3:51 PM

8Using your card reader

Customizing drive icons

Note: Connect the card reader to the computer before installing the driver.

To make the media card slots easier to recognize, you can

customize the drive icons.

1Save all files and close all programs.

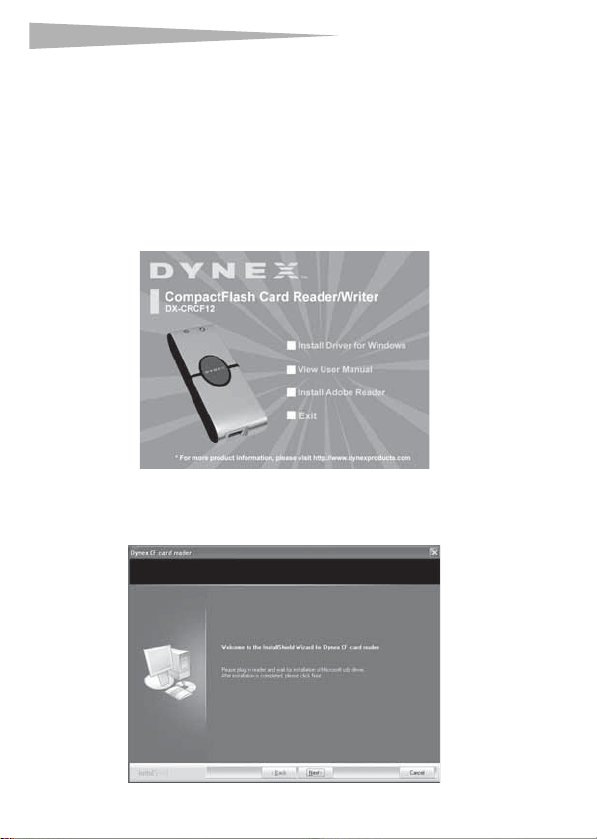

2Insert the included utility CD into your CD drive. The driver

home page pops up automatically.

3Click Install driver for Windows. The Dynex CF card

reader window opens.

DX-CRCF12_07-261 - combined.fm Page 8 Monday, July 2, 2007 3:51 PM

Using your card reader 9

4Click Next, then follow the on-screen instructions to install

the driver.

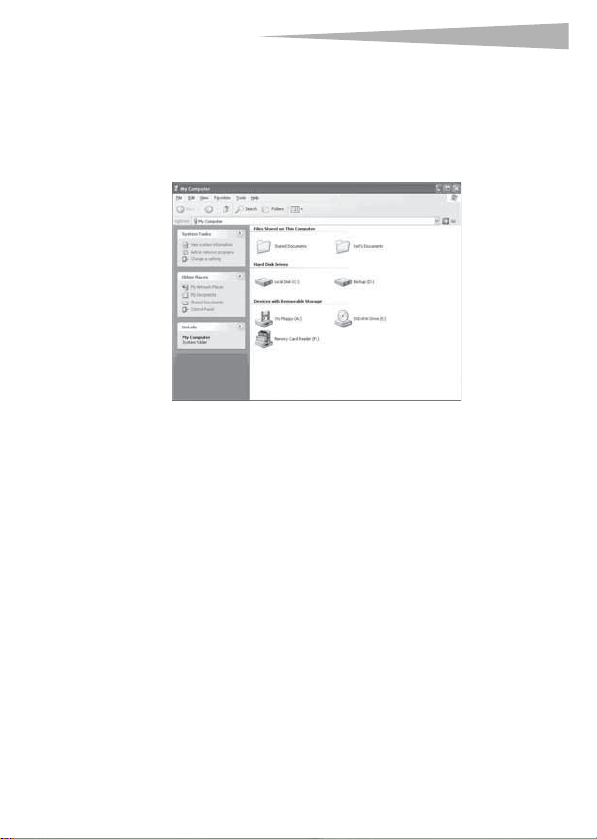

5After the driver installation is complete, restart your

computer. Windows displays new drive icons for each of the

slots instead of the standard Windows drive icons.

6When Windows detects a card in a slot, the corresponding

drive icon turns from grey to a color, indicating that the

card is recognized.

Uninstalling the software

To uninstall the software

1Click the start menu to find the control panel.

2Click the control panel to find the Add or Remove

Program.

DX-CRCF12_07-261 - combined.fm Page 9 Monday, July 2, 2007 3:51 PM

10 Using your card reader

3Click the Remove button to uninstall Dynex CF card reader

driver from your computer.

4Follow the on-screen instructions to remove the driver

completely from your computer. After the driver

uninstallation is complete, restart your computer.
