Dynojet Power commander V Manuale utente
15-042 www.powercommander.com 2017 Harley Davidson Touring PCV - 1
PARTS LIST
1 Power Commander
1 USB Cable
1 Installation Guide
2 Power Commander Decals
2 Dynojet Decals
2 Velcro strips
1 Alcohol swab
1 Front O2 Optimizer
1 Rear O2 Optimizer
THE LATEST POWER COMMANDER
SOFTWARE AND MAP FILES CAN BE
DOWNLOADED FROM OUR WEB SITE AT:
www.powercommander.com
2017 Harley Davidson Touring Model
Installation Instructions
PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION
THE IGNITION MUST BE TURNED
OFF BEFORE INSTALLATION!
2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com
15-042 www.powercommander.com 2017 Harley Davidson Touring PCV - 2

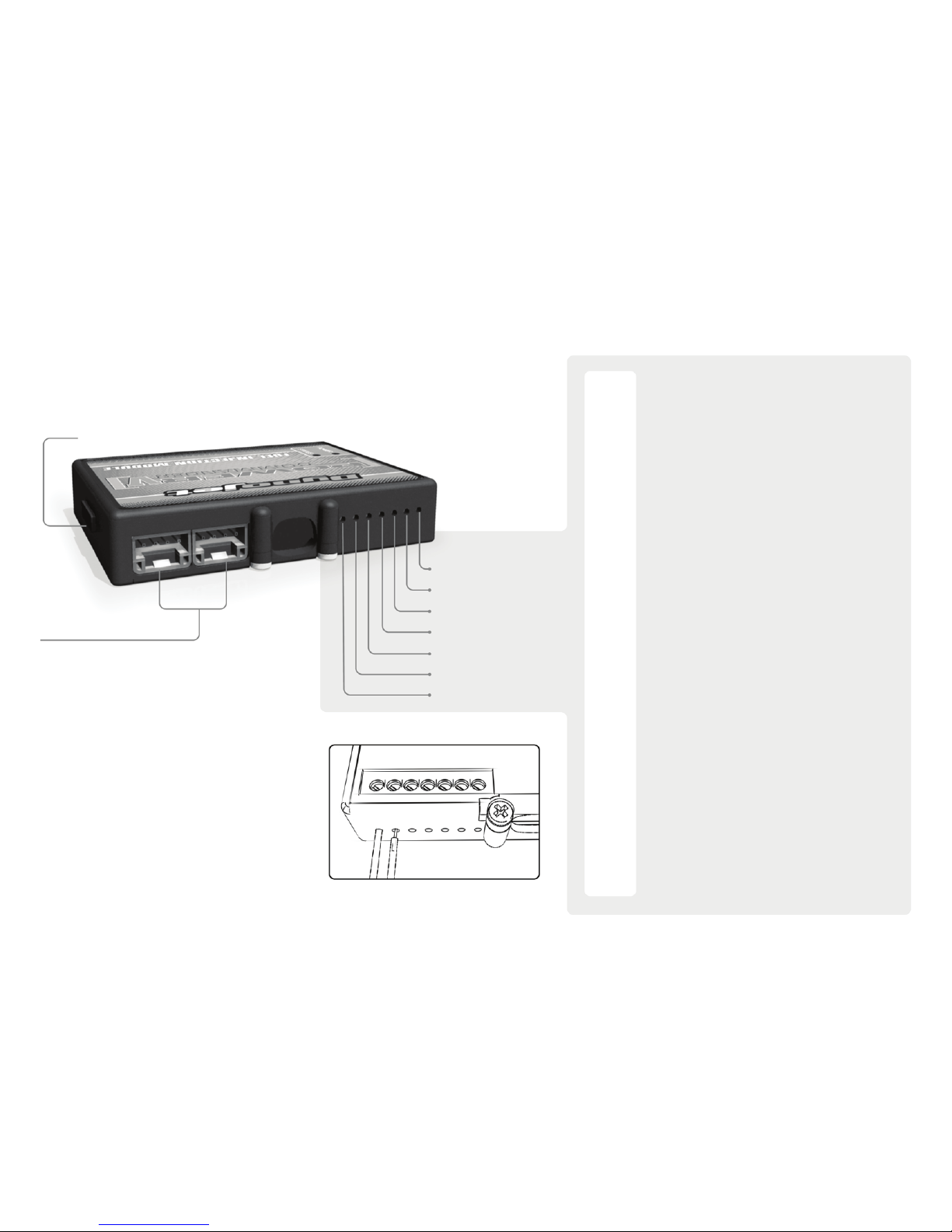

EXPANSION PORTS 1 & 2
Optional Accessories such as
POD-300 unit or Auto-tune kit.
POWER COMMANDER V
INPUT ACCESSORY GUIDE
Map - (Input 1 or 2) The PCV has the ability to hold
2 different base maps. You can switch on the
fly between these two base maps when you
hook up a switch to the MAP inputs. You can
use any open/close type switch. The polarity
of the wires is not important. When using the
Autotune kit one position will hold a base map
and the other position will let you activate the
learning mode. When the switch is “CLOSED”
Autotune will be activated. (Set to Switch
Input #1 by default.)
Shifter- (Input 1 or 2) Used for clutch-less full throttle
upshifts. Insert the wires from the Dynojet
quickshifter into either INPUT 1 or INPUT 2.
The polarity of the wires is not important. (Set
to Switch Input #2 by default.)
Speed- Not needed on Harley applications as the
speed signal wire is built into the main wiring
harness of the PCV.
Analog- This input is for a 0-5v signal such as
engine temp, boost, etc. Once this input
is established you can alter your fuel curve
based on this input in the control center
software.
Launch- You can connect a wire to either input 1 or
2 and then the other end to a switch. This
switch when engaged (continuity) will only
allow the RPM to be raised to a certain limit
(Set in the software). When released you will
have full RPM.
ACCESSORY INPUTS
Wire connections:
To input wires into the PCV first remove the rubber
plug on the backside of the unit and loosen the
screw for the corresponding input. Using a 22-24
gauge wire strip about 10mm from its end. Push the
wire into the hole of the PCV until is stops and then
tighten the screw. Make sure to reinstall the rubber
plug.
NOTE: If you tin the wires with solder it will make
inserting them easier.
N/A
ANALOG
SPEED
INPUT 1 (Grnd)
INPUT 1
INPUT 2 (Grnd)
INPUT 2
USB CONNECTION
15-042 www.powercommander.com 2017 Harley Davidson Touring PCV - 3
1 Remove the stock seat and the right side panel

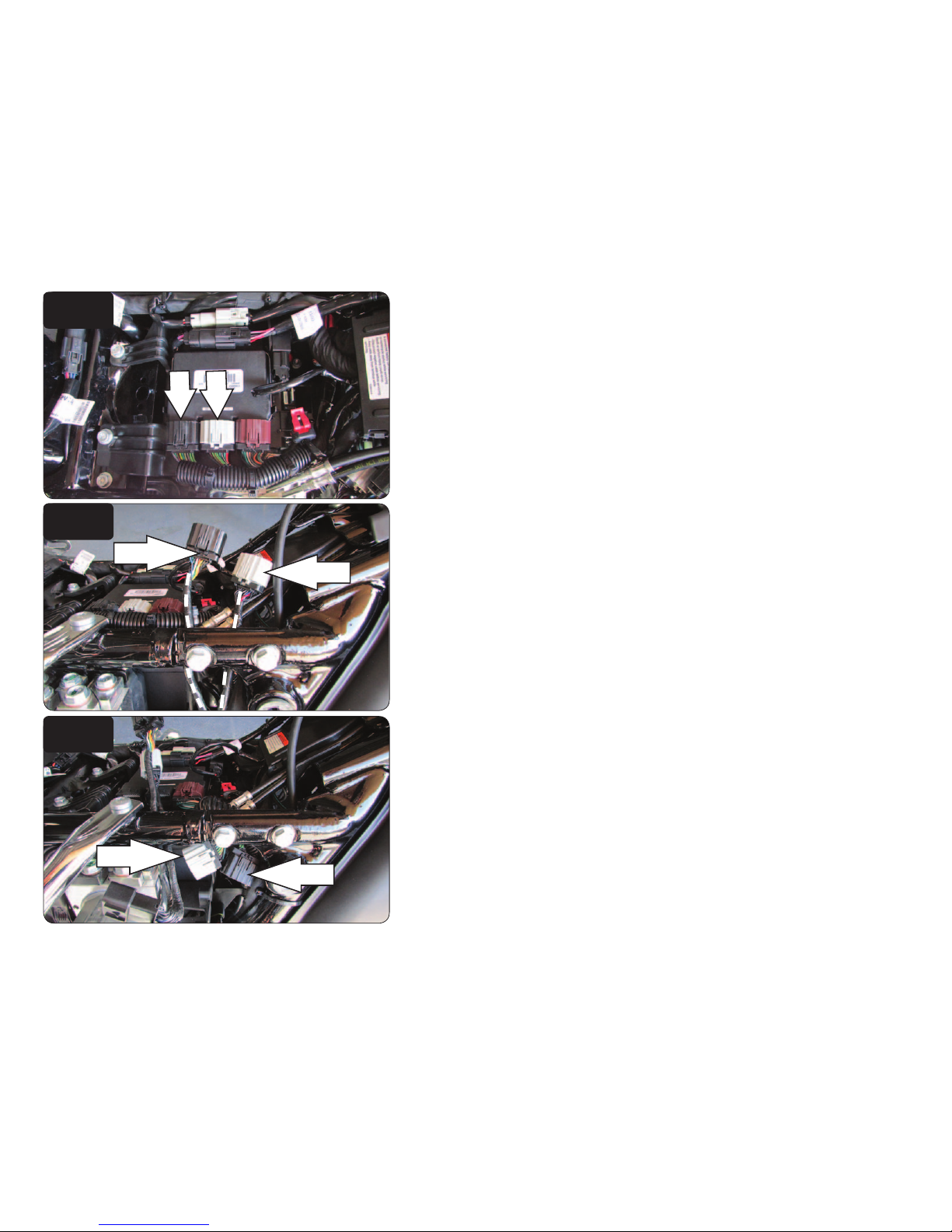

2 Unplug the BLACK and GREY connectors from the ECM (Fig. A) .
3 Route the Female connectors of the PCV behind the frame tube on the right
side of the bike as in Figure B. Slide the harness towards the rear of the bike.
4 Route the stock ECM connectors that were disconnected in step 2 under the
frame tube as in Figure C.
FIG.A
FIG.C
Remove
Ground wire
FIG.B
PCV connector
PCV connector
Stk connector
Stk connector
15-042 www.powercommander.com 2017 Harley Davidson Touring PCV - 4

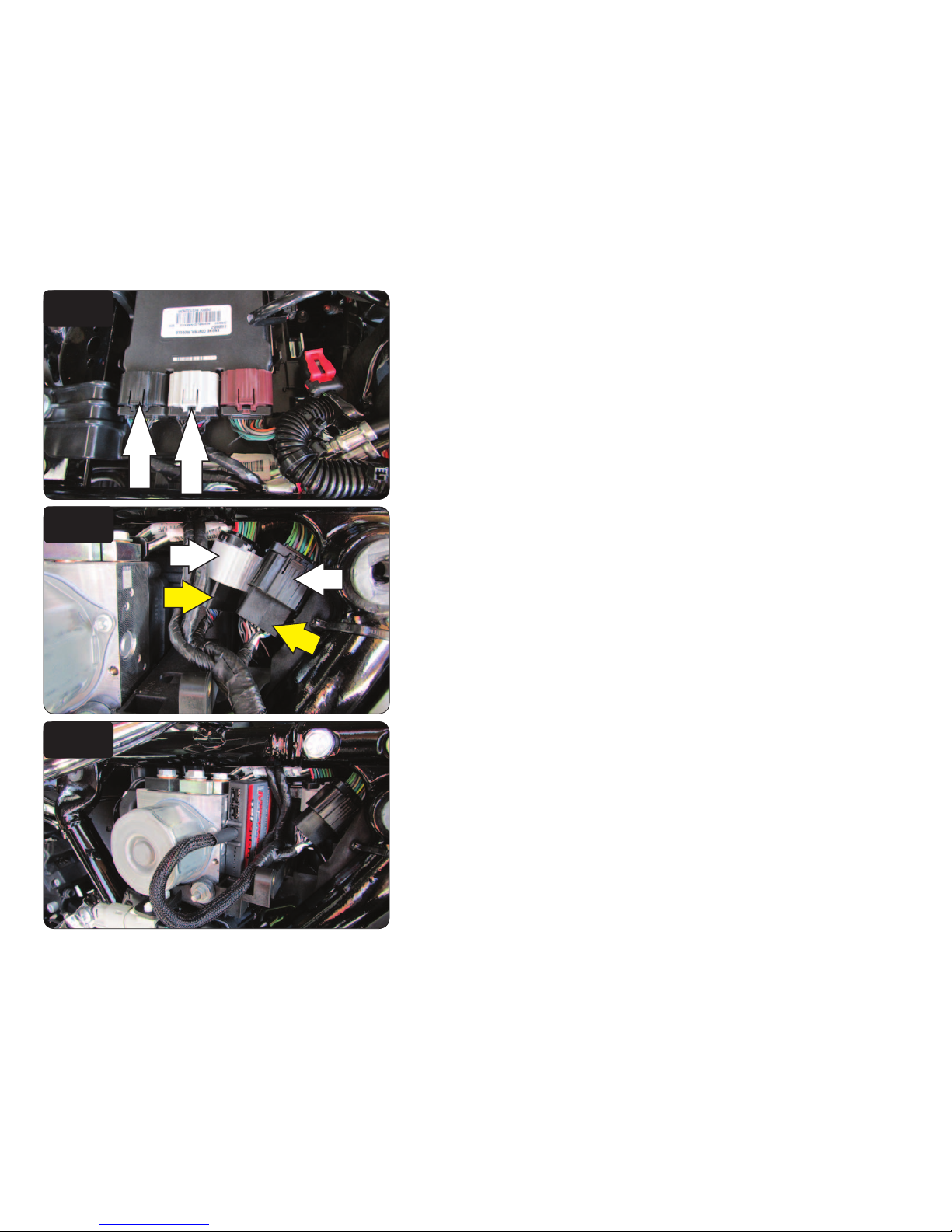

5 Plug the PCV connectors into the stock ECM (Fig. D).
FIG.D
6 Plug the Male connectors of the PCV into the stock Female connectors
(Fig. E).
FIG.E
7 Secure the PCV under the right hand side cover using the supplied Velcro.
Make sure to clean the surface with the alcohol swab before attaching.
Figure F is shown on the ABS model. Non ABS models will have more options of
where to place the unit.
FIG.F
PCV connector
PCV connector
PCV
PCV
Stk
Stk
15-042 www.powercommander.com 2017 Harley Davidson Touring PCV - 5
FIG.G
9 Plug the Dynojet O2 Optimizers into the stock wiring harness (Fig. H).
The stock O2 sensors will NOT be connected to anything at this time. The
sensors can be removed from the exhaust if you have a way to plug the hole.
FIG.H
FIG.I
8 Locate the stock O2 sensor connections and unplug both connectors (Fig. G).
There is a GREY 4 pin and a BLACK 4 pin connector under the right hand side
cover.
Follow these instructions when using the Auto tune kit - (PN: AT-101B).
Refer to the Autotune install guide for the correct O2 sensor placement.
1 Remove the left hand side cover.
2 Place the Autotune module next to the PCV as shown in Figure I.
15-042 www.powercommander.com 2017 Harley Davidson Touring PCV - 6
5 Connect the longer harness to the front O2 sensor and then connect to
Autotune AT#1. Wire the harness to the module per Figure K. The harness can
be cut to length if desired.
6 Repeat step 5 for the rear cylinder. Wire the harness to Autotune module
AT#2. The harness can be cut to length if desired.
7 Use the CAN cable to connect the Autotune module to the PCV. It does not
matter what ports are used.
8 Install the CAN termination plug into the open port of the Autotune module.
This is the BLACK plastic connector in the kit (PN: 76423025). It is
critical that this piece be installed and it is often overlooked.
9 Secure the harnesses in place as to not contact the exhaust.
10 Reinstall the side cover.
In the PCV software go to Power Commander Tools - Configure - Features,
Enables, and Input Selections to enable and configure the Auto-tune feature.
Go to www.powercommander.com for the latest maps and software updates.

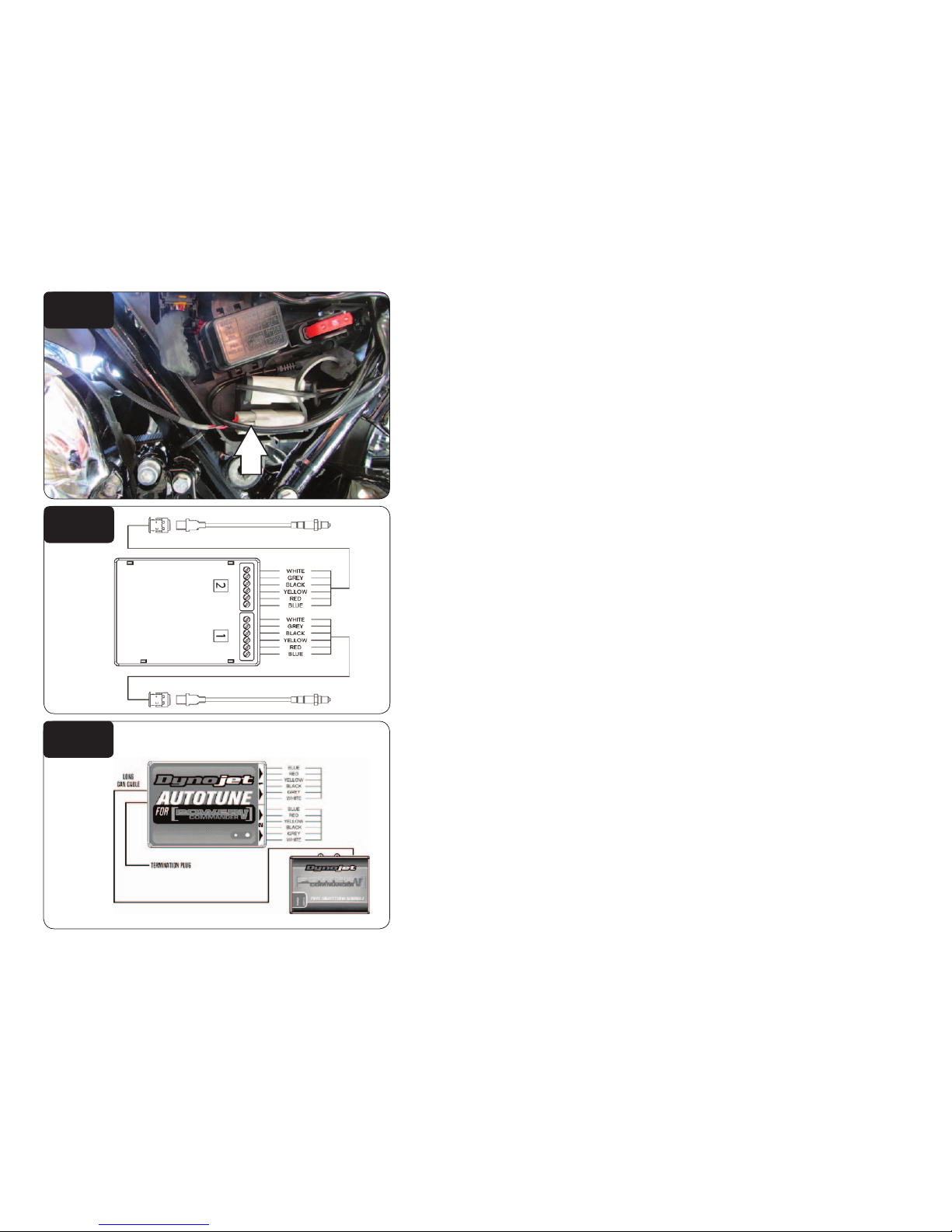

FIG.L
FIG.K
FIG.J
3 Route the 6-pin power plug from the Autotune from the right side of the bike
and go in front of the battery to the right side of the bike.
4 Plug the Autotune power lead into the diagnostic port under the left hand side
cover (Fig. J).
Secure the Autotune lead so it does not get caught in the drive belt.
