Dyson AIRBLADE V Manuale utente

12-14

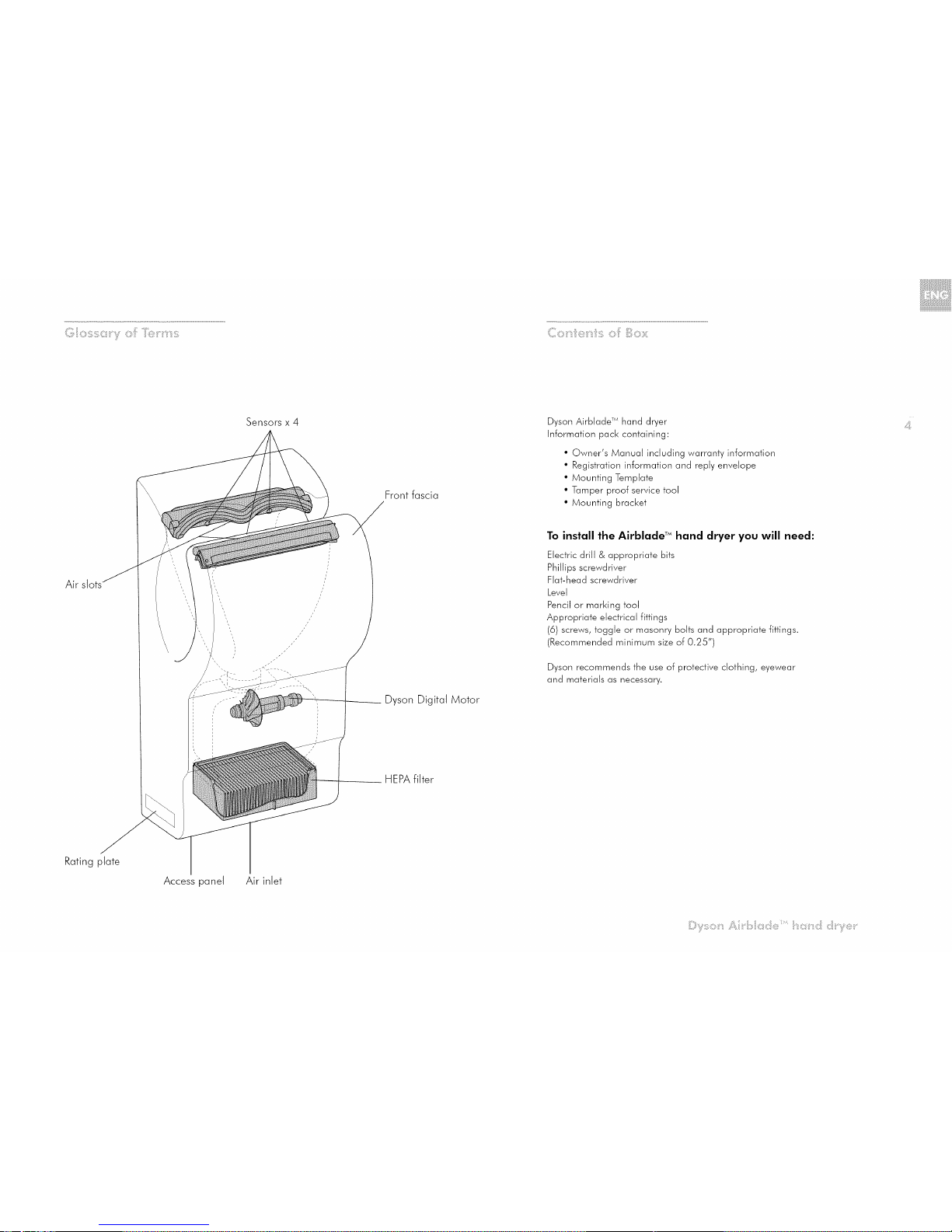

Glossary of Terms

Contents of Box

•Tools needed

Installation Procedures

• Electrical requirements

• Positioning

• Mounting Bracket

• Removing the Fascia Cover

• Connecting to Electrical Supply

• Refitting Front Fascia& Access Panel

Final Inspection

Cleaning and Maintenance Advice

Troubleshooting

Limited Warranty Information

Contacting Dyson

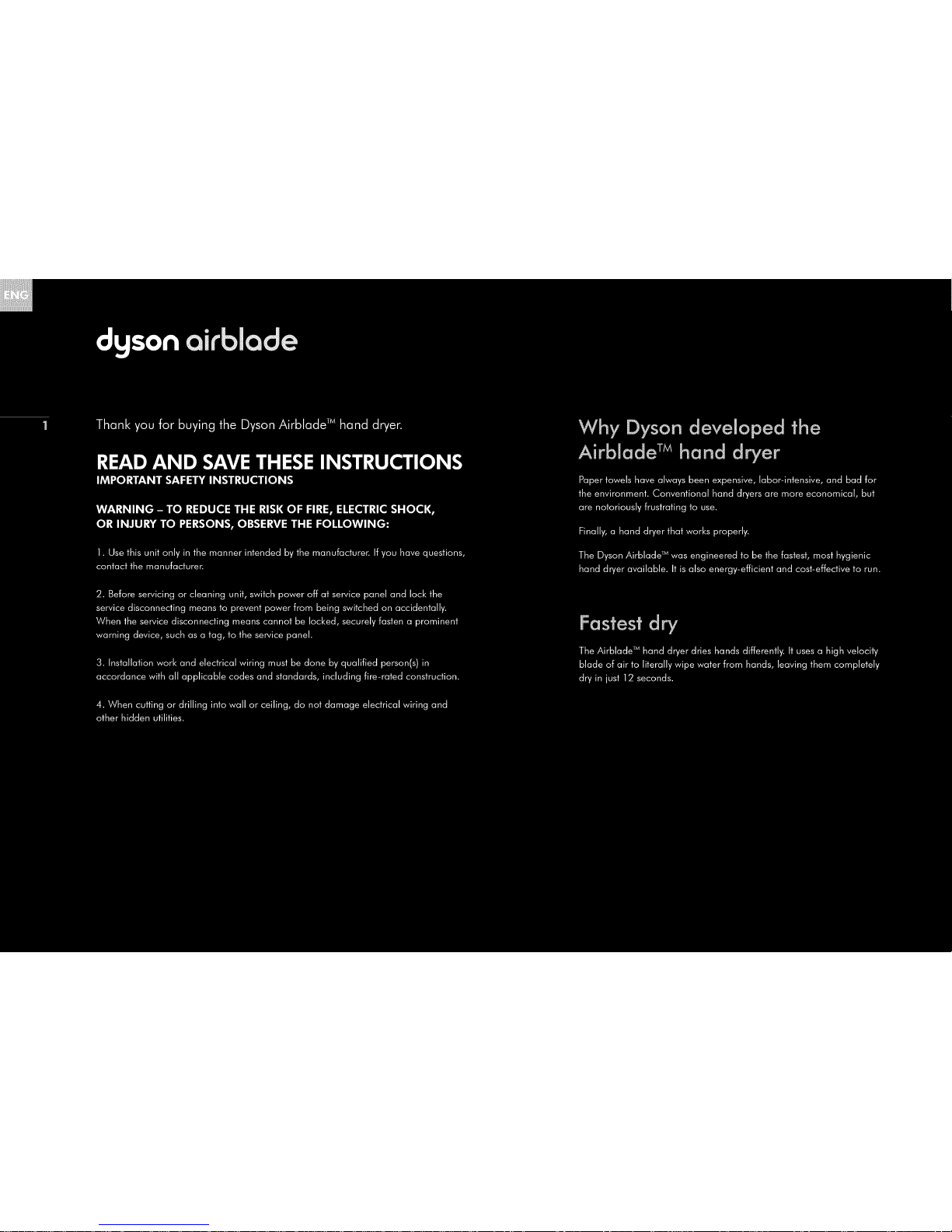

ACAUTION: Risk of electric shock! Do not remove casing or attempt repair unless unit is being /_

serviced by qualified service personnel. If casing is removed or handled improperly the internal

components of the Dyson Airblade TM hand dryer may cause harm or become permanently damaged.

WARNING: To reduce the risk of fire or electric shock, do not expose the internal mechanism/

components of this unit to rain or moisture.

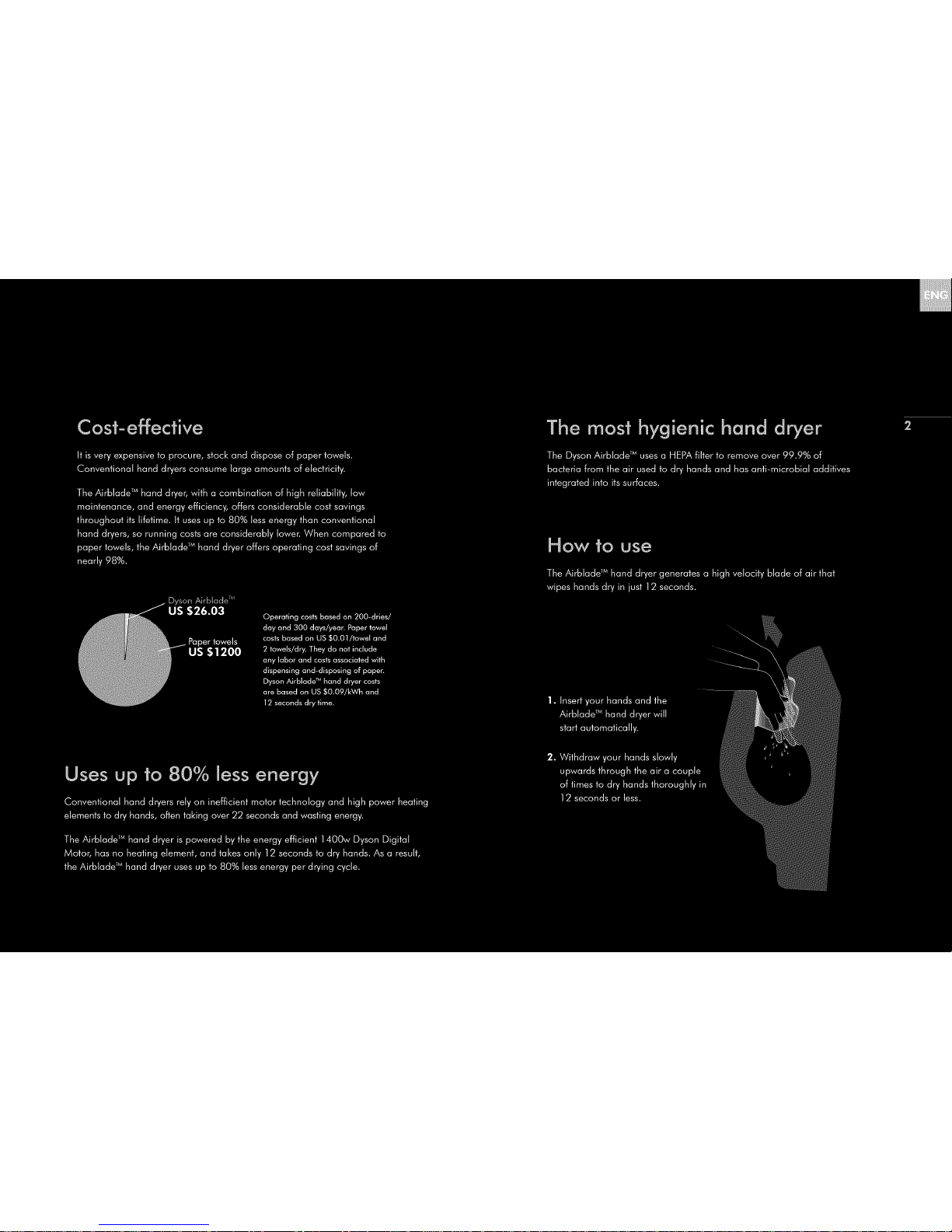

General notes:

The instructions contained within the Owner's Manual must be read carefully before attempting to install the

Airblade TM hand dryer. Read and retain for future reference.

Failure to accurately follow the instructions may result in the incorrect operation of the Airblade TM hand dryer,

damage to property and/or personal injury.

Dyson will not be held liable for any damage to property or personal injury as a result of failure to comply with

the instructions contained herein.

Do not use Airblade TM hand dryer for anything other than drying hands.

The Airblade TM hand dryer must be grounded properly.

Trouble free operation and safety can only be continued by using genuine Dyson spare parts.

WARNING:

This product may contain substances known to the state of California to cause cancer, birth defects and other

reproductive harm. Wash hands after handling.

C,iii_,o:_!_15s_ii:_ii_,_'__#o'ii_'iI"iiii:i__i_'_i_ii__i;

Air

Sensors x 4

Front fascia

Dyson Digital Motor

Dyson AirbladeTM hand dryer

Information pack containing:

• Owner's Manual including warranty information

• Registration information and reply envelope

• Mounting Template

• Tamper proof service fool

• Mounting bracket

To install the Airblade TM hand dryer you will need:

Electric drill & appropriate bits

Phillips screwdriver

Flat-head screwdriver

Level

Pencil or marking fool

Appropriate electrical fittings

(6) screws, toggle or masonry bolts and appropriate fittings.

(Recommended minimum size of 0.25")

Dyson recommends the use of protective clothing, eyewear

and materials as necessary.

Rating plate

Access ganel Air inlet

HEPAfilter

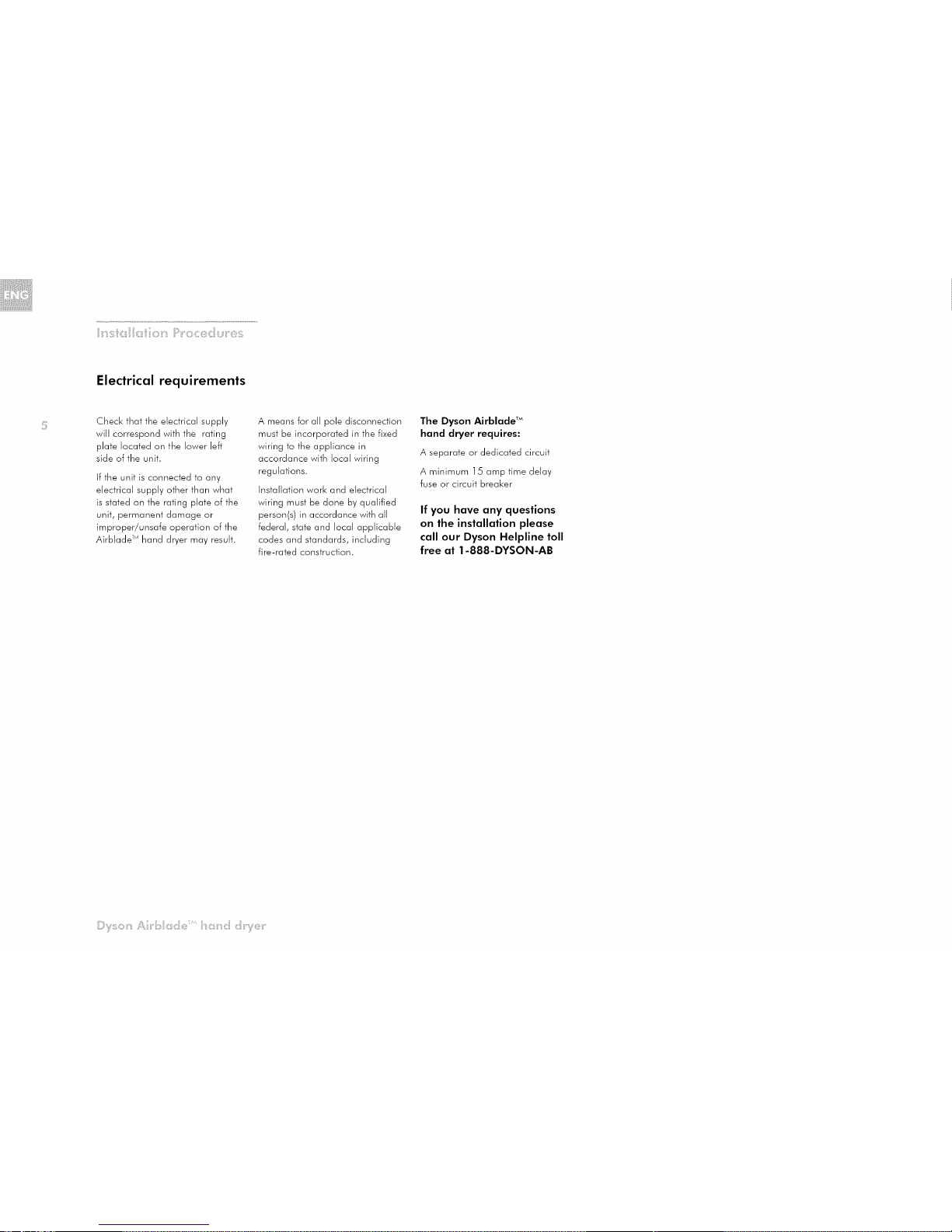

Electrical requirements

Check that the electrical supply

will correspond with the rating

plate located on the lower left

side of the unit.

If the unit is connected to any

electrical supply other than what

is stated on the rating plate of the

unit, permanent damage or

improper/unsafe operation of the

Airblade _"hand dryer may result.

A means for all pole disconnection

must be incorporated in the fixed

wiring to the appliance in

accordance with local wiring

regulations.

Installation work and electrical

wiring must be done by qualified

person(s) in accordance with all

federal, state and local applicable

codes and standards, including

fire-rated construction.

The Dyson Airblade TM

hand dryer requires:

A separate or dedicated circuit

A minimum 15 amp time delay

fuse or circuit breaker

If you have any questions

on the installation please

call our Dyson Helpline toll

free at 1-888-DYSON-AB

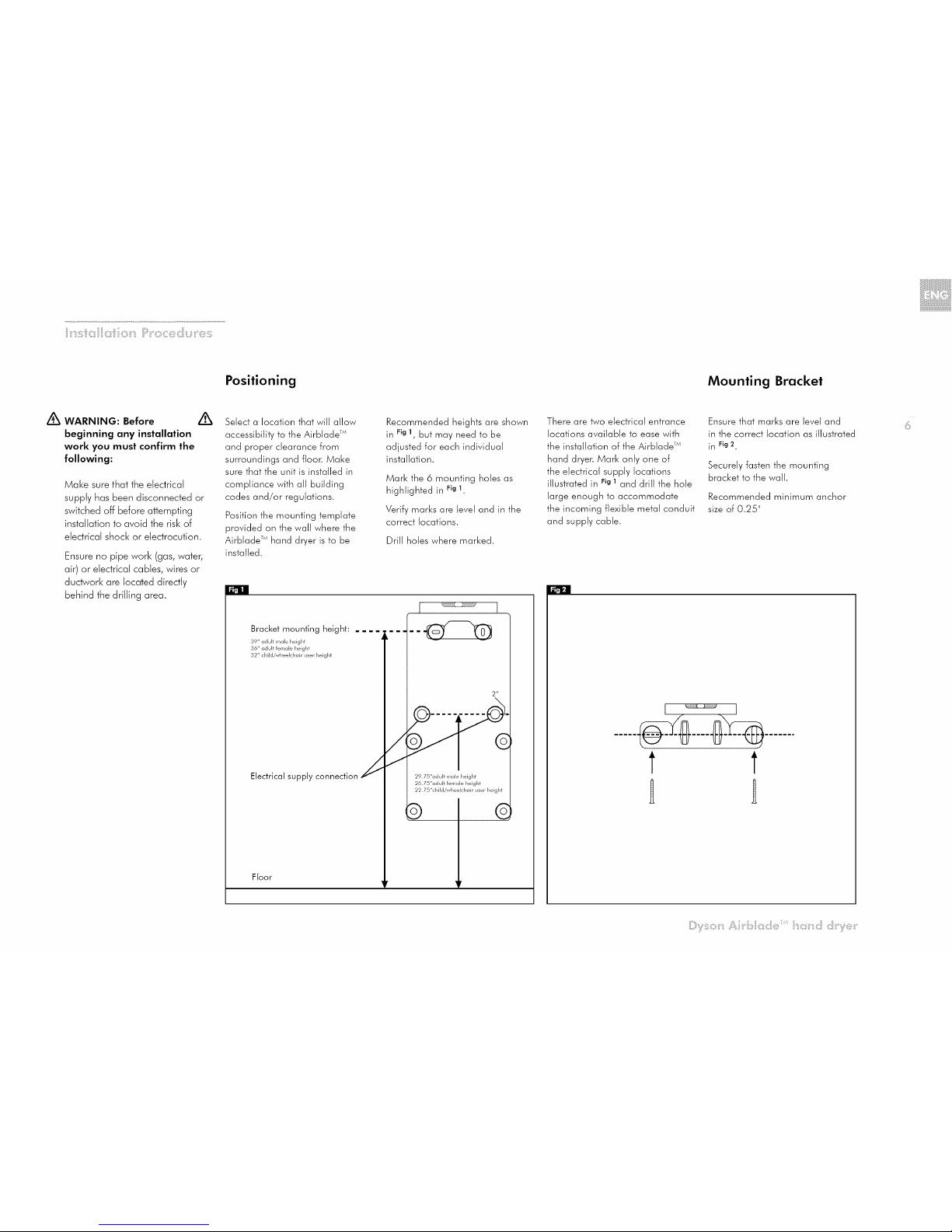

Positioning Mounting Bracket

/_ WARNING: Before

beginning any installation

work you must confirm the

following:

Make sure that the eledricai

supply has been disconnected or

switched off before attempting

installation to avoid the risk of

electrical shock or electrocution.

Ensure no pipe work (gas, water,

air) or electrical cables, wires or

ductwork are located directly

behind the drilling area.

/t,, Select a location that will allow

accessibility to the Airblade TM

and proper clearance from

surroundings and floor. Make

sure that the unit is installed in

compliance with all building

codes and/or regulations.

Position the mounting template

provided on the wall where the

Airblade TM hand dryer is to be

installed.

Bracket mounting height: ....

39" adult male height

36" adult female height

32" chlid/wheeJchalr user helghl

Electrical supply connection

Floor

Recommended heights are shown

in Fig1, but may need to be

adjusted for each individual

installation.

Mark the 6 mounting holes as

highlighted in Fig1

Verify marks are level and in the

correct locations.

Drill holes where marked.

mm.

29.75"adult male hdght

26.75"adult female height

22 75"chfld/wheelchdr user height

There are two electrical entrance

locations available to ease with

the installation of the Airblade TM

hand dryer. Mark only one of

the electrical supply locations

illustrated in Fig1 and drill the hole

large enough to accommodate

the incoming flexible metal conduit

and supply cable.

Ensure that marks are level and

in the correct location as illustrated

in Fig 2.

Securely fasten the mounting

bracket to the wall.

Recommended minimum anchor

size of 0.25"

I I

...... .... .......

t t

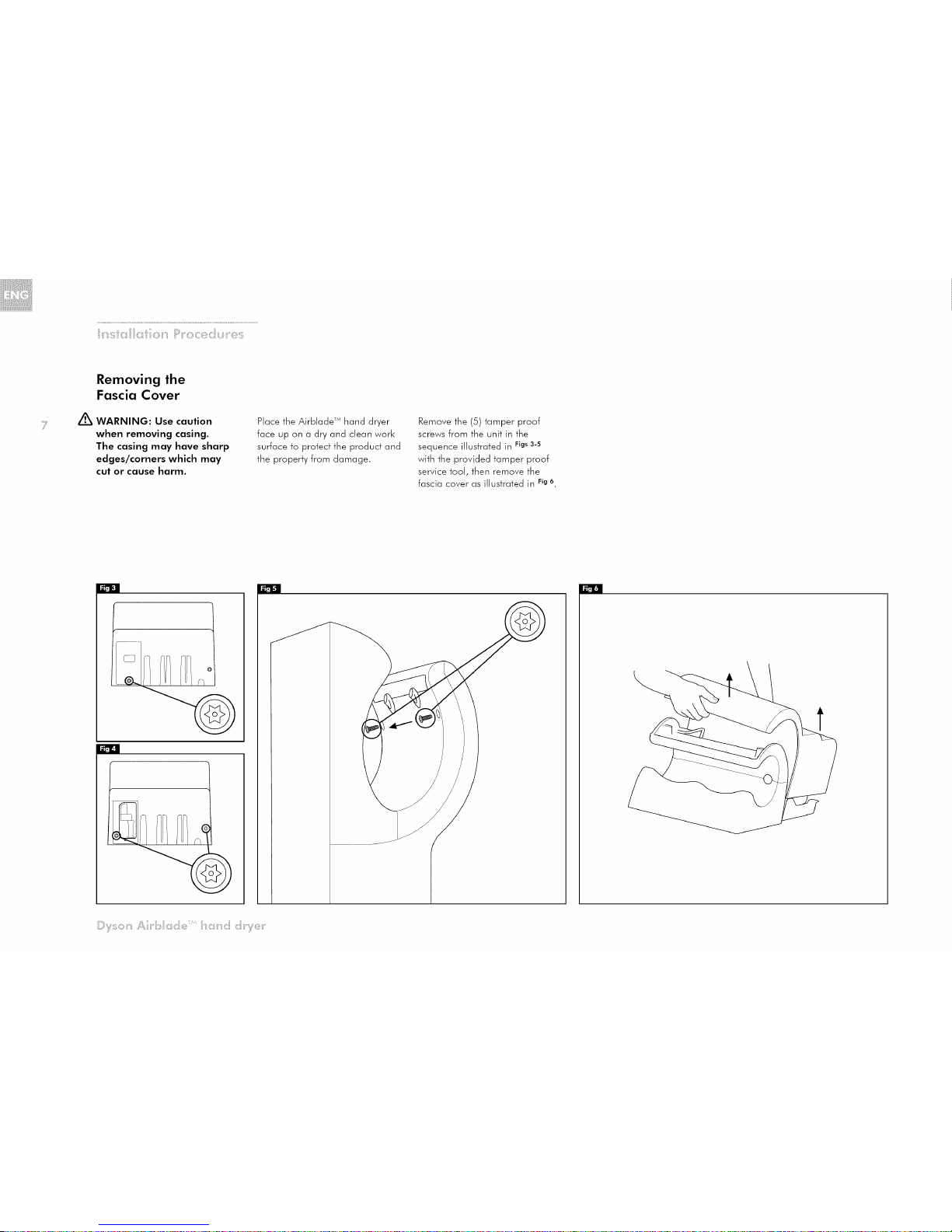

Removing the

Fascia Cover

/_ WARNING: Use caution

when removing casing.

The casing may have sharp

edges/corners which may

cut or cause harm.

Place the Airblade TM hand dryer

face up on a dry and clean work

surface to protect the product and

the property from damage.

Remove the (5) tamper proof

screws from the unit in the

sequence illustrated in Figs3-5

with the provided tamper proof

service tool, then remove the

fascia cover as illustrated in Fig6

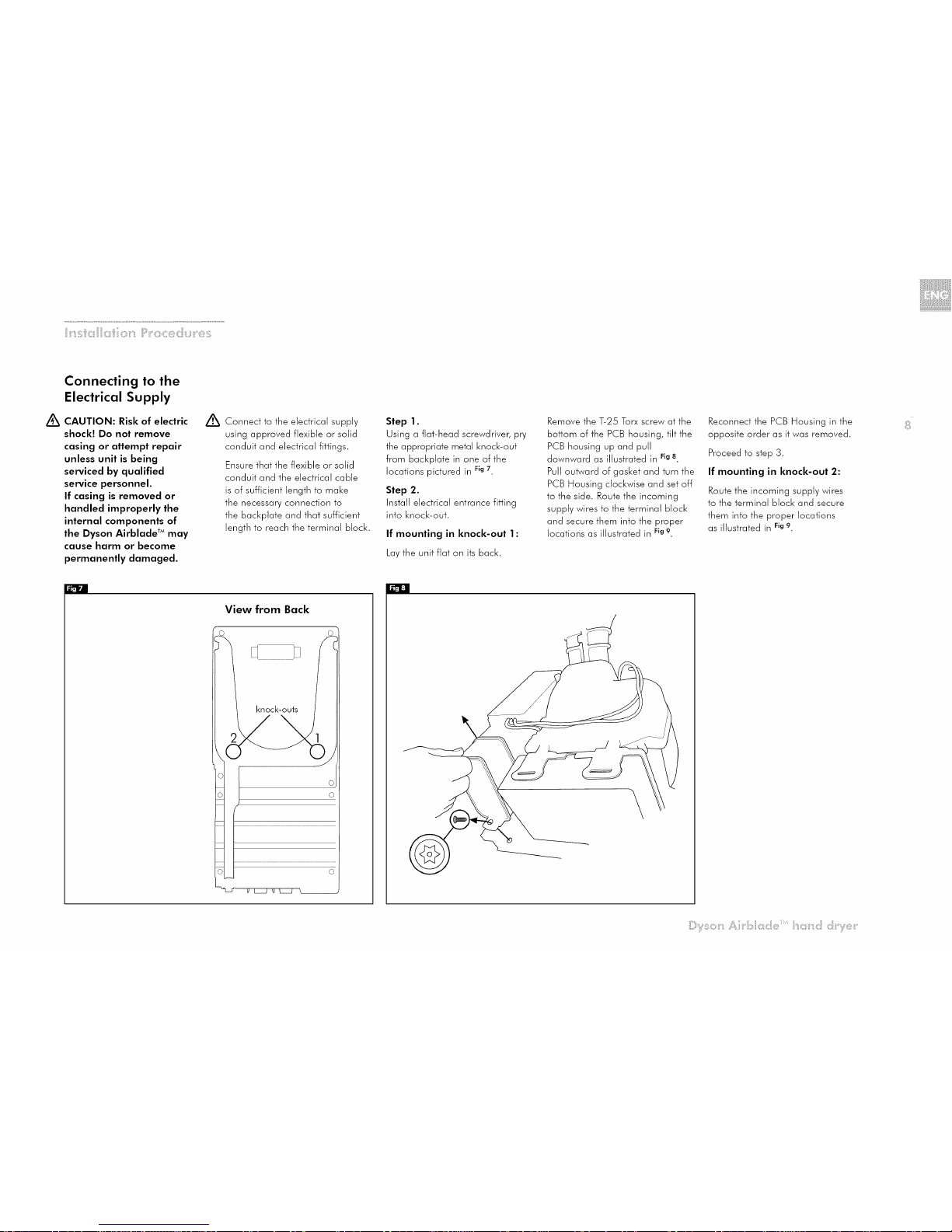

Connecting to the

Electrical Supply

/_ CAUTION: Risk of electric

shock! Do not remove

casing or attempt repair

unless unit is being

serviced by qualified

service personnel.

If casing is removed or

handled improperly the

internal components of

the Dyson Airblade TM may

cause harm or become

permanently damaged.

Connect to the electrical supply

using approved flexible or solid

conduit and electrical fittings.

Ensurethat the flexible or solid

conduit and the electrical cable

is of sufficient length to make

the necessary connection to

the backplate and that sufficient

length to reach the terminal block.

Step 1.

Using a flat-head screwdriver, pry

the appropriate metal knock-out

from backplate in one of the

locations pictured in Fig7

Step 2.

Install electrical entrance fitting

into knock-out.

If mounting in knock-out 1:

Laythe unit flat on its back.

Remove the T-25 Torx screw at the

bottom of the PCB housing, tilt the

PCBhousing up and pull

downward as illustrated in Fig8

Pulloutward of gasket and turn the

PCBHousing clockwise and set off

to the side. Routethe incoming

supply wires to the terminal block

and secure them into the proper

locations as illustrated in Fig9

Reconnect the PCB Housing in the

opposite order as it was removed.

Proceed to step 3.

If mounting in knock-out 2:

Route the incoming supply wires

to the terminal block and secure

them into the proper locations

as illustrated in Fig9

View from Back

Connecting to the

Electrical Supply cont.

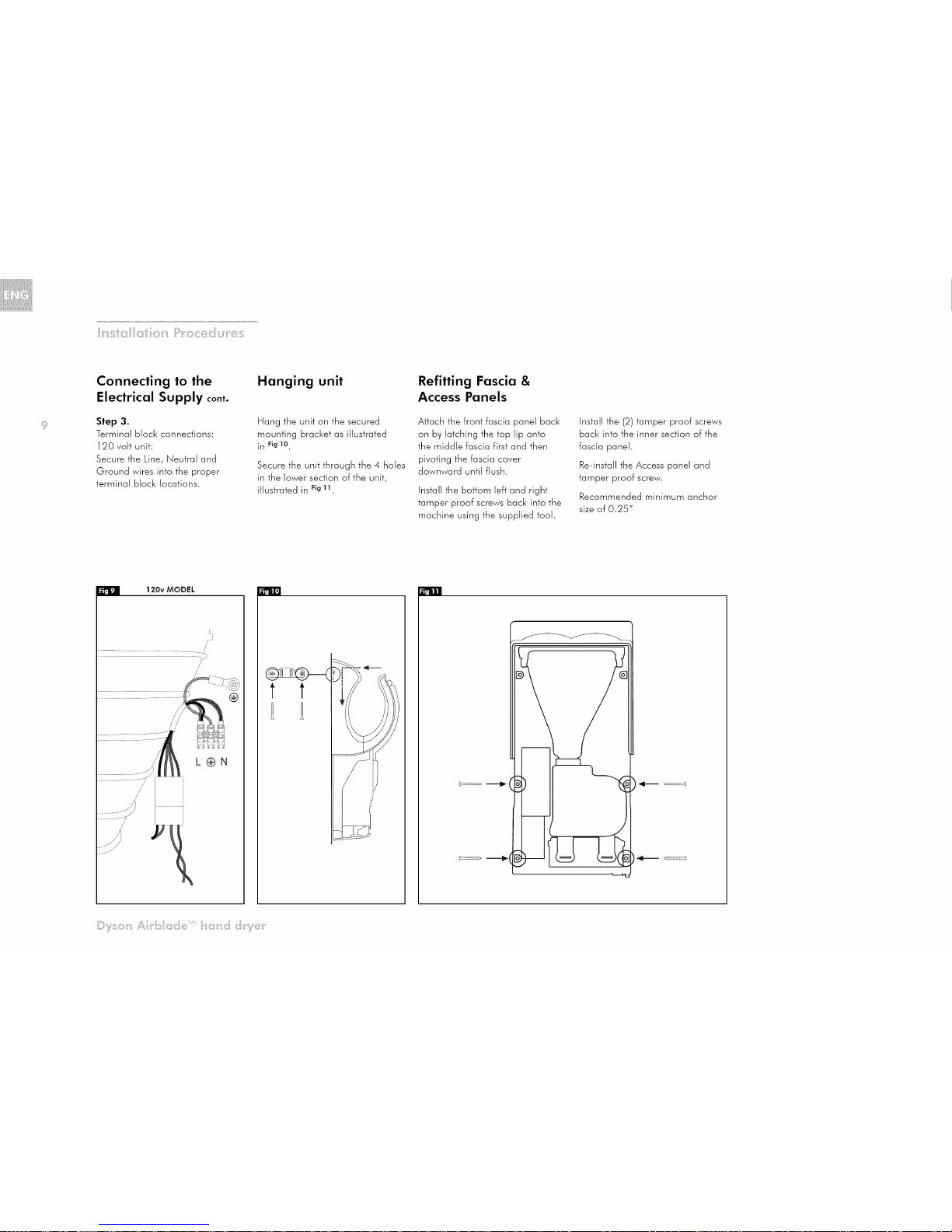

Step 3.

Terminal block connections:

] 20 volt unit:

Secure the Line, Neutral and

Ground wires into the proper

terminal block locations.

Hanging unit

Hang the unit on the secured

mounting bracket as illustrated

in Fig 10

Secure the unit through the 4 holes

in the lower section of the unit,

illustrated in Fig11

Refitting Fascia &

Access Panels

Attach the front fascia panel back

on by latching the top lip onto

the middle fascia first and then

pivoting the fascia cover

downward until flush.

Install the bottom left and right

tamper proof screws back into the

machine using the supplied tool.

Install the (2) tamper proof screws

back into the inner section of the

fascia panel.

Re-install the Access panel and

tamper proof screw.

Recommended minimum anchor

size of 0.25"

120v MODEL [J_'l]J]

............................... ,>/'

//'

/{'

L@N

t t
