Dyson Stowaway DC23 Manuale utente

_ helpine _anual

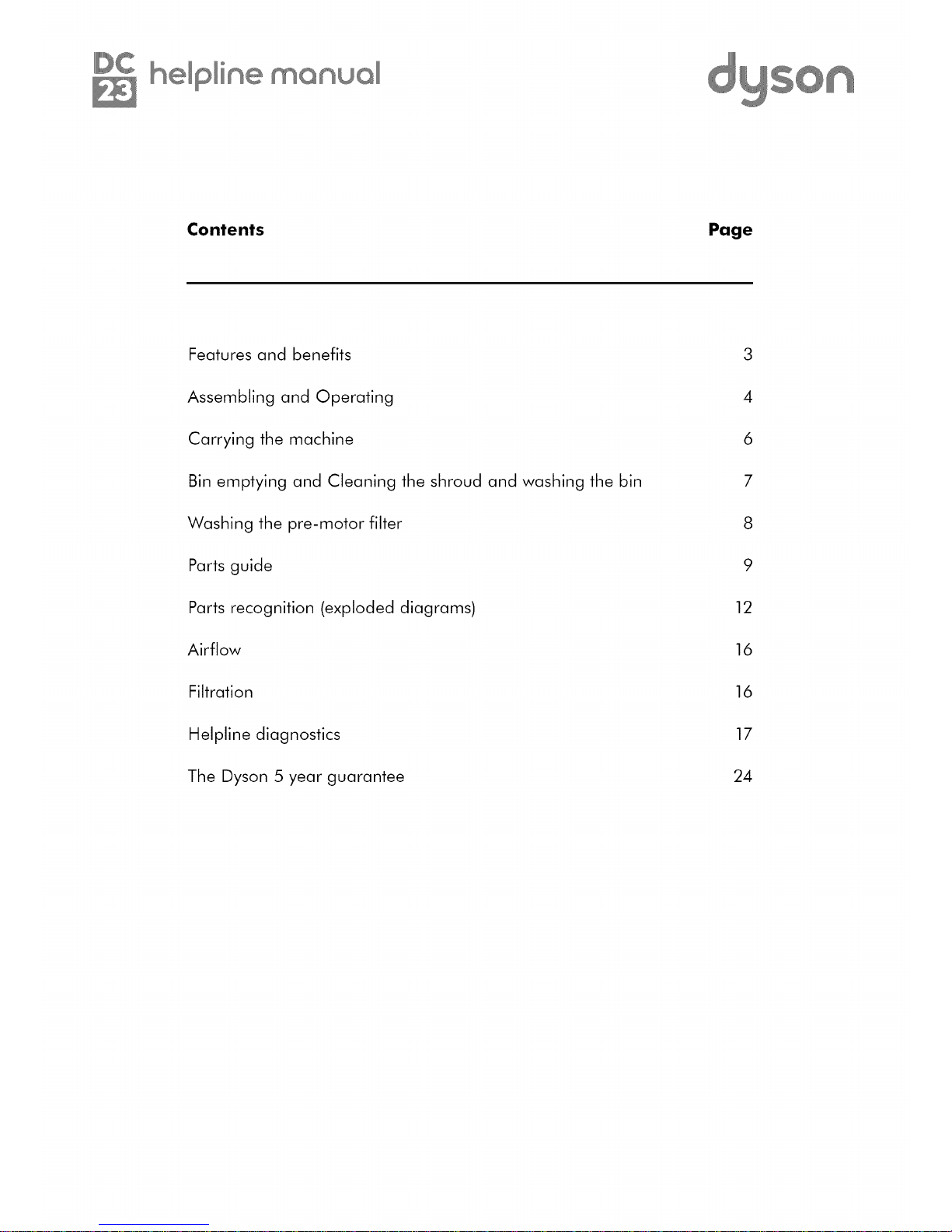

Contents Page

Features and benefits

Assembling and Operating

Carrying the machine

Bin emptying and Cleaning the shroud and washing the bin

Washing the pre-motor filter

Parts guide

Parts recognition (exploded diagrams)

Airflow

Filtration

Helpline diagnostics

The Dyson 5 year guarantee

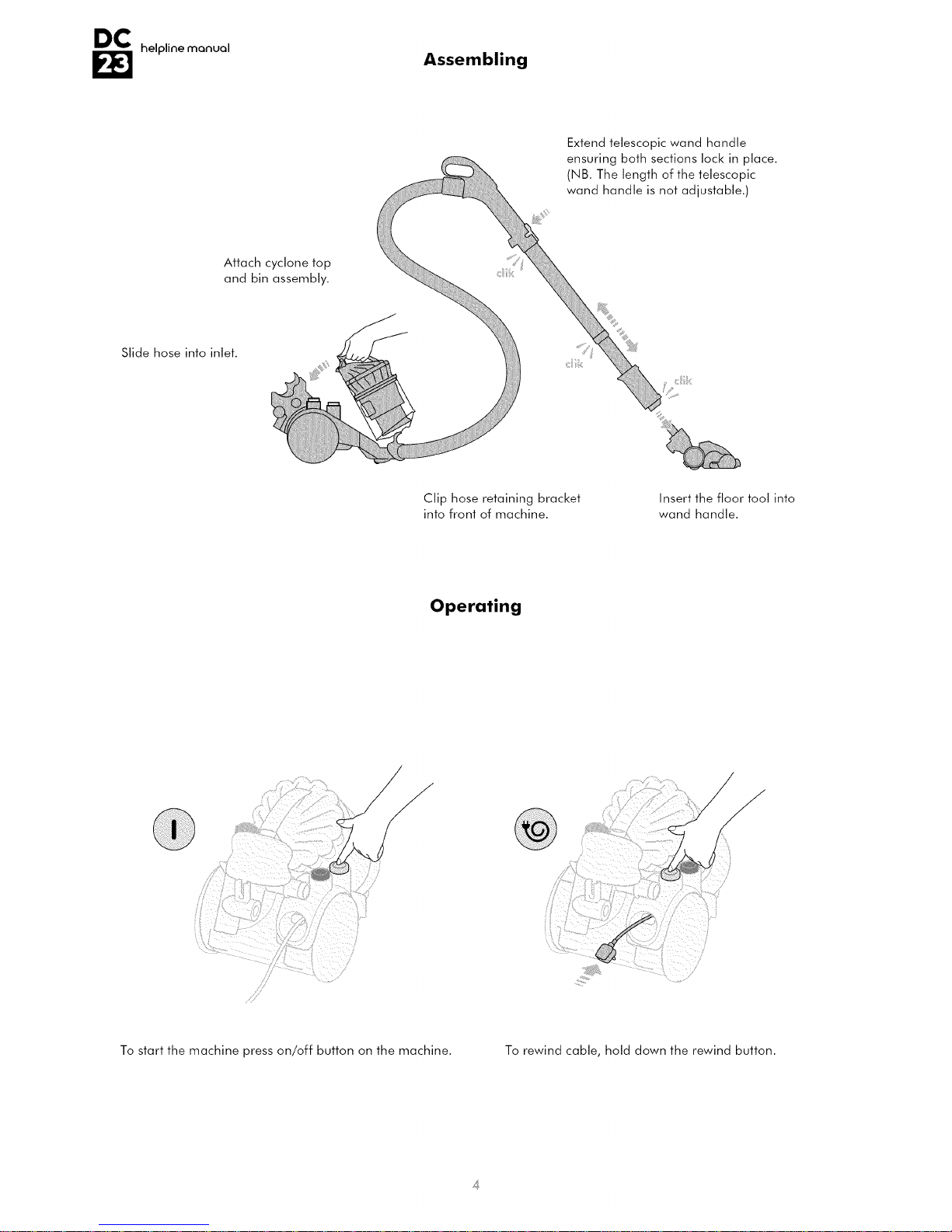

DC helplinemanual Assembling

Extend telescopic wand handle

ensuring both sections lock in place.

(NB. The length of the telescopic

wand handle is not adjustable.)

Attach cyclone top

and bin assembly.

Slide hose into inlet.

Clip hose retaining bracket

into front of machine. Insert the floor tool into

wand handle.

Operating

To start the machine press on/off button on the machine. To rewind cable, hold down the rewind button.

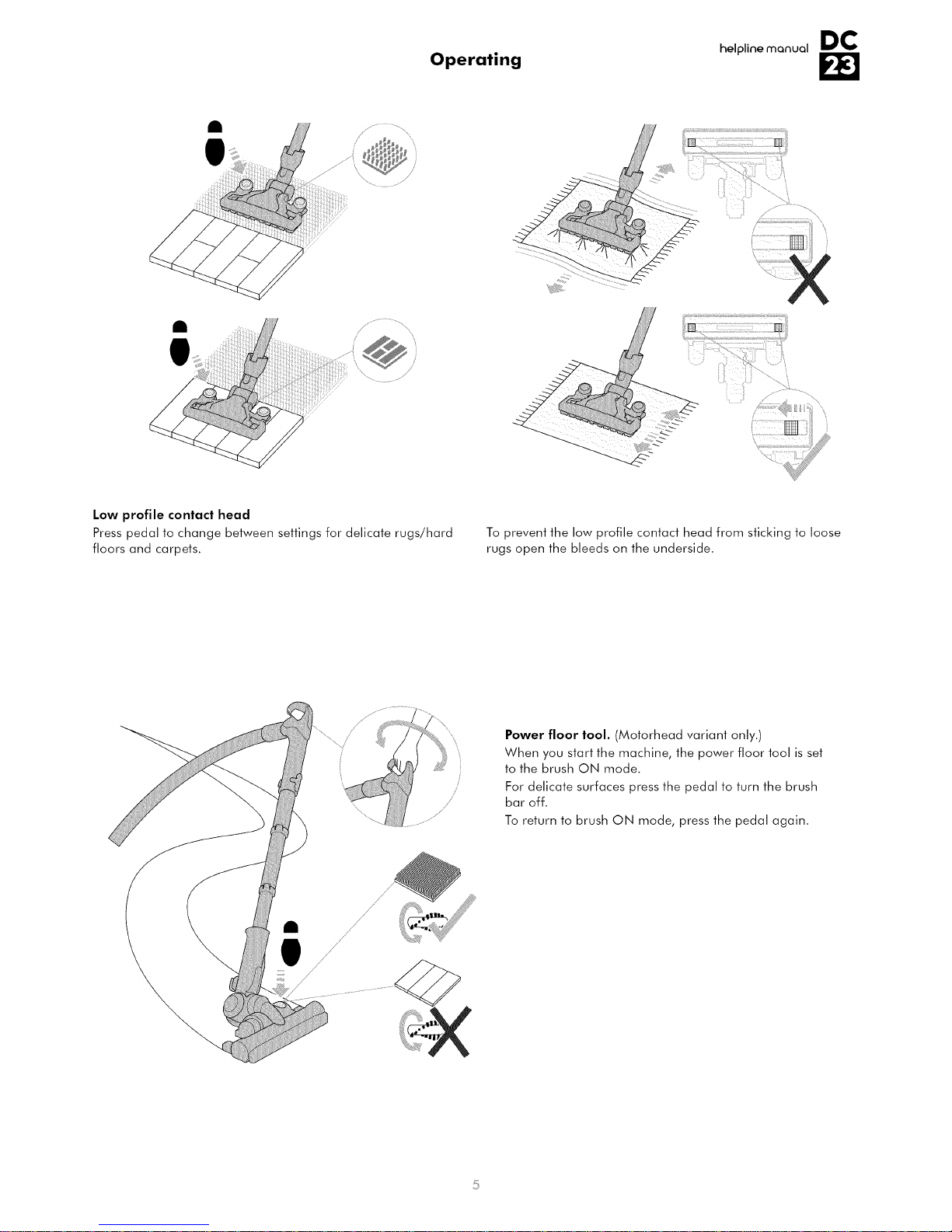

Operating helpline manual DC

Low profile contact head

Press pedal to change between settings for delicate rugs/hard

floors and carpets. To prevent the low profile contact head from sticking to loose

rugs open the bleeds on the underside.

'\ \

/,//

Power floor tool. (Motorhead variant only.)

When you start the machine, the power floor tool is set

to the brush ON mode.

For delicate surfaces press the pedal to turn the brush

bar off.

To return to brush ON mode, press the pedal again.

DC helplinemanual Operating

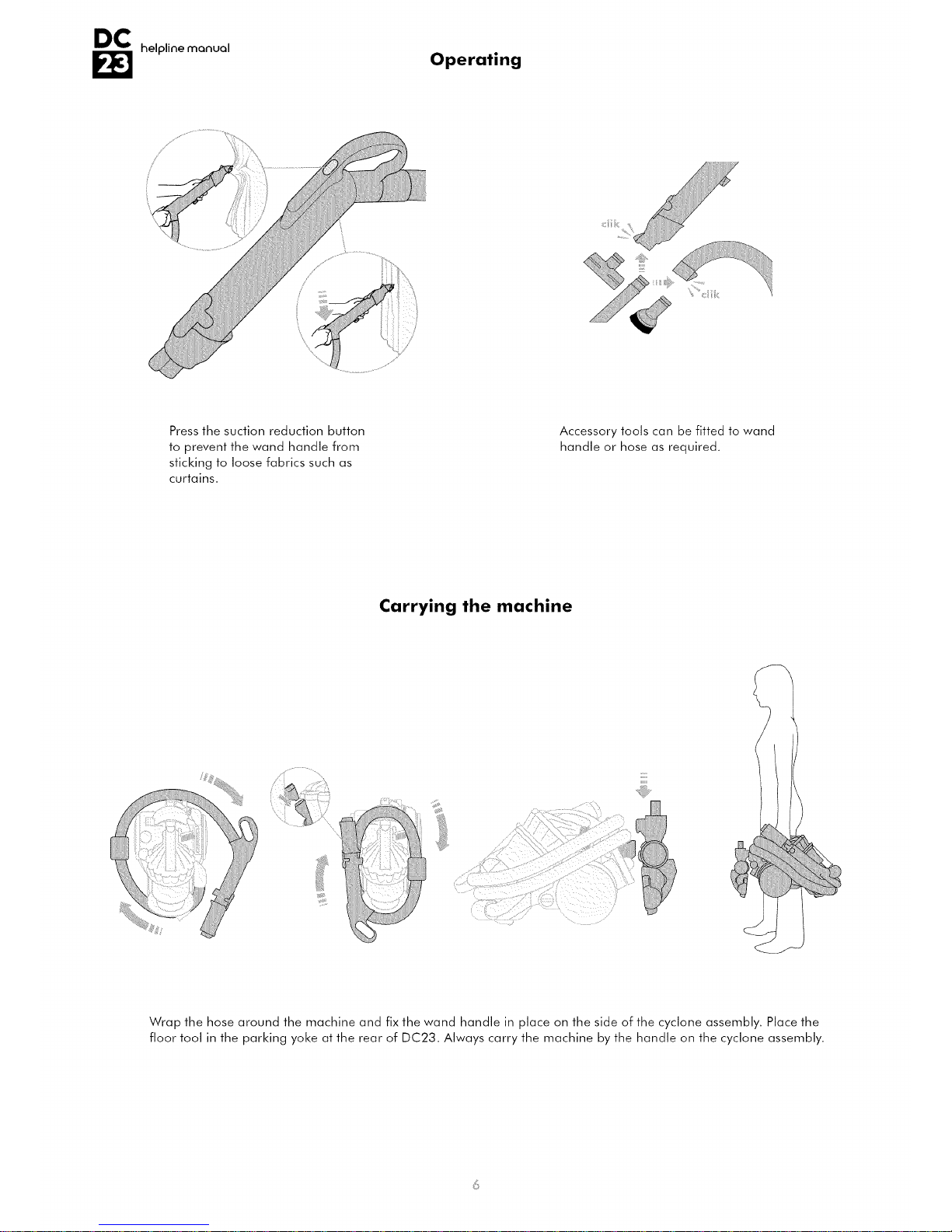

Pressthe suction reduction button

to prevent the wand handle from

sticking to loose fabrics such as

curtains.

Accessory tools can be fitted to wand

handle or hose as required.

Carrying the machine

Wrap the hose around the machine and fix the wand handle in place on the side of the cyclone assembly. Place the

floor tool in the parking yoke at the rear of DC23. Always carry the machine by the handle on the cyclone assembly.

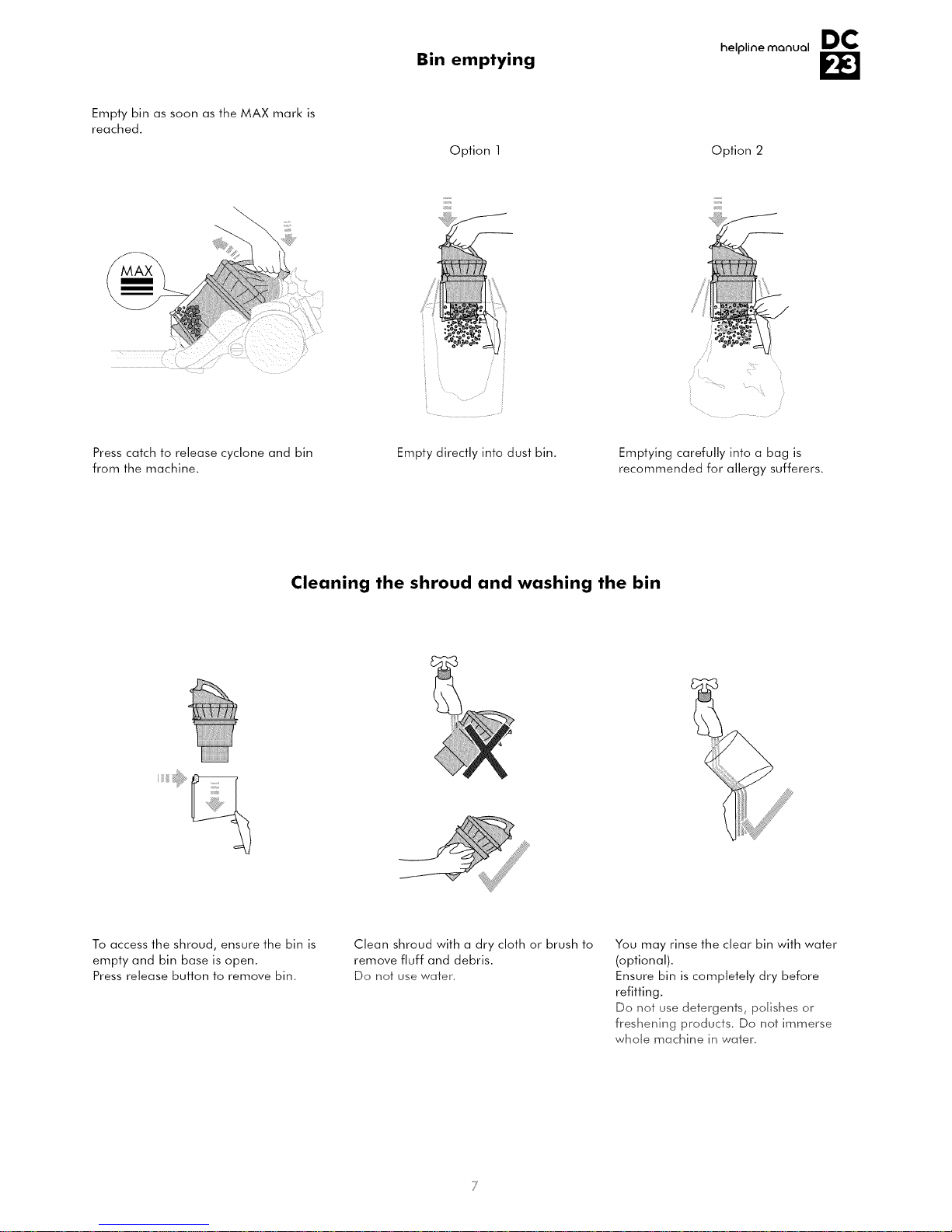

Bin emptying helpline manual DC

Empty bin as soon as the MAX mark is

reached.

Option Option 2

Press catch to release cyclone and bin

from the machine. Empty directly into dust bin. Emptying carefully into a bag is

recommended for allergy sufferers.

Cleaning the shroud and washing the bin

To access the shroud, ensure the bin is

empty and bin base is open.

Press release button to remove bin.

Clean shroud with a dry cloth or brush to

remove fluff and debris.

Do not use water

You may rinse the clear bin with water

(optional).

Ensure bin is completely dry before

refitting.

Do not use detergents, polishes or

freshening products. Do not immerse

whole machine in water.

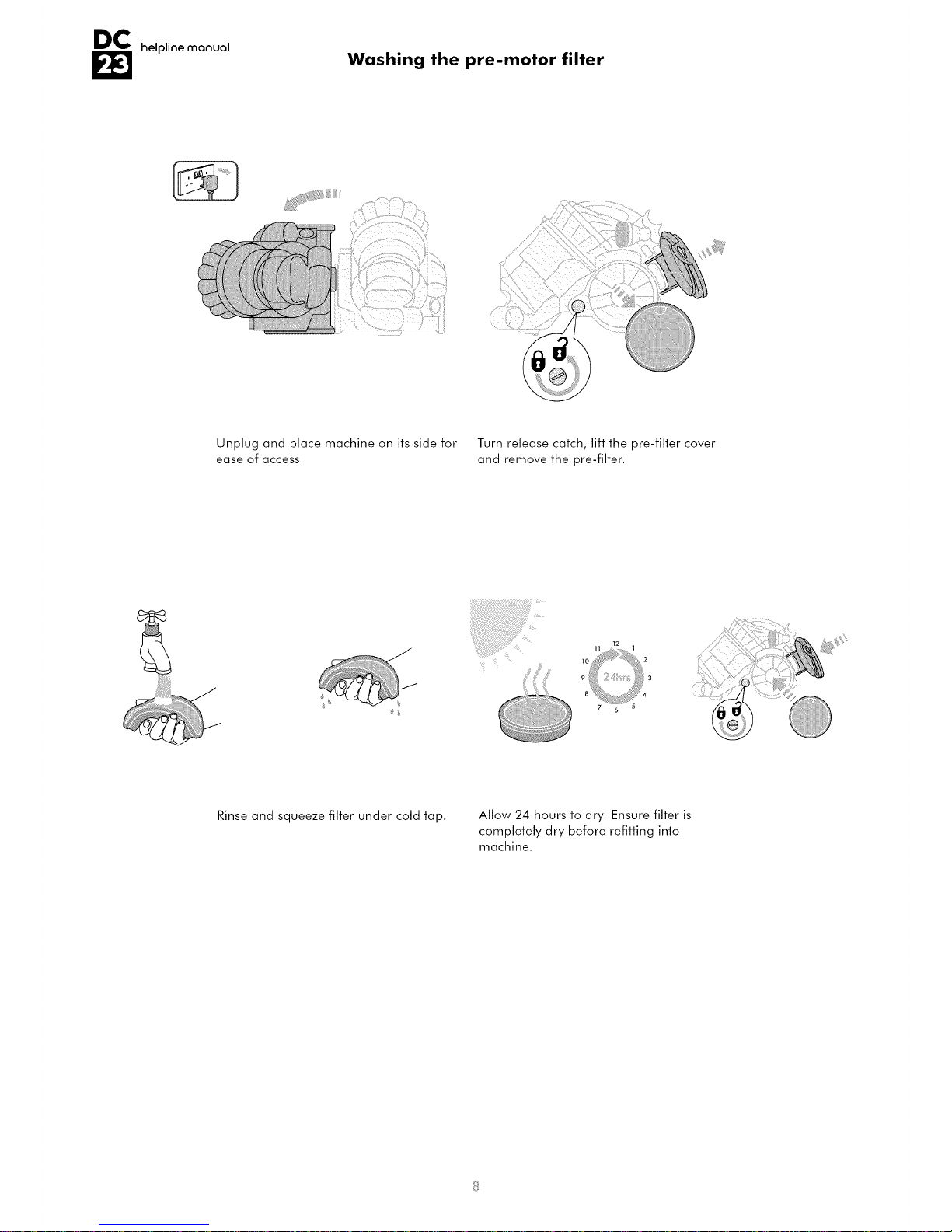

DC helplinemanual Washing the pre-motor filter

Unplug and place machine on its side for Turn release catch, lift the pre-filter cover

ease of access, and remove the pre-filter.

Rinse and squeeze filter under cold tap. Allow 24 hours to dry. Ensure filter is

completely dry before refitting into

machine.

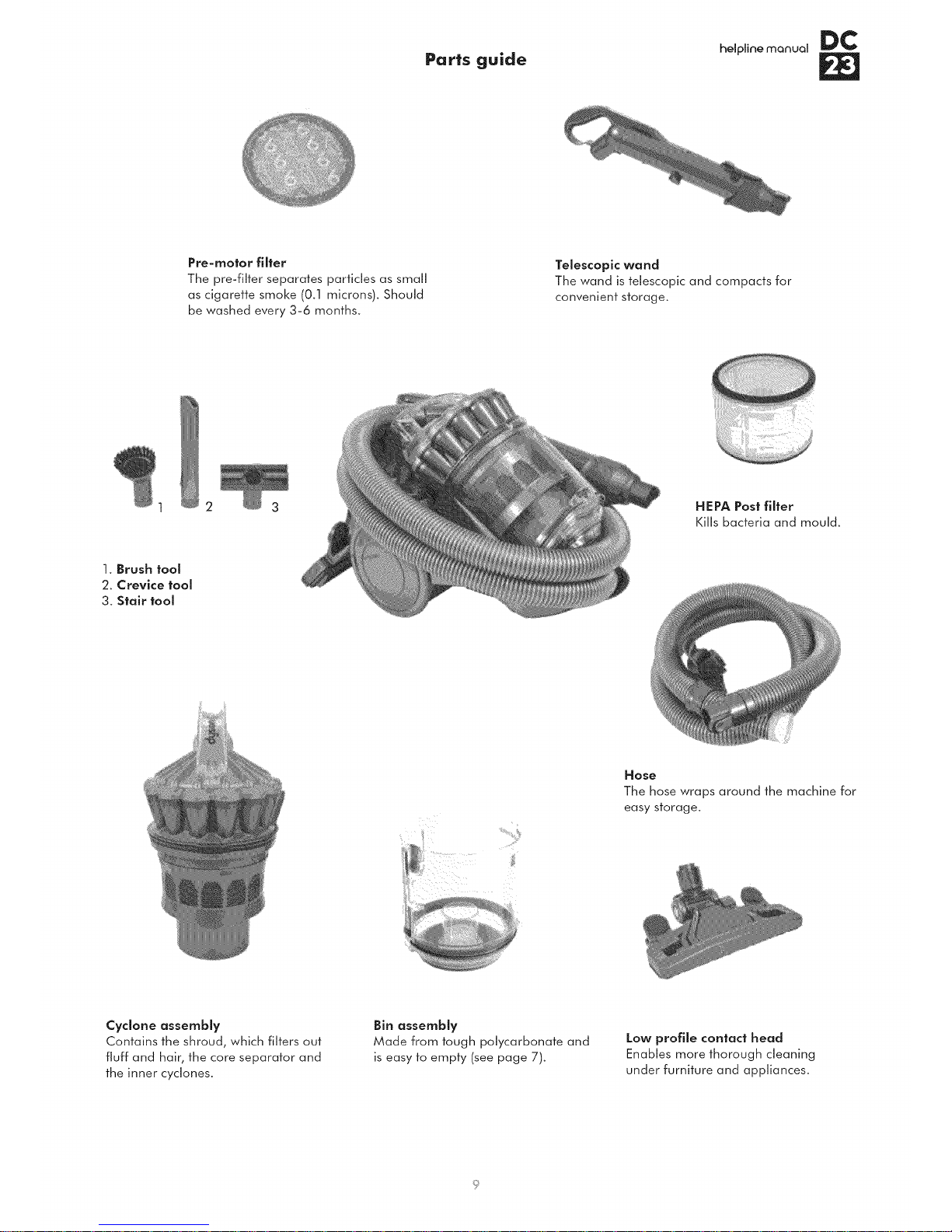

Parts guide

Pre=mator filter

The pre-filter separates particles as small

as cigarette smoke (0.1 microns). Should

be washed every 3-6 months.

Telescopic wand

The wand is telescopic and compacts for

convenient storage.

1. Brush tool

2. Crevice tool

3. Stair tool

HEPA Post filter

Kills bacteria and mould.

_ose

The hose wraps around the machine for

easy storage.

Cyclone assembly

Contains the shroud, which filters out

fluff and hair, the core separator and

the inner cyclones.

Bin assembly

Made from tough polycarbonate and

is easy to empty (see page 7). Law profile contact head

Enables more thorough cleaning

under furniture and appliances.

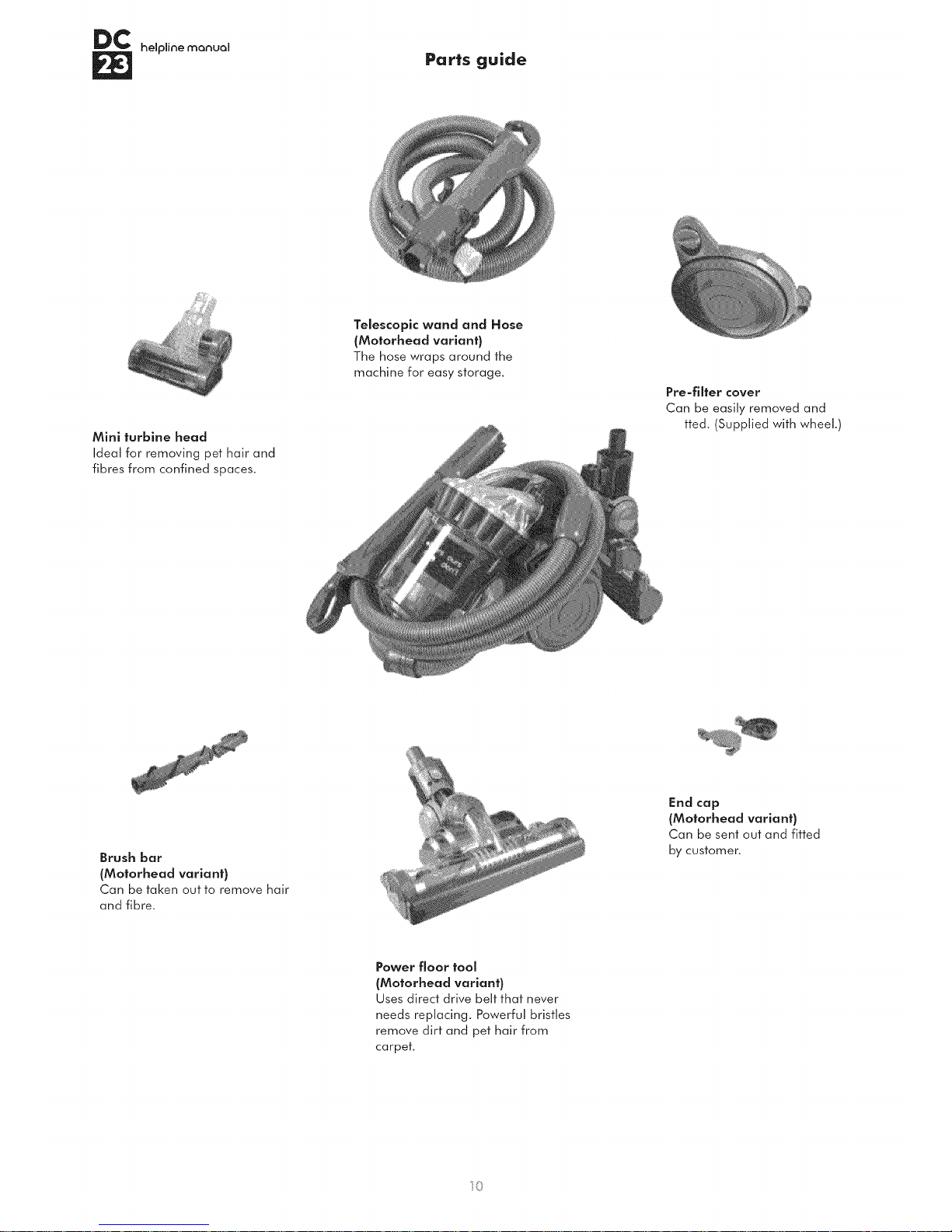

DC heipline manua! Parts guide

Mini turbine head

Ideal for removing pet hair and

fibres from confined spaces.

Telescopic wand and Hose

(Motorhead variant)

The hose wraps around the

machine for easy storage.

Pre=filter cover

Can be easily removed and

fred. (Supplied with wheel.)

Brush bar

(Motorhead variant)

Can be taken out to remove hair

and fibre.

End cap

(Motorhead variant)

Can be sent out and fitted

by customer.

Power floor tool

(Motorhead variant)

Uses direct drive beJt that never

needs repJacing. PowerfuJ bristles

remove dirt and pet hair from

carpet.
