E-con Systems See3CAM CU51 Manuale utente

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 1 of 23

e-con Systems India Pvt Ltd

RR Tower-IV, 7th Floor,

T.V.K. Industrial Estate, Guindy,

Chennai-600032

www.e-consystems.com

Qtcam

User Manual –See3Cam_CU51

Revision 1.1

Aug 07, 2015

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 2 of 23

Contents

1Revision History ............................................................................................. 3

2Introduction ................................................................................................... 4

3Scope............................................................................................................ 4

4Product Description ......................................................................................... 4

5Qtcam Application Description .......................................................................... 5

6Pre-Requisites ................................................................................................ 6

6.1 Installation of the See3CAM_CU51and Drivers ............................................. 6

7Launching the Application ................................................................................ 6

8Application Features........................................................................................ 7

8.1 Enumerate and Selection of camera device .................................................... 7

8.2 Still capture............................................................................................. 7

8.3 Video Recording....................................................................................... 8

8.4 Camera Settings ....................................................................................... 9

8.4.1 Image Quality Settings ......................................................................... 9

8.4.1.1 Brightness Control......................................................................... 9

8.4.1.2 Hardware Default ........................................................................ 10

8.4.2 Still Capture Settings.......................................................................... 10

8.4.2.1 Colour space/compression............................................................. 11

8.4.2.2 Output Size ................................................................................ 11

8.4.2.3 Image Location........................................................................... 12

8.4.2.4 Image Format ............................................................................. 12

8.4.3 Video Capture Settings ....................................................................... 13

8.4.3.1 Frame Rate................................................................................. 13

8.4.3.2 Colour space/compression............................................................. 14

8.4.3.3 Output size................................................................................. 14

8.4.3.4 Video Record Format ................................................................... 16

8.4.3.5 Video encoder format................................................................... 16

8.4.3.6 Video Location ........................................................................... 17

8.5 Display Current frame rate achieved........................................................... 18

8.6 Extension Settings .................................................................................. 18

8.6.1 Master Mode .................................................................................... 18

8.6.2 Trigger Mode.................................................................................... 19

8.6.3 Exposure control ............................................................................... 20

8.6.4 Flash Controls................................................................................... 21

8.6.5 Other Options ................................................................................... 21

8.6.5.1 Firmware Version ........................................................................ 21

8.6.5.2 Serial Number............................................................................. 22

9About.......................................................................................................... 22

10 Exit ............................................................................................................ 22

11 Known issues and Limitation........................................................................... 23

12 Conclusion................................................................................................... 23

13 Appendix -1................................................................................................. 23

13.1 Keyboard Shortcuts................................................................................. 23

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 3 of 23

1Revision History

Rev No

Date

Major Changes

Edited By

Reviewer Name

1.1

07 Aug 2015

Description heading

revised to Product

Description and

Application Description.

Application

Team

Sarath Natakam

Project Manager

1.0

23 July 2015

Initial Version

Application

Team

Sarath Natakam

Project Manager

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 4 of 23

2Introduction

The See3CAM_CU51 is a 5.0 Mega pixel, monochrome, UVC Compliant, USB3.0

SuperSpeed camera from e-con Systems, a leading embedded Product Design Services

Company which specializes in the advanced camera solutions. The See3CAM_CU51 is the

latest member of the See3CAM family of USB3.0 SuperSpeed camera products launched by

e-con.

The See3CAM_CU51 is a 5.0 MP monochrome camera with the S-mount (also

known as M12 board lens) lens holder. The S-mount is one of the most commonly used small

form-factor lens mounts for board cameras. The See3CAM_CU51 is based on the 1/2.5”

MT9P031, monochrome CMOS image sensor from Aptina.

This See3CAM_CU51 is a UVC-compliant USB3.0 SuperSpeed Camera that is also

backward compatible with USB2.0 host ports and does not require any special camera drivers

to be installed in the host PC. The See3CAM_CU51 is also backward compatible with the

USB2.0 High Speed interface, albeit at lower frame rates.

The CMOS sensor is operated in 12bits per pixel mode and the application will

receive the 12bits of greyscale information for every pixel. The application developer gets the

very high resolution 12bpp data for every pixel for performing accurate image processing

functions.

The See3CAM_CU51 is UVC-compliant camera and it does not require any

additional drivers to be installed on the PC. The native UVC drivers of Windows and Linux

Operating Systems shall be compatible with this camera. e-con also provides the sample

application (Qtcam) that demonstrates some of the features of this camera. However, this

camera can be utilized by any webcam supporting application like Skype etc.

3Scope

e-con provides a sample V4L2 application, called Qtcam, along with the

See3CAM_CU51 camera. Qtcam is a V4L2 video viewer and capture software for the linux

UVC driver, but customized to demonstrate some of the features of See3CAM_CU51.

This document describes about the usage of the Qtcam application on Ubuntu

[>=12.04 (LTS)] 32- and 64-bit Linux operating systems. This document also describes about

the special features of Qtcam camera application when it is used with See3CAM_CU51.

4Product Description

The See3CAM_CU51 is a USB 3.0 camera capable of streaming in the following

resolutions with specified frame rates.

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 5 of 23

USB mode

Resolution

Frame rates at Y16

format

USB 3.0

2592x1944

1920x1080

1280x720

640x480

120

USB 2.0

2592x1944

1920x1080

1280x720

640x480[binned from

full FOV]

It currently supports colour format Y16. It is capable of supporting still capture of

Global shutter images with the required exposure level and the camera can synchronize the

exposure of all the pixels on receiving an external trigger.

The See3CAM_CU51 has two major camera controls namely,

1. Brightness

2. Exposure

There are two operating modes for See3CAM_CU51, they are

1. Master Mode

2. Trigger Mode

5Qtcam Application Description

The Qtcam application is a simple interface for capturing and viewing video from the

devices supported by the Linux UVC driver. This tool also supports extension unit control of

e-con’s See3CAM usb 3.0 webcam products. The features provided in the application are as

follows:

1. Enumerating and listing all USB video devices connected.

2. Changing resolution and colour space/compression for video stream(if different

resolution are supported by the device)

3. Currently configured values of preview which is being shown.

4. User can capture still images and set the path where still images will be saved.

5. Configure UVC Extension Control (if supported by device)

6. Displaying the average frame rate.

All the above listed properties can be configured by attractive and easy to use Graphical User

Interface. The application will run in Ubuntu [>=12.04 (LTS)] 32-bit and 64-bit Linux

Distributions.

e-con provides pre-built binaries for the following Linux Distributions.

1. Ubuntu 12.04 (LTS) 32- and 64-bit

2. Ubuntu 14.04 (LTS) 32- and 64-bit

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 6 of 23

6Pre-Requisites

This section describes the high level instructions to install the See3CAM_CU51 on a

PC.

6.1 Installation of the See3CAM_CU51and Drivers

Follow the following steps to initialize the device with the host computer.

1. Connect one end of the USB3.0 cable to the USB3.0 connector provided at the back

of the See3CAM_CU51, and connect other end to the USB 3.0 host controller on the

computer.

2. Once connected, the LED light on the device will glow indicating that

See3CAM_CU51 is powered up and ready to use.

3. As See3CAM_CU51 is a generic USB video class device, Linux will automatically

detect all the drivers and it will be installed. This happens the first time and from the

second time device will be detected automatically by the host PC and will be ready

for use.

7Launching the Application

1. Connect the See3CAM USB 3.0 camera to the Linux Development System.

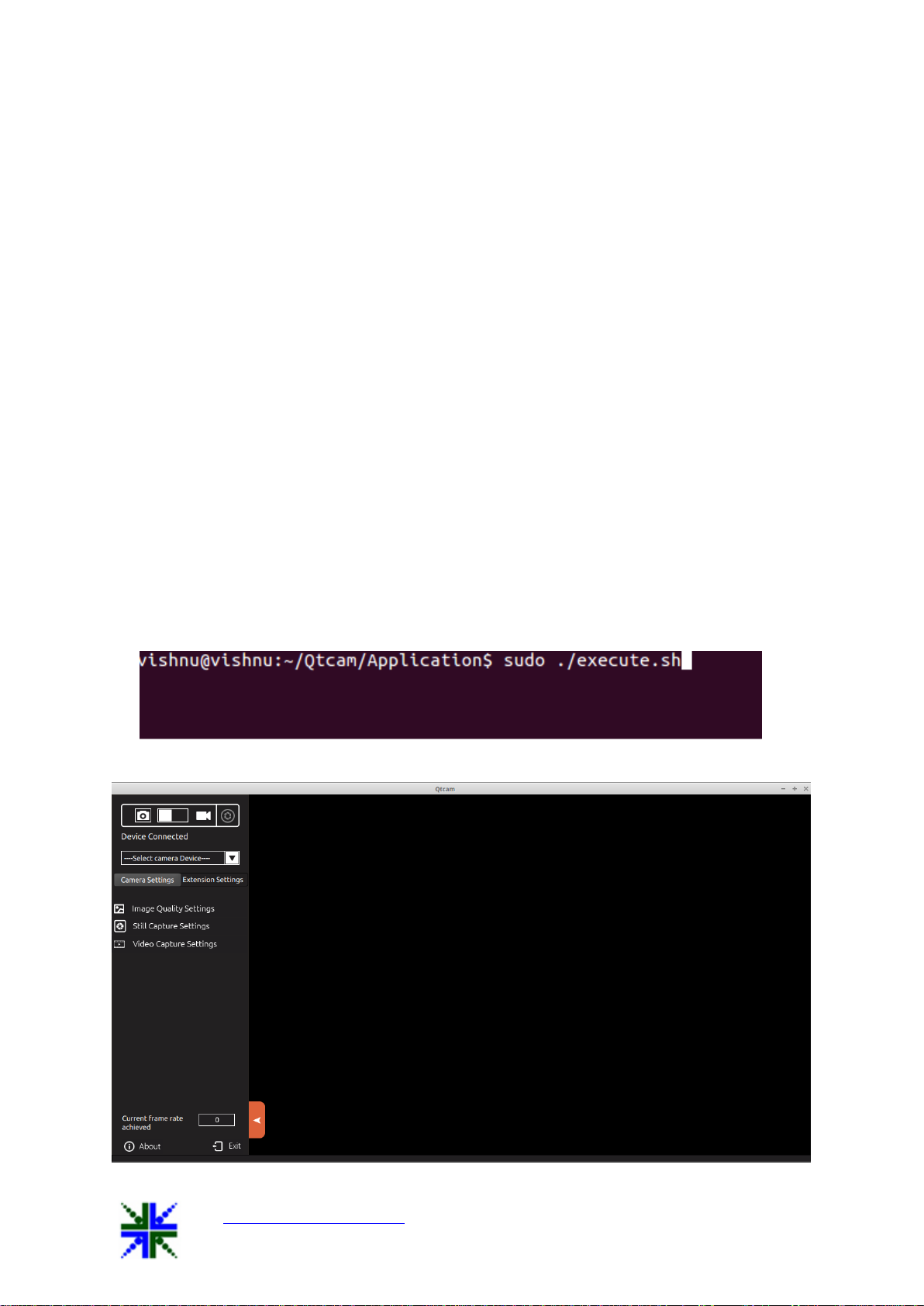

Launch the Qtcam application from the terminal as shown below,

When application is launched, home screen will look like below one,

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 7 of 23

8Application Features

The features that are supported in the current version of Qtcam are briefly described

here. They are as follows:-

1. Enumerate and Selection of camera device

2. Still capture

3. Video recording

4. Camera Settings

4.1 Image Quality Settings

4.2 Still Capture Settings

4.3 Video Capture Settings

5. Extension settings

8.1 Enumerate and Selection of camera device

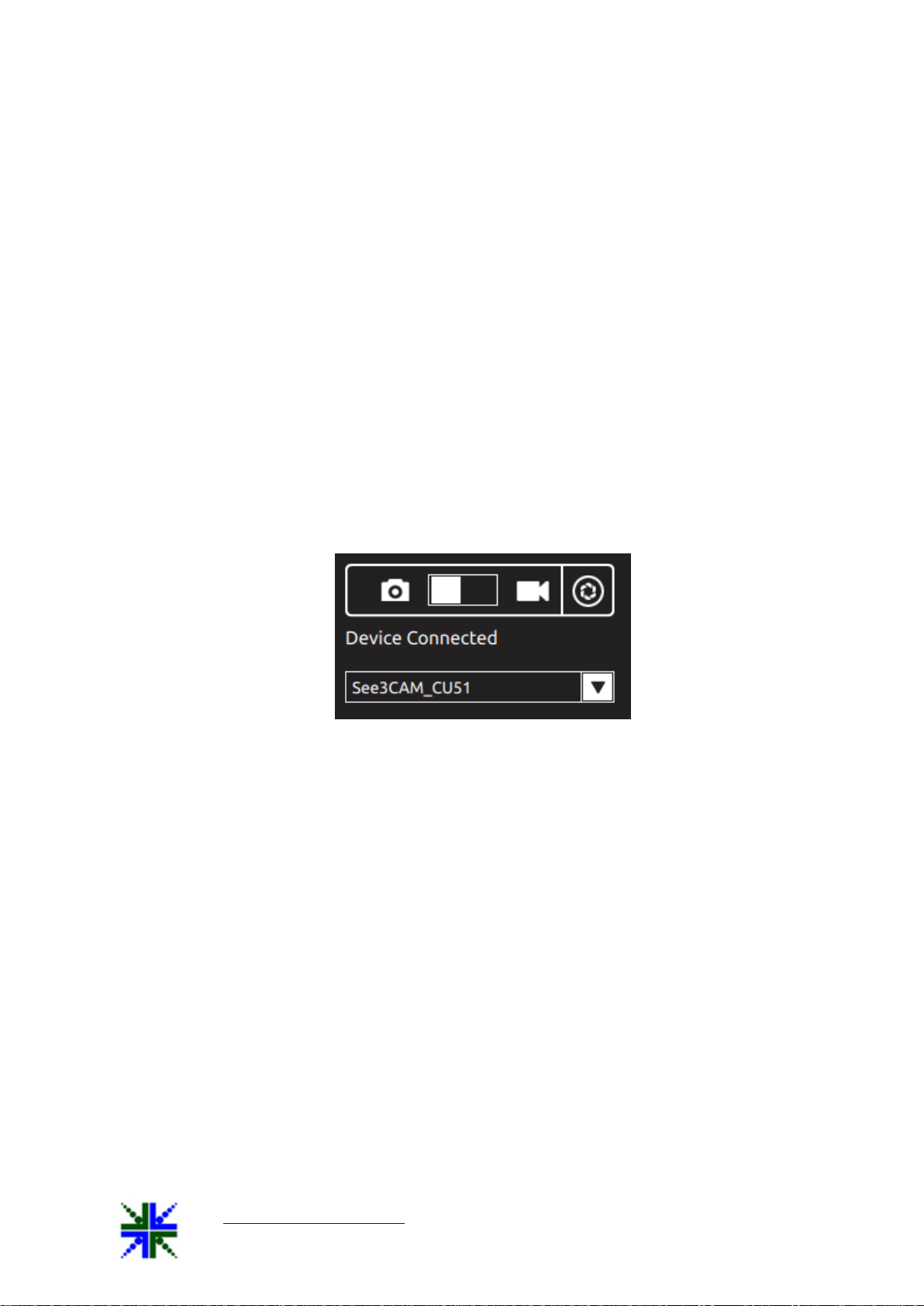

Application will emulate usb video devices connected to the system. The device

name is displayed in the device connected combo box. User can select any one of the

camera from the combo box and the corresponding preview is displayed in the right hand

side of the side bar.

Note: Preview will not be displayed for the device, if the camera is busy. i.e., camera is

opened by other application like Skype, etc., even two instance of Qtcam application is

selecting the same camera, and then the preview will not be displayed in the second instance

of the Qtcam application.

8.2 Still capture

Application by default will start in still capture mode, if the application is in video

mode click the camera icon to switch back to still capture mode, the user can capture the

still image by clicking capture image icon available side bar or by clicking the preview.

The image will be saved in the directory path, selected in the image location

available under the still capture settings menu.

The file name for captured image file is “Qtcam-YY_MM_dd:hh_mm_ss-x”, plus

the image extension format selected. If the extension format is “jpg”, the filename will be

“Qtcam-YY_MM_dd:hh_mm_ss-x.jpg”. [Where YY-Year, MM-Month, dd-day, hh- hour,

mm-min, ss-x denotes image number updated when multiple images are taken within a

second].

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 8 of 23

8.3 Video Recording

To record a video, user has to switch the application from capture mode to video

mode by clicking the video icon. Then the user can record a video by selecting record icon

available in the sidebar. The video will be saved in the directory path, selected in the video

location path. The default name for recorded video file is “Qtcam-

YY_MM_dd:hh_mm_ss”, plus the video record extension format. If the extension format is

“avi”, the filename will be “Qtcam-YY_MM_dd:hh_mm_ss.avi”.

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 9 of 23

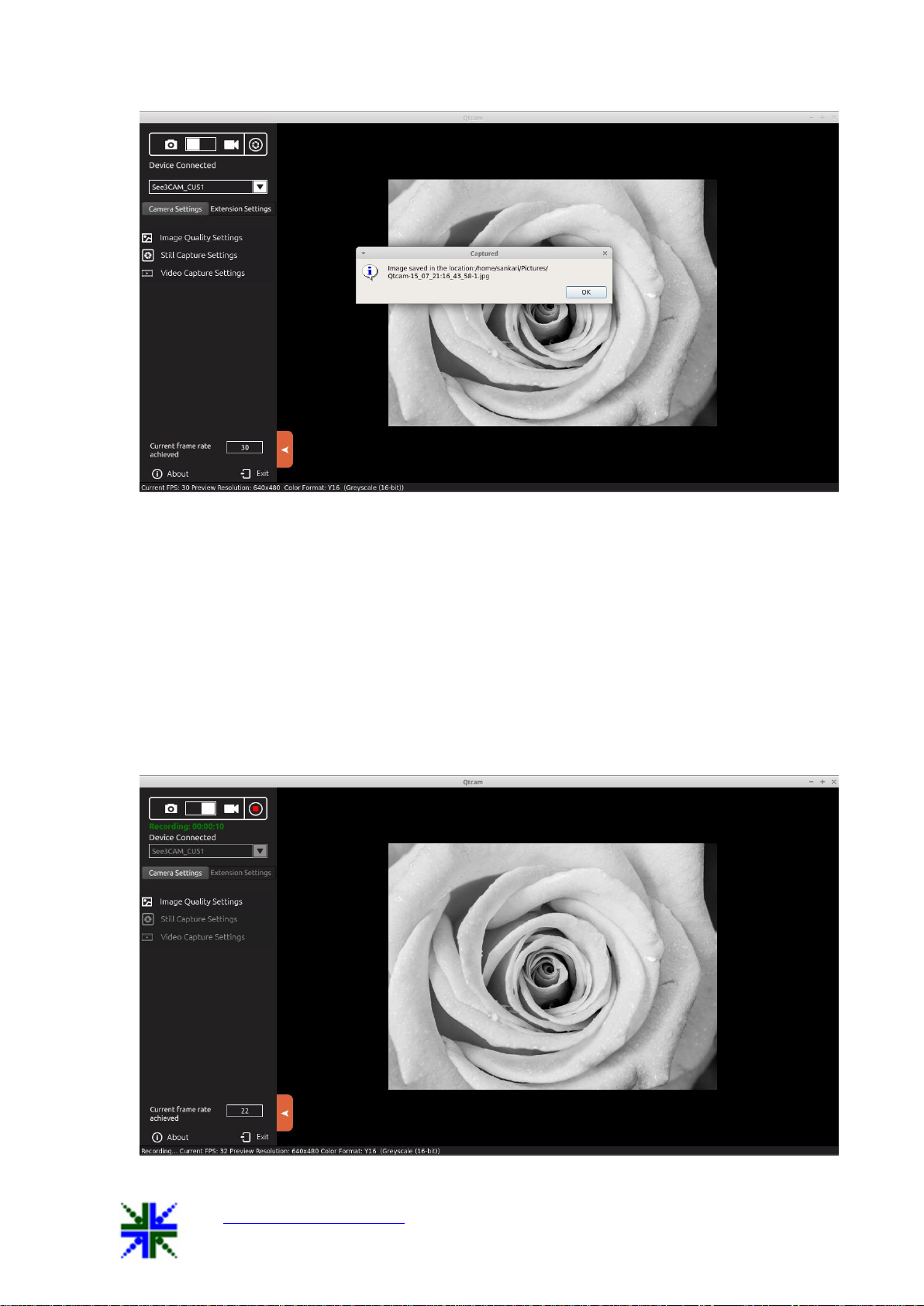

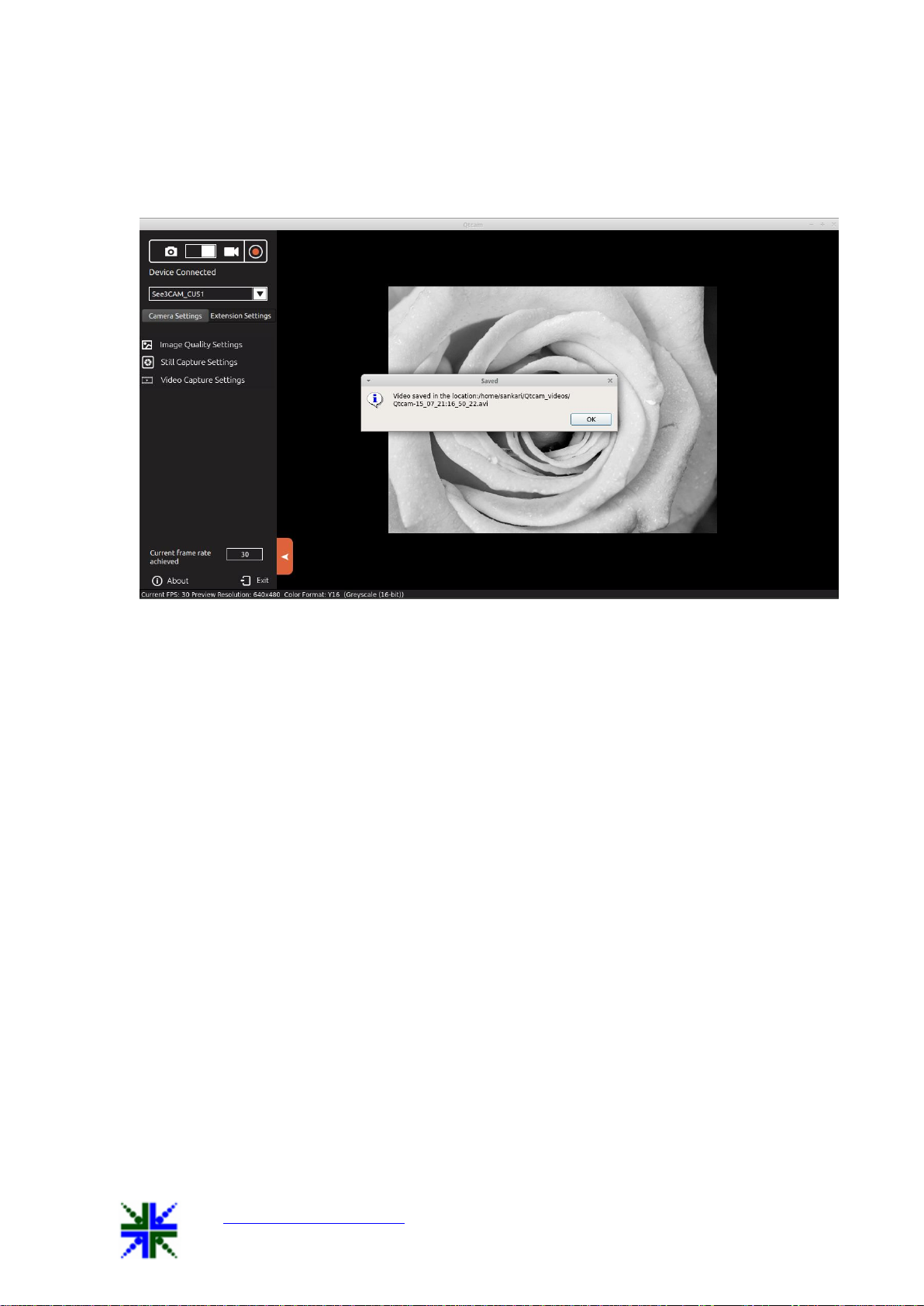

Once the user clicks the video record icon, video recording will begin, to stop

recording click the stop icon which is available in the side bar. During video recording,

user cannot change the preview resolution and camera device.

8.4 Camera Settings

8.4.1 Image Quality Settings

On selecting Image quality settings, a control menu will display camera control

settings. The user can adjust the video preview settings in the Menu tab. Sliders whose labels

are not greyed out can only be configured.

The user can move the slider and configure the preview settings according to their

needs. The value being set will be displayed in the text box based on the position of the slider

marker. As soon as the slider is moved to configure the values the preview’s property will

change at that instance.

8.4.1.1 Brightness Control

The Brightness values can be changed from a minimum value of 1 to 128 by moving

the slider, and the exact changes will be reflected immediately in the preview. This brightness

control increases the brightness of See3CAM_CU51. The Default value is 15.

See3CAMCU51 User Manual 13-Aug-15

www.e-consystems.com | Subject to change without notice Page 10 of 23

8.4.1.2 Hardware Default

This button is helpful to reset the Image Quality Settings menu values to the hardware

default state. Once the user clicked the hardware default button, all the control values and

preview is set to the default mode.

8.4.2 Still Capture Settings

On selecting Still Capture Settings, the user can select colour space, resolution size

for capturing the images, capture image location path and image save format type.

Altri manuali per See3CAM CU51

Indice

Altri manuali e-con Systems Macchina fotografica digitale

e-con Systems

e-con Systems See3CA 80 Manuale utente

e-con Systems

e-con Systems Tara See3CAM Stereo Manuale utente

e-con Systems

e-con Systems See3CAM CU51 Manuale utente

e-con Systems

e-con Systems e-CAM50_CU96 Manuale elenco delle parti

e-con Systems

e-con Systems See3CAM CU135 Manuale utente

e-con Systems

e-con Systems See3CAM CU51 Manuale elenco delle parti

e-con Systems

e-con Systems Tara Stereo Vision Manuale utente

e-con Systems

e-con Systems See3CAM CU51 Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
