E-FLITE 25-Size Float Set Manuale utente

25-Size Float Set

Assembly Manual

Introduction

Thank you for purchasing the E-flite™Fiberglass Floats.

They have been designed for optimum performance

when used with our J-3 Cub (EFL4000), Ultra Stick 25e

(EFL4025), and other upcoming 25-size ARF planes.

The floats have been constructed from high quality

fiberglass, have been painted with fuel-proof paint for

glow applications, and have the struts pre-welded for ease

of installation. The floats are ready to use out of the box

with only minor assembly required by the builder.

We hope you enjoy your float experience as much as

we have.

Tools Required

Phillips screwdriver

File or rotary tool

Hobby knife

Pliers

Drill

Drill bit: 5/64" (2mm)

Hex wrench: 1.5mm, 3/32"

Table of Contents

Introduction................................................................2

Tools Required............................................................2

Adhesives Required.....................................................3

Using the Manual .......................................................3

Replacement Parts.......................................................3

Limited Warranty Period ..............................................4

Limited Warranty & Limits of Liability.............................4

Safety Precautions.......................................................5

Questions, Assistance, and Repairs...............................5

Questions or Assistance...............................................5

Inspection or Repairs...................................................5

Warranty Inspection and Repairs..................................6

Non-Warranty Repairs.................................................6

Float Installation (J-3 Cub)............................................7

Linkage Installation....................................................11

Float Installation (Ultra Stick 25E) ...............................17

Linkage Installation....................................................20

Float Flying ..............................................................26

2006 Official AMA

National Model Aircraft Safety Code................28

Notes ......................................................................30

Replacement Parts

EFLA501 Wire Struts

EFLA502 Float A

ELFA503 Water Rudder

EFLA504 Hardware Package

EFLA505 Float B

Note: Both floats are identical in construction.

When reordering parts, Float B (EFLA505) has

the holes drilled on the stern for the rudder

assembly mount bracket. Float B (EFLA502)

does not have the holes pre-drilled.

Adhesives Required

HAN8000 6-Minute Epoxy

Threadlock

Using the Manual

This manual is divided into sections to help make

assembly easier to understand, and to provide breaks

between each major section. In addition, check boxes

have been placed next to each step to keep track of each

step completed. Steps with a single circle () are performed

once, while steps with two circles () indicate that the

step will require repeating, such as for a right or left wing

panel, two servos, etc.

Remember to take your time and follow the directions.

Limited Warranty Period

Horizon Hobby, Inc. guarantees this product to be free

from defects in both material and workmanship at the

date of purchase.

Limited Warranty & Limits of Liability

Pursuant to this Limited Warranty, Horizon Hobby, Inc. will,

at its option, (i) repair or (ii) replace, any product determined

by Horizon Hobby, Inc. to be defective. In the event of a

defect, these are your exclusive remedies.

This warranty does not cover cosmetic damage or damage

due to acts of God, accident, misuse, abuse, negligence,

commercial use, or modiﬁcation of or to any part of the

product. This warranty does not cover damage due to

improper installation, operation, maintenance, or attempted

repair by anyone other than an authorized Horizon Hobby,

Inc. service center. This warranty is limited to the original

purchaser and is not transferable. In no case shall Horizon

Hobby’s liability exceed the original cost of the purchased

product and will not cover consequential, incidental or

collateral damage. Horizon Hobby, Inc. reserves the right to

inspect any and all equipment involved in a warranty claim.

Repair or replacement decisions are at the sole discretion

of Horizon Hobby, Inc. Further, Horizon Hobby reserves the

right to change or modify this warranty without notice.

REPAIR OR REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE REMEDY OF

THE CONSUMER. HORIZON HOBBY, INC. SHALL

NOT BE LIABLE FOR ANY INCIDENTAL OR

CONSEQUENTIAL DAMAGES.

As Horizon Hobby, Inc. has no control over use, setup,

final assembly, modification or misuse, no liability shall be

assumed nor accepted for any resulting damage or injury.

By the act of use, setup or assembly, the user accepts all

resulting liability.

If you as the purchaser or user are not prepared to accept

the liability associated with the use of this product, you

are advised to return this product immediately in new and

unused condition to the place of purchase.

Safety Precautions

This is a sophisticated hobby product and not a toy. It

must be operated with caution and common sense and

requires some basic mechanical ability. Failure to operate

this product in a safe and responsible manner could result

in injury or damage to the product or other property. This

product is not intended for use by children without direct

adult supervision.

The product manual contains instructions for safety,

operation and maintenance. It is essential to read and

follow all the instructions and warnings in the manual,

prior to assembly, setup or use, in order to operate

correctly and avoid damage or injury.

Questions,Assistance, and Repairs

Your local hobby store and/or place of purchase cannot

provide warranty support or repair. Once assembly, setup

or use of the product has been started, you must contact

Horizon Hobby, Inc. directly. This will enable Horizon to

better answer your questions and service you in the event

that you may need any assistance.

Questions or Assistance

For questions or assistance, please direct your email to

productsupport@horizonhobby.com, or call 877.504.0233

toll free to speak to a service technician.

Inspection or Repairs

If your product needs to be inspected or repaired, please

call for a Return Merchandise Authorization (RMA). Pack

the product securely using a shipping carton. Please note

that original boxes may be included, but are not designed to

withstand the rigors of shipping without additional protection.

Ship via a carrier that provides tracking and insurance

for lost or damaged parcels, as Horizon Hobby, Inc. is not

responsible for merchandise until it arrives and is accepted

at our facility. Include your complete name, address, phone

number where you can be reached during business days,

RMA number, and a brief summary of the problem. Be sure

your name, address, and RMA number are clearly written on

the shipping carton.

Non-Warranty Repairs

Should your repair not be covered by warranty and the

expense exceeds 50% of the retail purchase cost, you will

be provided with an estimate advising you of your options.

You will be billed for any return freight for non-warranty

repairs. Please advise us of your preferred method of

payment. Horizon Hobby accepts money orders and cashiers

checks, as well as Visa, MasterCard, American Express,

and Discover cards. If you choose to pay by credit card,

please include your credit card number and expiration date.

Any repair left unpaid or unclaimed after 90 days will be

considered abandoned and will be disposed of accordingly.

Electronics and engines requiring inspection or

repair should be shipped to the following address

(freight prepaid):

Horizon Service Center

4105 Fieldstone Road

Champaign, Illinois 61822

All other products requiring inspection or repair should

be shipped to the following address (freight prepaid):

Horizon Product Support

4105 Fieldstone Road

Champaign, Illinois 61822

Warranty Inspection and Repairs

To receive warranty service, you must include your original

sales receipt verifying the proof-of-purchase date. Providing

warranty conditions have been met, your product will be

repaired or replaced free of charge. Repair or replacement

decisions are at the sole discretion of Horizon Hobby.

Float Installation (J-3 Cub)

Required Parts

• Fuselage • Landing gear

• Ventral fin mount • Ventral fin

• 3mm setscrew (4) • Hex wrench: 1.5mm

• Nylon bracket (4)

• 5/32" wheel collar (4)

• 3mm x 12mm sheet metal screw (16)

• 2mm x 12mm sheet metal screw (3)

• Nylon strap (2)

Required Tools and Adhesives

• Phillips screwdriver • File or rotary tool

• Threadlock • Hobby knife

• 6-minute epoxy

1. Remove the packing material from the landing

gear. Attach it to the fuselage using the two

nylon straps that were used to hold on the main

gear and the two nylon straps included with the

float kit. Use 2mm x 12mm screws to install the

nylon straps.

2. Attach two of the brackets to each float using

eight 3mm x 12mm sheet metal screws. Each

float uses two brackets, so you’ll install four

brackets in all.

3. Use a file or rotary tool to make a flat on the top

of each of the landing gear extensions.

4. Attach the floats using the four 5/32" wheel

collars and four 3mm setscrews. Make sure to use

threadlock when tightening the setscrews onto the

flats made in the previous step.

Note: One float has holes drilled in the aft end

for the rudder bracket. This float is mounted on

the same side as the rudder linkage.

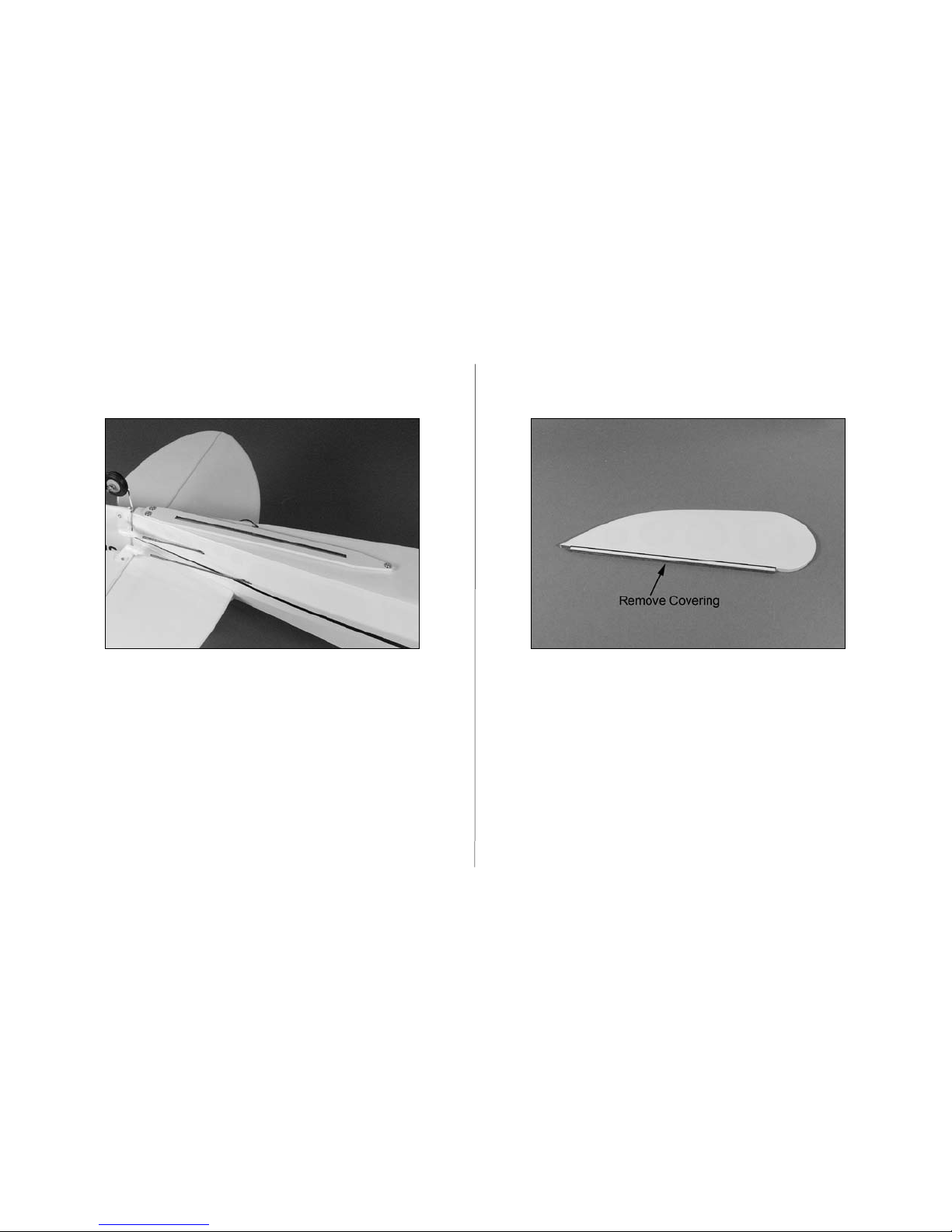

6. Remove the bottom 1/8" (3mm) of covering from

the ventral fin using a hobby knife.

5. Attach the ventral fin mount using three 2mm x

12mm sheet metal screws.
