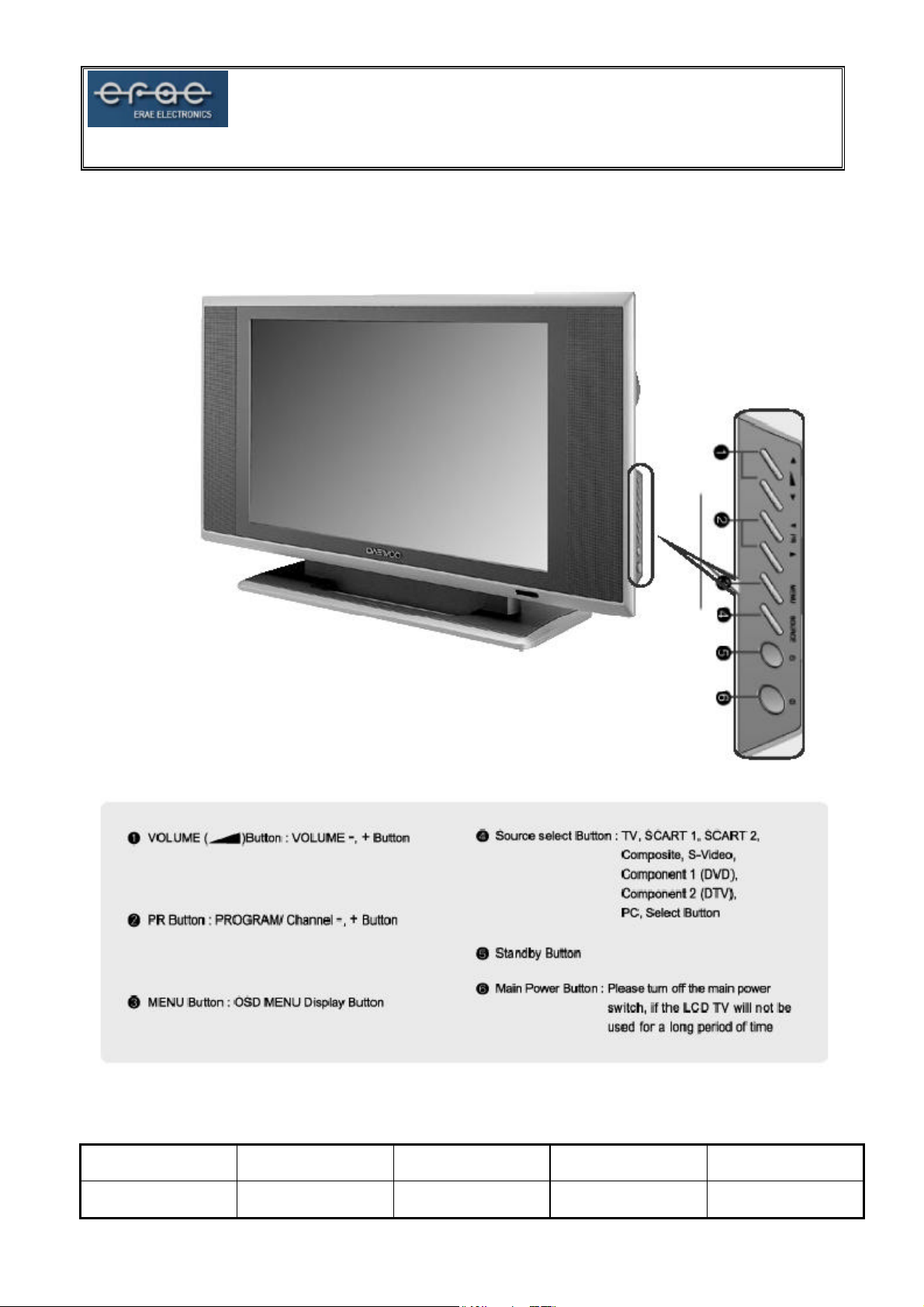

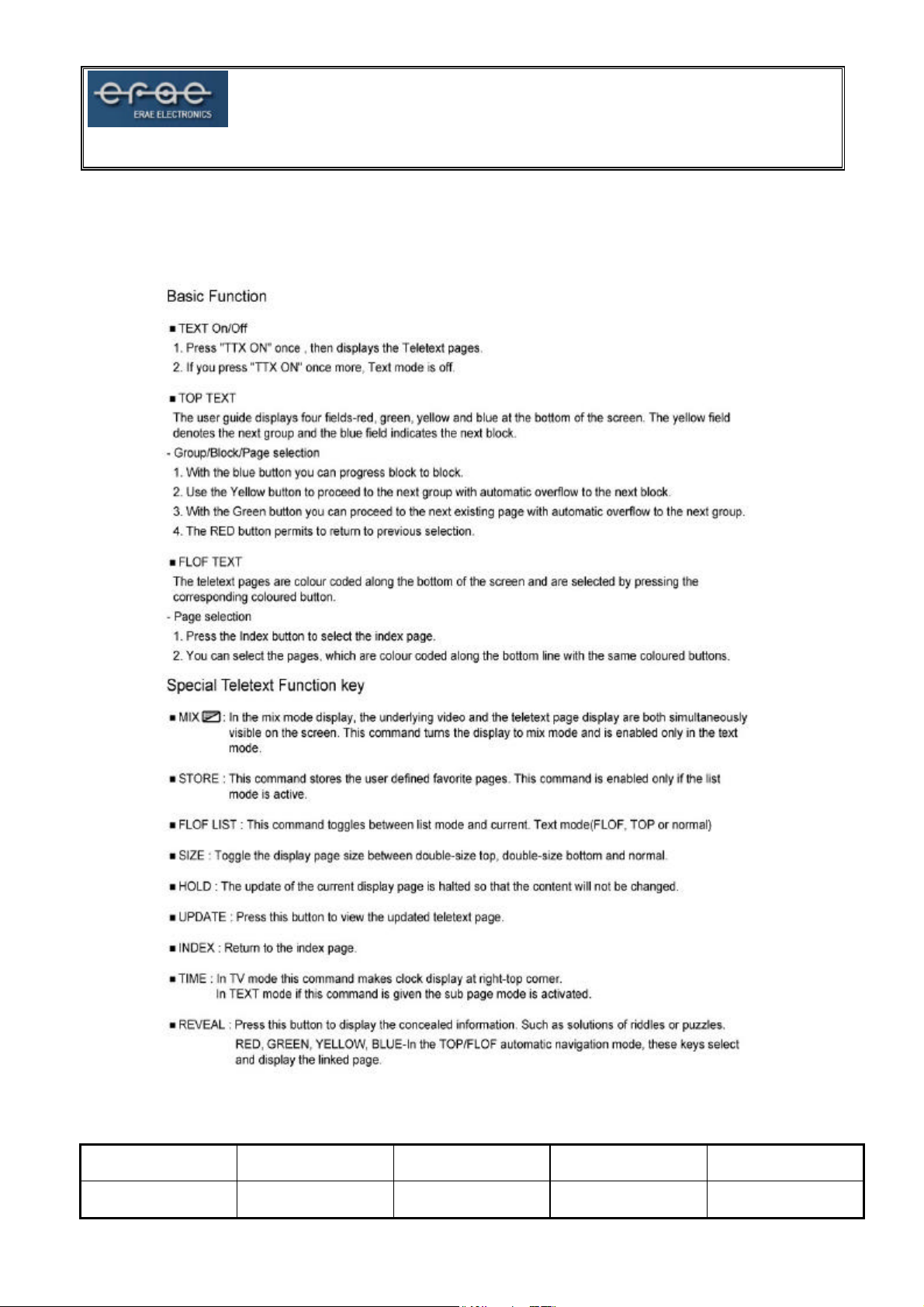

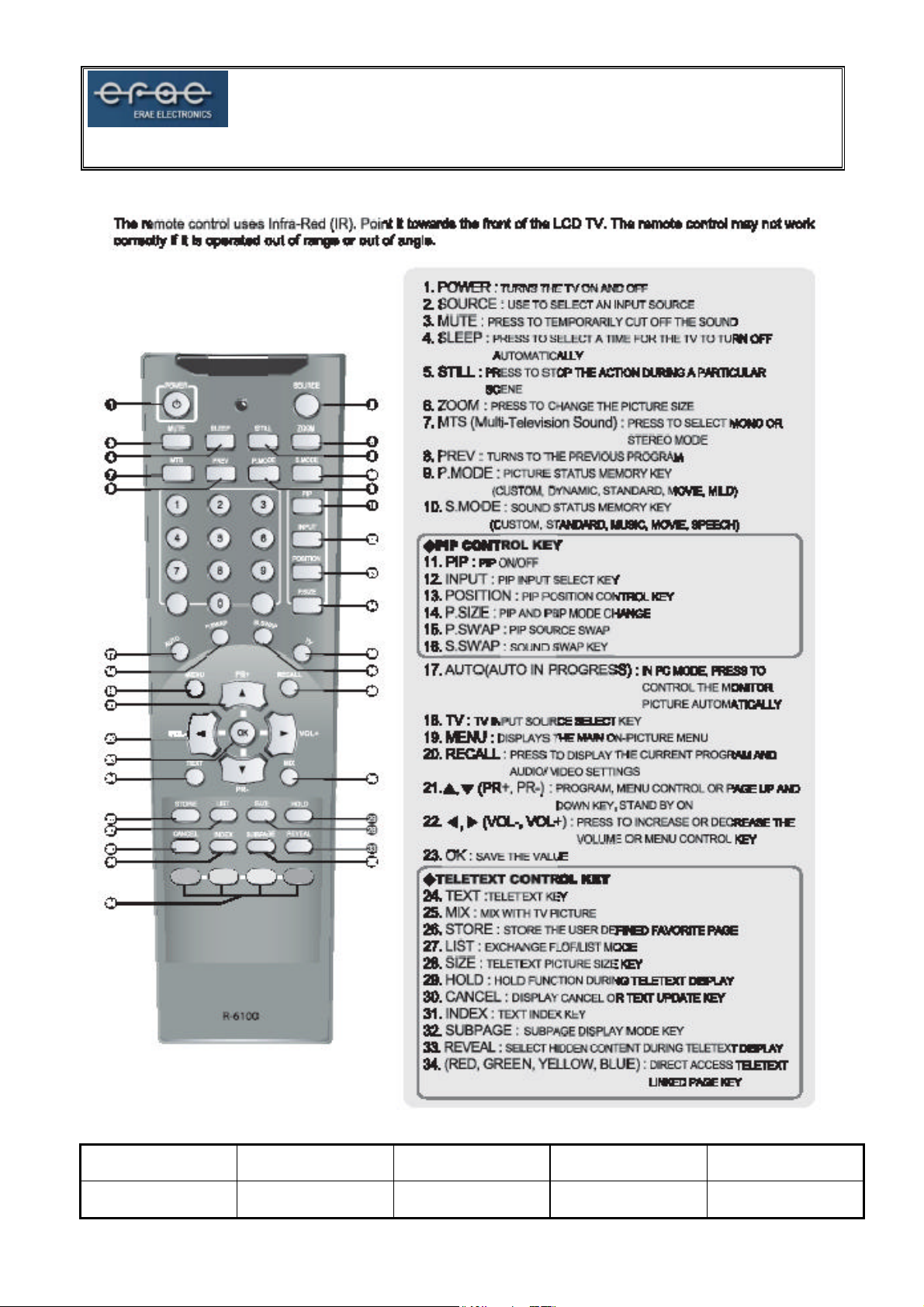

DLP-2622 SERVICE MANUAL
E-RAE ELECTRONICS
MODEL NAME DOCUMENT NO REVISION NO REVISION DATE PAGE
DLP-2622 ELT040605-002 00 04/06/11 6/71

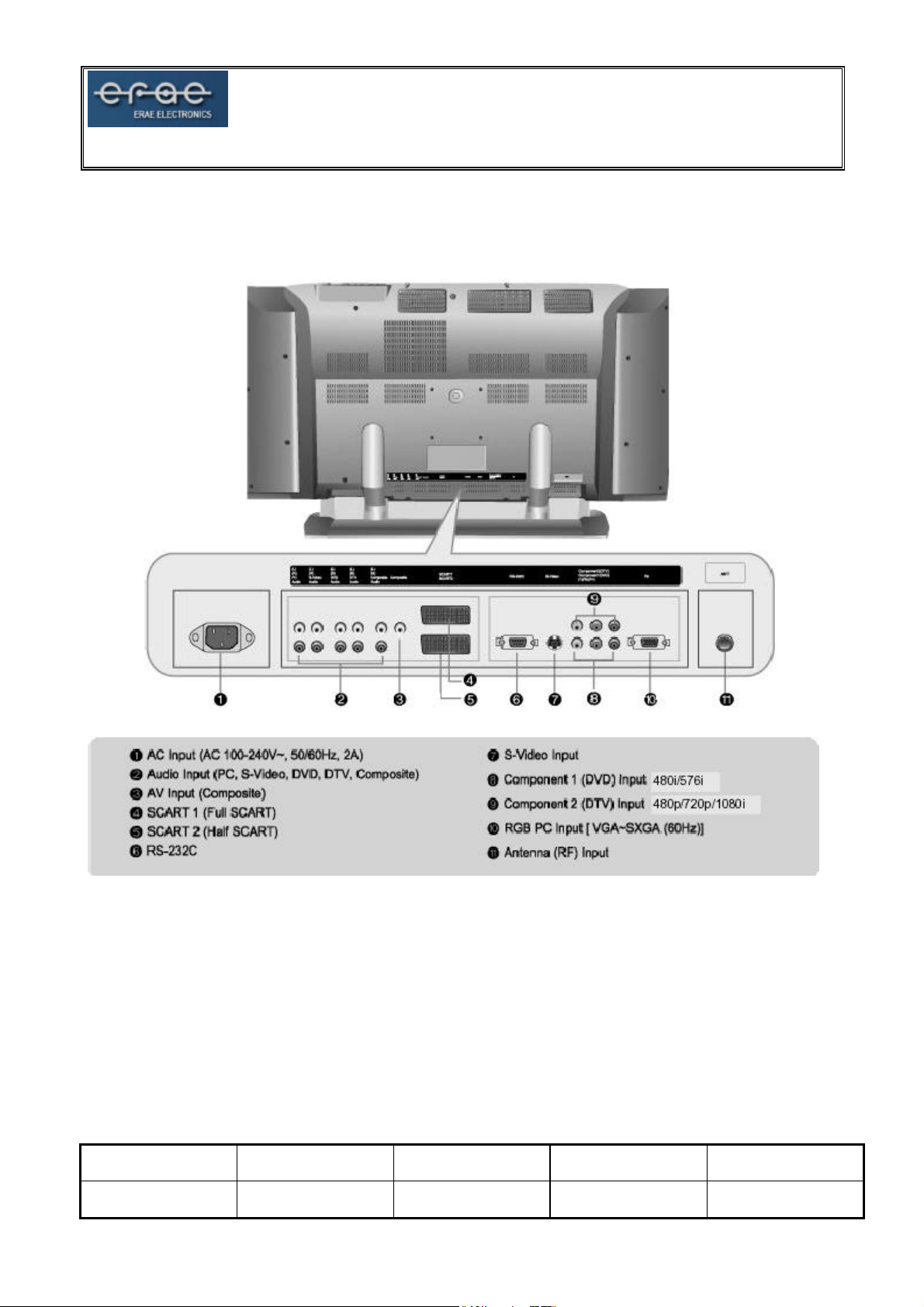

10. External Interface
1) AV / COMPONENT / ANALOG RGB Input
ITEM MIN TYP MAX UNIT
AV Video Input Level 0.85 1.00 1.15 Vpp
AV Sync Input Level 0.24 0.29 0.32 Vpp
AV Burst Input Level 0.14 0.28 0.35 Vpp
AV Video Input Level 0.47 0.63 0.79 V
AV Audio Input L/R 0.47 0.63 0.79 V
Component Video Input Level
(Y,Cb/Pb,Cr/Pr) 0.6 0.7 0.8 Vpp
Analog RGB Level 0.6 0.7 0.8 Vpp
H/V Sync Input Level 3.5 3.7 4.5 Vpp
3) COMPONENT Mode (Y,Cb/Pb,Cr/Pr)
RESOLUTION H-Freq(KHz) V-Freq(Hz) Timing Note
720*480 15.73 60.00 480i
720*576 15.63 50.00 576i Component1
(DVD)
720*480 31.47 59.94 480p
1280*720 45.00 60.00 720p
1280*720 44.96 59.94 720p
1920*1080 33.75 60.00 1080i
1920*1080 33.72 59.94 1080i
Component2
(DTV)
4) SUPPORTING DISPLAY Mode
RESOLUTION H-Freq(KHz) V-Freq(Hz)
31,47 60
37.86 72
640*480 37.50 75
720*400 31.47 70
35.15 56
37.88 60
48.88 72
800*600
46.88 75
48.36 60
56,48 70
1024*768 60.02 75
1280*1024 64.00 60
