E-TEN Glofiish M810 Manuale operativo

glofiish®M810/M750

Rev 1.0

June, 2008

TABLE OF CONTENTS

INTRODUCTION ··································································································3

CHAPTER 1PRODUCT SPECIFICATION ···················································································4

1.1 PRODUCT SPECIFICATION·············································································4

1.2 OVERVIEW OF SURFACE ··············································································6

CHAPTER 2TOOLING FOR REPAIR·························································································7

CHAPTER 3FUNCTION BLOCK-DIAGRAM ···············································································8

CHAPTER 4MODE SWITCHING ······························································································8

CHAPTER 5DIAGNOSTICS·····································································································9

5.1 PDA BUILD-IN PROGRAM ············································································9

5.2 FUNCTION TEST UNDER OS·······································································11

CHAPTER 6DISASSEMBLY··································································································12

CHAPTER 7ASSEMBLY ······································································································17

CHAPTER 8SPARE PARTS LIST ··························································································24

8.1 SPARE PARTS FOR REPAIR········································································24

8.2 ACCESSORY LIST······················································································28

CHAPTER 9SOFTWARE UPGRADE·······················································································28

9.1 SYSTEM REQUIREMENT ·············································································28

9.2 SOFTWARE UPGRADE STEPS·····································································28

9.3 PROCEDURE OF EUU················································································29

CHAPTER 10 DEFINITION OF SERIAL NUMBER ········································································30

CHAPTER 11 INSPECTION CRITERIA (LCM)············································································31

ANNEX REVISION HISTORY ····································································································32

INTRODUCTION

This manual provides technical information necessary to maintain and support repair

service of Pocket PC Phone glofiish®M810. Information contained in this document is

copyrighted by E-TEN Information Systems Co., Ltd. It is intended for use of E-TEN’s

authorized service providers and clients. Service technicians may reproduce this document as

needed for repair uses only. Reproduction for any other activities may be illegal to copy certain

materials without permission, including documents and images. If you are not sure whether you

have permission, seek legal advice.

Every effort has been made to keep the information contained in this document current

and accurate as of the date of revision. However, no guarantee is given to error-free and may

include technical inaccuracies or typographical errors. Changes are periodically made to the

information herein; these changes will be incorporated in later editions. Improvements or

changes in the product designs or the specifications described may be made at any time.

CHAPTER 1. PRODUCT SPECIFICATION

1.1 Product Specification

Operating System Windows Mobile® 6 Professional

Processor Samsung S3C 2442 500 MHz Processor

Memory 256 MB Flash ROM, 64 MB SDRAM

Display 2.8", 320X240 (QVGA), 65,536 colors, TFT-LCD

Dimensions 109.5 x 59 x 17.5 mm

Weight 179 g (with battery)

Communication

UMTS / HSDPA ( 2100 / 1900 / 850 MHz )

Quad-Band GSM：850 / 900 / 1800 / 1900 MHz

GPRS class 10 / EDGE class 10

Bluetooth® v2.0 class 2 + EDR (Enhanced Data Rate),

WiFi IEEE802.11b/g Certificated

GPS Embedded SiRF Star III chipset

SiRF Instant Fix ( Ephemeris Extension )

Camera 2.0 mega pixels Auto-Macro Focus CMOS camera

0.3 mega pixels Fixed-Focus CMOS camera for conference call usage

Expansibility MicroSD card slot

Interface (Audio) Built-in microphone and speaker, hands-free mode supported

Interface (Data) mini-USB and audio jack in one

Ergonomic Design Touch screen for stylus or fingertip, power button, send/end button, record button,

volume control, left soft-key, right soft-key

LED Indication

<< Right-Up side: Red, Green >>

-Red always light: Device is charging

-Red sparkling repeatedly: Low Battery Warning

-Red is off: Charging complete

-Red blinks: Missed Calls or unread messages

-Green always light: Battery charging is full

-Green blinks: GSM is connecting on line

<< Lift-Up side: Blue, Amber & White >>

-Blue blinks: BlueTooth enable

-Amber blinks: WLAN enable

-White blinks: GPS enable

Software

(pre-loaded)

1. Microsoft® Office Outlook® Mobile (Calendar, Contacts, Tasks and Inbox)

2. Microsoft® Office Word Mobile, Microsoft® Office Excel® Mobile, Microsoft® Office

PowerPoint® Mobile

3. Pictures & Video, Notes, Internet Explorer Mobile, ActiveSync, Calculator, Game

(Solitaire, Bubble Breaker), Voice Recorder

4. Windows Live Messenger, Microsoft® Transcriber*, Windows Media® Player 10,

Direct Push Technology

5. Microsoft Reader*

(* subject to change by region)

Add-on

Applications

Phone Tools: Phone Application*, Phone Setting, SIM Toolkit, Speed Dial, Call Filter,

Wireless Modem, Wireless Manager, Add Ringtone, CSD Type, Voice Commander*,

Connection Wizard, SMS Sender, SIM Manager, Video Telephony

Multimedia Tools:

Image Wizard ,Image Maker ,Multimedia Manager, Camera, Camcorder, FM Tuner*,

Streaming player

MMS Tool:

MMS Message

Utilities:

Quick LinkBattery Meter, Zoom SMS, M-Desk, Backup Utility, Application Recovery, Wireless

Manager, Namecard Manager, Birthday Reminder

(* subject to change by region)

Power DC Adaptor, 5V1A

Battery 1,530 mAh Li-Poly, rechargeable & replaceable

Certification CE / R&TTE / BQB / WiFi / USB-IF / NSTL-LTK

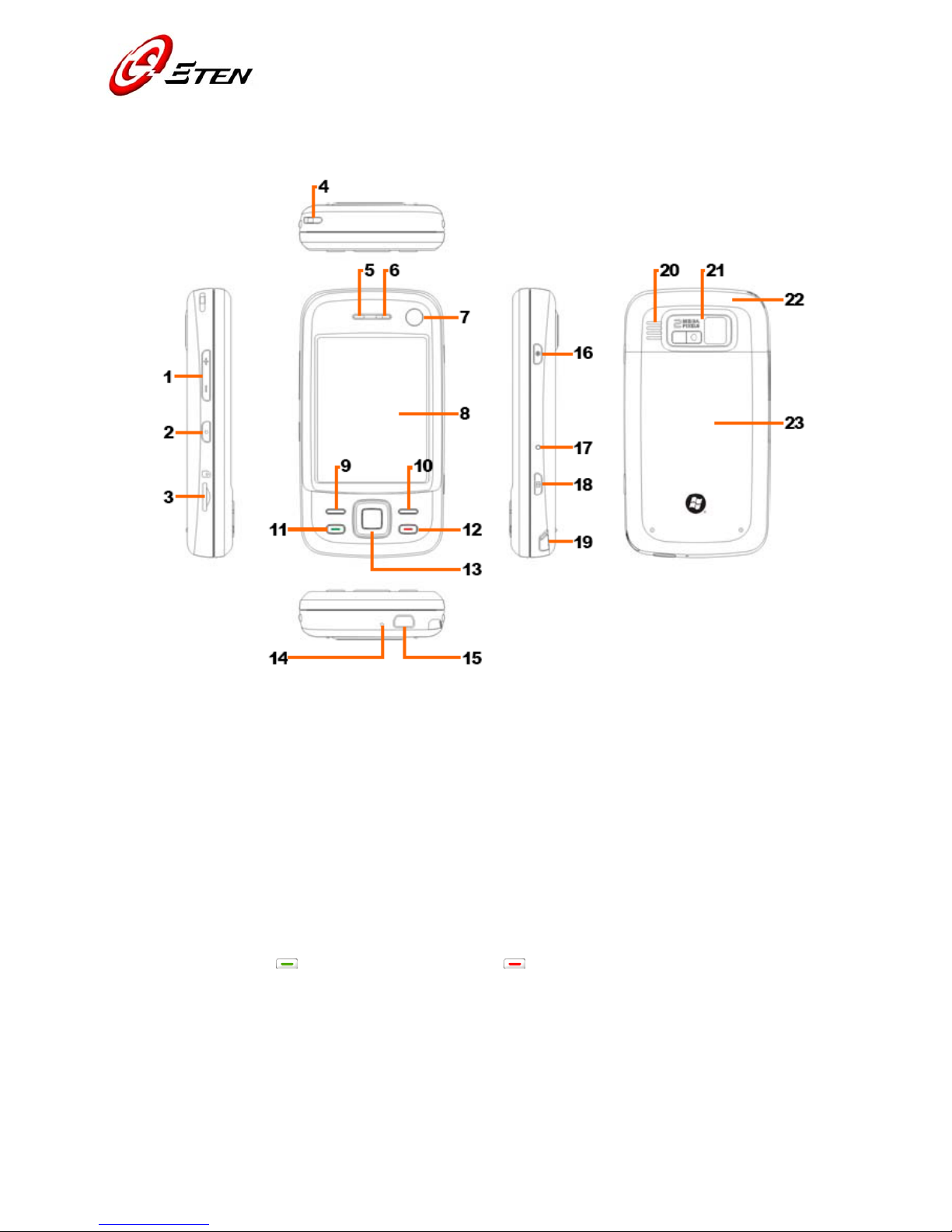

1.2 Overview

1. Volume control key 2. Voice Commander hot key

3. MicroSD slot 4. Hanging hole for Mobile phone

strap

5. Phone Receiver 6. Charging / Mobile Phone /

Bluetooth / WLAN / GPS LED

indicator

7. Video conference camera

(Applies to M810)

8. Display, Touch screen

9. Left Soft-Key 10. Right Soft-Key

11. Send button 12. End button

13. Navigation button. Press the

center of the button to set as

launch key.

14. Phone Speaker

15. Mini USB connector, Headset

connector

16. Power button

17. Reset button 18. Camera hot key or Camcorder

19. Stylus holder 20. Speaker

21. Built-in camera lens, flashlight

LED, preview mirror

22. Hidden antenna for Cell Phone

23. Back cover, Battery is inside

CHAPTER 2. TOOLING FOR REPAIR

Item Purpose

Cleaning Wipers

Plastic Stick

Philips Screwdriver

T5 Screwdriver

Tweezers

Disassembly & Assembly

Blower

Soft Brush

Camera Lens Clean

Mini USB Cable / Cradle Synchronization Test to PC

Micro SD Card SD Read / Write Test

Headset Headset Audio / Recording / FM Test

AC Adapter

Battery

Main Battery Charging

Software Upgrade tools Software Upgrade (EUU, ActiveSync)

GSM SIM Card

Bluetooth Headset

Phone Function Live Test

Barcode Label Printer IMEI Sticker Printing (300 dpi)

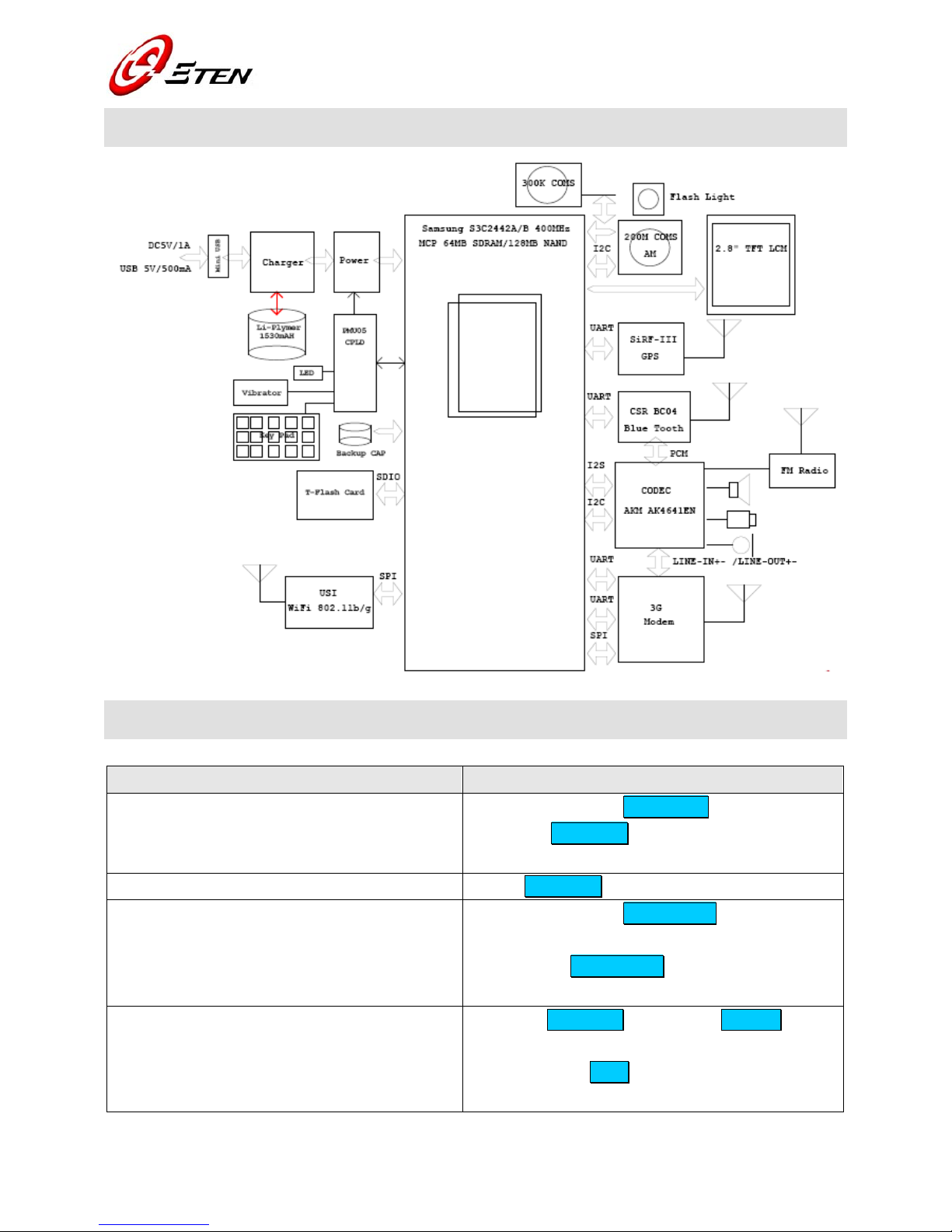

CHAPTER 3. FUNCTION BLOCK-DIAGRAM

CHAPTER 4. MODE SWITCHING

Function Procedure

Hardware Reset 1. Press and hold POWER button

2. Press RESET button and release both

(power & reset) buttons at the same time

Software Reset Press RESET button

Testing (Build-in) Program 1. Press and hold CAMERA button

immediately after doing a hardware reset

2. Release CAMERA button after the

testing program shows up on the LCD

Clean-boot Option (new) 1. Press POWER button and RESET button

after ‘glofiish’ screen shows up

2. Long Press END button after the clean boot

option shows up on the LCD

Download Mode 1. Press and hold RECORD button

immediately after doing a hardware reset

2. Release RECORD button after the

USBDL screen shows up on the LCD

CHAPTER 5. DIAGNOSTICS

5.1 PDA Build-in Program

How to entering the program：

a. Press POWER and RESET buttons at the same time and release.

b. After that, Press CAMERA button immediately after having hardware reset

c. Release CAMERA button after the screen shows up

NOTE. Always tap the up-right corner [x] to exit when finished.

Item Description Procedure / Criteria

NFlash NAND Flash test Tap screen if result is “Test O.K. - Bad Block =0”.

Tap up-right corner to exit

RAM SDRAM test Tap screen if result is “All are O.K.”

Tap up-right corner to exit

M810 Test System ╳

▲

1.NFlash 2.RAM

3.Keypad 4.T Panel

5.AUDIO 6.LCD

7.BackLight 8.LED

9.Vibrator 10.ADC

11.Battery 12.SD/MMC

13.Camera 14.OS IMG

15.Bluetooth 16.GPS

17.GSM 18.FM Test

19.B&E Info 20. X Packet

▼

Keypad Pad/Keyboard test

Follow each of the instructions and press BLACK or GREEN

hinted button in order.

*There’re five sub-testing items in this program.

Tap up-right corner to exit if passed all pad test

T Panel Touch Panel test

Take stylus to draw few lines slowly around the screen rims

and center.

*Breaking lines or screen un-alignment is not allowed.

Tap up-right corner to exit

AUDIO Voice record/reply test

1. Tap Recording icon and talk to the microphone for 1-2 sec,

the voice will reply the recorded sound automatically.

2. Plug your headset and run the record/reply test again.

3. Tap Receiver, and tap “PASS” after hear a tone by phone

generated.

Tap up-right corner to exit

LCD LCD color test Tap screen repeatedly. Check color screen if normal or any

defective pixels on it.

Tap up-right corner to exit

BackLight LCD backlight test Tap “Back Light On/Off” and tap “scroll up/down” to test

backlight.

Tap up-right corner to exit

LED LED indication test Tap “ALL ON”/ “ALL OFF” to check all indicative color LED

turns on/off.

Tap up-right corner to exit

Vibrator Vibration test Select “Vibrator On then Off” to check if device is vibrating.

Tap up-right corner to exit

ADC Main battery test Test main battery calibration(Power supply & Dummy battery

needed)

Tap up-right corner to exit if screen shows PASS

Battery Battery switch function

test Follow the procedures and check screen shows “PASS!”

Tap up-right corner to exit

Camera Built-in camera access

test

Check the screen shows live video by camera lens.

*2M AF/VGA Camera is in rear/front side of the device.

Tap up-right corner to exit

GSM GSM/3G modem test

Tap “GSM” to check firmware version is correct release.

Tap power button to exit

B&E Info Read SW/HW version,

BD address, Power

Master Meter

Tap “Read SW Version” to check the system software and

language version.

Tap up-right corner to exit
