Eagle Tech Arion ET-AR504LR-BK Manuale utente
User Manual
Model: ET-AR504LR-BK
2.1 Soundstage Speakers with Subwoofer

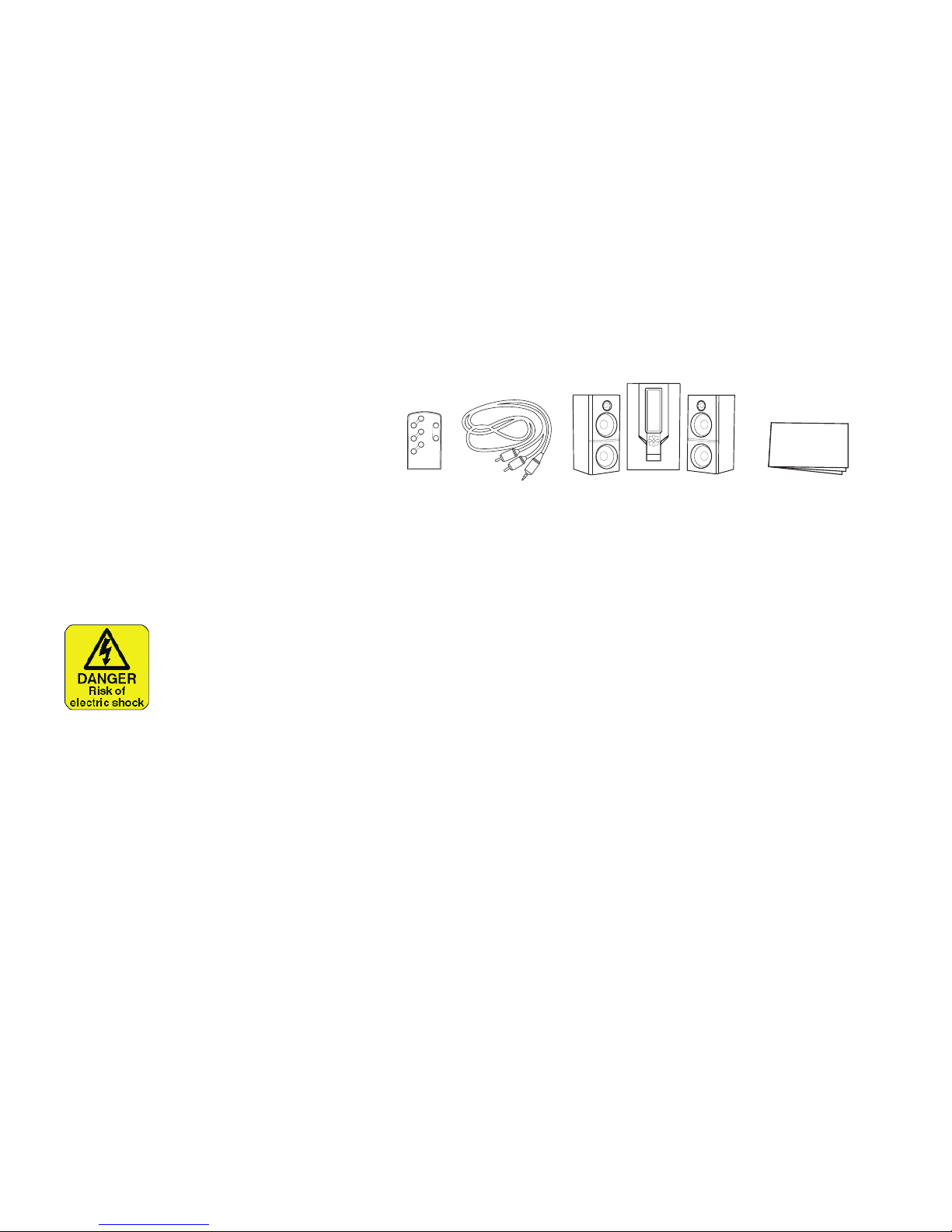

1. Package Contents
2. Safety Instructions
ETAR504LR-BK speaker system1.
Wireless remote with battery2.
User manual3.
3.5mm to RCA audio cable4.
TRE+
TRE-
BASS+
BASS-
MAST+
MUTE
RESET
MAST-
Manual
Caution: Electric Shock Hazard
When using this electronic appliance, basic precautions should always be followed to reduce
the risk of re, electrical shock and injury to persons, including the following:
Do not use this product near water i.e.1.
bath tub or swimming pool.
Unplug from AC outlet when not in use2.
and before cleaning.
Close supervision is necessary when3.
used near children.
Clean only with dry cloth.4.
Do not attempt to repair the product on5.
your own. It contains no user serviceable
parts.
Do not dispose of batteries in re. They6.
may explode. Check local codes for
battery disposal instructions.
TRE+
TRE-
BASS+
BASS-
MAST+
MUTE
RESET
MAST-
AUDIO INPUT
AUDIO OUTPUT
POWER SOURCE

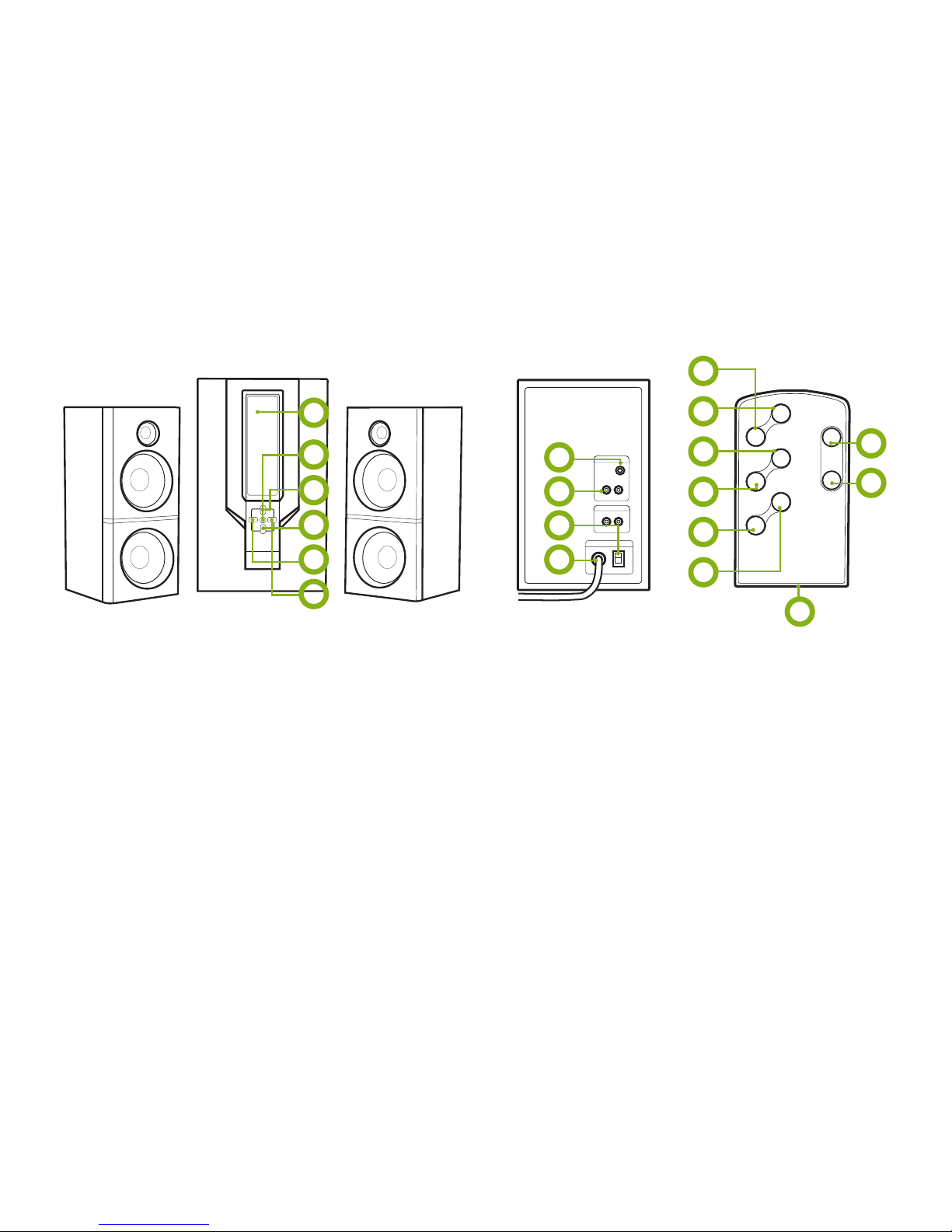

3. Product Overview
Status LED1.
Displays Volume, Treble, Bass, EQ
Menu2.
Switches functions: Volume, Treble or
Bass
Up arrow3.
Increases volume or adjusts selected
menu function
Down arrow4.
Decrease volume or adjusts selected
menu function
Left arrow5.
Selects previous menu function
Right arrow6.
Selects next menu function
Power cord7.
Connects to 110V AC outlet
Audio input 18.
Auxiliary 3.5mm plug
Audio input29.
Standard RCA plug
Power switch10.
Turns speakers on/o
Mast+11.
Increases master volume
Mast-12.
Decreases master volume
Bass+13.
Increases bass level
Bass-14.
Decreases bass level
Tre+15.
Increases treble level
Tre-16.
Decreases treble level
Reset17.
Resets Bassand Treblesettings to
factory default
Mute18.
Turns on/o master volume
Battery compartment19.
Insert battery with letter facing up
1
7
9
10
16
13
12
17
15
14
11
18
19
8
4
3
2
5
6
AUDIO INPUT
AUDIO OUTPUT
POWER SOURCE

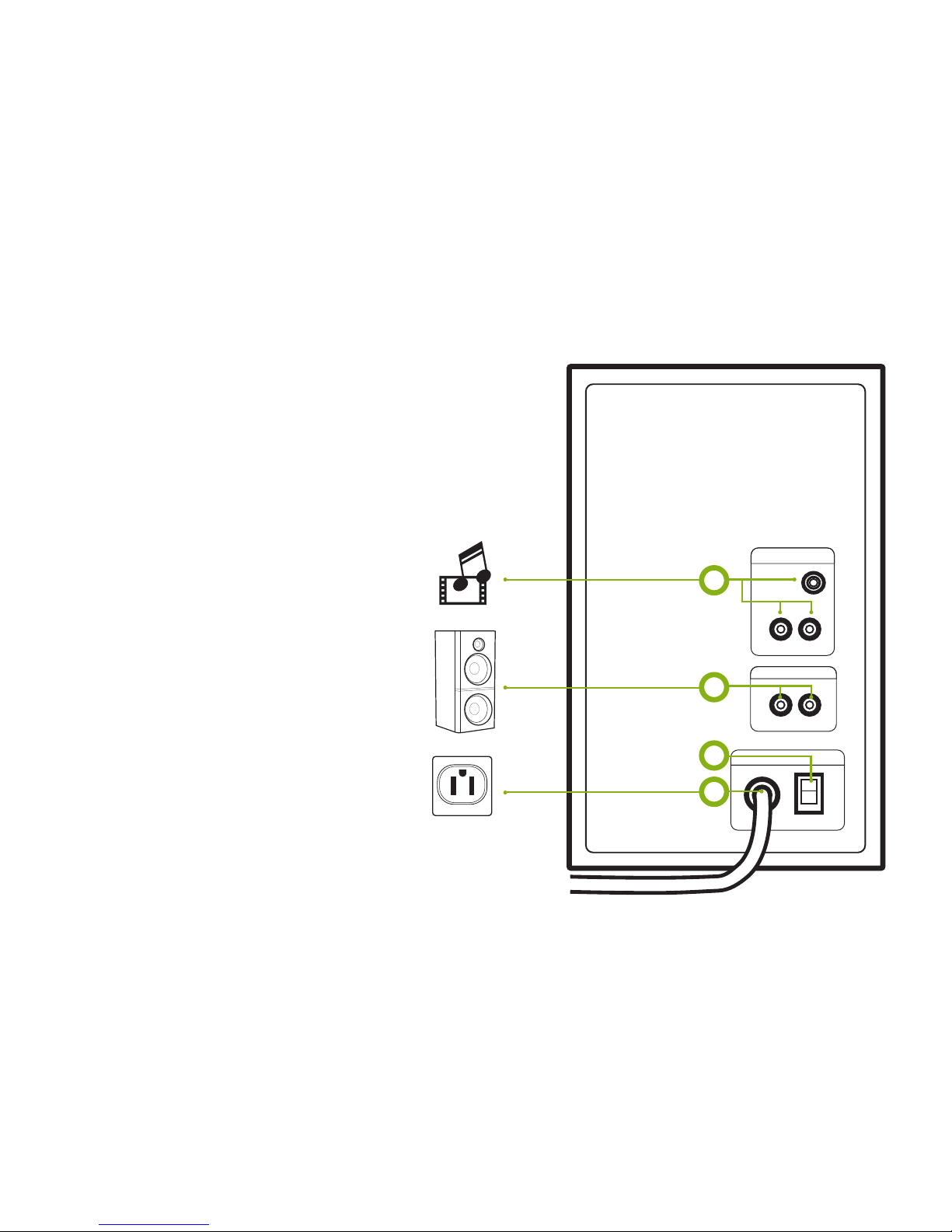

4. Product Setup
Connect the 3.5mm end of audio cable
to your music device.
1.
Connect the RCA end of audio cable
to back of the system. Only one
audio input may be used at a
time.
2.
Connect the power cord to an3.
110V AC outlet.
Turnonthe powerand slowly
increase the volume until reaching
acomfortable level.
4.
Adjust treble or bass as needed.5.
1
2
3
4
OR
5. Understanding LCD Display
Mute
CD
AUX
Volume
Treble
Bass
SUB WOOFER
1
2
3
4
5
6
7
8
Mute Indicator1.
Indicates if the system mute has been
turned on or o
CD Input Indicator2.
(models with CD input)
Indicates if the system is currently
using the CD input
Auxiliary Input Indicator3.
(models with Aux input)
Indicates if the system is currently
using the Aux input
Power On Indicator4.
Indicates if the system is turned
on or o
Volume Indicator5.
Indicates if the system is being set to
Volume Adjustment Mode
Treble Adjustment Indicator6.
Indicates if the system is being set to
Treble Adjustment Mode
Bass Adjustment Indicator7.
Indicates if the system is being set to
Bass Adjustment Mode
Subwoofer Indicator8.
Indicates if subwoofer is in use
6. Using Front Panel Controls
The LCD area displays your current selection.1.
Press the Menu button until you have selected your desired2.
function. Press the Up or Down arrow to change the setting
(Volume • Bass • Treble • Equalizer)
TRE+
TRE-
BASS+
BASS-
MAST+
MUTE
RESET
MAST-
TRE+
TRE-
BASS+
BASS-
MAST+
MUTE
RESET
MAST-
TRE+
TRE-
BASS+
BASS-
MAST+
MUTE
RESET
MAST-
MAST+
BASS+
TRE+
RESET
MAST-
BASS-
TRE-
MUTE

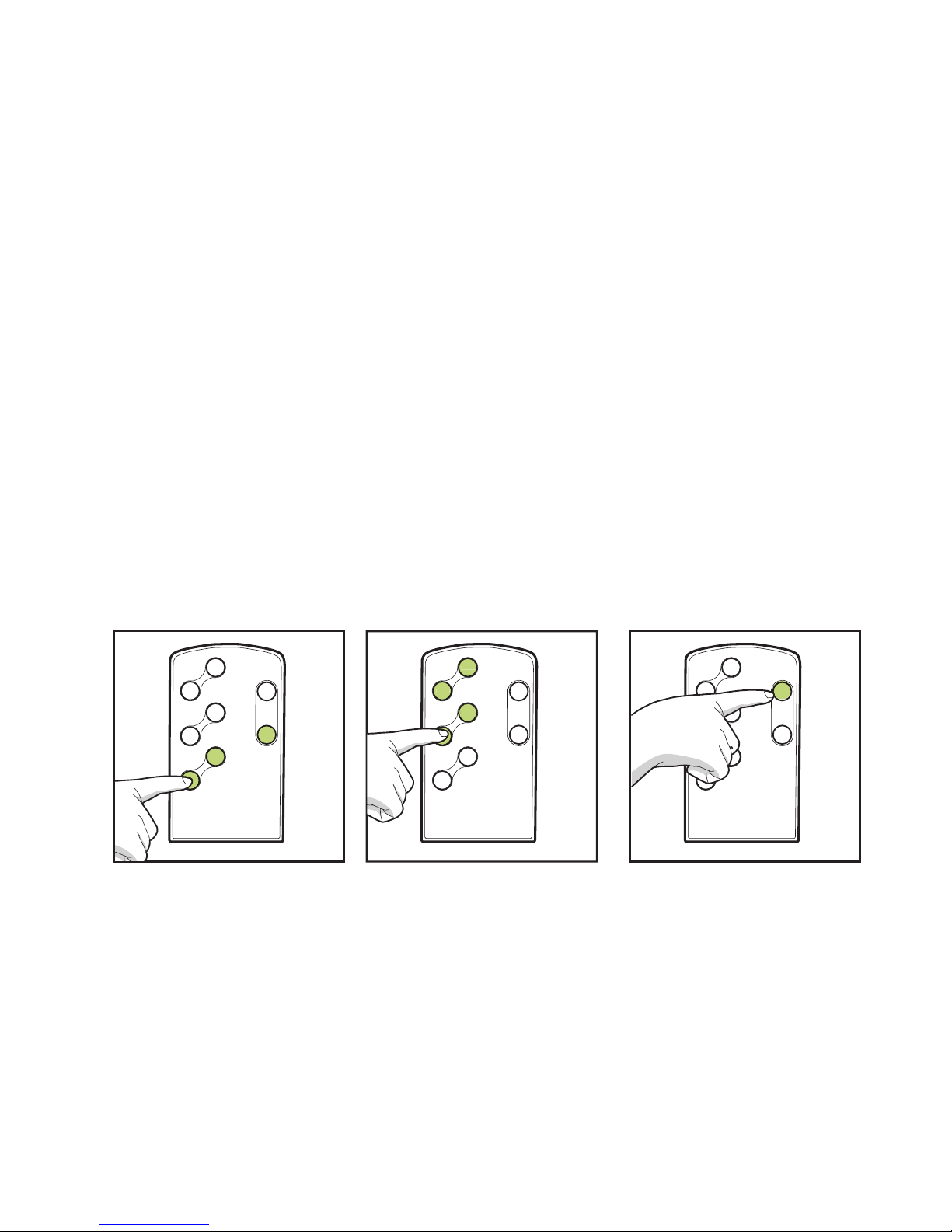

7. Using the wireless Remote
Adjusting Volume/Mute using Remote Control
1. Press Mast+ button to increase volume level and Mast- button to decrease volume level.
2. Press Mute to turn on/off master volume. Press again to resume previous volume level.
Adjusting Treble/Bass using Remote Control
1. Press Tre+ button to increase bass level and Tre- button to decrease bass level.
2. Press Bass+ button to increase volume level and Bass- button to decrease volume level.
Resetting EQ Levels using Remote Control
1. Press Reset button to reset all EQ levels to factory default.
Adjusting Volume/Mute using Remote Control Adjusting Treble/Bass using Remote Control Resetting EQ Levels using Remote Control
8. Optimum Settings
For best reception, always point the remote control at the LCD display area. The re-1.
mote control’s effective range is approximately 10ft.
For best tonal fidelity, we recommend setting your audio source to line level output and2.
use the speaker to control overall volume level.
For best tonal fidelity, we recommend using the default EQ levels so you hear the music3.
at exactly the same way it was recorded. The easiest way to do this is by pressing the
Reset button located on the remote control.
This speaker system is most efficient when the volume level is set between 30% to 80%.4.
You get highest sound quality and minimum distortion within these volume levels.
Place the satellite speakers at least 16 inches from each other. This enhances stereo5.
sound effect and perceived sound field.
Provide ample space around the subwoofer unit. It needs enough room to move massive6.
amount of air! To further enhance lower frequencies, place the subwoofer unit near walls.
9. Specification
• Total RMS Power: 35 Watts
-Satellites: 10 Watts RMS x 2
(into 4 ohms, @ <=1% THD)
-Subwoofer: 15 Watts RMS x 1
(into 4 ohms, @ <=1% THD)
• Total Peak Power: 70 Watts
• Frequency Response: 20Hz to 20kHz
• Drivers:
-Satellites: Dual 3-inch midrange and
1-inch tweeter with solid wood enclosure
-Subwoofer: 5.25-inch drivers with solid wood enclosure
• Speaker Dimension
(H x W x D):
-Satellites: 4.33” x 9.65” x 4.77”
-Subwoofer: 6.7” x 11.03” x 10.25”
10. Regulatory Compliance
FCC Class B Information
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful in-
terference in a residential installation. However, there is no guarantee that interference will not occur in a
particular installation.
CE Compliance for Europe
This equipment has been tested and found to comply with the limits for European Council Directive on the
approximation of the law of the member states relating to electromagnetic compatibility (89/336/EEC) ac-
cording to EN55022 Class B.
11. Limited Warranty
Eagle Tech warrants that the product, in the course of its normal use, will be free from defects in material
and workmanship for a period of one (1) year. This limited warranty period shall commence on the pur-
chase date appearing on your purchase receipt. Eagle Tech shall have no liability for any product returned
if Eagle Tech determines that the product was not purchased from authorized retailers, that the asserted
defect a) is not present, b) cannot reasonably be rectified because of damage occurring before Eagle Tech
receives the Product, or c) is attributable to misuse, improper installation, alteration (including removing
or obliterating labels and opening or removing parts. The foregoing warranty shall extend to repaired or
replaced products for the remaining of the applicable period of the original warranty or ninety (90) days
from the date of shipment of a repaired or replaced product, whichever is longer.
