HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY
THIS SPREADER COMES PARTIALLY ASSEMBLED, REQUIRING YOU TO INSTALL THE WHEELS, HANDLE ASSEMBLY AND
CONTROL ROD. IT SHOULD TAKE APPROXIMATELY 10 MINUTES WITH THE USE OF TWO 7/16” WRENCHES AND 1 PAIR
OF PLIERS.
;Clean the impeller plate after each use. Material stuck on the impeller blades will cause uneven spreading.
;Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds
will change the spread patterns. Wet material will also change the spread pattern and ow rate.
;Clean your spreader thoroughly after each use. Wash between the shut off plate and bottom of the hopper.
;Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
;When using Rock Salt remove salt from the hopper daily. Rock Salt will reconstitute back into a solid block over night
with humidity. As a preventative measure, spray all metal parts thoroughly (inside the tubing too) with WD-40 to prevent
corrosion.
1. Open carton and remove the handle assembly, wheels, and
spreader from carton.
2. Turn spreader upside-down on to the hopper.
Pt# 53107 PAGE 1
2130 HIGH-OUTPUT Broadcast spreader
ASSEMBLY and OPERATING INSTRUCTIONS Rev. 3-10
EarthWay
EarthWay
EarthWay
EarthWay
®
®
S
L
I
D
E
Gearbox
Axle Assembly
Lower
Handle
Frame
Brace
Cross Brace
Axle Bushing
3. Ensure that the axle bearings are pushed into the axle bushing
on both sides as shown. Install drive wheel (both wheels are
interchangeable) to axle using pin hole nearest to lower handles as
shown. Insert 2” cotter pin through wheel and through axle. Bend
with pliers to prevent pin from falling out.
4. Install coast wheel to axle, then using outside pin hole as shown, insert 1” cotter pin
through axle (not thru the wheel). Bend with pliers to prevent pin from falling out.
2” Cotter Pin
1” Cotter Pin
Coast Wheel
Drive Wheel
PLEASE CALL IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS
REGARDING THE SAFE OPERATION OF THIS SPREADER. THIS MODEL INCLUDES LIFETIME TECHNICAL SUPPORT
SUPPORT HOT LINE: 574-848-7491 or 800-294-0671, email: techsupport@earthway.com SKYPE: EARTHWAY.TECH
1/4 - 20 Lock-nut
1/4 - 20 x 2” Bolt
Pivot Bracket

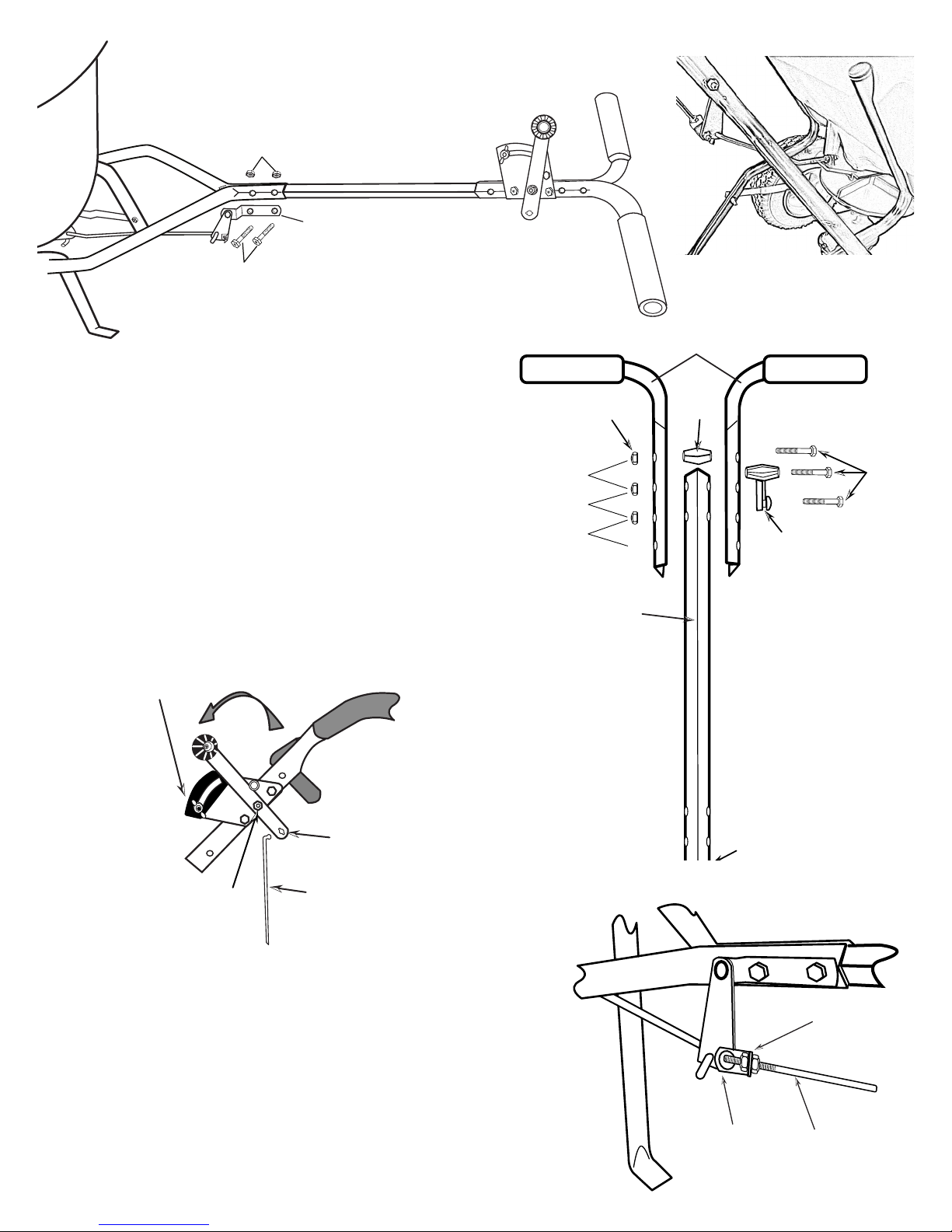

5. Install handle shaft to lower handles and pivot & bracket assembly as
shown. Using 2” bolts and locknuts.
TIGHTEN BOLTS AND NUTS NOW.
PAGE 2
1/4-20 x 2”
Hex Head
Bolt
Gauge &
Lever Assembly
Handle
Spacer
Upper Handles
1/4-20
Locknuts
POSITIONS
LOWER
MIDDLE
UPPER
Handle Shaft
Long end
6. (This step is only required if you want to change the position of the
handles) NOTE: BEFORE INSTALLING GAUGE AND UPPER
HANDLES TO HANDLE SHAFT, UPPER HANDLES FEATURE
THREE POSITIONS FOR OPERATOR’S COMFORT.
If operator chooses middle or upper positions, use handle spacer in hole
nearest to handle grips.
Insert 2” bolt through upper handle, then through handle spacer through
other upper handle and secure with locknut.
DO NOT TIGHTEN LOCKNUT YET. TIGHTEN THIS NUT LAST.
Now slide the upper handle assembly over the handle shaft (on the
end with the bolt holes closer to the end).
Install gauge & lever using (2) 2” bolts. Be sure gauge is on left hand
side. Tighten locknuts to gauge rst.
TIGHTEN ALL HARDWARE NOW.
Gauge & Lever
Control Rod
Tabbed Hole
Control Rod
Lever Tension Nut
1/4-20
Hex Nuts
Pivot
Bracket Control
Rod
7. Install Control Rod by installing attened end of Control Rod into Lever on Gauge
as shown. Turn to lock in place. {Make sure that there is a plain 1/4-20 Hex Nut
threaded about halfway up the threads}
Push lever forward to full OPEN setting. Align and push the Control Rod through
the angle attached to the Pivot Bracket. Now install 1/4-20 regular nut on to
control rod. {One nut on either side of the angled plate}
Next pull pivot & bracket back so that the shut off plate in the hopper is in the full
open position and adjust the Hex Nuts on the Pivot Bracket angle to secure the
angled bracket. Now tighten the nuts against the pivot angled bracket to prevent
change in calibration.
5-YEAR LIMITED WARRANTY
EarthWay
Products, Inc. warrants this product free of defects in original workmanship and materials for
a period of 5-Years to the end user with the original purchase receipt. If a manufacturing non-conformance
is found,
EarthWay
Products, Inc. at its discretion will repair or replace the part(s) or product at no charge
provided the failure is not the result of incorrect installation, mishandling, misuse, tampering, or normal wear
and tear as determined by
EarthWay
.
EarthWay
at its discretion may require that the part(s) or product
be returned along with the original purchase receipt at owners’ expense for examination and compliance with
the terms of this warranty. (Do not return any product without rst receiving authorization from
EarthWay
Products, Inc.). To seek remedy under this warranty, contact
EarthWay
Products, Inc. at 574-848-7491,
techsupport@earthway.com or write to (
EarthWay
Products, Inc. P.O. Box 547 Bristol, Indiana 46507) and
describe the nature of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the
part(s) or product; any labor charges associated with repair or replacement of non-conformances are specically
excluded. Due to the corrosive nature of most fertilizers and ice melt products,
EarthWay
Products, Inc. makes
no warranty against and specically excludes part(s) or product degradation or failure due to corrosion or its
effects. Clean and dry your spreader thoroughly after each use, as a preventative measure, coat all metal parts
with a light oil or silicon spray.
HOW TO ORDER SPARE PARTS
All spare parts listed herein may be ordered direct from the
manufacturer. Be sure to give the following information when
ordering.
Model Number
Part Number
Part Description
Call (574) 848-7491 or 800-294-0671 to place an order with a
credit card.
OPERATING INSTRUCTIONS
Before lling hopper, become familiar with the operation of
this spreader.
;Move stop bolt on gauge assembly to the proper position
for the material being applied.
;While pushing spreader forward, push control lever
forward to stop bolt.
;To stop, pull lever backward to close ow hole before you
stop moving.
;When nished, empty any remaining material from
hopper.
;Thoroughly wash and dry your spreader before storing.
PAGE 3
DO NOT RETURN TO DEALER FOR REPAIR
EARTHWAY PRODUCTS, INC.
1009 Maple Street
P.O. Box 547
Bristol, IN 46507
FOR YOUR RECORDS
Date Purchased
Store Name

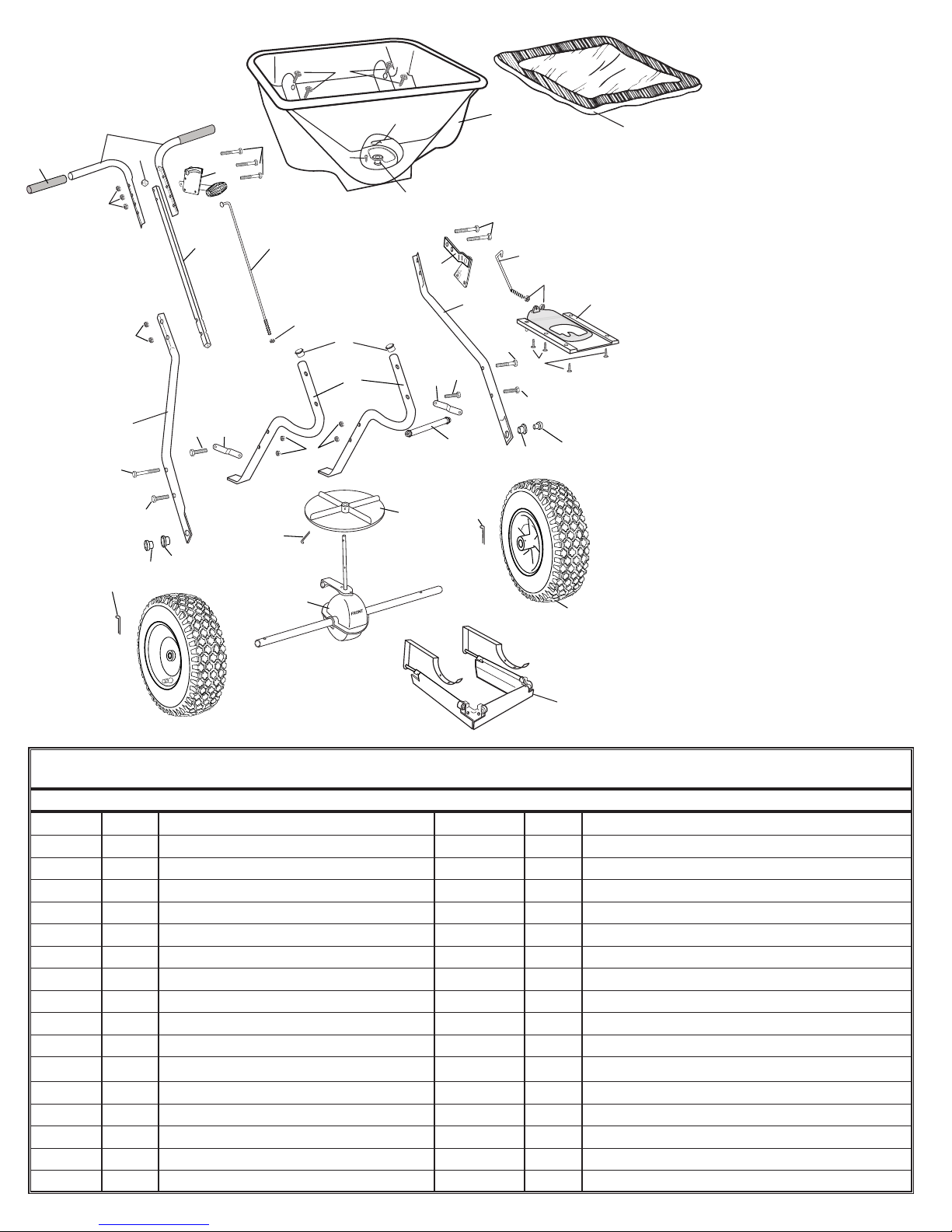

2130 HIGH-OUTPUT Broadcast Spreader ~ Parts List
KEY # PART # DESCRIPTION KEY # PART # DESCRIPTION
1 60250 HOPPER ASSEMBLY 18 12354 ICE MELT SHUT-OFF
2 33117 AGITATOR 19 25222 LOWER HANDLE
3 31141 #14 X 3/4" TYPE "AB" HWHS ZINC 20 25722 FRAME
4 12259 HOPPER BUSHING 21 44292 FRAME BRACE
5 31122 #8 X 5/8" PHPS TYPE A BLACK 22 25228 CROSS BRACE
6 32100 1/4-20 HEX NUT ZINC 23 12109 IMPELLER (9" DIA)
7 19132 7/8" TUBE PLUG 24 36105 1/8" X 1 1/4" COTTER PIN SS
8 60300 PIVOT & BRACKET ASSEMBLY 25 12274 GRIP 7.5" LONG
9 32103 1/4-20 NYLON INS LOCKNUT ZINC 26 60334 GEAR BOX & AXLE ASSEMBLY
10 42259 LOWER CONTROL ROD 27 12148 AXLE BEARING
11 60499 GAUGE & LEVER 28 12152 AXLE BUSHING
12 60175 UPPER HANDLE SQ W/GRIP 29 33109 3/16" X 2" COTTER PIN ZINC
13 12344 HANDLE SPACER 30 70138 PNEUMATIC DRIVE/COAST WHEEL
14 31121 1/4-20 X 1 1/4" HHCS ZINC 31 33108 3/16" X 1" COTTER PIN ZINC
15 25223 HANDLE SHAFT 32 31114 1/4-20 X 1 3/4" HHCS ZINC
16 42256 CONTROL ROD OPTIONAL 60184 SALT DEFLECTOR KIT
17 31120 1/4-20 X 2" HHCS ZINC OPTIONAL 77003 HEAVY DUTY RAIN COVER 13" X 18"
vvvvvvvv
vvvvvvvv
2
3
5
19
19
12
10
6
20
16
15
21
22
26
27 28
30
27
28
11
23
25
21
17
32
14
8
6
9
17
13
9
29
24
31
9
17
7
4
1
17
32
14
77003
OPTIONAL
Heavy-Duty
Rain Cover
60184
OPTIONAL
Salt Deflector Kit
18
5
EarthWay
Products, Inc.
P.O. Box 547
Bristol, IN 46507
Phone: 800-294-0671
www.earthway.com
