Earth Way PolarTech 90399 Istruzioni per l'installazione

32103

Qty 9

32100

Qty 2

36300

Qty 6

12152

Qty 2 12148

Qty 2

33109

Qty 1

36214

Qty 4

33108

Qty 1

36210

Qty 2

31100

Qty 4

31106

Qty 2

31120

Qty 5

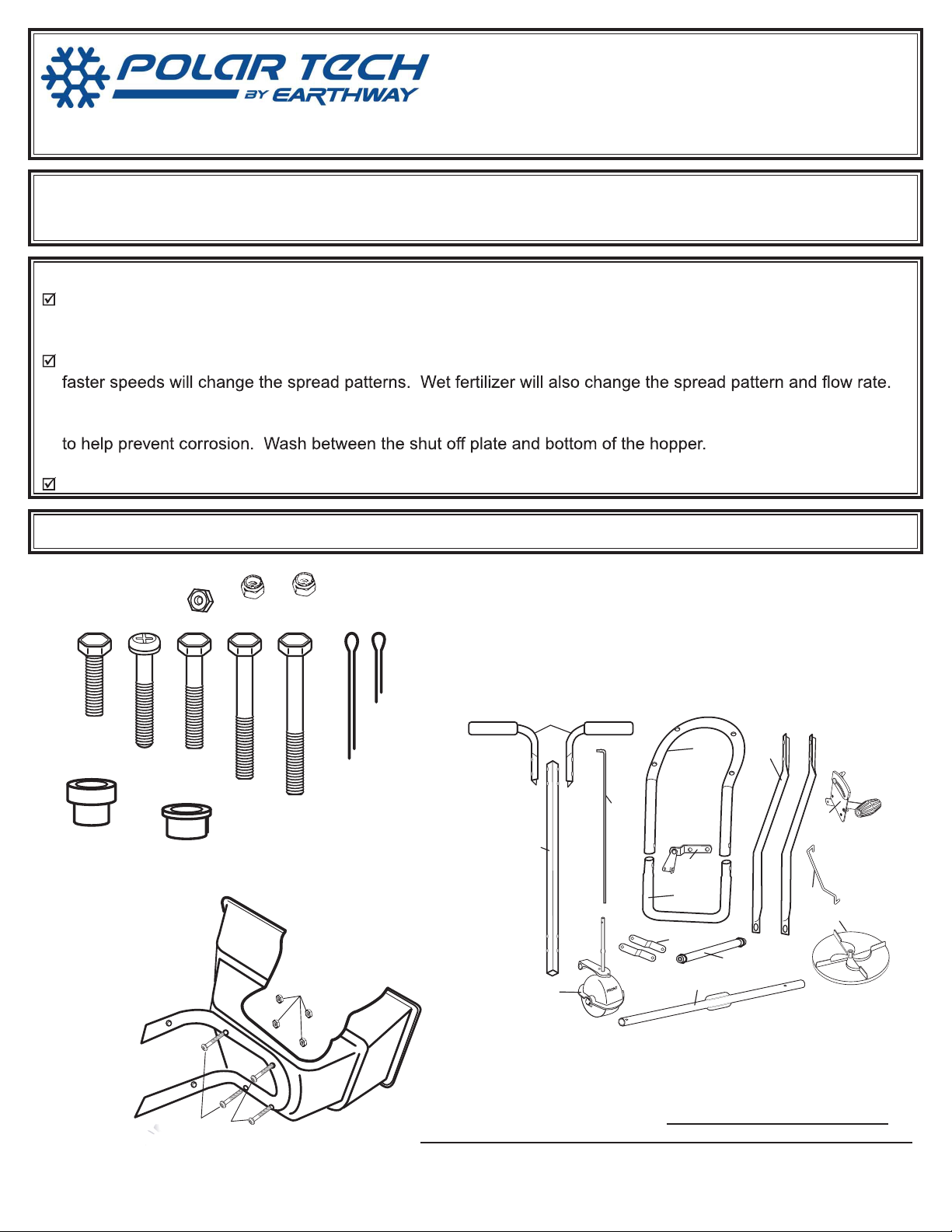

1. Remove and identify all loose parts from carton.

44249

(Qty 4 #36214)

1/4-20 X 1½”

Phillips Panhead

(Qty 4 #36300)

1/4-20 SS Locknut

2. Position hopper on side. Install frame using (4) 1/4-20 x 1-1/2”

Pan Head Phillips bolts and (4) 1/4-20 nylon insert locknuts. First put

bolts through holes in frame then through holes in bottom of hopper.

Secure with locknuts. TIGHTEN THESE LOCKNUTS NOW - DO NOT

TIGHTEN WITH POWER TOOLS. TIP: coat stainless steel bolts

with wax or grease before tightening to prevent them from seizing.

PAGE 1

90399 STAINLESS

HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY

If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader.

The impeller must turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise.

Clean the impeller plate after each use. Ice melt stuck on the impeller blades will cause uneven spreading.

Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or

Clean and dry your spreader thoroughly after each use. Coat all metal surfaces (pay special attention to the

inside & outside of tubing - it’s easiest to do while assembling) with light oil, Fluid Film®or silicon spray

Do not use powdered

materials.

Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.

PLEASE CONTACT US IF YOU ARE MISSING ANY PARTS OR HAVE QUESTIONS REGARDING THE OPERATION OF

THIS SPREADER, VISIT THE EARTHWAY WEBSITE OR CONTACT SUPPORT AT:

PHONE: 574-848-7491 EMAIL: SUPPORT@EARTHWAY.COM

IF YOUR SPREADER COMES SEMI ASSEMBLED, SKIP TO STEP #7

ICE MELT SPREADER

ASSEMBLY & OPERATION

OCT 2019 REV

Axle

Bushing

Bearing

Frame brace

1/4-20 Locknut

Lower Handle

Bushing

Shut-Off

1/4-20 x 1-1/2”

Hex Head Bolt

STEP 5B

STEP 5C

1/4-20 x 2-1/4”

Hex Head Bolt

STEP 5A

Foot

3. Install impeller onto pinion shaft by pressing the impeller as

shown onto the pinion shaft and turning the impeller while holding

the pinion shaft to engage with the COINfully, and press down to

secure.

Next, insert Cross Brace thru the Gearbox Brace as shown above.

Impeller

Cross Brace

GEARBOX ASSEMBLY

Gearbox Brace

Pinion

Shaft

Press & turn

Impeller

to engage

Coin securely

Coin

4. Install gearbox by inserting the pinion shaft into hole

in center of hoppers bottom. The word “FRONT” on the

gearbox must point to Front of the hopper. The EarthWay

logo is on the front of the hopper.

Axle Bearing

Flat

Side

Notch

NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS STARTING WITH FIRST STEP.

DO NOT OVER TIGHTEN.

PAGE 2

5. A - Install lower handles onto the

frame to both sides as shown. Insert 2¼”

bolt through second hole in lower handle

locknut. DO NOT TIGHTEN.

B -

hole in lower handle. Then through

frame brace. NOTE: Numbers on frame

brace must be facing toward gear box as

shown. Next into threaded connector in

cross brace. DO NOT TIGHTEN.

C-Next insert 1½” bolt through other

end of frame brace and through second

hole in frame install locknut.

6. Install the axle through the axle hole

in the lower handle and then through

the gearbox and then through the lower

handle on the other side as shown.

NOTE: Notch on bearings and lower

side of lower handle (from the outside to

the inside).

OCT 2019 REV

Bushing

Install the axle

as shown above

7. Slide axle bushing over axle and into axle bearing to both sides as shown.

8. Install drive wheel onto the axle and align with the cotter pin hole nearest to

lower handles as shown. Insert 2” cotter pin through wheel and through axle.

Bend with pliers to prevent pin from falling out.

9. Install coast wheel onto the axle fully, then using outside cotter pin hole,

insert 1” cotter pin through axle (not thru the wheel). Bend with pliers to

prevent pin from falling out.

Coast wheel side

1” Cotter Pin

Drive wheel side

2” Cotter Pin

TURN SPREADER UPRIGHT ON TO WHEELS.

1/4-20 x 2”

Hex Head

Bolt

Gauge &

Lever Assembly

Upper Handles

1/4-20

Locknuts

Handle Shaft

Long end

Shut-Off

Plate

Pivot Rod

with extra bend

Rotate

Pivot

PAGE 3

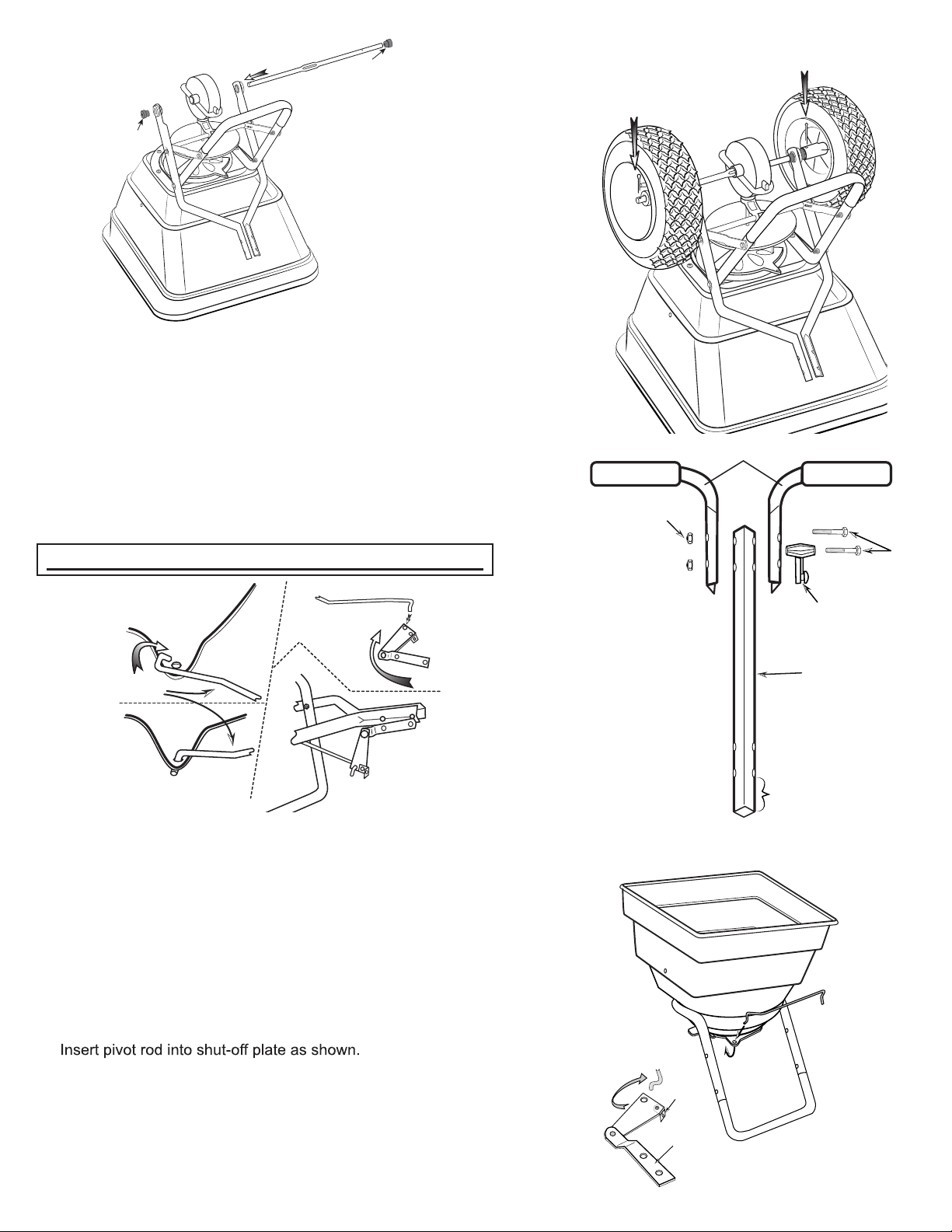

Insert Pivot Rod

into Shut-Off

and rotate to secure

Angle

Attaching

Arm

Pivot

Rod

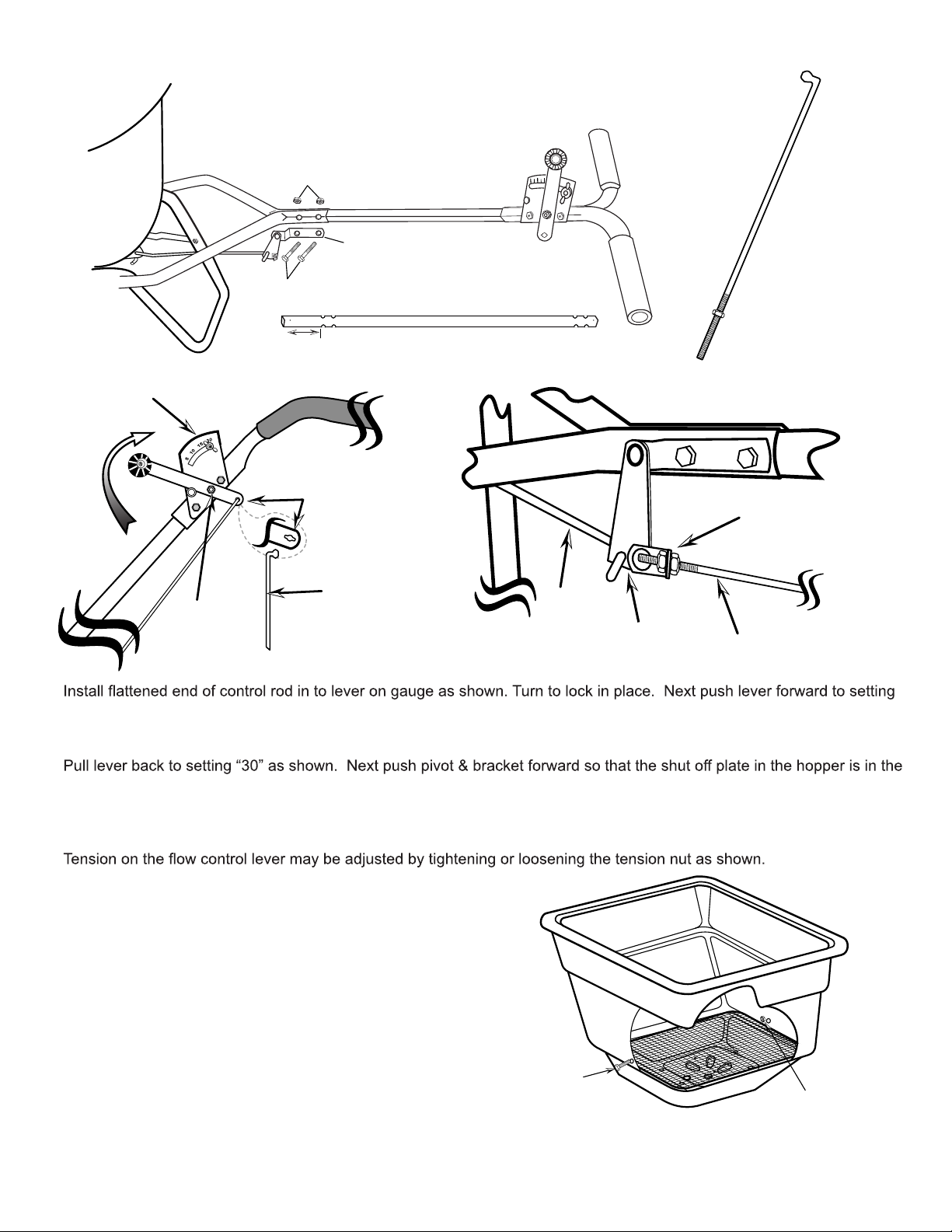

10. Insert 2” bolt through Gauge & Lever assembly, next through upper handle,

then the handle shaft and then the other upper handle and secure with locknut.

TIGHTEN ALL HARDWARE NOW

11.

Turn to lock in place.

12. Insert other end of pivot rod into pivot and bracket assembly as shown. Turn

to lock in place.

OCT 2019 REV

Control Rod

Tabbed Hole

Control Rod

Lever

Tension Nut

Gauge & Lever

1/4 - 20 Lock-nut

1/4 - 20 x 2” Bolt

Pivot Bracket

Long End

Holes are farther

from one end

Handle Shaft

14. Install (1) 1/4-20

Hex nut (not a locknut)

on to control rod as

shown.

15.

“0”. Align control rod with hole in pivot bracket, pull lever backward to insert control rod through hole in pivot bracket. Now

install 1/4-20 Hex nut on to control rod.

16.

full open position. REMEMBER SETTING “30” ON THE FLOW CONTROL LEVER MUST PLACE THE SHUT-OFF PLATE

IN THE FULL OPEN POSITION TO BE PROPERLY CALIBRATED. Now tighten the nuts against the pivot bracket to prevent

change in calibration.

17.

¼-20

Hex Nuts

Pivot

Bracket Control

Rod

Pivot

Rod

PAGE 4

13. Install handle shaft to lower handles and pivot & bracket assembly as shown. Using 1/4 -20 x 2”

bolts and locknuts. TIGHTEN BOLTS AND NUTS NOW.

1/4-20 x 1”

Hex Head Bolt

Stainless

1/4-20 Lock Nut

Stainless

18.

Install debris screen into hopper, then insert 1/4-20 x 1”

Stainless Steel Hex Bolt thru the hole in the side wall of the

hopper. Secure with Stainless Steel lock nut - TIGHTEN

OCT 2019 REV

PAGE 5

HOW TO ORDER SPARE PARTS

All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information when

ordering.

Model Number

Part Number

Part Description

You can contact us by calling (574) 848-7491 to place an order with a credit card, or purchase online at

www.earthway.com Questions? Email us at support@earthway.com

1 YEAR LIMITED WARRANTY

Earthway Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year

to the end user with the original purchase receipt. If a manufacturing non-conformance is found, Earthway Products, Inc.

at its discretion will repair or replace the part(s) or product at no charge provided the failure is not the result of incorrect

installation, mishandling, misuse, tampering, or normal wear and tear as determined by Earthway. Earthway at its

discretion may require that the part(s) or product be returned along with the original purchase receipt at owners’ expense for

from Earthway Products, Inc. To seek remedy under this warranty, contact Earthway Products, Inc. at 574-848-7491,

techsupport@earthway.com or write to Earthway Products, 1009 Maple St. Bristol, Indiana 46507 and describe the nature

of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s) or product; any labor charges

thoroughly after each use, as a preventative measure, coat all metal parts with a light oil or silicon spray.

OPERATING INSTRUCTIONS

Move stop bolt on rate gauge assembly to the proper setting.

While pushing spreader forward, pull control lever back to stop bolt.

Thoroughly wash spreader and dry before storing. A coating of light oil will help prevent corrosion.

Do not allow unused rock salt to remain in hopper. It will solidify and cause damage to the GEARBOX.

™ OPERATION

The ™ lever is located under the right side of the hopper. To operate the ™,

slide the control lever from the front to the back. This will activate the ™for a PARTIAL spread

pattern and prevent material from being spread to the left side of the spreader. Position the left wheel of your spreader 4”- 6”

control lever to “0”, and then open the ™ by sliding the control lever from back to the front, for a FULL

spread pattern.

The ™

™maintains the correct application rate while it is activated, giving you excellent results in seeding or

spreading while controlling the spread pattern on the left side of the spreader.

The ™is an

EarthWay

exclusive.

OCT 2019 REV

Place ice melt where it matters...

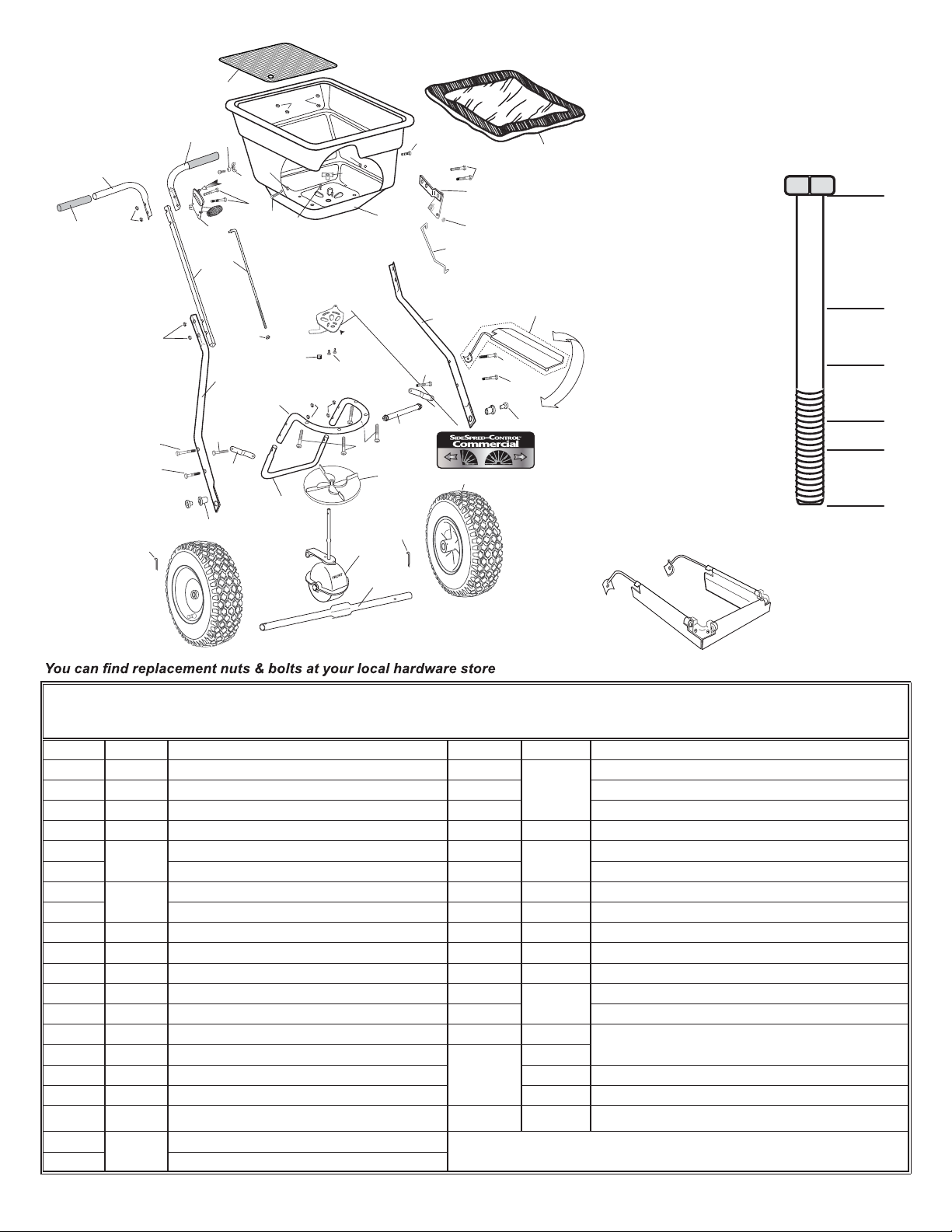

KEY # PART # DESCRIPTION KEY # PART # DESCRIPTION

1 40003 SQUARE SCREEN 22 12317SSC SHUT OFF PLATE

299335 HOPPER ASSEMBLY (2170/2170T) 23 25222-SS LOWER HANDLE SQ STAINLESS

360027 NUT 1/4 - 20 WING NUT 24 24111 FRAME - STAINLESS

4 12209 HOPPER BUSHING 25 42237 FRAME BRACE

5 36214 1/4-20 X 1 1/2" PHPMS S.S. 26 25228 CROSS BRACE (2150/2170/S25) 11.25”

6 36300 1/4-20 NYLON INS LOCKNUT STAINLESS 27 36205 1/4-20 X 2 1/4" HHCS ZINC

7 36210 1/4-20 X 1" HHMS STAINLESS. 28 12110 IMPELLER 9" Round Dished

836216 1/4-20 X 2" HHCS STAINLESS 29 25723-SS FRAME STAND - STAINLESS

9 60300 PIVOT & BRACKET ASSEMBLY 30 12274 GRIP (2150/2170) 7.5" LONG

10 12147 SPACER (PIVOT LINK) 31 60333 New Floating GEAR BOX

11 44251 PIVOT ROD 32 12148 AXLE BEARING

12 60298 GAUGE & LEVER ASSEMBLY 33 12152 AXLE BUSHING

13 60175-SS UPPER HANDLE SQUARE W/GRIP ea. 34 33103 3/16" X 2" COTTER PIN STAINLESS

14 24500 AXLE, COINED 35 70138 PNEUMATIC DRIVE WHEEL STUD

15 36200 1/4-20 X 1 1/2 HHMS STAINLESS 36 33104 3/16" X 1" COTTER PIN STAINLESS

16 25223-SS HANDLE SHAFT SQ STAINLESS 37 11927 SHUTOFF SUPPORT- LARGE

17 42256 CONTROL ROD 38 60027 WING NUT ASSEMBLY BLACK

18 31138 #8 X 3/8" PMT #8 HD COARSE BLACK 39 37100 1/4-20 X 1" CARRIAGE BOLT STAINLESS

1937100 1/4-20 NYLON INSERT LOCKNUT S.S.

20 36305 1/4-20 HEX NUT STAINLESS

21 36208 #6 X 3/8" TYPE 25 PHPS S.S.

60166R

OPTIONAL

3-Side Salt

Deflector Kit

EarthWay Products

Bristol, IN 46507

Phone: 574-848-7491

www.earthway.com

Bolt Identier

1-1/2”

1”

2”

2-1/4”

2-3/4”

44249

30 6

15 25

22 23

77002

OPTIONAL

Heavy-Duty

Rain Cover

60060R

OPTIONAL

Heavy-Duty

Rain Cover

Side Deflector Kit

90399 Ice Melt Spreader - Parts List

PAGE 6OCT 2019 REV
