EarthQuake CS4518 Manuale utente
OperatOr's Manual & parts
Chain Saw CS4518
GetEarthquake.com
OMCS4518
R100809
© Copyright 2009 Ardisam, Inc.
All Rights Reserved. Printed in China.
WARNING
Before using our products, please read this manual carefully to understand the
proper use of your unit.
Page 3
SAFETY FIRST
Instructions contained in warnings within this manual marked with a
WARNING
symbol concern critical points which must be taken into consideration
to prevent possible serious bodily injury, and for this reason you are
requested to read all such instructions carefully and follow them with-
out fail.
WARNINGS IN THE MANUAL
WARNING
This mark indicates instructions which must be followed in order to prevent accidents
which could lead to serious bodily injury or death.
IMPORTANT
This mark indicates instructions which must be followed, or it leads to mechanical fail-
ure, breakdown, or damage.
NOTE
This mark indicates hints or directions useful in the use of the product.
Page
1. Parts location ............................................................................................. 4
2. Symbols on the machine............................................................................. 5
3. For safe operation...................................................................................... 8
4. Installing guide bar and saw chain............................................................ 13
5. Fuel and chain oil .................................................................................... 15
6. Operation .............................................................................................. 17
7. Sawing ................................................................................................... 23
8. Maintenance............................................................................................ 26
9. Maintenance of Saw Chain and Guide Bar ............................................... 28
10. Storage ................................................................................................... 31
11. Troubleshooting guide .............................................................................. 32
12. Specifications .......................................................................................... 33
13. Warranty ................................................................................................. 34
Contents

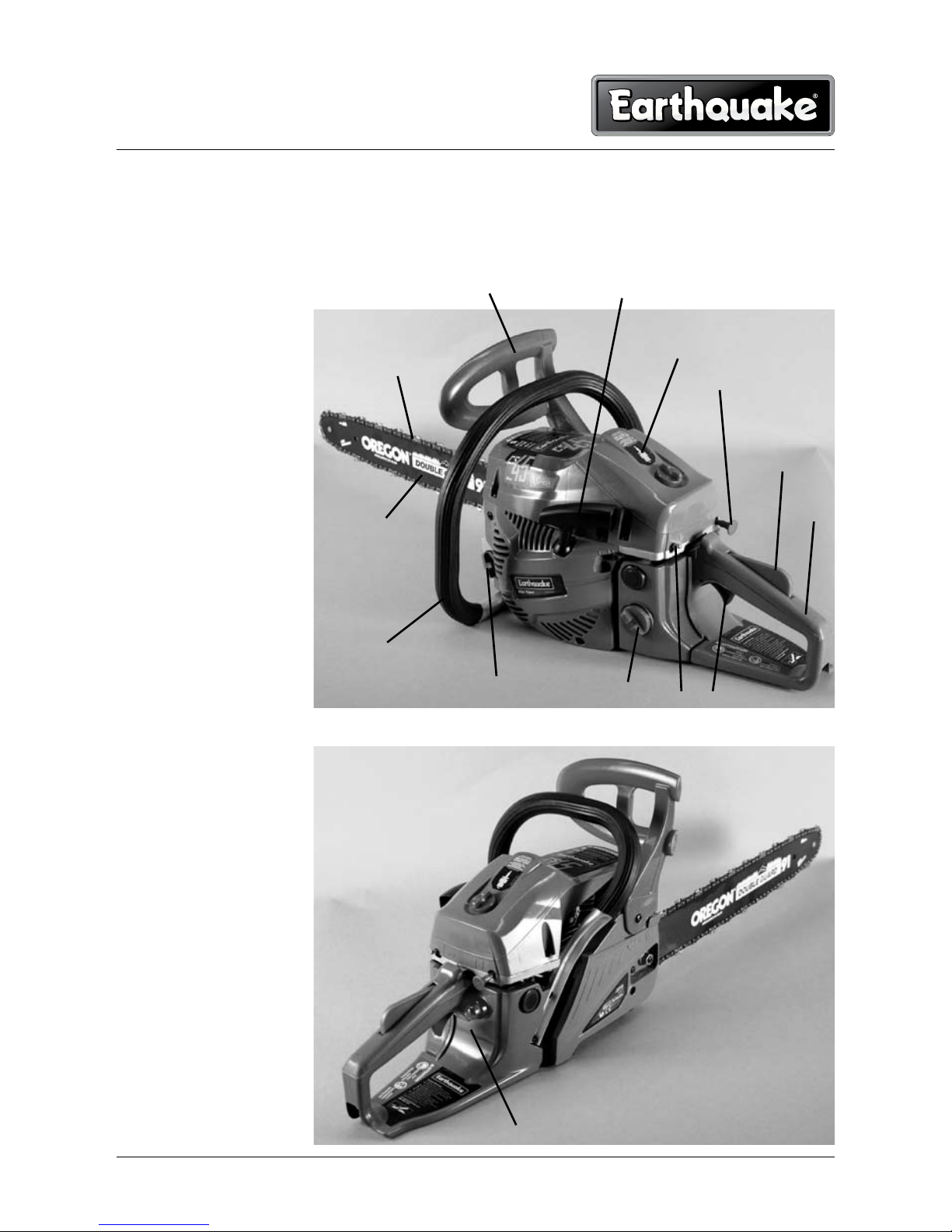

Page 4
1. Front hand guard and brake
2. Starter handle
3. Air filter cover
4. Choke knob
5. Throttle trigger lock-out
6. Rear handle
7. Throttle trigger
8. Engine switch
9. Fuel tank cap
10. Oil tank cap
11. Front handle
12. Saw chain
13. Guide bar
14. Primer Bulb
Parts Location
12
3
4
5
6
78
9
10
11
13
12
14
Page 5
(1) Read operator's instruction book before operating this machine.
(2) Appropriate ear, eye, and head protection must be worn.
(3) Use the chain saw with two hands.
(4) Warning! Danger of kickback.
(5) Read, understand and follow all warnings.
Symbols on the Machine
Page 6
For safe operation and maintenance, symbols are carved in relief on the machine.
According to these indications, please be careful not to make any mistake.
(a). The port to refuel the oil/gas mixture.
Location: near the fuel cap
(b). The port to refill the chain oil
Location: near the oil cap
(c). Operate the engine switch
Flipping the switch to the "O" position immediately stops the engine.
Location: rear at the left side of the rear handle
(d). Operate the choke knob
Pull out the choke knob, and the choke closes; push in the choke
knob and the choke opens.
Location: rear at the right side of the rear handle.
(e). Adjust the oil pump
If you turn the rod by screwdriver follow the arrow to the "MAX"
position, the chain oil flows more, and if you turn to the "MIN"
position, less.
Location: Bottom of the power unit
Symbols on the Machine
Page 7
NOTE
Carb is set at factory.
Special tools are required for carb adjustment and can only be
performed by a qualified service center.
Severe engine damage or personal injury may occur if proper
procedures are not followed.
(g). Shows the directions that the chain brake is released (white arrow)
and activated (black arrow).
Position: Front of the chain cover
(h). Shows the direction of the saw chain installation.
Position: Front of the chain cover
Symbols on the Machine
Page 8
Before operating the product
1. Before using our products, please read this manual carefully to
understand the proper use of your chainsaw.
2. Never operate a chainsaw when you are fatigued, ill, or upset, or
under the influence of medication that may make you drowsy, or if
you are under the influence of alcohol or drugs.
3. Operate the chainsaw only in well ventilated areas.
Never start or run the engine inside a closed room or building.
Exhaust fumes contain dangerous carbon monoxide.
4. Never cut in high wind, bad weather, when visibility is poor or in
very high or low temperatures. Always check the tree for dead
branches which could fall during the felling operation.
5. Use safety footwear, snug fitting clothing and eye, hearing and
head protection devices.
For Safe Operation
Page 9
6. Always use caution when handling fuel.
Wipe up all spills and then move the chain saw at least ten(10)feet
(three(3) m) from the fueling point before starting the engine.
7. Eliminate all sources of sparks or flame (ie. smoking, open flames,
or work that can cause sparks) in the areas where fuel is mixed,
poured, or stored.
Do not smoke while handling fuel or while operating the chain saw.
8. Do not allow other persons to be near the chain saw when starting
the engine or cutting wood. Keep bystanders and animals out of the
work area. Children, pets, and bystanders should be a minimum of
30 feet (10m) away when you start or operate the chain saw.
9. Never start cutting until you have a clear work area, secure footing,
and planned retreat path from the falling tree.
10. Always hold the chain saw firmly with both hands when the
engine is running. Use a firm grip with thumb and fingers encircling
the chain saw handles.
11. Keep all parts of your body away from the saw chain when the
engine is running. Before you start the engine, make sure the saw
chain is not contacting anything.
For Safe Operation
Page 10
12. Always carry the chain saw with the engine stopped, the guide bar
and saw chain to the rear, and the muffler away from your body.
13. Always inspect the chain saw before each use for worn, loose, or
changed parts. Never operate a chain saw that is damaged,
improperly adjusted, or is not completely and securely assembled.
Be sure that the saw chain stops moving when the throttle control
trigger is released.
14. All chain saw service, other than the items listed in the Operator’s
Manual, should be performed by an authorized repair center.
(e.g., if improper tools are used to remove the flywheel, or if an
improper tool is used to hold the flywheel in order to remove the
clutch, structural damage to the flywheel could occur which could
subsequently cause the flywheel to disintegrate).
15. Always shut off the engine before setting it down.
16. Use extreme caution when cutting small size brush and saplings
because slender material may catch the saw chain and be whipped
toward you or pull you off balance.
17. When cutting a limb that is under tension, be alert for spring back
so that you will not be struck when the tension in the wood fibers is
released.
18. Keep the handles dry, clean and free of oil or fuel mixture.
For Safe Operation
