EarthQuake SUBZERO-12 Manuale utente

SUBZERO-12

2000 WATTS

Winner of the 2004

Design & Engineering Award

INNOVATIONS

INTERNATIONAL CES

Cut out hole 292mm / 11 1/2"

Mounting

depth

185mm

7 1/4"

127mm

15"

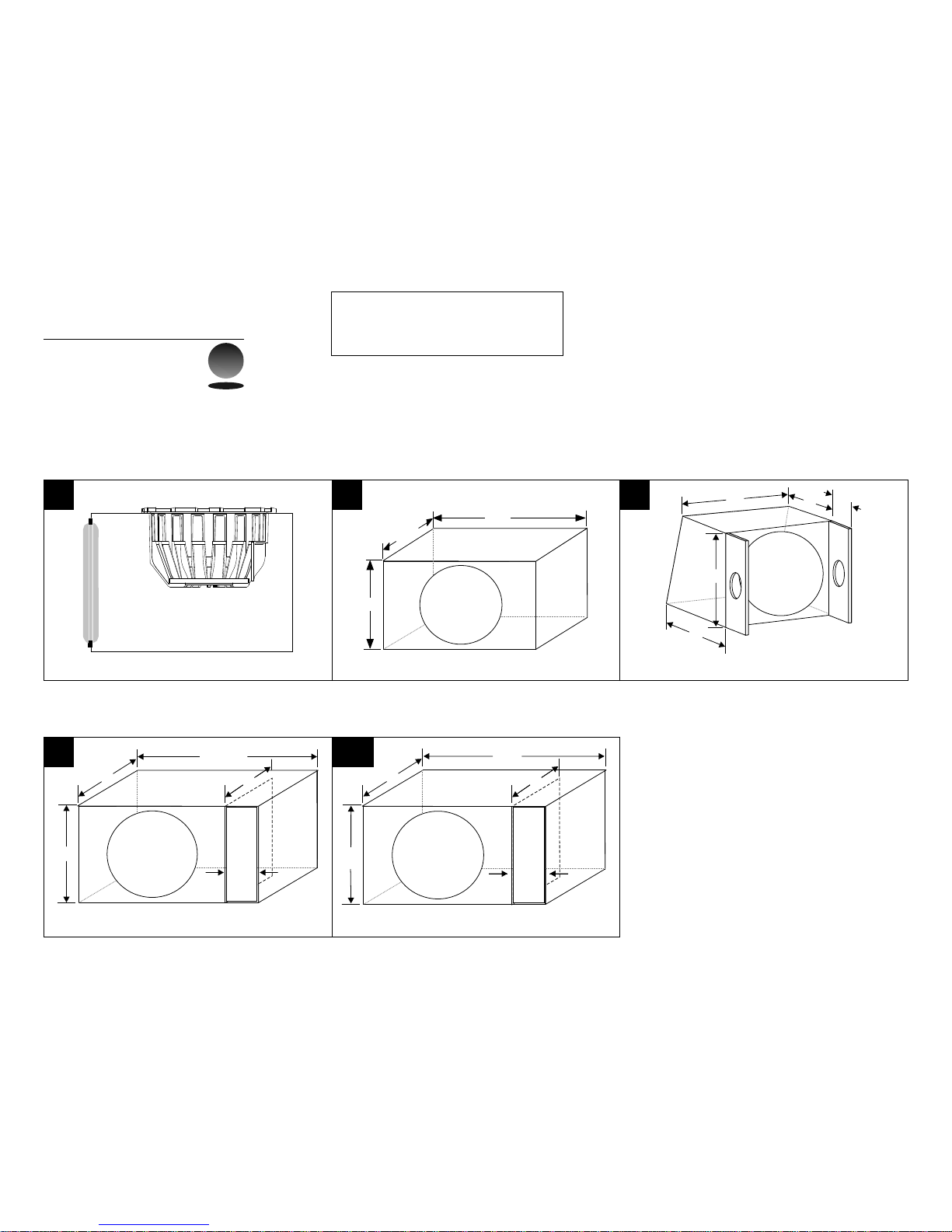

SUBZERO-12"

#1 Sealed design for SPL

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 1.953 cubic feet.

#2 Sealed design for low frequency extension

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 2.2 cubic feet.

20.5"

16"

SUBZERO-12"

#4 Bass head design for competition

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 3.03 cubic feet.

PORT (2"x14.5"x22")

#5 Bandpass design

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 4.31 cubic feet

18.5"

16.5"

SUBZERO-12"

Outer dimension shown using 3/4" thick MDF

Total outer box volume = 2.4 cubic feet.

18"

2” 4”

PORT (2"x16.5"x4”)

16”

13”

18”

SUBZERO-12"

#3 Sealed wedge design for hatch backs or other

tight places.

1” = 2.54 cm

1 cubic foot = 1728 cubic inches

Grille Clearance: 2”

Displacement: .2 Cube Feet

HANDCRAFTED IN USA.

Specifications are subject to change without notice

14"

15”

10 3/4 "

Subzero-12

1” = 2.54 cm

1 cubic foot = 1728 cubic inches

Grille Clearance: 2”

Displacement: .2 Cube Feet

#6 Passive tuned design for deep bass small volume

Outer dimension shown using 3/4" thick MDF.

HANDCRAFTED IN USA.

#7 Sealed design for tight bass

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 1.306 cubic feet

#9 #10 Port tuned design for deep bass

#8 Sealed down firing design

Bass head design for competition

VB = 2 1/2 ft3

FB = optimized with

SLAPS-12 passive

Drone Tuned Box

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 2.721 cubic feet

16 1/2"

15”

19" 16"

PORT (3"x12.5"x16")

Internal dimensions

Subzero-12

Outer dimension shown using 3/4" thick MDF.

Total outer box volume = 2.309 cubic feet

19"

15”

14” 9"

PORT (2"x12.5"x9")

Internal dimensions

Subzero-12

Outer dimension shown using 3/4" thick MDF

Total outer box volume = 2.667 cubic feet

16”

18”

16”

10” 3”

SUBZERO-12"

Specifications are subject to change without notice

SUBZERO-12

2000 WATTS

Winner of the 2004

Design & Engineering Award

INNOVATIONS

INTERNATIONAL CES

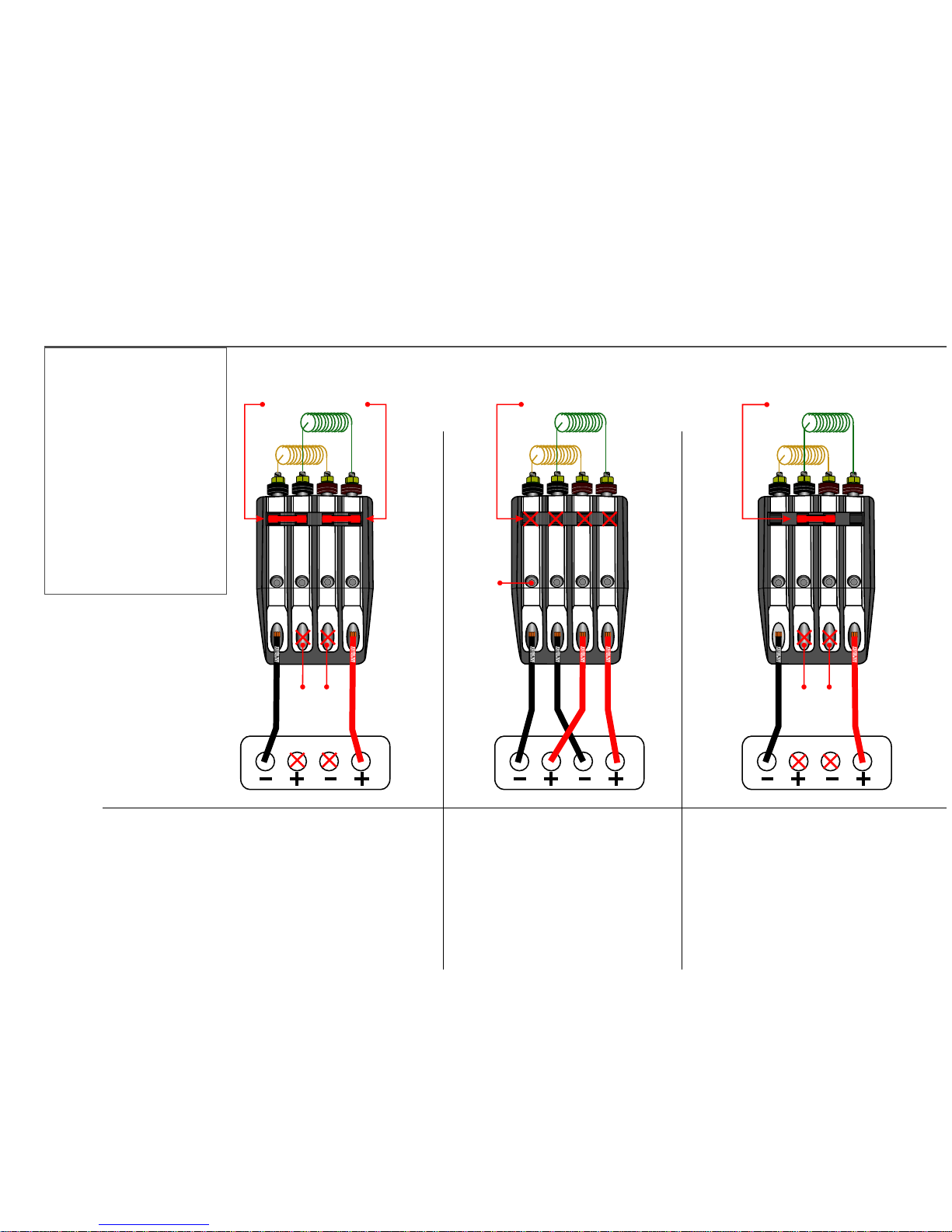

HOW TO WIRE / FUSE YOUR

SUBZERO TO AN AMPLIFIER

The Subzero subwoofer

comes equipped with 2

voice coils (dual 2x4

ohms), it can be used in

2, 4 and 8ohm

configurations. The

terminal comes equipped

with fused jumpers, the

voice coil can be easily

configured in series or in

parallel to match the

amplifier in use. It is just a

simple flip of a fuse,

here’s how it works.

PSP (Parallel Series Parallel) Terminal

VC #1

- --

+ +

DO NOT

USE

VC #2

MONO 2-OHMS

TYPICALAMPLIFIER TERMINAL

2-channel

2-ohm load

(voice coils in parallel)

(using 2 fuses)

8-GAUGE

3mm

Hex-nut

cable

fasteners

- --

+ +

VC #1

VC #2

CH-1 CH-2

TYPICALAMPLIFIER TERMINAL

2-channel

2 x 4-ohm load

(voice coils separated)

(no fuses)

8-GAUGE

- --

+ +

DO NOT

USE

VC #1

VC #2

MONO 8-OHMS

TYPICALAMPLIFIER TERMINAL

1-channel

8-ohm load

(voice coils in series)

(1 fuse)

8-GAUGE

The diagram -on the left side- shows

the PSP terminal in a 2-ohm parallel

configuration (both voice coils are

connected in parallel). Simply place

the 2 fuses in the outer positions in

the fuse placement area. Insert the

negative speaker wire to the far left

insert and one positive to the far right

insert.

This diagram shows the PSP terminal

in a 4-ohm configuration (the two

voice coils are separated). No fuses

are used in this configuration,the voice

coils are powered up separately.

The diagram - on the right side-displays

the PSP in an 8-ohm mode. You will

notice that there is only one fuse in

the center of the fuse placement area.

The voice coils are wired in series.

Insert the negative speaker wire to the

far left insert and one positive to the

far right insert.

Name = EARTHQUAKE Subzero 12 (broken in) Xmax = 31.7500E-3 M

Note = VI MEASURMENTS Krm = 35.5980E-3 Ohm

Model = TSL Erm = 805.0000E-3

Domain = FreeAir Kxm = 237.3670E-3 H

Shape = Round Exm = 672.0000E-3

Profile = Cone Rms = 3.7712 N·S/M

Fmd = 3.0000 KA Mms = 243.5090E-3 Kg

Qmd = 1.0000 Cms = 144.8275E-6 M/N

Flp = 8.0000 KA Vas = 58.1062E-3 M³

Qlp = 2.0000 Fo = 26.8001 Hz

Znom = 8.0000 Ohm Qms = 10.8730

Revc = 7.7000 Ohm Qes = 0.4411

Sd = 53.0000E-3 M² Qts = 0.4239

Mmd = 236.4970E-3 Kg BL = 26.7542 T·M

Pmax = 1.0000E3 W Levc = 13.4777E-3 H

Rtvc = 250.0000E-3 °C/W SPLo = 85.8761 dB

Xgap = 12.7000E-3 M No = 243.1000E-3 %

Xcoil = 76.2000E-3 M
