Model SN74014
OPERATOR’S MANUAL
14-IN Snow Thrower
This product is covered by U. S. patents and other international patents
Copyright All Rights Reserved.
Thank you for your purchase.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PARTS, SERVICE QUESTIONS?
CALL 1-800-313-5111 BETWEEN 7:30AM-4:30PM EST FOR ASSISTANCE.
SAVE THIS MANUAL FOR FUTURE REFERENCE
This product has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the operator’s manual
before using this product.
BATTERY MUST BE CHARGED BEFORE FIRST USE.
1090
Precautions that involve your safety.
CAUTION! Read the instruction manual and follow the warning and safety instructions!
CAUTION! Remove plug from outlet immediately if the cable is damaged or cut.
CAUTION! Always wear eye and ear protection.
Wear safe, sturdy, nonskid footwear!
DANGER! objects may be thrown out at high speed when motor is running. Do not walk in front of running
machine.
Keep bystanders at a safe distance.
DANGER! Rotating blades. Keep hands and feet at a safe distance.
Do not place hand under auger.
Do not place hand in front of chute deflector.
Do not place feet under auger.
DANGER! Risk of electric shock.
Do not use in rain or electrical storms.
Waste electrical products should not be disposed of with household waste. Please recycle
where facilities exist. Check with your Local Authority or retailer for recycling advice.

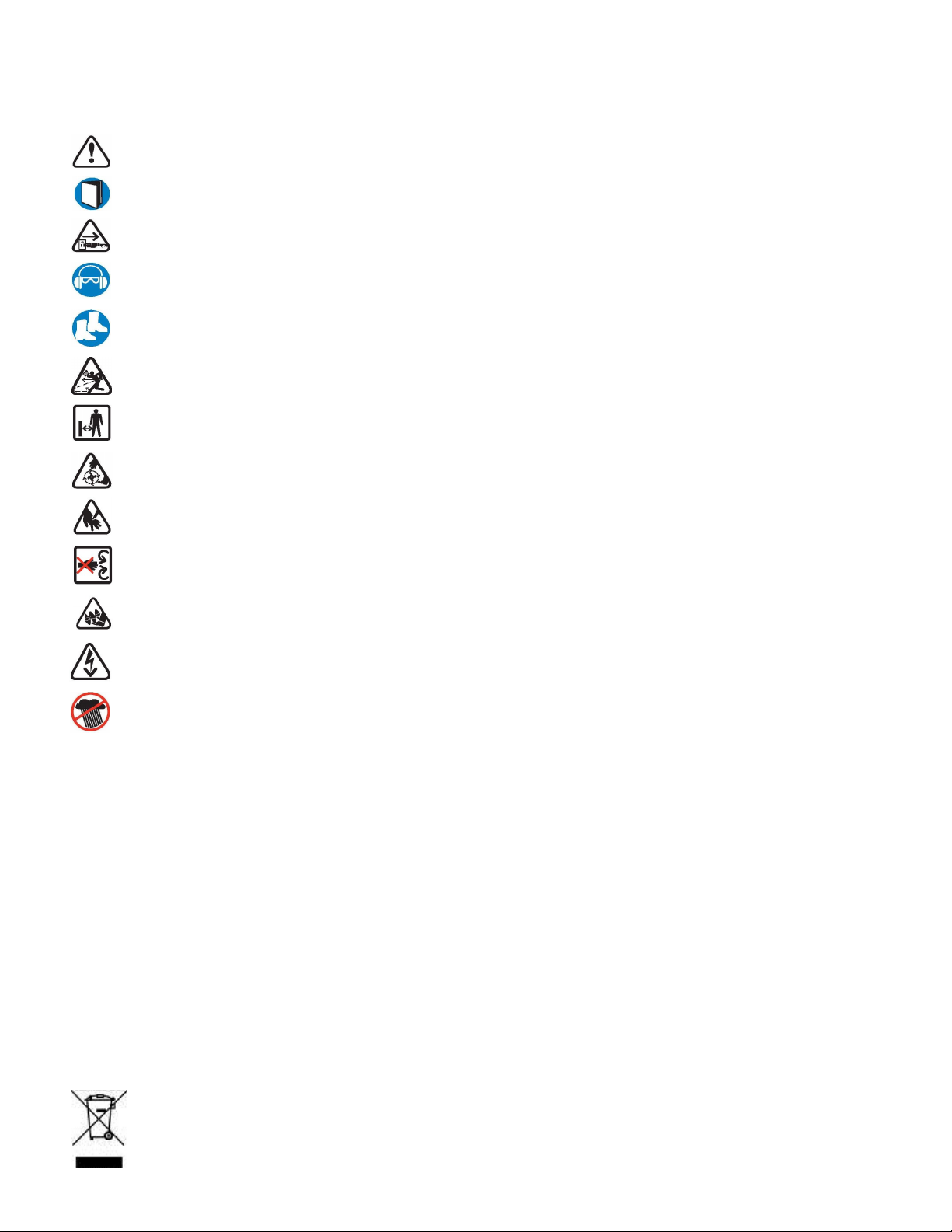

SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
2
Please note that changes or modifications of this product is not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
TO REDUCE RISK OF INJURY: Before any use
be sure everyone using this product reads and
understands all safety instructions and other
information contained in this manual.
CAUTION: Wear appropriate personal hearing
protection during use. Under some conditions
and duration of use, noise from this product may
contribute to hearing loss.
Save these instructions and review frequently prior
to use and in instructing others.
WARNING: When using electric appliances, basic
safety precautions should always be followed to
reduce risk of fire, electric shock, and personal
injury, including the following:
READ ALL INSTRUCTIONS
CHECK FOR DAMAGED PARTS - Before further
use of the product, any part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check
for alignment of moving parts, binding of moving
parts, breakage of parts, mounting and any other
condition that may affect its operation. Any part that
is damaged should be properly repaired or replaced.
For assistance call our customer service help line at
1-800-313-5111.
AVOID DANGEROUS ENVIRONMENTS - Don’t
use this product in rainy or stormy conditions. Do
not operate in gaseous or explosive atmospheres.
Motors in these products normally spark, and the
sparks might ignite fumes.
KEEP CHILDREN AWAY - All visitors, children and
pets should stay at a safe distance from the work
area.
DRESS PROPERLY- Don’t wear loose clothing or
jewelry and wear protective hair covering to contain
long hair. They can be caught in moving parts.
Wear rubber boots when operating the snow
thrower. Maintain good footing at all times,
especially on slopes.
USE SAFETY GLASSES - Wear safety glasses
with side shields or goggles that are marked to
comply with ANSI Z87.1 standard when operating
this product.
WARNING: Keep hands away from moving parts.
Never put your hands near the auger to remove
snow, sticks or other debris. Blocked auger can
“spring back” when cleared and may cause personal
injury even when the snow thrower is stopped.
Always use a wooden stick such as a broom handle
to clear blockages.
REMOVE THE BATTERY from the snow thrower
when not in use or when servicing or cleaning. Do
not leave unattended.
USE RIGHT APPLIANCE - Do not use this product
for any job except that for which it is intended.
Avoid Accidental Starting—Don’t carry snow thrower
with finger on switch when the battery is installed.
Be sure switch is off when installing battery.
DO NOT FORCE SNOW THROWER - It will
perform better and safer at the rate for which it
was designed.
DON’T OVERREACH - Guide the snow thrower at a
walking pace only. Keep proper footing and balance
at all times.
LIGHTING - Only operate your snow thrower in
daylight or good artificial light.
STORE IDLE UNIT INDOORS-When not in use, the
snow thrower should be stored indoors in a dry area
out of children’s reach.
MAINTAIN UNIT WITH CARE-Keep clean for best
performance and to reduce the risk of injury. Inspect
extension cord periodically and replace if damaged.
Keep handles dry, clean and free from oil.
Do not operate the snow thrower on a slope that is
too steep for safe operation. When on slopes, slow
down and make sure you have good footing.
Before starting the snow thrower make sure the
auger is not touching any object and is free to move.
Do not use on graveled surface unless the snow
thrower is adjusted for such a surface in accordance
with the operator’s manual.
Operation of the show thrower in the hand-held
position is unsafe, except in accordance with the
special instructions for such use provided in the
operator’s manual.
CAUTION: Never throw snow towards people, pets
or cars and never allow anyone in front of the snow
thrower while in operation.
Objects that might clog the snow thrower or cause
other damage can be hidden in the snow. Clear the
area of doormats, sleds, boards, wires and other
debris prior to use.
If the auger strikes a foreign body, examine the
snow thrower for signs of damage and make any
necessary repairs before restarting and continuing
to work.
STAY ALERT - Watch what you are doing. Use
common sense. Do not operate the snow thrower
when you are tired or under the influence of drugs,
alcohol or medications.
IMPORTANT SAFETY WARNINGS
GENERAL SAFETY
3
CAUTION: Auger does not stop immediately after
the snow thrower is turned off.
CAUTION: Risk of injury. Do not put hands, feet or
any body part or clothing near the rotating auger.
WARNING: California Proposition 65:
This product contains chemicals known to the State
of California to cause cancer, birth defects or other
reproductive harm.
Make sure cord is located so that it will not be
stepped on, tripped over, come in contact with
sharp edges or moving parts or otherwise
subjected to damage or stress. This will reduce
the risk of accidental falls, which could cause
injury and damage to the cord, which could
result in electric shock.
Keep cord and charger away from heat to prevent
damage to housing or internal parts.
Do not let gasoline, oils, petroleum-based products,
etc. come in contact with plastic parts. They
contain chemicals that can damage, weaken or
destroy plastic.
An extension cord should not be used unless
absolutely necessary. Use of improper extension
cord could result in a risk of fire and electric shock.
If extension cord must be used, make sure:
a. That pins on plug of extension cord are the
same number, size and shape as those of plug
on charger
b. That extension cord is properly wired and in
good condition; and
c. That wire size is large enough for AC ampere
rating of charger as specified below:
Cord length (Feet) - 25’ 50’ 100’
Cord Size (AWG) - 16 16 16
NOTE: AWG= American Wire Gauge
Save these instructions. Refer to them frequently
and use them to instruct others who may use this
product. If you loan someone this snow thrower,
loan them these instructions also.
WARNING: Keep all connections dry and off the
ground. Do not touch plug with wet hands.
If the snow thrower starts to vibrate abnormally,
turn it off immediately and check for the cause.
Vibration is generally a warning of trouble.
Always turn off the snow thrower, remove the
battery from the snow thrower and wait until the
auger comes to a complete stop before carrying
out maintenance or repairs.
Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the
risk of electric shock.
Use of an attachment not recommended or sold by
the battery charger manufacturer may result in a
risk of fire, electric shock, or injury to persons.
Following this rule will reduce the risk of electric
shock, fire, or serious personal injury.
Do not service snow thrower with battery, switch
key, or charger installed.
Do not use the charger when the ambient
temperature is above 45°C (113°F) or below
-20°C (-68°F)
Do not operate charger with a damaged cord or
plug which could cause shorting and electric shock.
If damaged, replace the charger with an identical
charger.
Do not operate charger if it has received a sharp
blow, been dropped or otherwise damaged in any
way. Take it to a qualified individual for electrical
check to determine if the charger is in good working
order.
Unplug charger from outlet before attempting any
maintenance or cleaning to reduce the risk of
electric shock.
Disconnect charger from the power supply when
not in use to prevent damage to the charger during
a power surge.
Risk of electric shock, Do not touch uninsulated
portion of output connector or uninsulated battery
terminal.
Do not expose charger to wet or damp conditions,
Water entering charger will increase the risk of
electric shock.
GENERAL SAFETY
4
SAFETY RULES FOR CHARGER
PRODUCT SPECIFICATIONS
Model: SN74014
Input: 40V, DC only Sweep width: 16 inches (406 mm)
Battery: 40V, 4.0 Ah Lithium-ion Max clearing depth: 8 inches (200 mm)
Charging time: 2.5 hours Throwing distance: Up to 32 feet
Battery run time: 25-40 minutes Clearing capacity: 300 pounds/minute
Speed: 2000 RPM Weight: 17.6 pounds
5

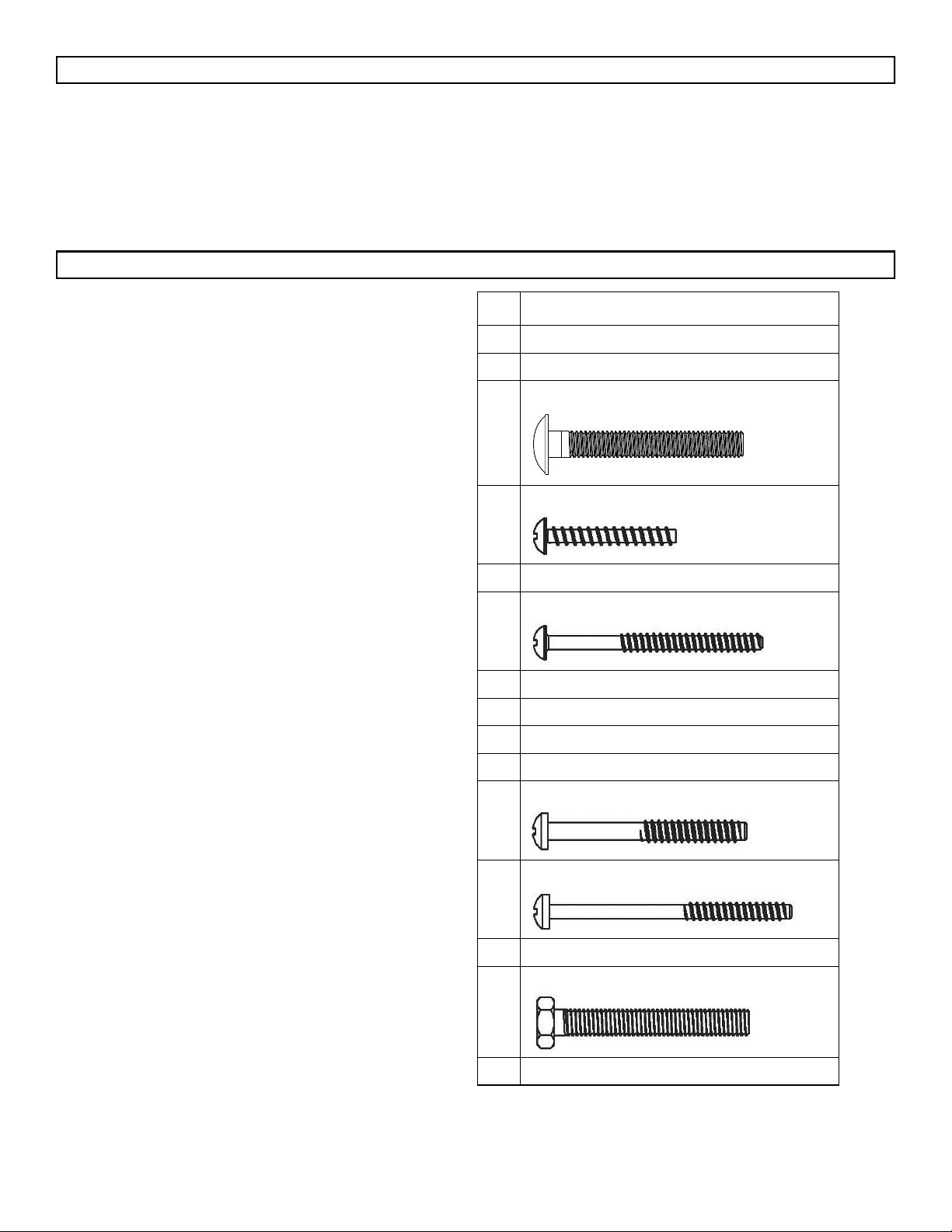

PACKING LIST
UNPACKING
Carefully remove the product from the box.
Make sure that all items listed in the packing
list are included.
Inspect all items carefully to make sure no
breakage or damage occurred during shipping.
Do not discard the packing material until you
have carefully inspected and satisfactorily
operated the snow thrower.
If any parts are damaged or missing please
call our customer service help line at
1-800-313-5111 for assistance.
QTY DESCRIPTION
1Snow Thrower
1Lower & Upper Handle
1M6x45 Carriage Bolt & Wing Nut
4ST4.2x30 Philips Head Self Tapping Screw
1Adjust Knob
1ST4.0x50 Philips Head Self Tapping Screw
1Adjust Knob Cover
1Wheel Bracket
2Wheel
2Wheel Cover
2ST3.9x45 Philips Head Self Tapping Screw
2ST3.9x55 Philips Head Self Tapping Screw
1Auxiliary Handle
1M6x50 Hex Head Bolt & Wing Nut
1Operator’s Manual
This product must be correctly assembled before use.
Handle (Fig. 1A)
Slide the lower section (C) into the upper section (B).
Line up the holes on each tube, and make sure the
cable (A) is clear of the mounting holes. Secure the two
sections together with the M6x45 carriage bolt and wing
nut.
Motor housing (Fig. 1B)
Remove the plug guard and connect socket (B) on the
upper cover (6) to the plug on the motor housing (7).
Secure the upper cover to the motor housing with the
ST4.2 x 30 Philips head self tapping screws.
ASSEMBLY
6
Adjust knob (Fig. 1C)
Align the rib on the spindle with the notch on the adjust
knob and push the adjust knob onto the spindle. Secure
the knob with the ST4.0x50 Philips head self tapping
screw. Place the adjust knob cover onto the top and push
to secure into place.
Wheel (Fig. 1D)
Remove the screws and washers from the wheel bracket.
Install the wheels (13) and secure into place with the
washers and M5 x 12 screws. Push wheel covers into
place.
M6x45 Carriage
Bolt
B
C
A
ST4.0x50
Auxiliary handle (Fig. 2)
Position the auxiliary handle so that the holes are in
alignment with the holes in the handle support bracket.
Insert the M6X50 hex head bolt into the hex shaped bolt
hole of the bracket. Secure by tightening the wing nut
onto the bolt.
Loosen the wing nut and adjust the angle and height of
the handle to a safe and comfortable position. Secure
into place by tightening the wing nut onto the bolt.
ASSEMBLY
7

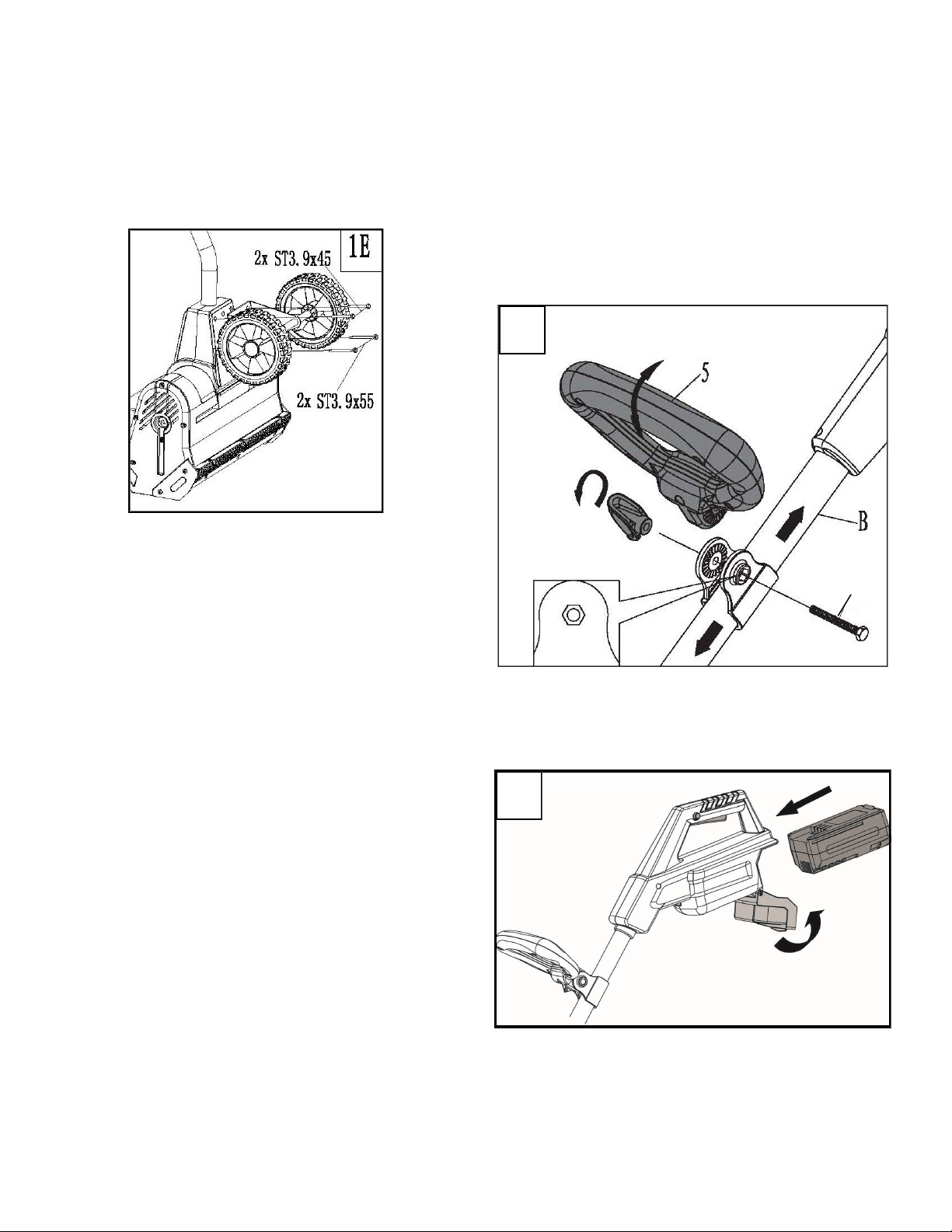

Wheel bracket (Fig. 1E)
Align the holes on the wheel bracket with the holes on
the upper cover. Secure into place with ST3.9x45 Philips
head self tapping screws in the two (2) top holes and the
ST3.9x55 Philips head self tapping screws in the two (2)
bottom holes.
This snow thrower is intended to be used to sweep snow
from sidewalks, steps, patios, decks and other hard flat
surfaces such as paved driveways. Use it only on hard,
flat surfaces free of sand, stone and debris, wires or any
other objects. The manufacturer is not liable for any
damage or injury resulting from misuse.
Install battery
Open the battery compartment cover and slide the
battery down until it clicks to lock it into position, then
close the battery department cover (Fig. 3)
M6x50 Hex
Head Bolt
2
OPERATING
3
Clear snow often, before it gets too deep. It is best to
remove the snow as soon as possible after it falls.
Lift the auger up slightly before starting the snow thrower.
Switch on and tilt the snow thrower forward until the
scraper blade contacts the ground. Push the snow
thrower forward at a comfortable rate of speed, yet slow
enough to clear the path completely. The width and depth
of the snow determines your forward speed.
Pull up and turn the adjust knob to direct the snow to the
right or to the left. For the most efficient snow removal
throw the snow downwind and slightly overlap each
swath.
The snow thrower can remove up to 8” deep in one pass.
When clearing deeper drifts, hold the snow thrower by
the upper and lower handles and use a swinging or
sweeping motion. Shave off the top layer and make
multiple passes. (Fig. 6).
OPERATING
8
On/Off Switch (Fig. 4)
WARNING: The auger starts rotating immediately
after the snow thrower is switched on. Keep hands
and feet away from the auger.
To switch ON, hold the snow thrower firmly with two
hands, make sure the auger is not touching any surface
and press the Safety Lock Off Button (2) while squeezing
the On/Off trigger switch (3).
Once the snow thrower is started you can release the
Safety Lock Off Button.
To switch Off simply release the trigger.
Removing snow
WARNING: Before starting work, make sure that
the area to be cleared is free of stones, debris,
wires and any other objects.
Make sure all fasteners on the snow thrower (screws,
nuts, etc.) are fully tightened.
Check the auger for wear and tear at regular intervals.
Position the snow thrower so that snow will discharge in
a safe direction away from the operator and bystanders.
6
Correct
Incorrect
5
8”
4
OPERATING
For large areas a definite pattern of operation is required
to thoroughly clean an area of snow. These patterns
will avoid throwing snow in unwanted places as well as
eliminating a second removal of snow. (Fig. 7)
Pattern A: Throw the snow to the right or left side where
it is possible. For areas such as a long driveway it is
advantageous to start in the middle. Plow from one end
to the other, throwing snow to both sides.
Pattern B: If the snow can only be thrown to one side of
the area to be cleared, start on the opposite side.
Scraping the snow all the way down to the pavement will
wear out the scraper and auger. To protect these parts,
one or two inches of snow can be left behind and cleared
with de-icing salt or a shovel.
After clearing the snow, continue to run the snow thrower
for a few minutes to prevent ice from freezing on moving
parts. Then switch off the motor, wait for all moving parts
to stop, remove the battery pack, and wipe the ice and
snow from the snow thrower with a clean rag.
WARNING: To avoid serious personal injury, do not
use hands or feet to unclog the chute.
Your lithium snow thrower is equipped with overcurrent
protection. When the current reaches a certain pre-
determined level, the unit will automatically slow down
until the current drops. When the current drops to a safe
level, the snow thrower will resume normal operation.
9
7
Regular cleaning and maintenance of your snow thrower
will ensure efficiency and prolong the life of the product.
After each use, take apart and clean out the ice and
debris from the ventilator and its slots, the auger and
the housing.
Only use a cloth soaked with hot water and a soft brush
to clean the snow thrower. Never wet or spray water on
the machine!
Do not use detergents or solvents as these could cause
irreparable damage to the snow thrower. Chemicals can
destroy the plastic parts.
To protect the snow thrower from corrosion when storing
for long periods, lightly oil the metal parts.
Store the appliance in a dry area out of reach of children.
For the user’s safety, worn or damaged parts must be
replaced. Replace with original replacement parts only.
Parts from another snow thrower may not fit properly
causing an unsafe situation.

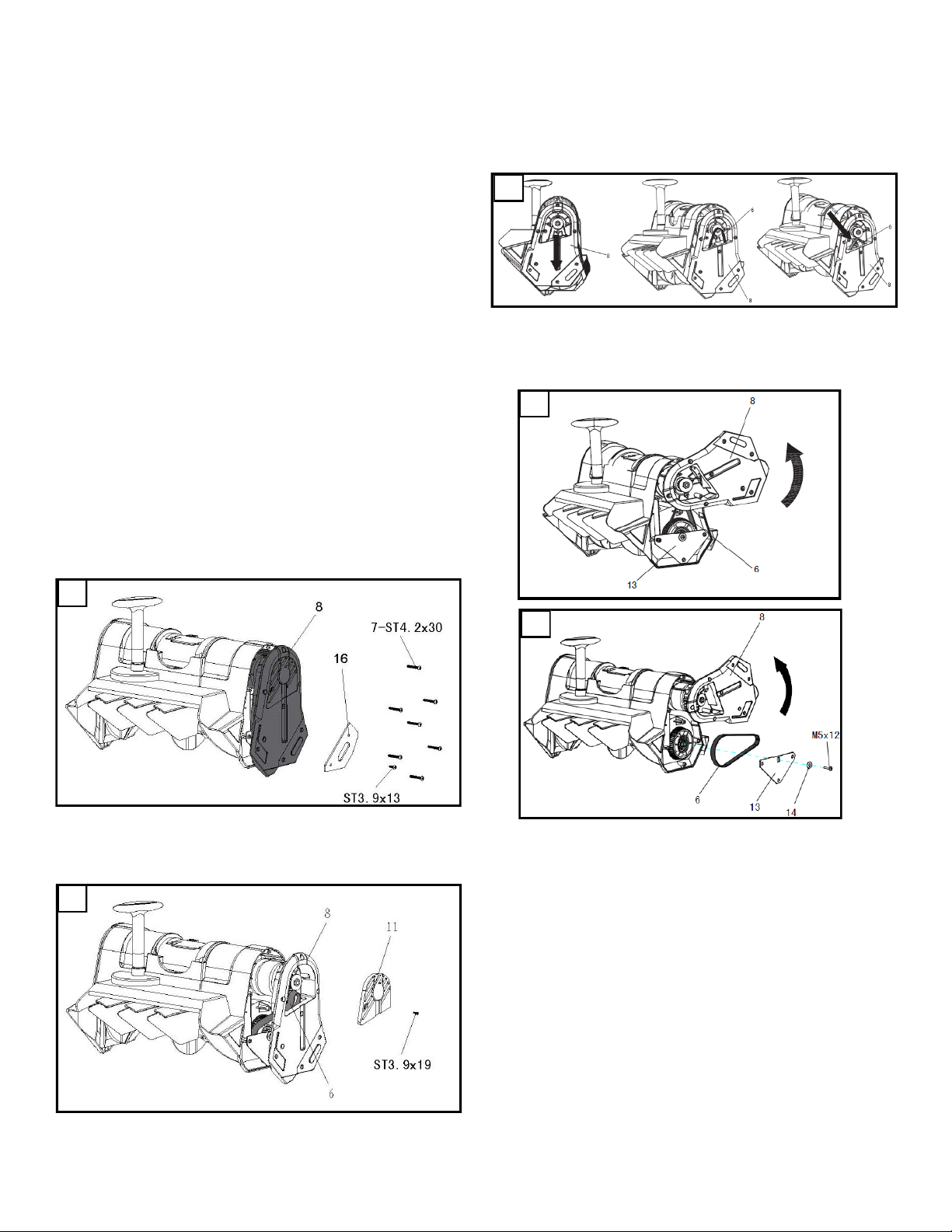

Changing the belt (Fig. 8, 9, 10, 11, 12)
1. Remove friction plate (16) and loosen left side cover
(8) from main body.
2. Remove the side plate (11) from the left side cover
(8).
MAINTENANCE AND STORAGE
Before carrying out maintenance operations, remove the battery pack.
3. Move the left side cover (8) downward to loosen the
belt (6). Remove the belt (6) from the wheel and push
it down through the slot in the left side cover (8).
4. Turn the left side cover (8) counterclockwise to
expose fix plate (13). Remove M5x12 bolt, washer
(14), fix plate (13), and then remove the belt (6).
5. Replace worn belt with new belt and install the fix
plate (13), left side cover (8), side plate (11), and
friction plate (16) by following the above steps in
reverse order.
10
8
9
10
11
12
Indice
Lingue:
Altri manuali EarthWise Spazzaneve
EarthWise
EarthWise SN74016 Manuale utente
EarthWise
EarthWise SN71018 Manuale utente
EarthWise
EarthWise SN71022 Manuale utente
EarthWise
EarthWise SN74022 Manuale utente
EarthWise
EarthWise SN75022 Manuale utente
EarthWise
EarthWise SN70016 Manuale utente
EarthWise
EarthWise SN75018 Manuale utente
EarthWise
EarthWise QI-JY-1300 Manuale utente
EarthWise
EarthWise SN72018 Manuale utente
EarthWise
EarthWise SN74016 Manuale utente
