Earthworks Audio SR3117 Manuale utente

SR3117

SUPERCARDIOID CONDENSER

VOCAL WIRELESS CAPSULE

For more information, please visit

earthworksaudio.com or call 1-603-65 -2 33

Version 3.0, Last Updated 3/31/23

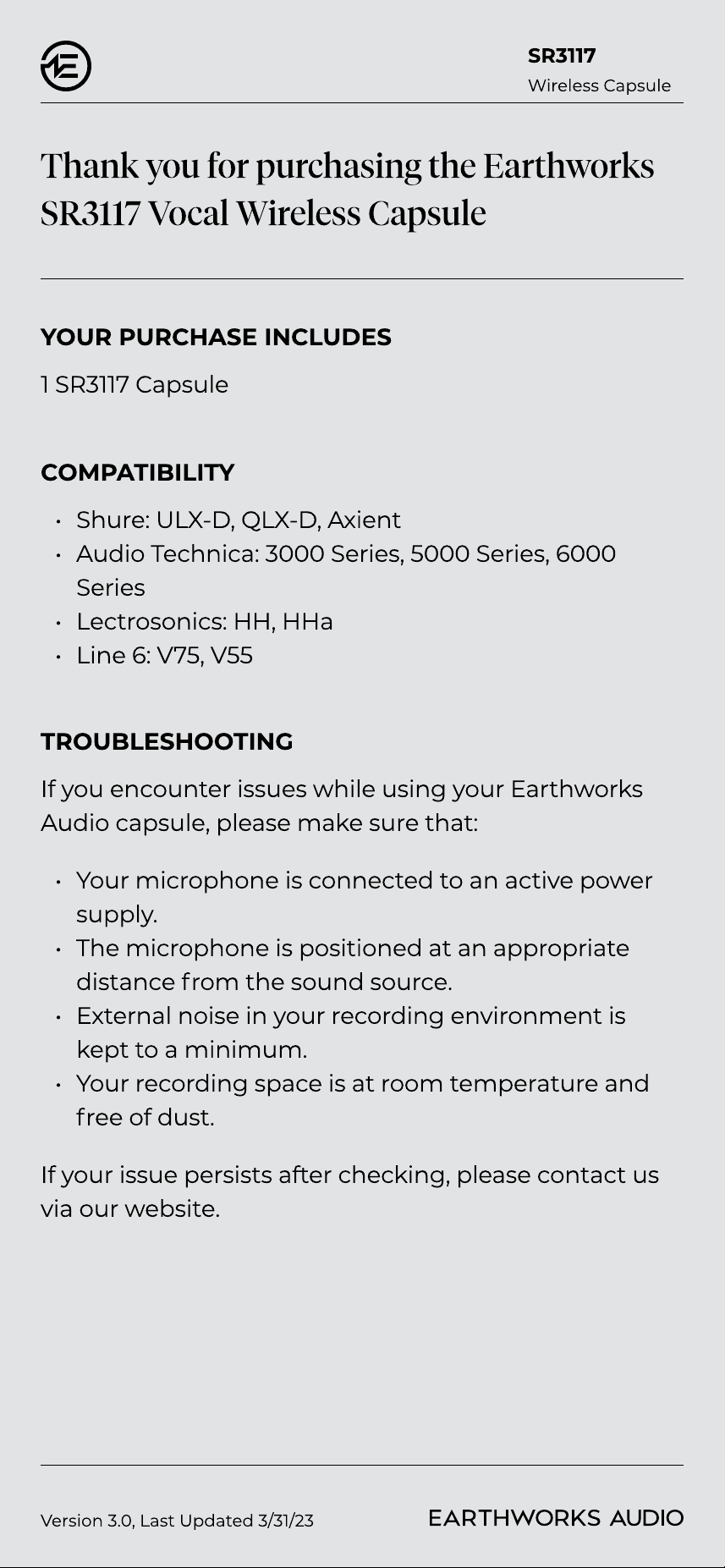

Thank you for purchasing the Earthworks

SR3117 Vocal Wireless Capsule

YOUR PURCHASE I CLUDES

1 SR3117 Capsule

COMPATIBILITY

 Shure: ULX-D, QLX-D, Axien

 Audio Technica: 3000 Series, 5000 Series, 6000

Series

 Lectrosonics: HH, HHa

 Line 6: V75, V55

SR3117

Wireless Capsule

Version 3.0, Last Updated 3/31/23

TROUBLESHOOTI G

If you encounter issues while using your Earthworks

Audio capsule, please make sure that

 Your microphone is connected to an active power

supply.

 The microphone is positioned at an appropriate

distance from the sound source.

 External noise in your recording environment is

kept to a minimum.

 Your recording space is at room temperature and

free of dust

If your issue persists after checking, please contact us

via our website.

ADDITIONAL TIPS

SR3117

Wireless Capsule

 Aim the SR3117 toward the intended vocalist and

away from unwanted sources

 (Maximum rejection is found at the 135-degree

point of the polar pattern.

 Place the SR3117 1-2 inches away from the vocalist’s

mouth for best results.

 Get closer to the SR3117 for extra bass response

 Place the SR3117 as far as possible from reective

surfaces

 Even though the SR3117 is treated to minimize

handling noise the best position for it is mounted

onto a microphone stand

 Do not cover any part of the microphone grille with

your hand as this will adversely affect microphone

performance

 Do not aim directly at your speaker or PA.

Version 3.0 Last Updated 3/31/23

The windscreen can be removed if it requires cleaning.

See details below.

CLEANING THE SR3117’s WINDSCREEN

All cleaning should be done with either alcohol wipes

or with a small amount of alcohol on a soft cloth. Make

sure any cleaned elements are completely dry before

reassembling.

A NOTE ABOUT THE SR3117’S INNER WINDSCREEN

The internal ne mesh pop lter is self aligning and it

stays in place because of the interference t. Be careful

when unscrewing the outer windscreen as the inner

pop lter may fall out

When putting it all back together make sure that it is

properly aligned and then simply screw the outer

sleeve back in pace.

SPECIFICATIONS

Frequency Response

20Hz - 20kH

Polar Pattern

Su ercardioi

Sensitivity

6.3 mV/Pa (-44 dBV/Pa)

Dimension

2.7" x 1.93

Weight

0.26 lbs (0.118 kg

Wireless Compatibilit

Shure: ULX-D, QLX-D, Axien

Audio-Technica: 3000 Series,

5000 Series, 6000 Serie

Lectrosonics: HH, HH

Line 6: V75, V55

SR3117

Wireless Ca sule

Version 3.0, Last U dated 3/31/23

WARRANTY

All Earthworks® produ ts arry a limited warranty (parts and

labor). Please register your warranty at: earthworksaudio.com/

produ ts, please onta t our warranty/repair department by

email at: service@earthworksaudio.com.

NOTE

This warranty only applies to Earthworks mi rophones

pur hased brand new. For mi rophones pur hased/re eived

se ond-hand, please onta t us via our website.

Version 3.0, Last Updated 3/31/2

37 Wilton Rd. Milford, NH 03055

info@earthworksaudio.co

COMPLIANCE REQUIREMENTS

SR3117

Wireless Capsule

Hereby, Earthworks Inc. declares that this product has

been determined to be in compliance with UKCA

requirements

The full text of the UK declaration of conformity is

available at the following site

https://earthworksaudio.com/support/documents/u

Hereby, Earthworks Inc. declares that this product has

been determined to be in compliance with European

Union requirements

The full text of the EU declaration of conformity is

available at the following site

https://earthworksaudio.com/support/documents/eu
