Earthworks Audio M23 Manuale utente

For more information, please visit

www.earthworksaudio.com or call 1-603-654-2433.

MEASUREMENT MICROPHONE

M23

1 Earthworks M23

1 Microphone Clip

1 Calibration Adapter

1 Calibration Chart

1 Frequency Response Data Sheet (Available Upon Registering Your M23)

YOUR PURCHASE INCLUDES

Thank you for purchasing the

Earthworks M23 Measurement Microphone!

Before setting up the microphone, pull back all existing settings and EQ. By doing this, you will have a

baseline understanding of how our microphones sound, and will then be able to adjust accordingly.

Begin by removing all included components from the packaging. Make sure to mute any incoming

signal to speakers or headphones to avoid any loud “pops” when connecting.

Connect the microphone to an audio interface supplying 24-48V phantom power using a standard

XLR cable. Because of the microphone’s larger capsule size, please allow one minute for the

microphone to settle. (Plugging in the microphone while phantom power is turned on will not damage

the microphone, and will actually settle the microphone faster.)

To guarantee your microphone provides years of performance, follow these guidelines:

• Never attempt to disassemble the microphone - it cannot be opened.

• Avoid extreme heat and condensing humidity. Allow the microphone to warm up when bringing it

in from the cold.

• Rough handling may damage the microphone even if no markings are visible.

• When not in use, keep the microphone in its case.

GETTING STARTED

PROPER

MAINTENANCE

The small tip on many of our microphones allows them to capture the highest frequencies of

your sound. Please be gentle and considerate when handling the microphones with these tips.

(Microphones such as the SR314 and SR40V shield the tip within their capsule, and are thus

more durable.)

The M23 meets or exceeds ANSI Type 1 and applicable IEC 61094 requirements.

The microphone is calibrated at the factory at 1 kHz (independent of any frequency weighting).

Earthworks recommends re-calibration every ve (5) years.

IMPORTANT

NOTICES

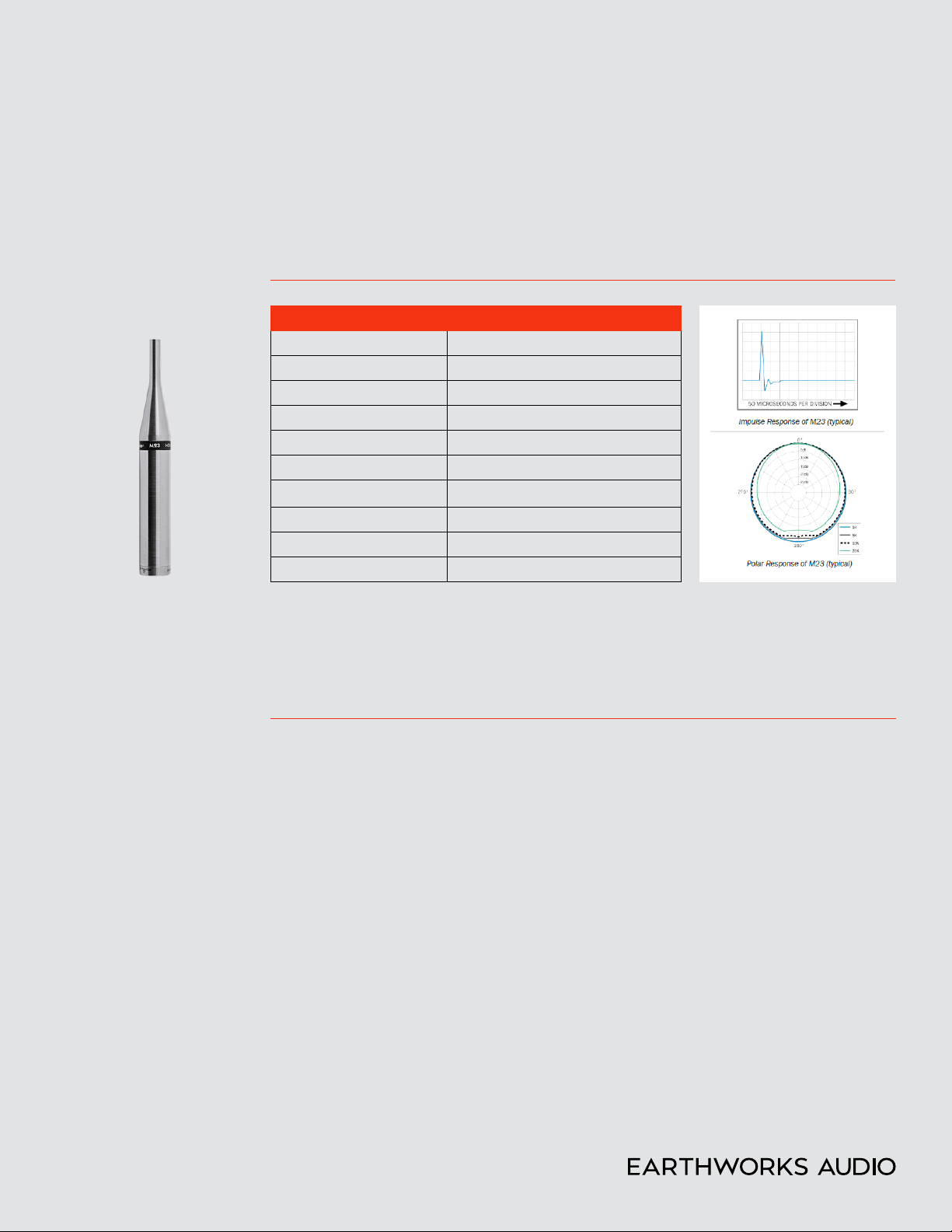

SPECIFICATIONS M23

Frequency Response 3Hz to 23kHz +1/-3dB

Polar Pattern Omnidirectional

Sensitivity 34mV/Pa (Typical)

Power Requirements 24-48V Phantom, 10mA

Peak Acoustic Input 140dB SPL

Output XLR-3

Minimum Output Load 600Ω, balanced between pins 2 & 3

Noise 20dB SPL (A weighted)

Dimensions 165 x 22 mm (6.5 x .860 in.)

Weight 160g (.3lb)

WARRANTY All Earthworks® products carry a limited warranty (parts and labor). Please register your warranty at:

earthworksaudio.com/register. If you have any problems with your Earthworks products, please contact our

warranty/repair department by email at: service@earthworksaudio.com.

NOTE: This warranty only applies to Earthworks microphones purchased brand new. For microphones purchased/

received second-hand, please contact us via our website.

37 Wilton Rd. Milford, NH 03055

(603) 654-2433

info@earthworksaudio.com

earthworksaudio.com

If you encounter issues while using your Earthworks Audio microphone, please make sure that:

• Your microphone is connected to an active power supply.

• Phantom power is being supplied to the microphone.

• Your microphone and XLR cable are well connected.

• The microphone is positioned at an appropriate distance from the sound source.

• External noise in your recording environment is kept to a minimum.

• Your recording space is at room temperature and free of dust.

If your issue persists after checking, please contact us via our website.

TROUBLESHOOTING

WE'RE HERE

TO HELP

For anything else, we're a phone call or email away. Please feel free to contact us by email at

info@earthworksaudio.com, or by phone at (603)-654-2433.
