Easy Travel Classic Manuale utente

USER’S MANUAL

EasyTravel – ET1B User’s Manual Rev. 0708 3

Table of contents:

Page

Introduction 4

Safety 4

System Components 5

Assembly and Folding Instructions 7

Operating Your EasyTravel 10

Moving and Transporting Your EasyTravel 14

Helpful Hints for Everyday Use 16

General Maintenance and Inspection 17

EMI – Electromagnetic interference 19

10.

Fault Finding 22

11.

Disposal and Recycling 23

12.

Technical Data 23

NOTE: Design details may change without notice.

EasyTravel – ET1B User’s Manual Rev. 0708 4

1. INTRODUCTION

The EasyTravel is a “Class A” Electrically powered scooter. It is intended to

be used by individuals that are able to walk, but suffer from mild mobility limi-

tations. The user must have sufficient arm and leg strength to get on and off

the EasyTravel alone and to safely steer under all driving conditions.

The EasyTravel is intended for indoor and restricted outdoor use on pave-

ments or paved footpaths only during daylight hours. The EasyTravel does

not have lights and reflectors and therefore must not be used in the dark or in

limited visibility conditions.

CAUTION: Failure to follow the instructions contained in this manual may re-

sult in injury to the user or to other persons.

2. SAFETY

During your initial use of the EasyTravel we recommend caution as you prac-

tice operating the unit in various situations. Keep the speed at a reduced level

until you are comfortable controlling the scooter. Follow the safety tips and in-

structions and you will be comfortable manoeuvring through doorways, on

and off lifts, over moderate terrain and up and down ramps.

These safety considerations and tips will help you to operate the EasyTravel

safely. The EasyTravel is a powerful electric vehicle; these rules will help you

prevent personal injury and damage to your scooter.

1. Read this manual and all labels before operating.

2. Do not carry passengers or exceed the maximum weight capacity.

3. Do not mount or dismount the EasyTravel unless it has come to a full

stop and is turned off.

4. Do not back up on to uneven inclines or surfaces.

5. Always switch the speed selector to low when driving in a confined space.

6. Always reduce speed when turning.

7. Do not operate your scooter when under the influence of alcohol, medica-

tions or drugs that may impair your safety.

EasyTravel – ET1B User’s Manual Rev. 0708 5

8. Always keep your feet on the foot platform when driving.

9. Do not sit on the scooter while being transported in a moving vehicle. Al-

ways fold down and secure your EasyTravel and transfer yourself to a

vehicle seat.

3. SYSTEM COMPONENTS AND DETAILS

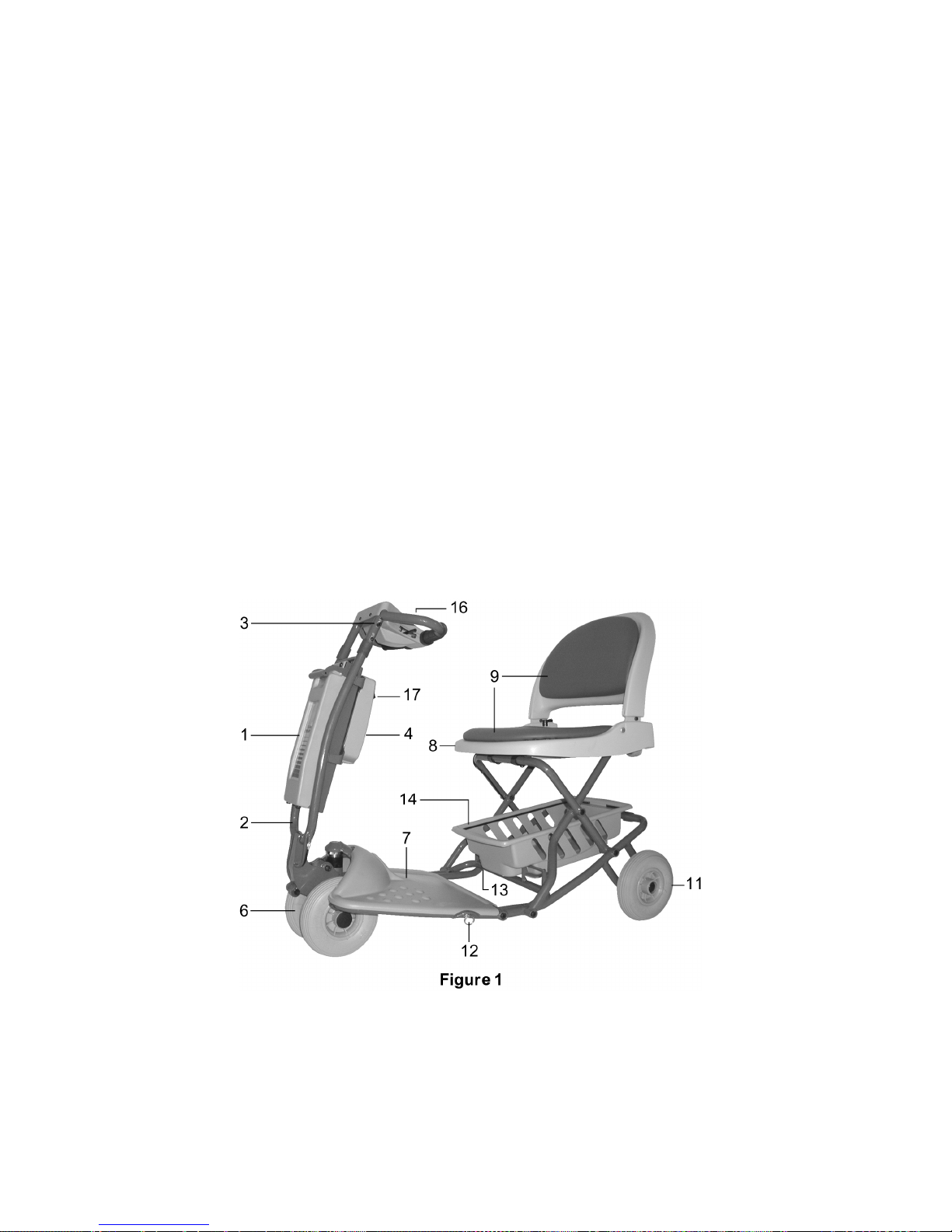

3.1. EasyTravel parts – (Figure 1)

1. Battery pack (detachable) 11. Rear wheel

2. Front column (detachable) 12. Folded frame lock/release pin

3. Column lock/release triggers 13. Unfolded frame lock/release pin

4. Controller cover 14. Utility basket (holding capacity

5. Charging socket (Fig. 1A) 20lbs/9kg)

6. Front drive wheels 15. Charger and connecting cables

7. Foot platform (Fig. 1B)

8. Seat shell 16. Control Panel

9. Seat cushions 17. Freewheel switch

EasyTravel – ET1B User’s Manual Rev. 0708 6

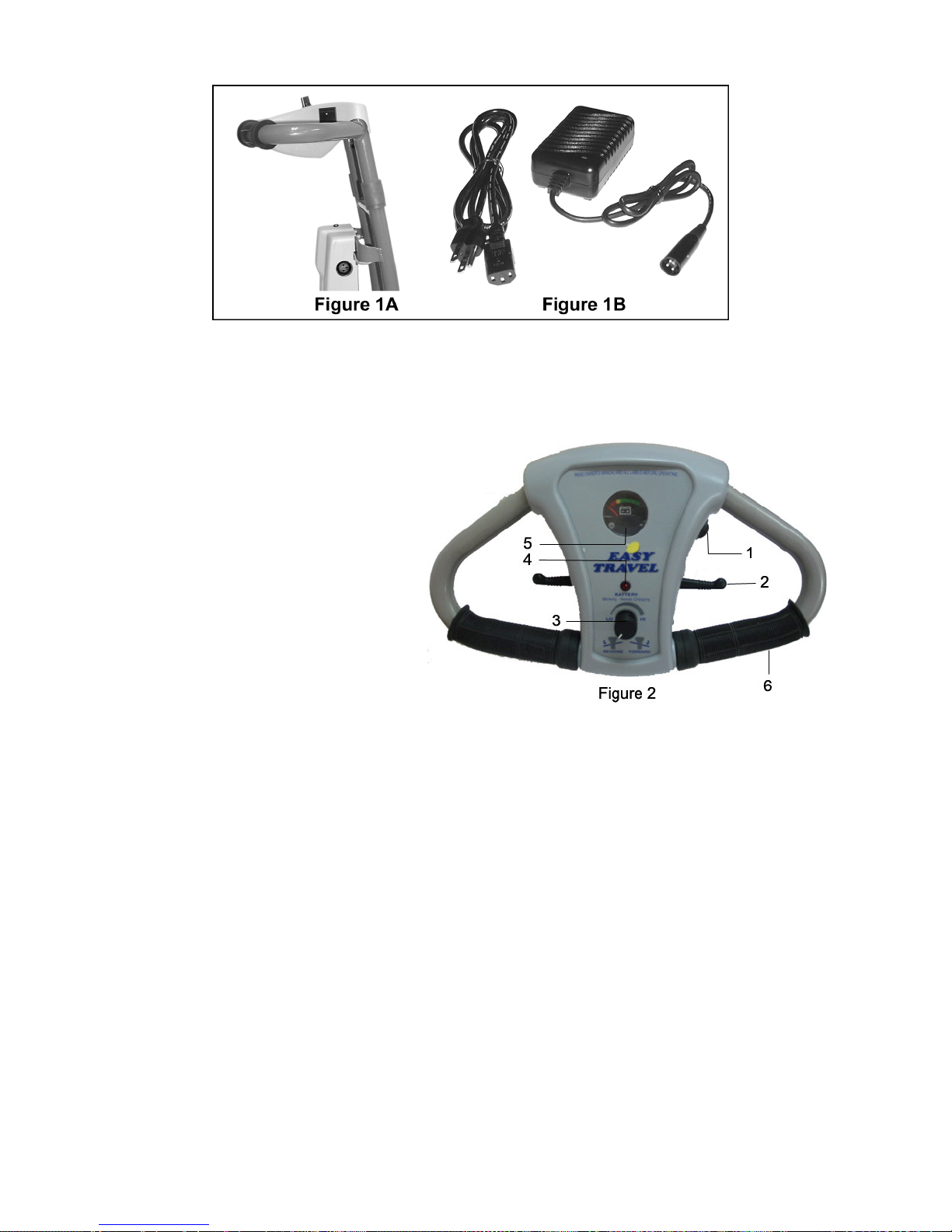

3.2. Control Panel – (Figure 2)

1. Switch

2. Hand control lever (right and left)

3. Speed adjusting knob

4. Indicator light (LED)

5. Battery gauge

6. Hand-grips

3.3. EasyTravel Optional Accessories:

1. Extra battery pack

BELL: If the user requires an audible warning device, a standard bicycle bell

can be attached to the handlebar.

EasyTravel – ET1B User’s Manual Rev. 0708 7

4. ASSEMBLY AND FOLDING INSTRUCTIONS

4.1. Assembling your EasyTravel

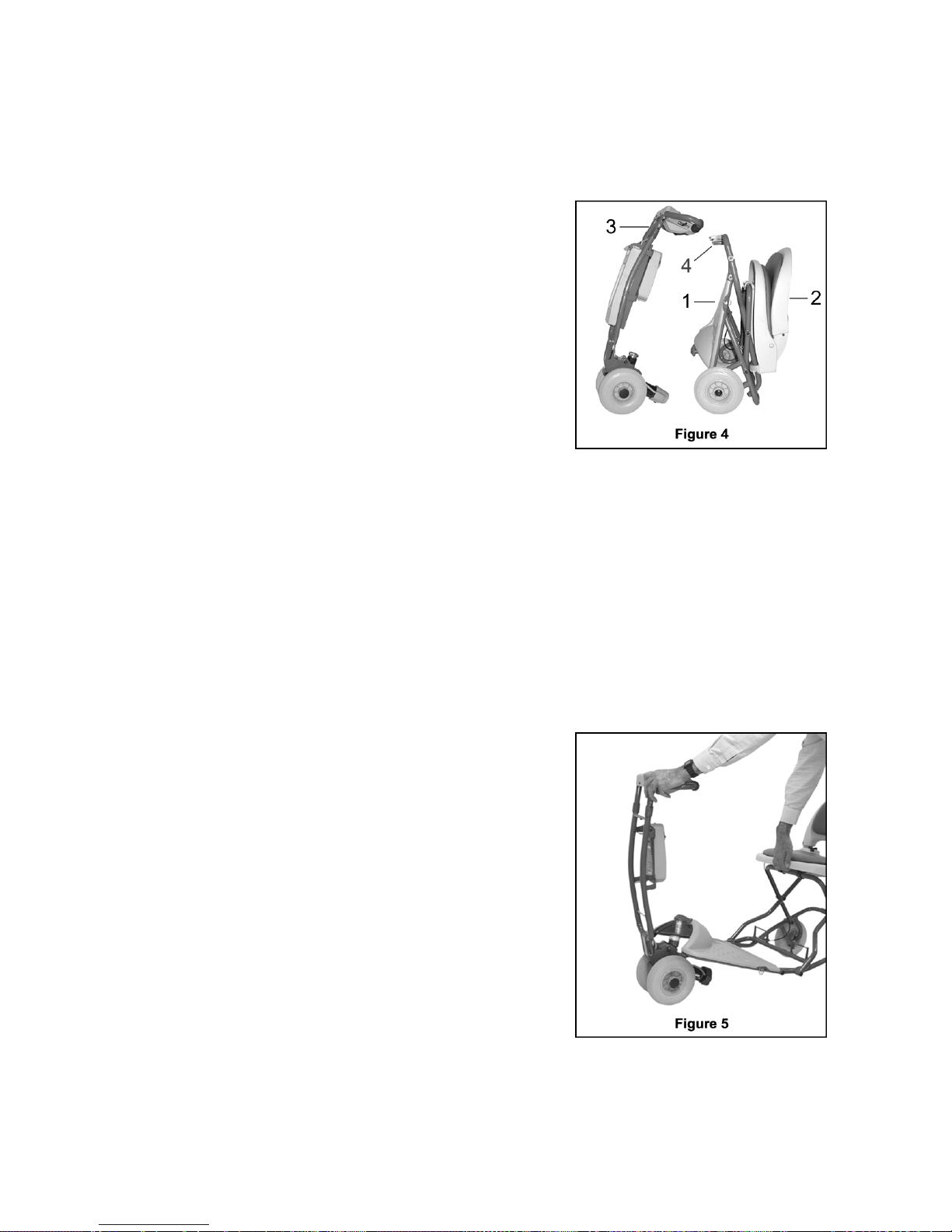

Unfolding Rear Frame

Pull on the folded frame lock pin ring (Fig.

4/1) to release the foot platform and unfold

the frame. Pull the seat backrest (Fig. 4/2)

and lift it to the upright position. Ensure that

the unfolded frame lock pin secures the

platform in the horizontal position.

Unfolding Front Column

Pull the column lock triggers (Fig. 4/3)

upward towards the handle to release the

tilt lock. Move the drive unit away from the

column (all the way) to open the quick-

release housing. This is the column

“detach” position.

Connecting the Front Column to the

Rear Frame

Position the column in the “detach” position.

Lift the front of the Foot platform and insert

connection pin into the quick-release

housing on the drive unit. This may be done

without bending down by lifting the front of

the seat “lip” while holding the front column

hand-grip as shown in Fig. 5.

EasyTravel – ET1B User’s Manual Rev. 0708 8

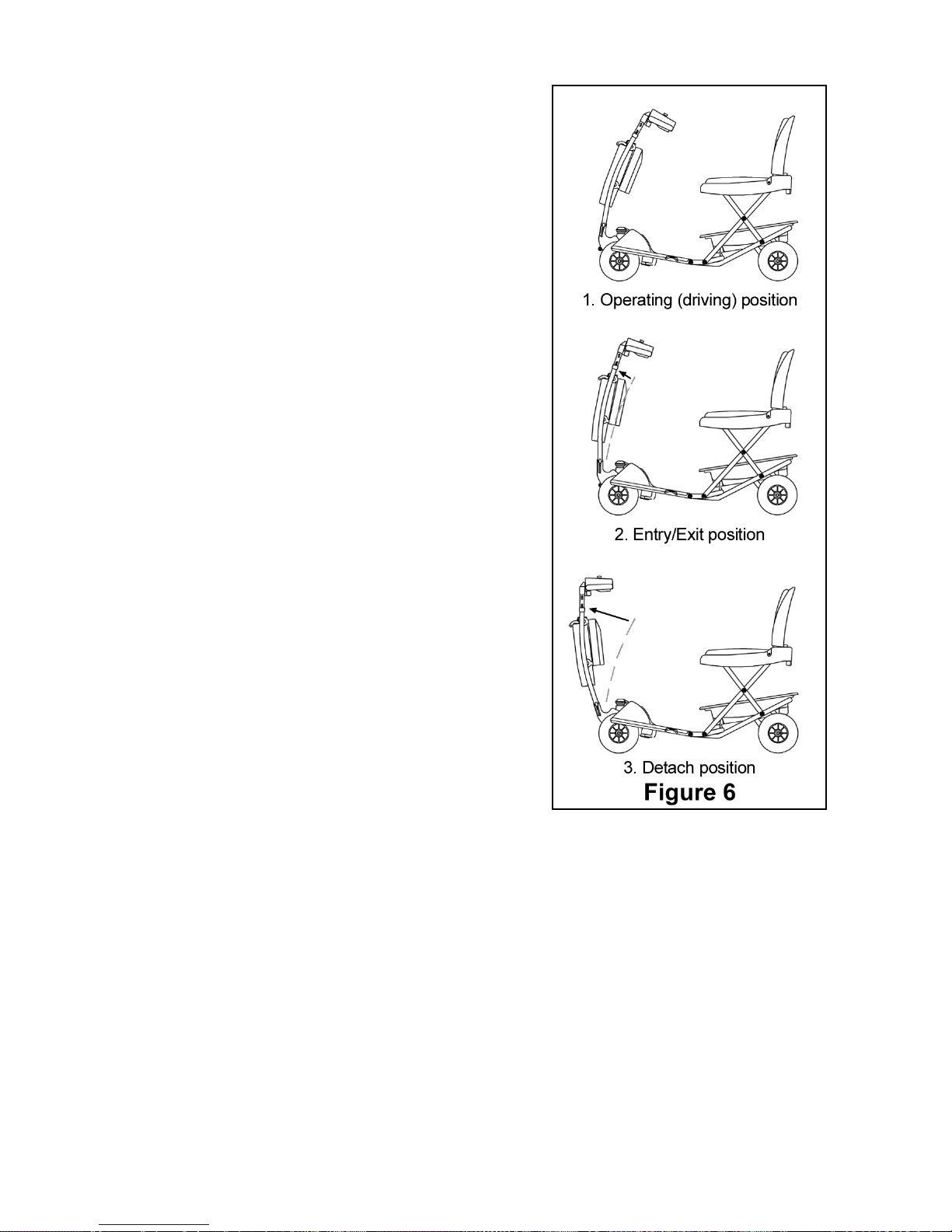

Front Column Adjustment (Figure 6)

To adjust the angle of the front

column, pull the column lock triggers

upward. Move the column into the

desired position and release. Push

lightly back and forth on the column to

ensure that it is locked in the desired

position.

1. For driving the EasyTravel, adjust

column to the rear-most position.

2. For getting in and out of the

EasyTravel seat comfortably, the

column may be moved away from

the seat to the entry/exit position.

3. For detaching the front column

from the rear frame, adjust the

column fully forward to the detach

position (Fig. 6/3); remove battery

before adjusting the column to the

detach position.

CAUTION: When getting in and out of the EasyTravel seat, step only on

CENTER of foot platform. DO NOT STEP ON SIDE OF FOOT PLATFORM

to avoid tipping the EasyTravel.

NOTE: The rear frame, when folded, can be lifted by the handles (Fig 4/4).

EasyTravel – ET1B User’s Manual Rev. 0708 9

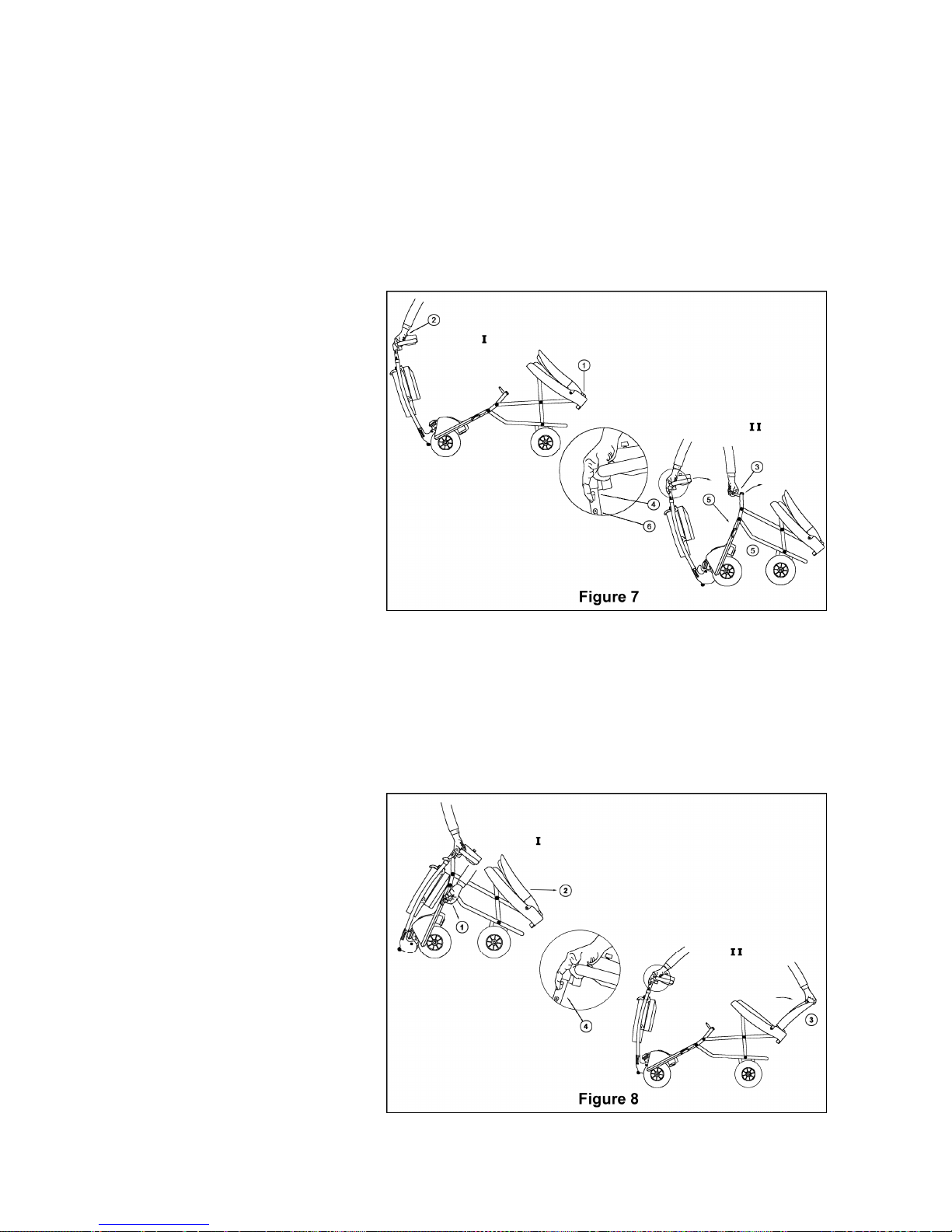

4.2. Folding and Unfolding your EasyTravel

Folding the EasyTravel

Step 1: Fold backrest of seat down and ensure it is locked (Fig. 7/1)

Step 2: Hold handgrip of front column (Fig. 7/2) in the “Operating” or

“Entry/Exit” position and push forward away from seat to fold

platform upwards.

Step 3: Grasp platform

handle (Fig. 7/3)

and pull column

lock triggers (Fig.

7/4) to fold column

towards the

platform. Fold

together until

folded frame lock

pin (Fig. 7/5) and

column latch (Fig.

7/6) click into

place and hold EasyTravel in folded position.

Unfolding the EasyTravel

Step 1: Pull on the frame lock pin ring (Fig. 8/1) to release platform and rest

front wheels on floor.

Step 2: Pull the seat

backrest and lift it

upright. (Fig. 8/2)

Step 3: Grasp top of seat

backrest (Fig. 8/3)

and pull column

lock triggers (Fig.

8/4) to release

column from

platform. Pull

outwards to unfold

EasyTravel until

platform and column lock into the operating position.

EasyTravel – ET1B User’s Manual Rev. 0708 10

5. OPERATING YOUR EasyTravel

5.1. Control Panel operation features

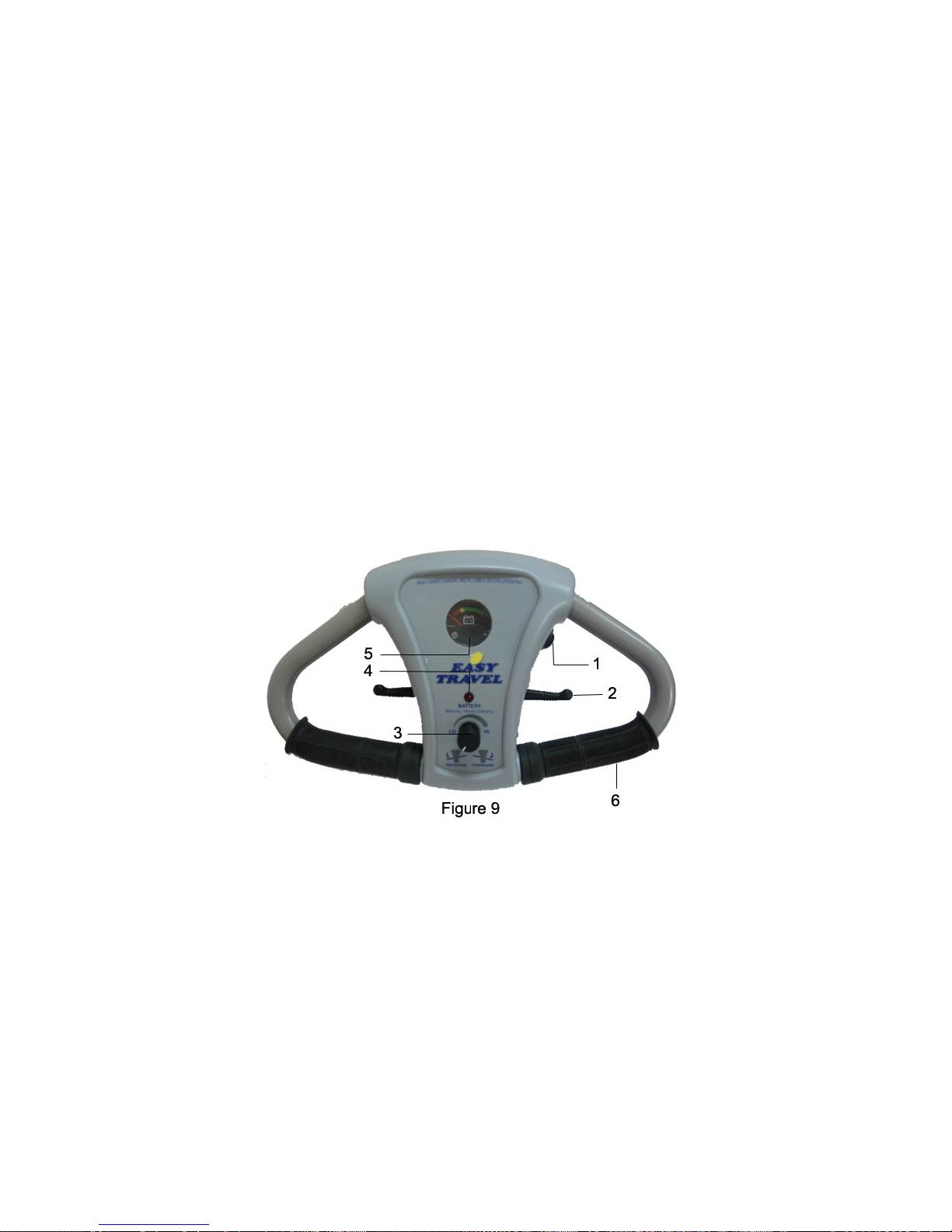

The switch located on the right side of the control panel (Fig. 9/1), will turn

the power of the EasyTravel ON or OFF.

NOTE: Turn your EasyTravel switch to the OFF position when not in use

in order to conserve battery power, and prevent unintentional operation.

The top speed may be adjusted by turning the Speed-adjusting knob (fig

9/3). By turning the knob to the HI position, your EasyTravel's top speed

will be up to 3.7mph/6kph. When the knob is set to the Lo position, the

speed will be reduced to a slow crawl, ideal for less experienced drivers

and for operating indoors.

5.2. Battery indicator Light (Fig. 9/4)

The light, located at the bottom of the handle control cover, displays bat-

tery status and fault indications as follows:

Indicator light steady - This indicates that all is well.

Indicator light flashes slowly - The controller is functioning cor-

rectly but batteries should be charged as soon as possible. The Bat-

tery Level Indicator (Fig. 9/5) shows the charge that is left.
