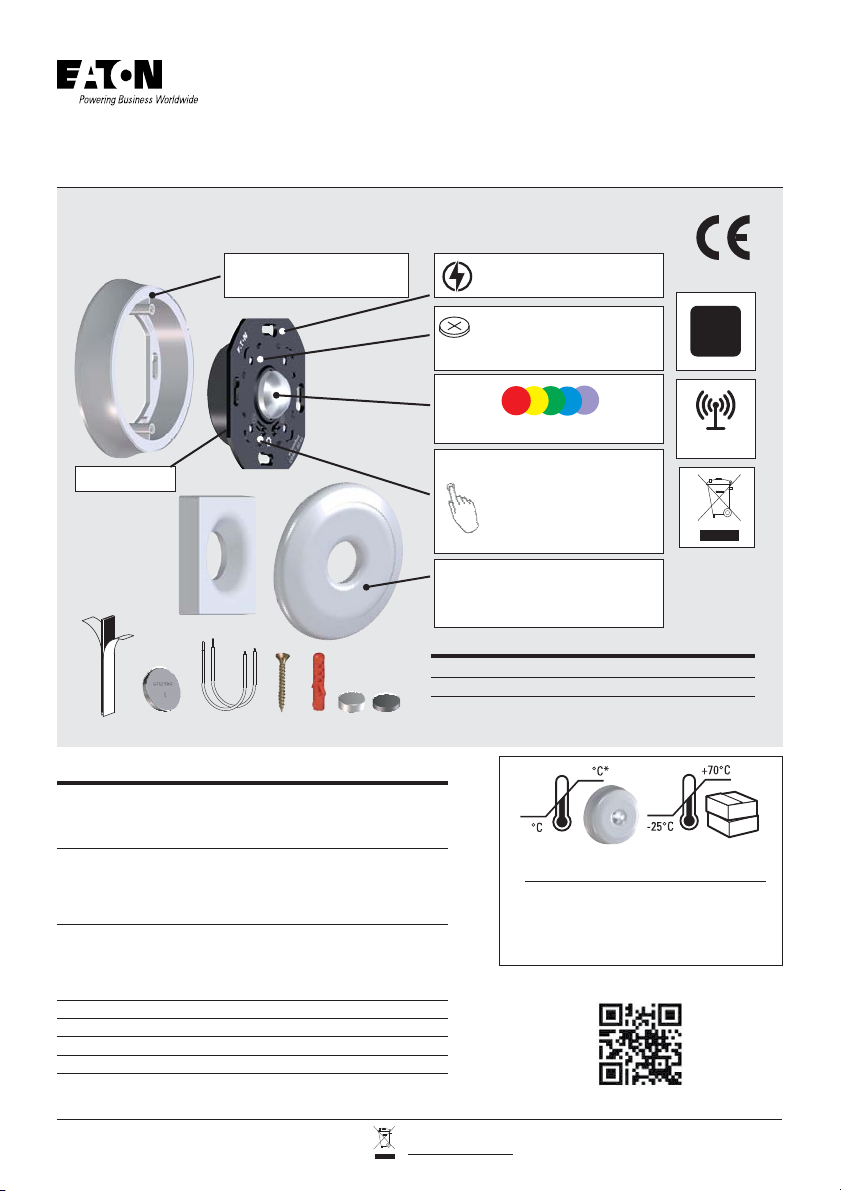

Eaton CBMD-02 Series Manuale

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-universal_bewegungsmelder.qxp/02.2020b / IL019242ZU / 136211208

www.eaton.com/recycling

Battery 1x CR2450

Long battery service life

Multi-Color Status LED

2x 2x 2x 8x2x 5x

Universal and 55 mm

frame compatible

cover included

Surface mount and

ﬂush-box mount support

CBME-02/01

On-device detection settings

- Sensitivity

- Light (lux)

- Switch off delay

- Detection indication

Battery or

Mains powered

CR2450

Instruction Leaflet

Montageanweisung

Notice d’installation

Instrucciones de montaje

Istruzioni per il montaggio



Инструкция по монтажу

Montagehandleiding



Montagevejledning

Οδηγίες εγκατάστασης

Instruções de montagem

Monteringsanvisning

Asennusohje

Návod k montáži

Paigaldusjuhend

Szerelési utasítás

Montāžas instrukcija

Montavimo instrukcija

Instrukcja montażu

Navodila za montažo

Návod na montáž

Монтажни инструкции

Instrucţiuni de montaj

Upute za montažu

Kullanma Talimatı

Инструкција за монтажу

Intruksjonsblad

Монтажна інструкція

ت ا ة 

Universal Motion Sensor

CBMD-02/..

868.3 MHz

IP20

Colors Type Designation

Pure White CBMD-02/01

Jet Black CBMD-02/02

+40

Technical Data / Technische gegevens / Tekniske data /

Technische Daten / Technická data

Power supply

Mains 230 VAC +10% -15%, 50 Hz

Battery CR2450 3Vdc

Battery Service Life up to 5 years (TYP)

Detection

Area (ceiling mount) Depending on movement max. Ø 5 m

when mounted at 2.5 m

Range (wall mount) Depending on movement max. 8 m

Angle 90°

On device settings

Sensitivity low ... high

Light intensity Night ... Day&Night (always)

Switch off delay 10 s ...120 min,

Detection indication ON/OFF

LED Multi-color operation status

Dimensions ø 91 x 30 mm (D x H)

RF 868,3 MHz (xComfort copatible)

Max RF power 25 mW (ERP)

MRF Version V2.65

RM Version: V41c

SHC-RF Version: 2.21

ECI-RF Version: 2.10

USB-RF Version: 2.10

www.eaton.com/xcomfort

136211208_136211208 13.02.2020 10:14 Seite 1

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-universal_bewegungsmelder.qxp/02.2020b / IL019242ZU / 136211208

www.eaton.com/recycling

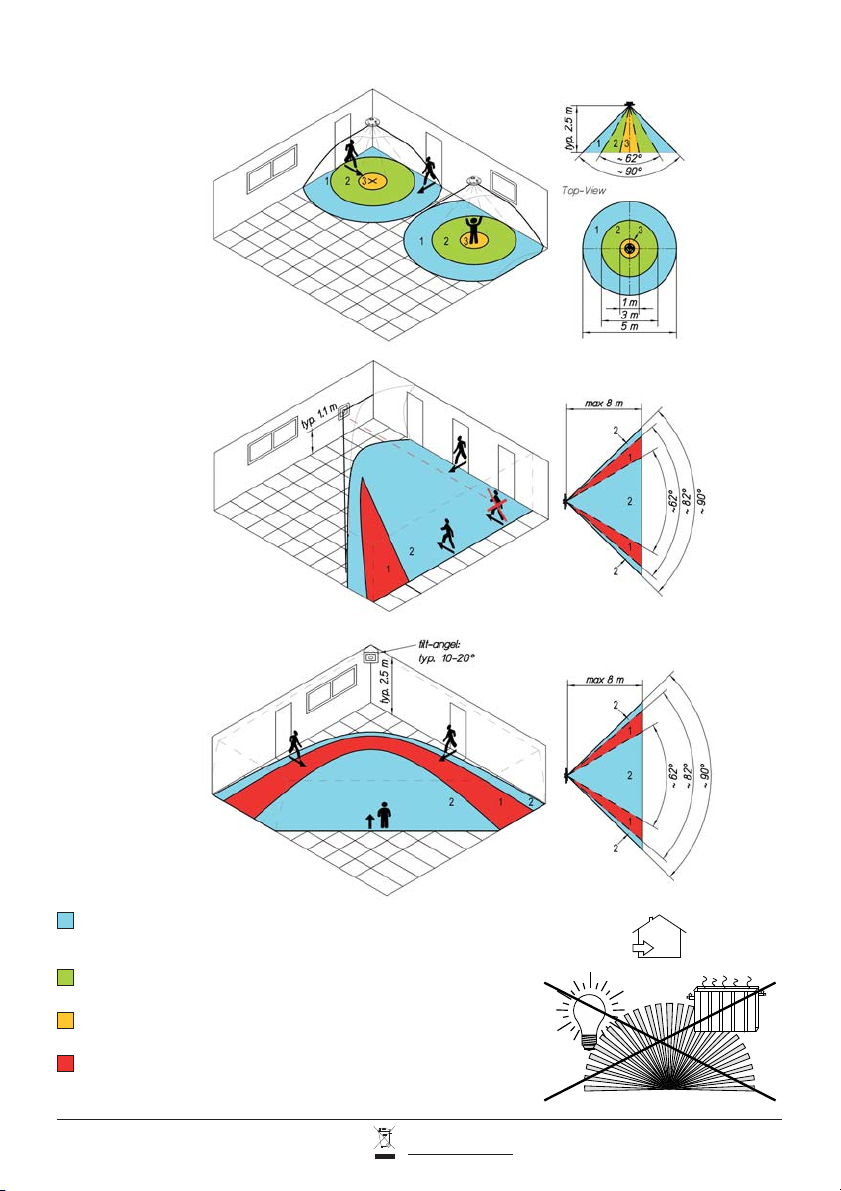

Positioning / Positionering / Posisjonering / Positionierung / Umístění

Ceiling / Plafond / Tak / Decke / Strop

Wall / Wand /Vegg / Wand / Stěna

Corner / Hoek / Hjørne / Ecke / Roh

Side-View

Top-View

Top- / Side-View

Movements sideways relative to the sensor / Bewegingen zijwaarts ten opzichte

van de sensor / Bevegelser sidelengs i forhold til sensoren / Bewegungen seitlich

zum Sensor / Pohyb příčně k senzoru

Movements towards the sensor / Bewegingen naar de sensor/ Bevegelser mot

sensoren / Bewegungen zum Sensor / Pohyby podélně směrem k senzoru

Small movements / Kleine bewegingen / Lite bevegelser / Kleine Bewegungen /

Malý pohyb

Blind area - no detection / Blind gebied - geen detectie / Blindsone / ingen

deteksjon / Blindbereich - keine Erkennung / Slepá oblast - bez detekce

Indoor

136211208_136211208 13.02.2020 10:14 Seite 2

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-universal_bewegungsmelder.qxp/02.2020b / IL019242ZU / 136211208

www.eaton.com/recycling

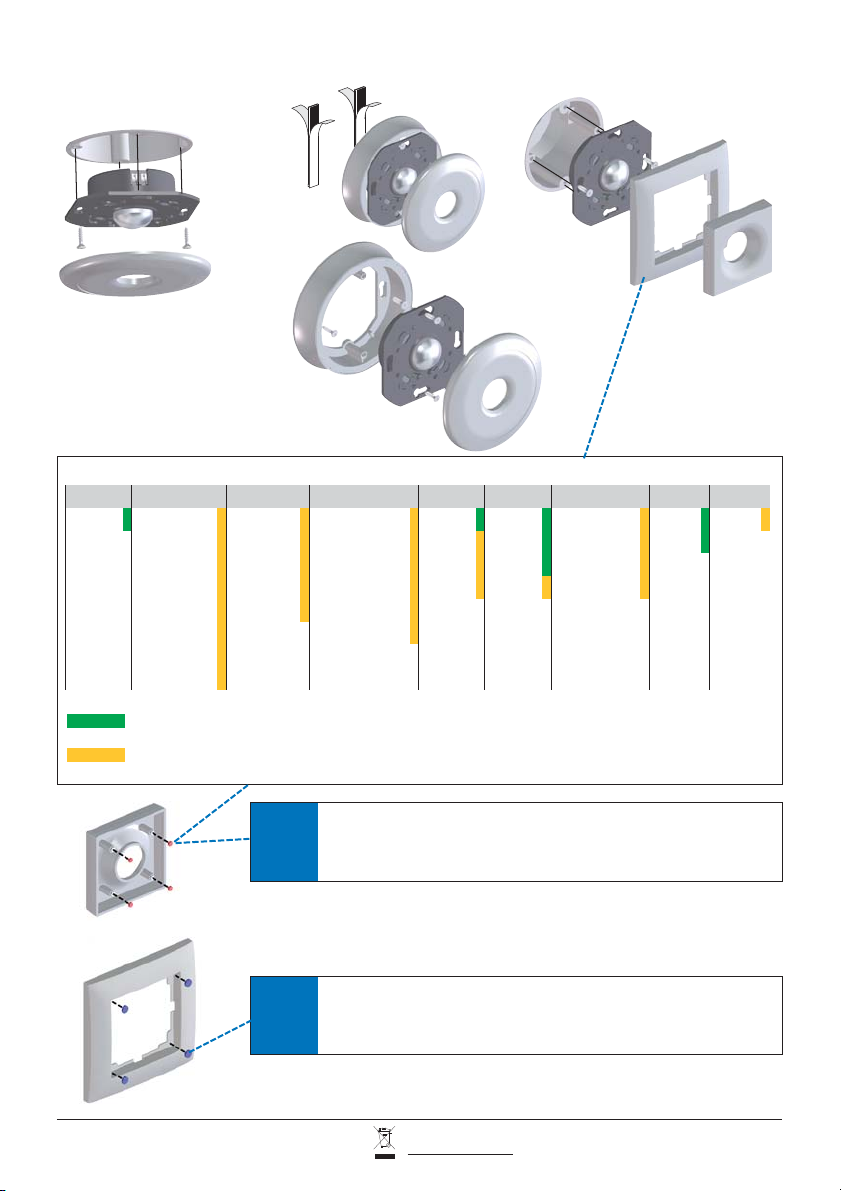

Mounting / Montage / Montage / Montering / Montage / Montáž

55x55mm Frame compatibility and mounting recommendation

Eaton Merten Gira Busch&Jäger* Jung Berker Siemens Elko Kopp

Standard 1-M Standard 55 Carat AS S.1 Delta line RS16 Alaska

Atelier M E2 Solo A 500 B.1 Delta vita Plus

M-Smart Event Future A Plus B.3 Delta miro

M-Arc Esprit Future Linear A creation B.7 Glas Delta miro Glas

M-Star E22 CZ Future

M-Plan Busch-balance SI

M-Plan II

M-Plan Metall

* only with intermediate frame Busch&Jäger

Compatible without extra magnets / Compatibel zonder extra magneet / Kompatibel uten ekstra magnet /

Kompatibel ohne zusätzlichen Magneten / Kompatibilní bez dodatečného magnetu

Compatible with extra magnet / Compatibel met extra magneet / Kompatibel med ekstra magnet / Kompatibel mit

zusätzlichem Magneten / Kompatibilní s dodatečným magnetem

!If necessary, add foam pads to secure the frame /

Voeg zonodig schuimkussentjes toe om het frame vast te zetten /

Legg eventuelt til skumputer for å feste rammen /

Fügen Sie bei Bedarf Schaumstoffpolster hinzu, um den Rahmen zu fixieren /

V případě potřeby instalujte pěnové podložky k zajištění rámečku

!Use extra magnets in case of reduced magnetic force (e.g. with non-flat walls) /

Gebruik extra magneten in geval van verminderde magnetische kracht (bijv. Bij niet vlakke wanden) /

Bruk ekstra magneter i tilfelle redusert magnetisk kraft (f.eks. Med ujevne overflater) /

Bei geringerer Magnetkraft (z. B. bei nicht ebenen Wänden) zusätzliche Magnete verwenden /

V případě nerovných ploch, kdy je síla magnetů zeslabena použijte dodatečné magnety

136211208_136211208 13.02.2020 10:14 Seite 3

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-universal_bewegungsmelder.qxp/02.2020b / IL019242ZU / 136211208

www.eaton.com/recycling

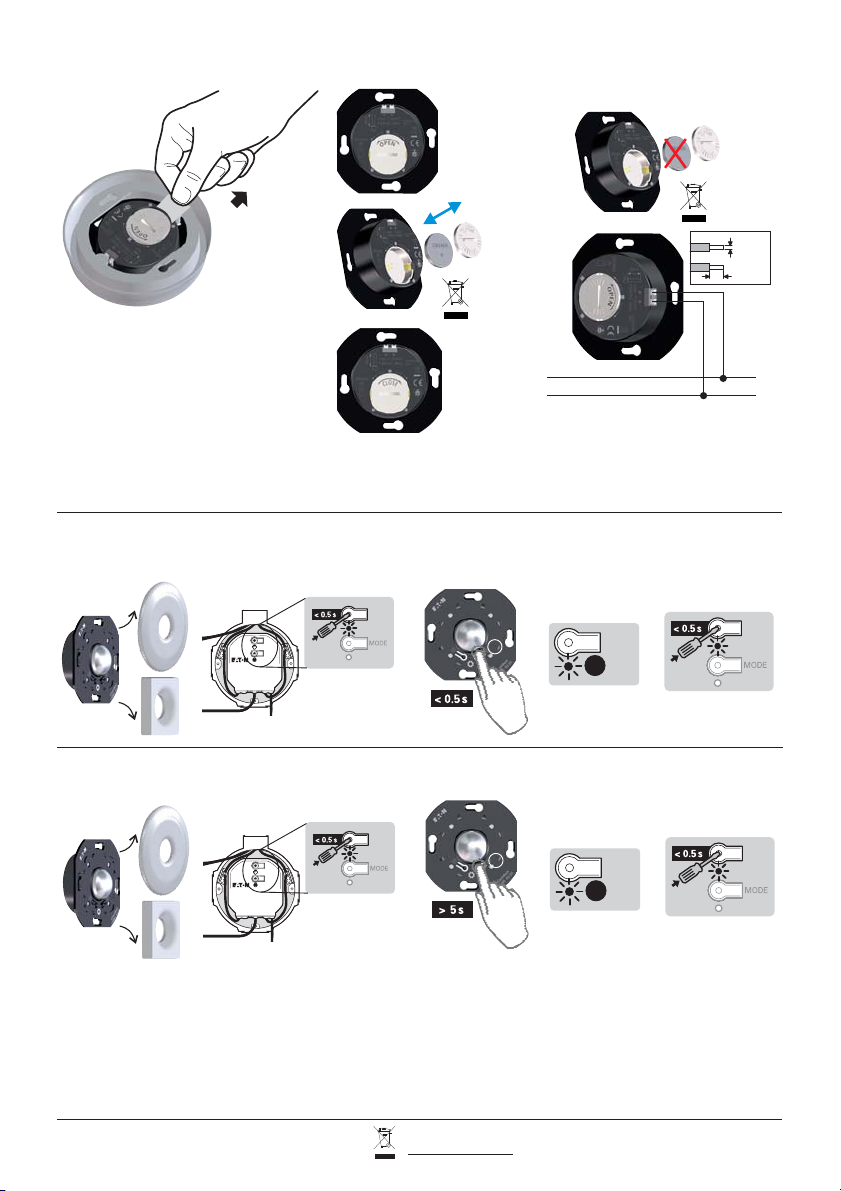

Power supply / Stroomvoorziening / Strømforsyning / Spannungsversorgung / Napájení

Battery Mains

OPEN

1.5 mm²

8 mm

Battery / batterij / Batteri /

Batterie / baterie Mains - Wiring diagram / Netvoeding –

bedradingsschema / 230V – koblingskjema /

Netzanschlussdiagramm / Napájení ze sítě

PROG

Basic Mode operations

Assign Sensor in Basic Mode / Sensor in Basic Mode toewijzen / Tilknytte i Basic Mode /

Zuweisen im Basic Mode / Konfigurace v základním režimu

Remove Sensor in Basic Mode / Sensor in Basic Mode verwijderen / Fjerne i Basic Mode /

Löschen im Basic Mode / Zrušení přiřazení v základním režimu

136211208_136211208 13.02.2020 10:15 Seite 4

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-universal_bewegungsmelder.qxp/02.2020b / IL019242ZU / 136211208

www.eaton.com/recycling

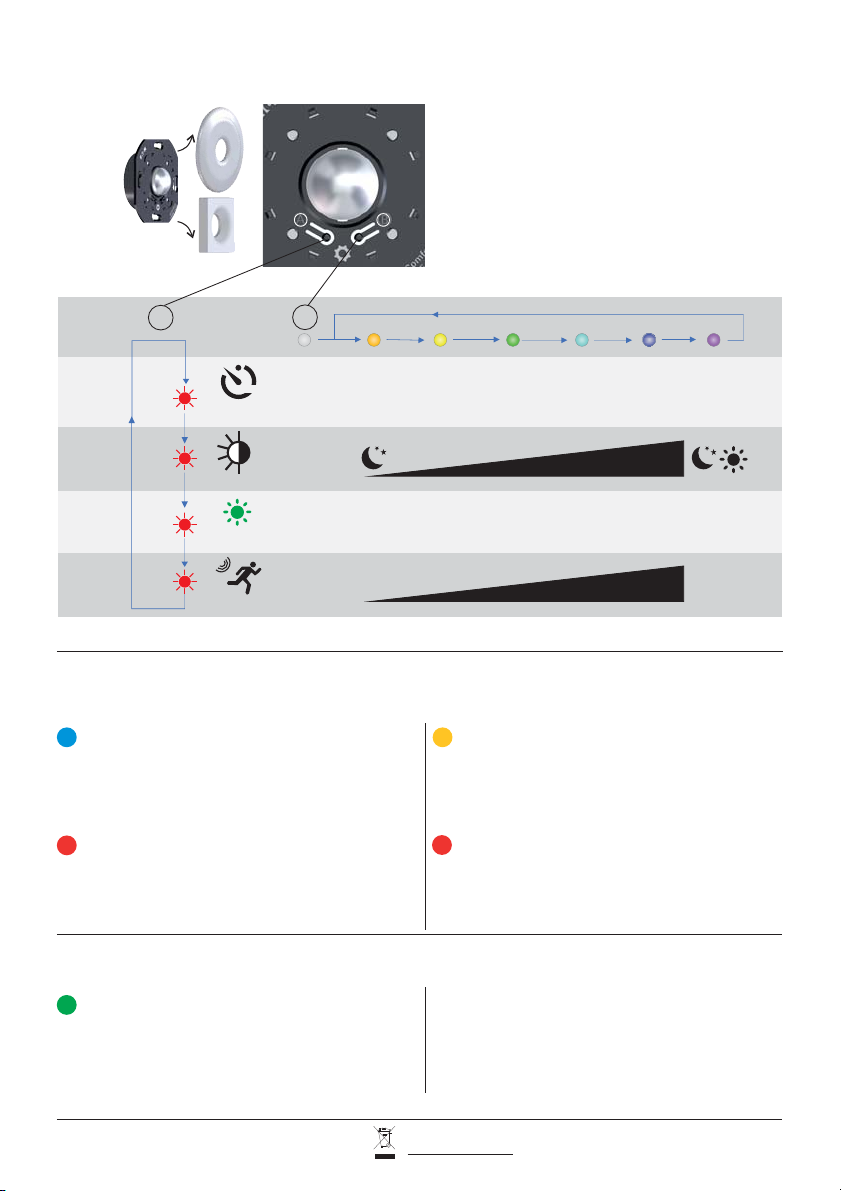

ON OFF

Ext.

Ext. = External set (e.g. MRF, ...)

Ext.

LED

LUX

Off delay

* Factory default

Sensitivity ++--

OFF *

30 sec 1 min 2 min 5 min 10 min 30 min

Change detection settings / Wijzig detectie-instellingen / Endre innstillinger for detektering /

Änderung der Bewegungsparameter / Změna nastavení senzoru

LED during operation / LED tijdens bedrijf / LED under drift / LED im Normalbetrieb / LED během provozu

At status change / Bij statuswijziging /Ved statusendring / Bei Statusänderung / Při změně stavu

Short flash / No assignment

Korte flits / Geen toekenning

Kort blink / Ingen oppgave

Kurzer Blitz / Keine Zuordnung

Rychké blikání Žádná přiřazení

Steady (5 s) / Replace battery

Continue / Vervang de batterij

Permanent / Bytt batteri

Dauerlicht / Batterie wechseln

Trvalé Vyměnit baterii

Short flash / Bad RF communication

Korte flits / Slechte RF-communicatie

Kort blink / Dårlig RF- kommunikasjon

Kurzer Blitz / Schlechte RF- Kommunikation

Rychké blikání Špatná RF komunikace

Short flash / No RF communication

Korte flits / Geen RF-communicatie

Kort blink / Ingen RF-kommunikasjon

Kurzer Blitz / Keine RF-Kommunikation

Rychké blikání Žádná RF komunikace

At status change, when activated / Bij statusverandering, indien geactiveerd / Ved statusendring, når

aktivert / Bei Statusänderung wenn aktiviert / Při změně stavu při aktivaci

Short flash / RF communication okay

Korte flits / RF-communicatie in orde

Kort blink / RF-kommunikasjon ok

Kurzer Blitz / RF-Kommunikation in Ordnung

Rychké blikání RF komunikace je v pořádku

136211208_136211208 13.02.2020 10:15 Seite 5

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-universal_bewegungsmelder.qxp/02.2020b / IL019242ZU / 136211208

www.eaton.com/recycling

- type examination performed by:

TÜV Austria Services GmbH, Notified Body

1230 Vienna, Deut

schstrasse 10, Austria

Affixing date of CE mark:

2019

Doc.Id.:

CBMD-02xx_011019

Senior Vice President Director Quality

General Manager & Systems

Friedrich Schröder

Fernando Ceccarelli

Declaration of Conformity

We, EATON Industries (Austria) GmbH

3943 Schrems, Eugenia 1

Austria

declare under our sole responsibility as manufacturer that the product (family)

Eaton - Motion Sensor,

CBMD-02/xx

(the declaration of conformity applies to all

listed types within our actual product catalogue)

provided that it is installed, maintained and used in the

application intended for, with respect to the relevant manufacturers

instructions, installation standards and “good engineering practices”

complies with the provisions of Council directive(s):

RED Directive 2014/53/EU

RoHS Directive 2011/65/EU

based on compliance with following standard(s):

EN 300 220-2 V3.1.1, EN 300 220-2 V3.2.1, EN 301489-1 V1.9.2, EN

301489-1 V2.1.0, EN 301489-3 V1.6.1, EN 301489-3 V2.1.1, EN 606692-

5:2017, IEC 63044-5-:2017, IEC 63044-5-3:2017, EN 50581:2012

01.10.2019

136211208_136211208 13.02.2020 10:15 Seite 6
