Eaton CSAU-01 Manuale

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211

www.eaton.com/recycling

Switching Actuator, Double-pole

CSAU-01/03

Douple-pole

Program

ESM support

OFF

868.3 MHz

IP20

Actuator Type Load

CSAU-01/03 Double-pole 6A

+ 5°C*4

-5°C

-25°C

+70°C

Technical Data / Technische gegevens / Tekniske data /

Technische Daten / Technická data

Power supply 230 VAC, 50 Hz

Power standby (Typical) 570mW

Load 230 VAC, 50 Hz, 8 A resistive (at 45°C)

Switching technology Relay

Switching lifetime (Typical) 30×106

Inrush current (Typical) 15A@4s

Protection Internal overtemperature protection

RF 868,3 MHz xComfort compatible,

ESM support

Max RF power: 25 mW (ERP)

ESM Extended Status Messaging support

Dimensions 48.6 x 45.3 x 26.2 mm (H x W x D)

Instruction Leaflet

Montageanweisung

Notice d’installation

Instrucciones de montaje

Istruzioni per il montaggio



Инструкция по монтажу

Montagehandleiding



Montagevejledning

Οδηγίες εγκατάστασης

Instruções de montagem

Monteringsanvisning

Asennusohje

Návod k montáži

Paigaldusjuhend

Szerelési utasítás

Montāžas instrukcija

Montavimo instrukcija

Instrukcja montażu

Navodila za montažo

Návod na montáž

Монтажни инструкции

Instrucţiuni de montaj

Upute za montažu

Kullanma Talimatı

Инструкција за монтажу

Intruksjonsblad

Монтажна інструкція

ت ا ة 

MRF Version 2.65

RM Version: 41a

SHC-RF Version: 2.00

ECI-RF Version: 2.00

USB-RF Version: 2.00

xComfort Bridge Version: 1.0

136211211_136211211 13.03.2020 12:58 Seite 1

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211

www.eaton.com/recycling

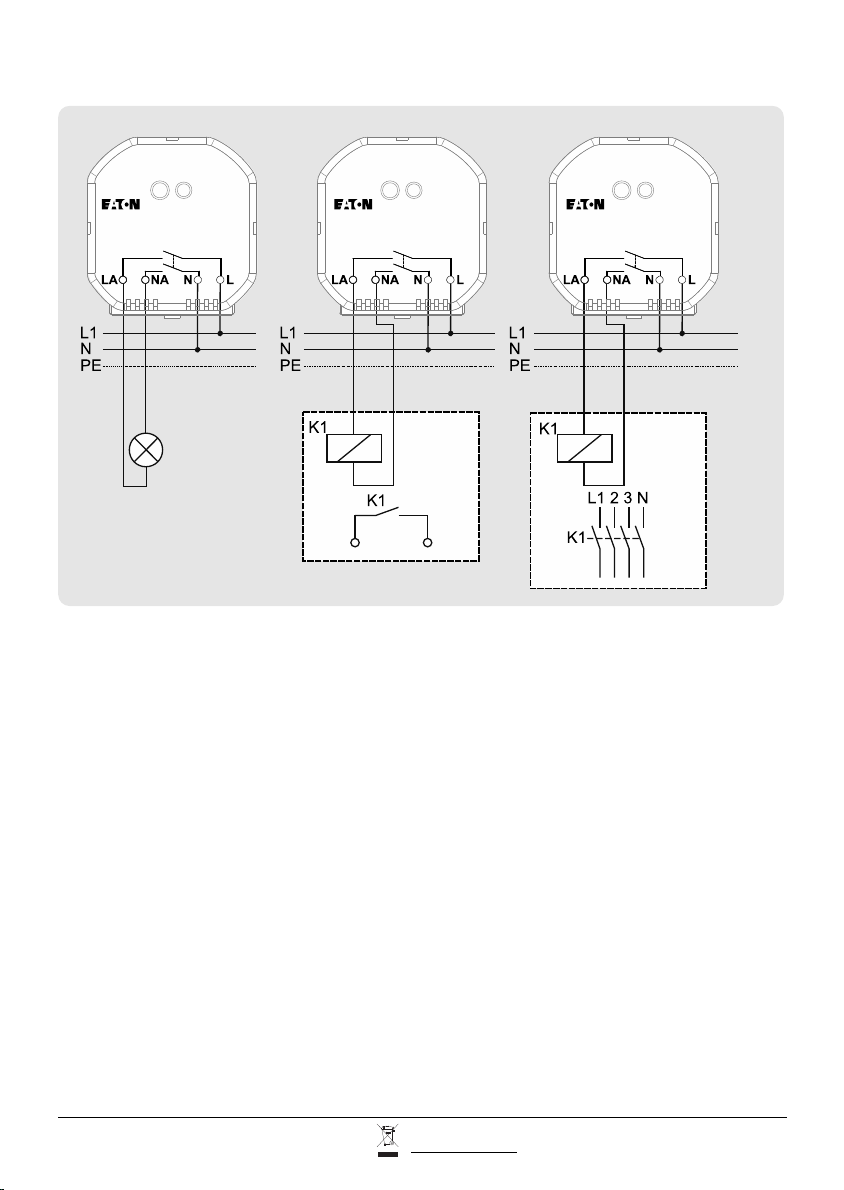

Wiring diagrams / Aansluitschema's / Koblingsskjemaer /

Schaltpläne / Schéma zapojení

CSAU-01/03 Double-pole

136211211_136211211 13.03.2020 12:58 Seite 2

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211

www.eaton.com/recycling

Manual switching - test / Handmatig schakelen - test / Manuell betjening - test /

Handschaltung - Test / Ruční přepínání / test

Assign Sensor in Basic Mode / Sensor in Basic Mode toewijzen / Tilknytte i Basic Mode /

Zuweisen im Basic Mode / Přiřadit v základním režimu

Remove Sensor in Basic Mode / Sensor in Basic Mode verwijderen / Fjerne i Basic Mode /

Löschen im Basic Mode / Odstranit v základním režimu

Identify in MRF / Identificeren in MRF / Identifiser i MRF /

Identifizieren im MRF / Identifikace v MRF

Back to factory default / Terug naar fabrieksinstellingen / Tilbake til fabrikkinnstillinger /

Auf Auslieferungszustand zurücksetzen / Zpět na tovární hodnoty

>5s > 0.5s

< 0.5s

> 2s

< 0.5s

OFF

>5s

< 0.5s

< 0.5 s

> 0.5 s

136211211_136211211 13.03.2020 12:58 Seite 3

Eaton Industries (Austria) GmbH, Eugenia 1, 3943 Schrems, Austria MA-CSAU-01/03-6P.qxd / 03.2020a / IL019248ZU / 136211211

www.eaton.com/recycling

- type examination performed by:

TÜV Austria Services GmbH, Notified Body

1230 V

ienna, Deutschstrasse 10, Austria

Affixing

date of CE mark: 2020

oc.Id.: CSAU-0103_030320

Senior Vice President Director Quality

General Manager & Systems

Friedrich Schröder

Fernando Ceccarelli

Declaration of Conformity

We, EATON Industries (Austria) GmbH

3943 Schrems, Eugenia 1

Austria

declare under our sole responsibility as manufacturer that the product (family)

Eaton - Switching Actuator all-pole,

CSAU-01/03

(the declaration of conformity applies to all

listed types within our actual product catalogue)

provided that it is installed, maintained and used in the

application intended for, with respect to the relevant manufacturers

instructions, installation standards and “good engineering practices”

complies with the provisions of Council directive(s):

RED Directive 2014/53/EU

RoHS Directive 2011/65/EU

based on compliance with following standard(s):

EN 300 220-2 V3.1.1, EN 300 220-2 V3.2.1, EN 50491-5-1:2010, EN

50491-5-2:2010, EN 60669-2-5:2016, EN 301 489-1 V1.9.2, EN 301 489

V2.1.0, EN 301 489-3 V1.6.1, EN 301 489-3 V2.1.1, EN IEC 63044-5-

1:2019, EN IEC 63044-5-2:2019, EN 50581:2012

Schrems, 03.03.2020

136211211_136211211 13.03.2020 12:58 Seite 4
