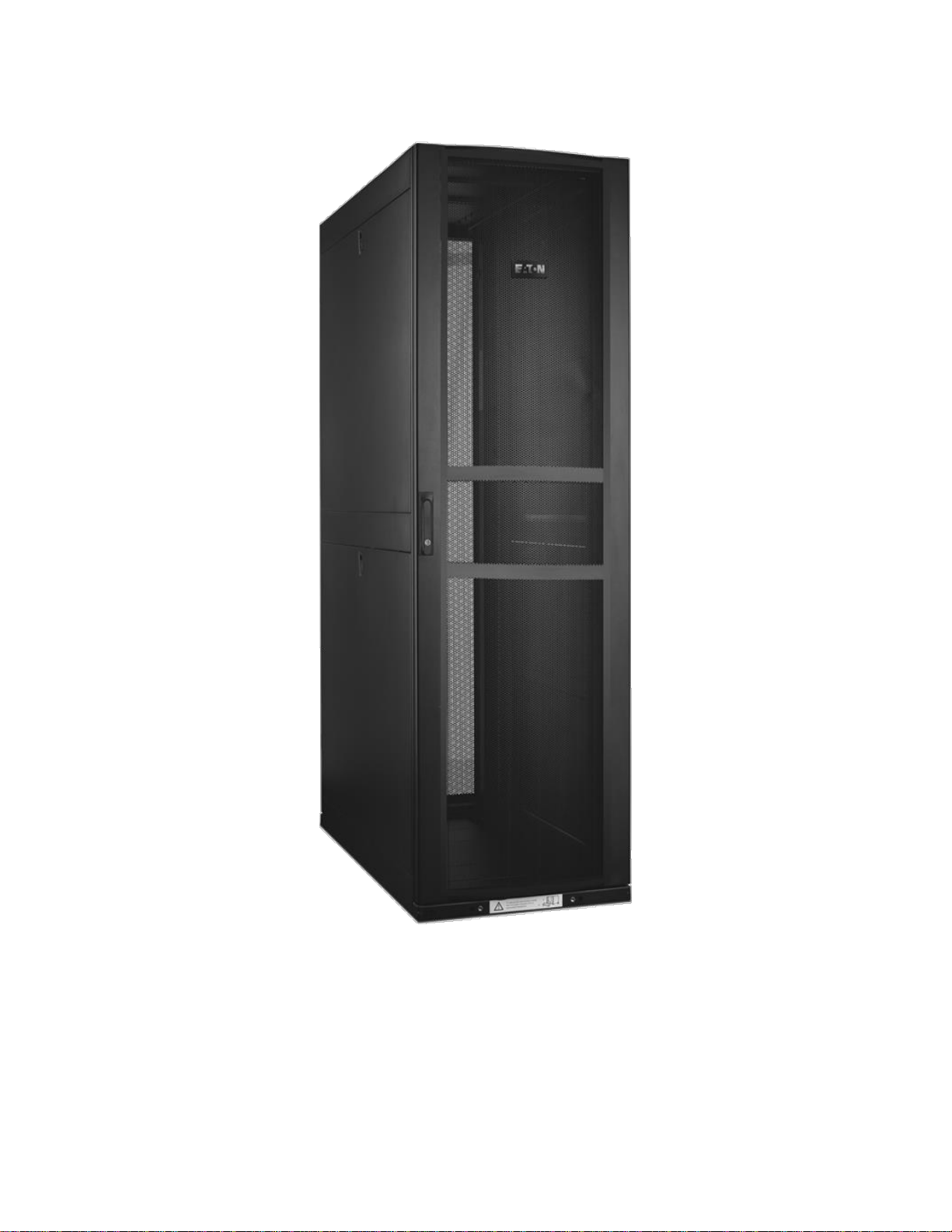

RE Series Enclosure – User Manual
Table of Contents
Section
Page
1. Overview ……………………………………………………………………………........
2
2. Component Identification…………………………………………………………..........
3
3. Packaging……………………………………………………………………………........
4
4. Assembly ……………………………………………………………………………........
5
5. Configuration………………………………………………………………………..........
10
2 | P a g e
RE Series Enclosure – User Manual
Section 1. Overview
This document outlines the recommended practices for assembling and installing the RE Series
server enclosure. The standard server enclosure is a high-quality design for storage of industry-
standard (EIA/ECA-310), 19”rack-mount hardware, which includes servers, voice, data,
networking, power protection equipment, KVM, etc., which are used in the data center rooms.
19" Standing Server Rack is the ultimate solution designed and engineered for demanding data
center environments. To achieve optimum versatility within the server rack, users can set multiple
depths throughout the rack by adjustable 19”mounting rails mounted on heavy duty side supports.
Horizontally divided side panels provide ease of access and convenient post-installation
maintenance. Over 78% perforations on front and rear door enable optimum airflow within the
rack. Flat-pack option enables savings up to 60% in the transport cost and warehouse space.
Please follow the installation instructions closely; assembly should be performed using the
recommended tools.
Premier
Model
Essential
Model
Height
(RMU)
Height [H]
(mm)
Width [W]
(mm)
Depth [D]
(mm)
REV27610PB
REV27610EB
27
1330
600
1070
REV42610PB
REV42610EB
42
1992
600
1070
REV42612PB
REV42612EB
42
1992
600
1170
REV42810PB
REV42810EB
42
1992
800
1070
REV42812PB
REV42812EB
42
1992
800
1170
REV48610PB
REV48610EB
48
2259
600
1070
REV48612PB
REV48612EB
48
2259
600
1170
REV48810PB
REV48810EB
48
2259
800
1070
REV48812PB
REV48812EB
48
2259
800
1170
NOTE: Above products can be shipped fully assembled or flat-packed.
Caution:
Before installing this product, please note the following safety information:
1. Always lower the leveling feet of the enclosure.
2. Always install equipment starting from the bottom of the enclosure to the top.
3. Always install the heaviest equipment in the bottom of the enclosure.
4. Always have at least two persons during assembling of the enclosure.
3 | P a g e
RE Series Enclosure – User Manual

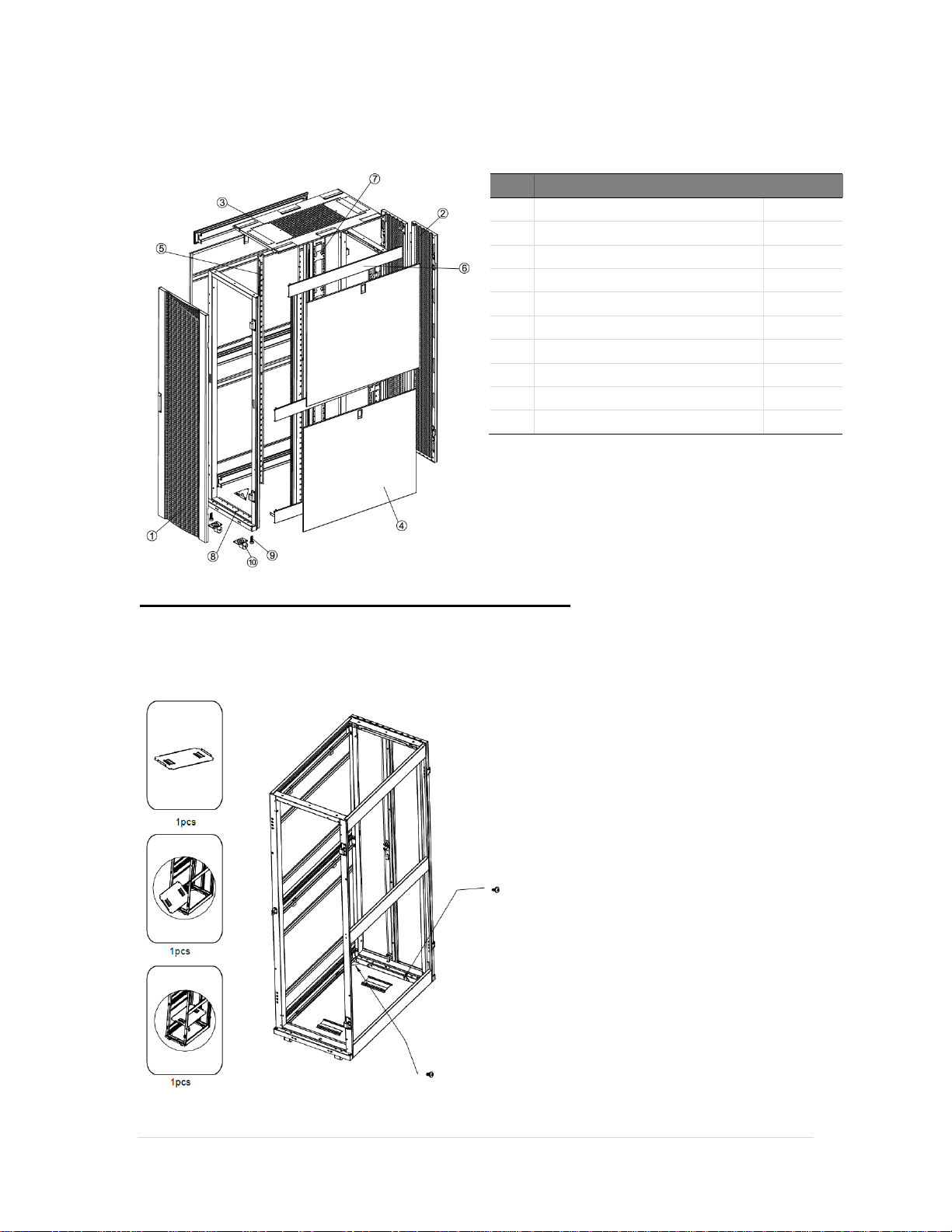

Section 2. Component Identification
Item
Component
Quantity
1
Front vented door with lock
1
2
Rear door
2
3
Top cover
1
4
Side panel
4
5
Vertical rail
4
6
Horizontal beam
6
7
Cable management rail
2
8
Door frame
2
9
Leveling feet
4
10
2” heavy duty castor
4
Important: Bottom Plate Installation Instruction (Optional)
It is better to install the optional bottom plate during steps 4 and step 5. Secure the bottom plate
to the corner bracket with M4*8mm self-tapping screws (4pcs), the bottom plate is tightened to
the enclosure with M8*25mm hexagon headed bolt.
Note: Refer to the mounting instructions
before installing your bottom plate.
4 | P a g e
RE Series Enclosure – User Manual

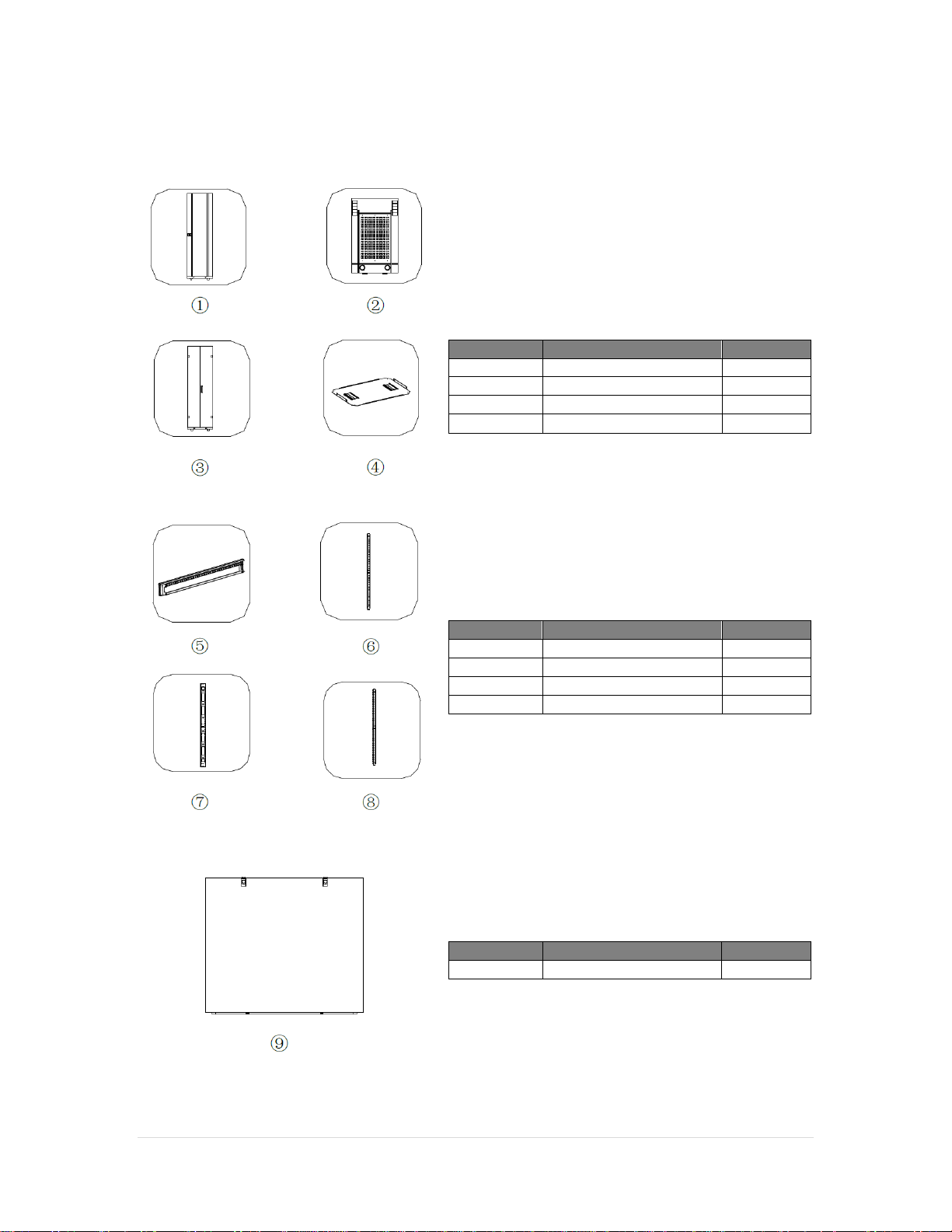

Section 3. Packaging
The flat-pack concept allows shipped enclosures to
reduce space, which can save container and
transportation costs.
CARTON A -19" FRONT & REAR DOOR KITS
Carton A
Parts List
Quantity
(1)
Front door assy
1
(2)
Top cover
1
(3)
Rear doory assy
1
(4)
Bottom plate
1
CARTON B-19" RAILS & BEAM KITS
Carton B
Parts List
Quantity
(5)
Horizontal beam
1
(6)
Vertical rail, left
1
(7)
Cable mgmt. rail
1
(8)
Vertical rail, right
1
CARTON C-19" SIDE PANELS KITS
Carton C
Parts List
Quantity
(9)
Side panel assy
1
5 | P a g e
RE Series Enclosure – User Manual
Section 4. Assembly

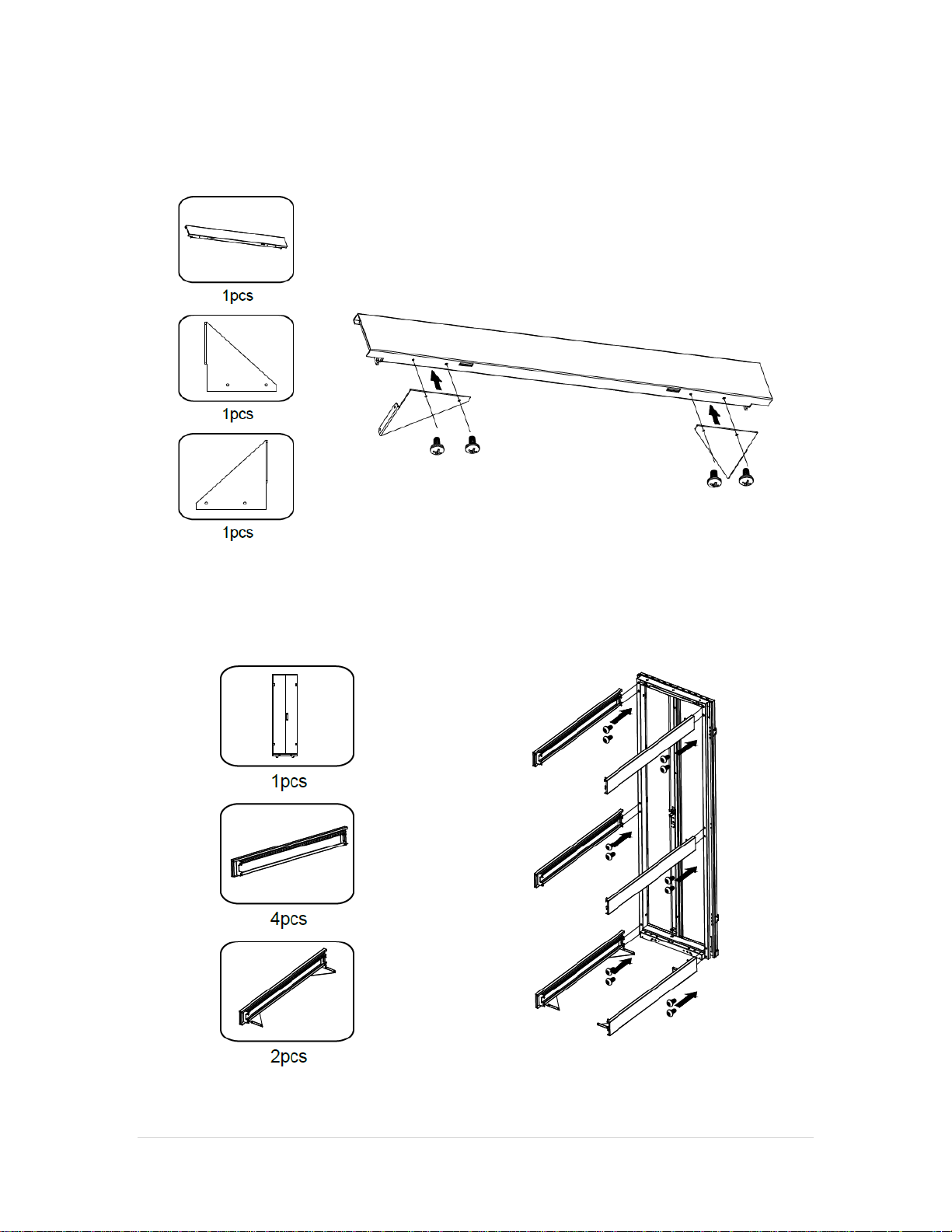

Step 1: Connect corner brackets to the lower beams with 2 screws.
Step 2: Connect each of 6 beams to the rear door with 2 screws.
6 | P a g e
RE Series Enclosure – User Manual

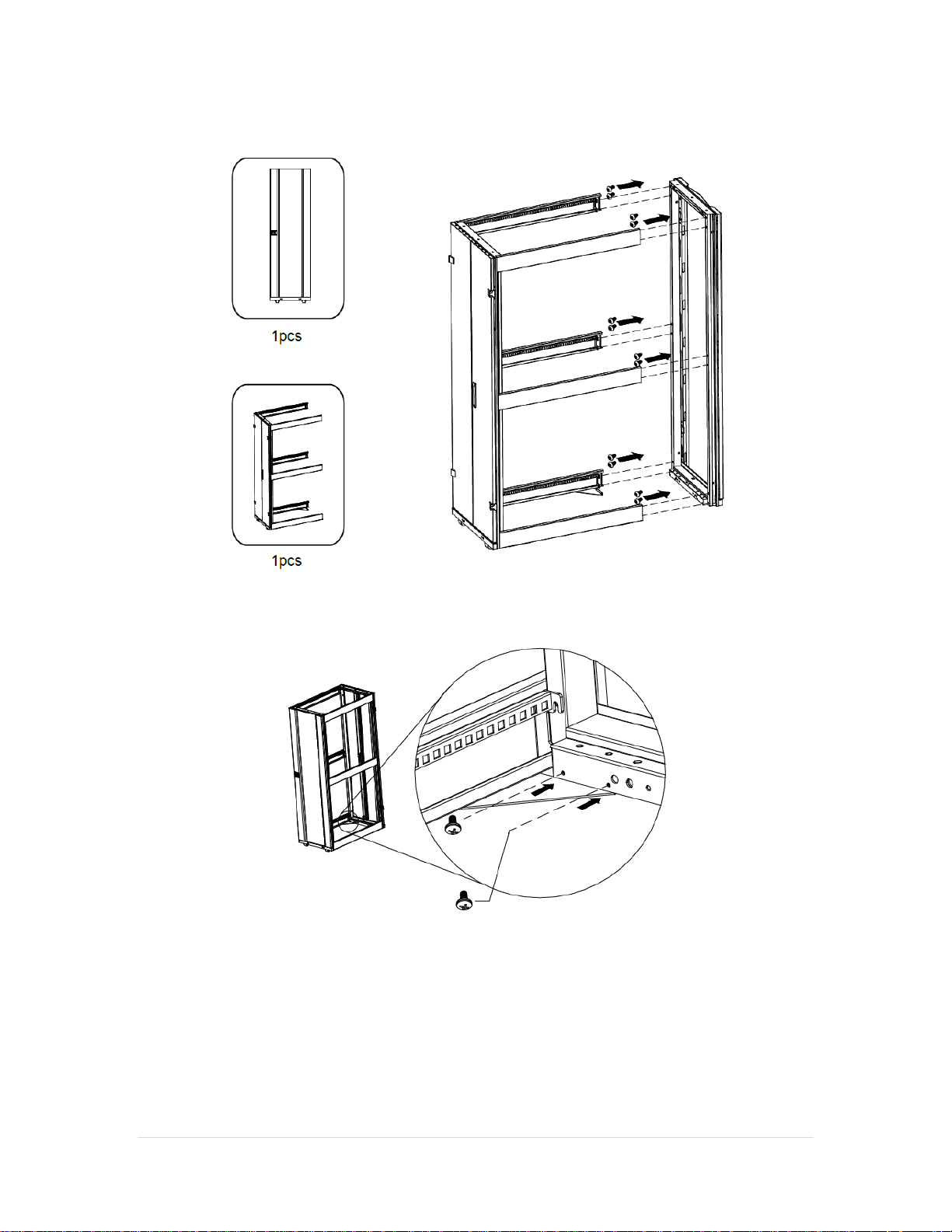

Step 3: Fasten each of 6 beams in Step 2 to the front door with 2 screws
Step 4: Fasten corner brackets in Step1 to the front with 2 screws
7 | P a g e

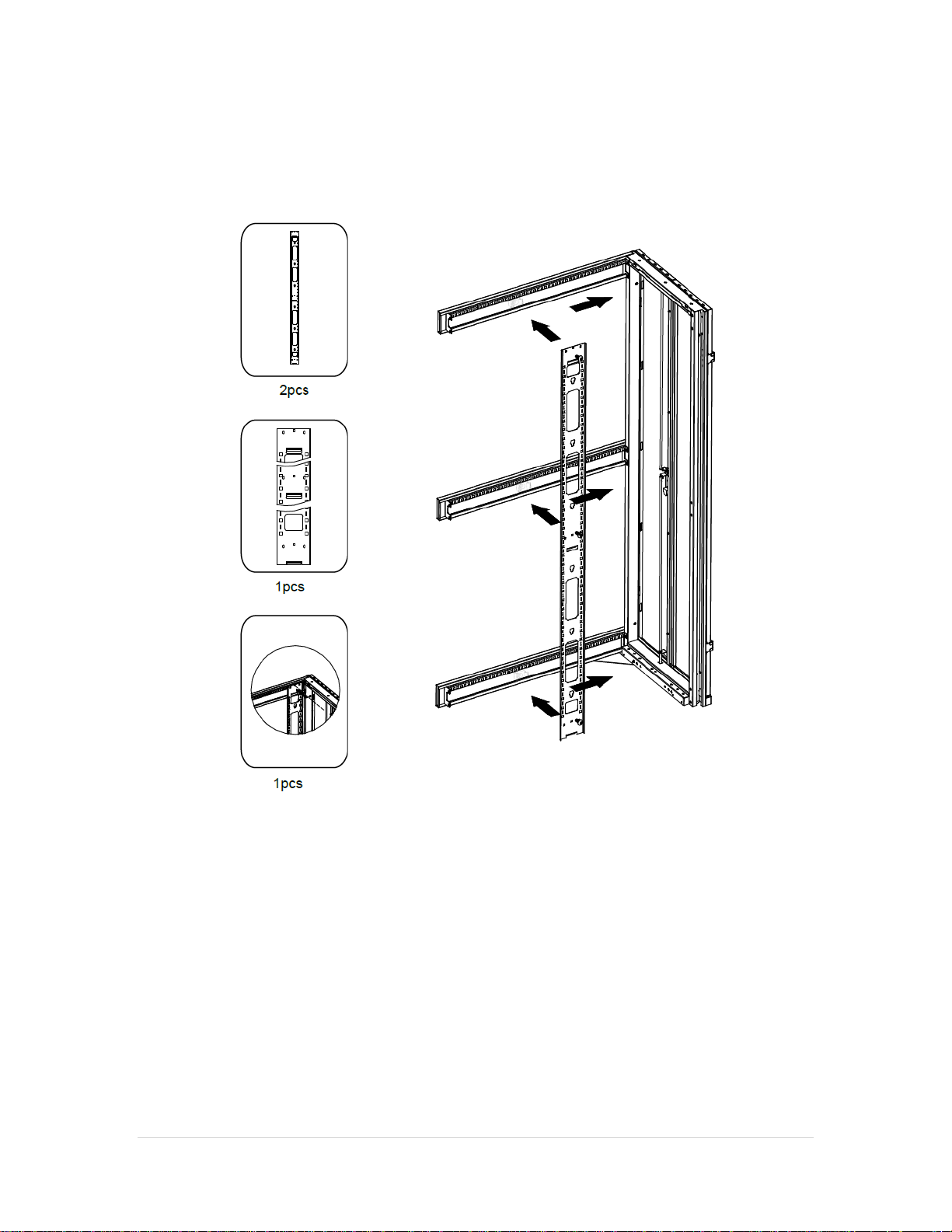

RE Series Enclosure – User Manual
Step 5: Install the cage nuts to the required square openings in the mounting beams, one for
each beam where you plan to install the cable management rails. Use M6 washers and mounting
screws to secure the cable management rails, one for each side. Place M6 washers between the
screws and the equipment mounting rails.
8 | P a g e
RE Series Enclosure – User Manual

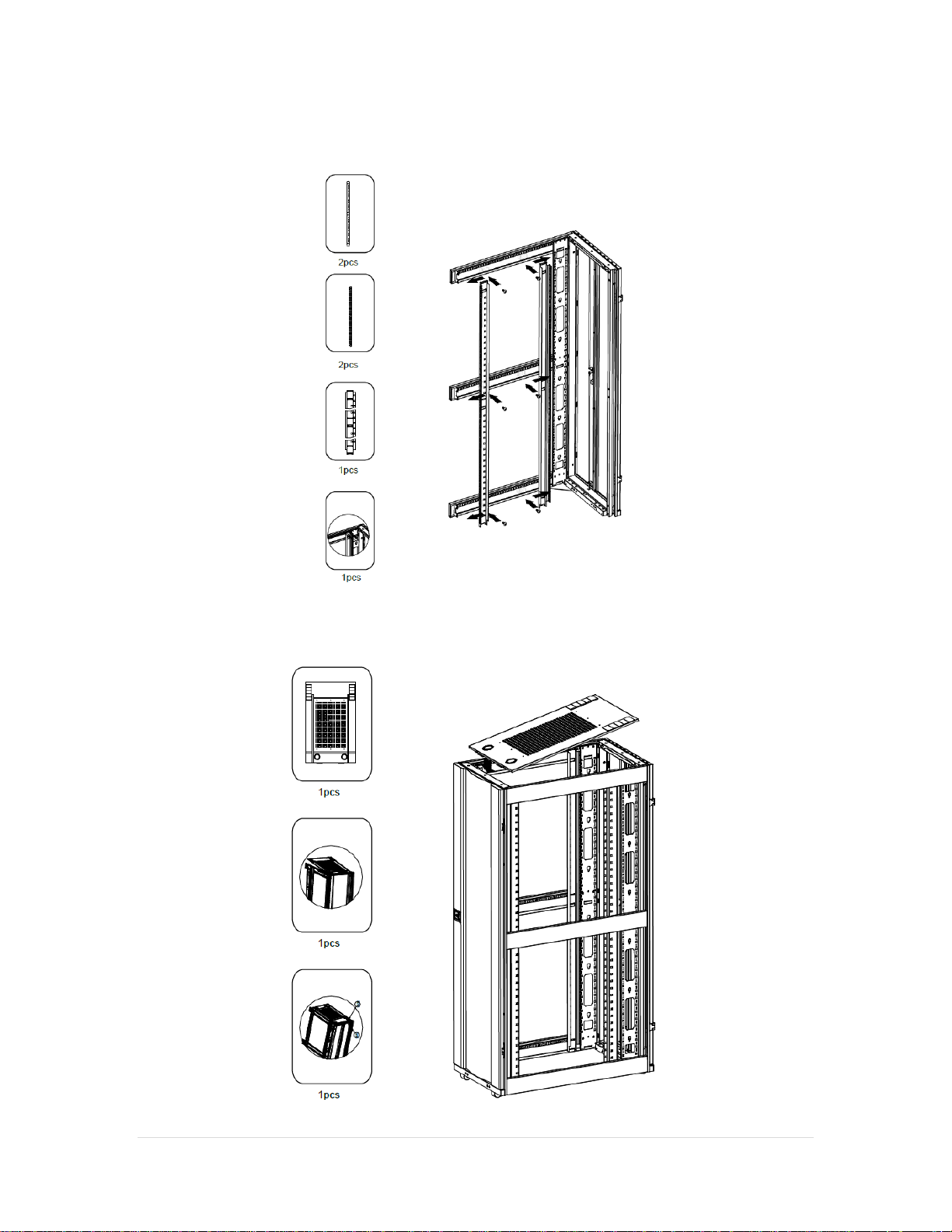

Step 6. Install the cage nuts to the desired square openings as step 5. Fasten the rails to the
mounting beams with 3 screws and M6 washers, two rails for each side.
Step 7. While holding the top cover, arrange the 2 pins near the rear of the top cover into the
holes in the enclosure frame. Pull the roof panel downward until it’s close to the enclosure frame.
9 | P a g e
RE Series Enclosure – User Manual

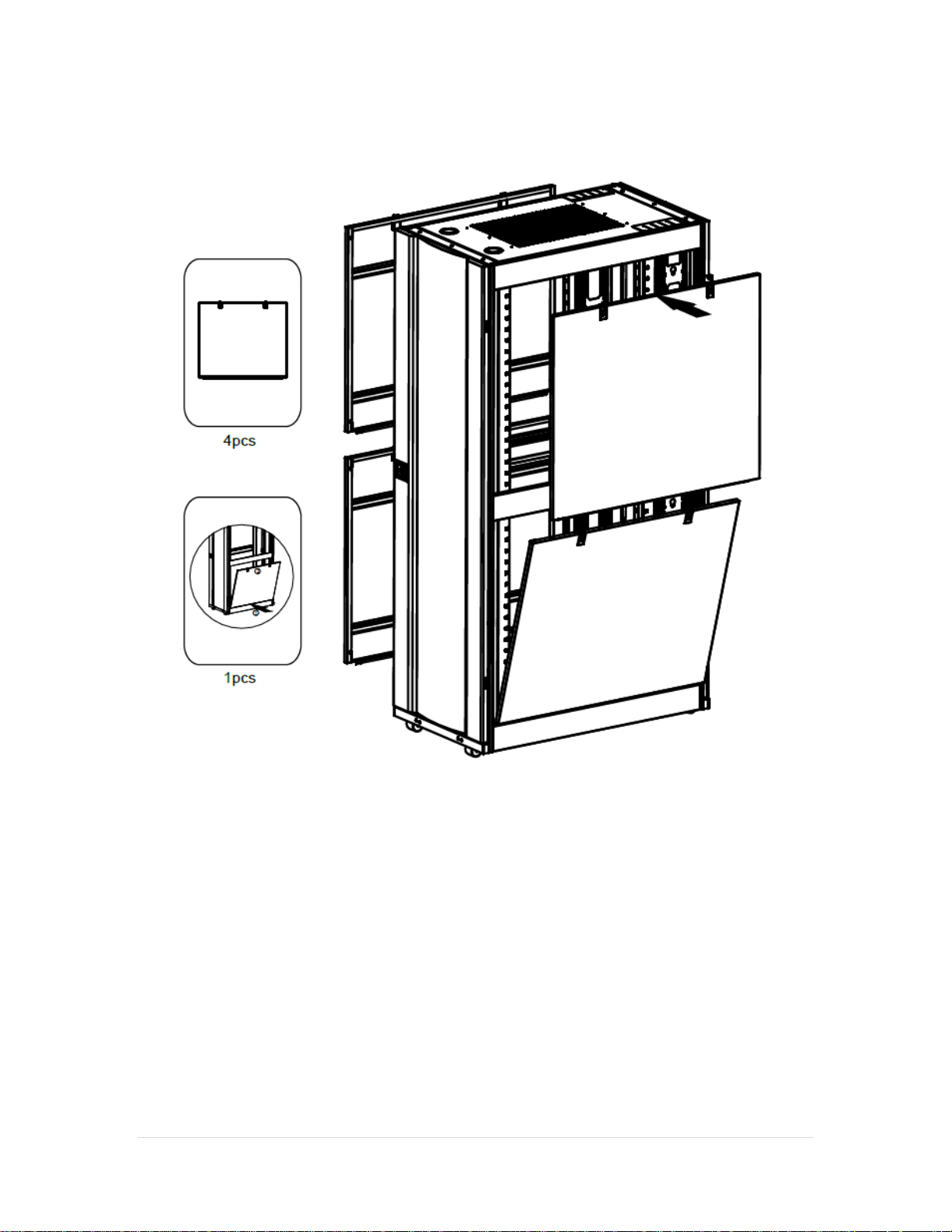

Step 8. Open side panel latch by sliding it downward, then install side panels into the frame.
