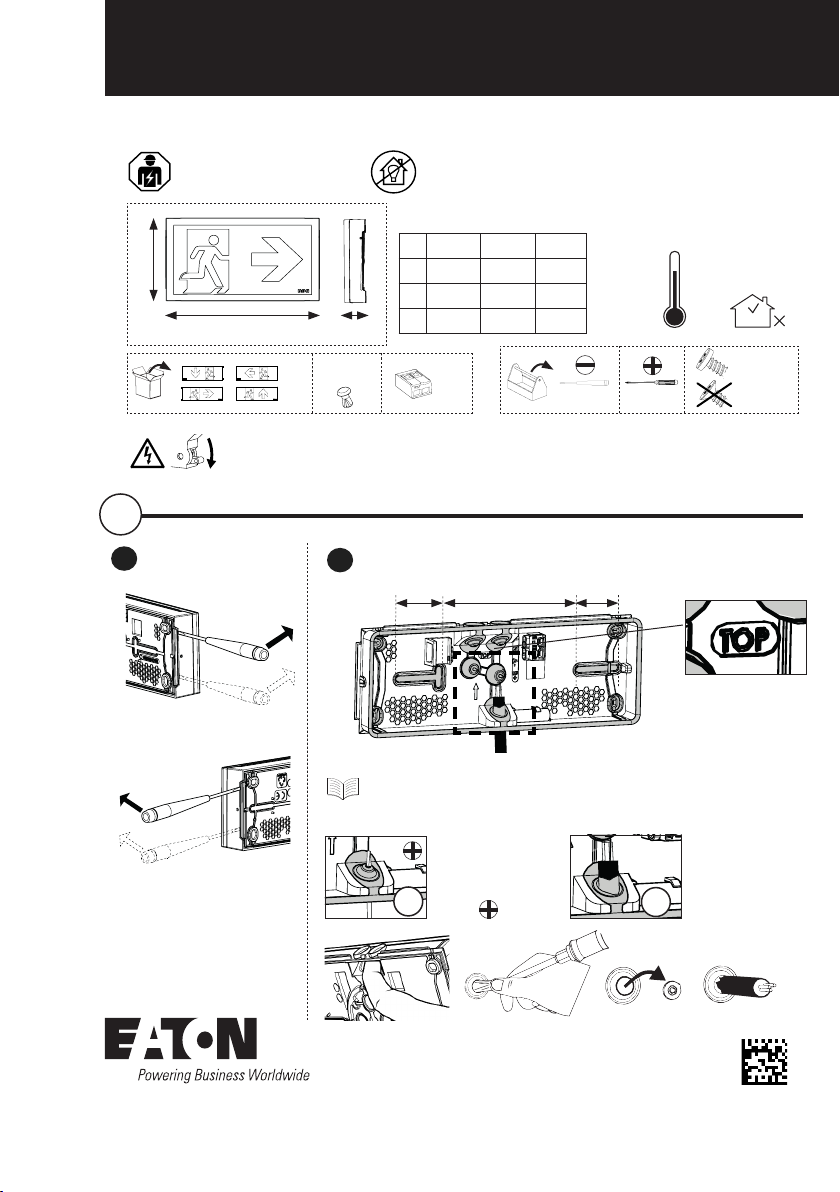

FlexiTech EXIT WALL CG-S

Manual / Betriebsanleitung

ZNO2058300 A 04/2021

Rigid or flexible wire

Starres oder flexibles

Leitungs

6 mm < Ø < 13,5 mm

Break a cable entry by

using a screwdriver.

Leitungseinführung mit

einem Schraubendreher

öffnen.

x 4

L W

12m 20m 30m

L231mm 231mm 326mm

H86mm 125mm 178mm

W34mm 34mm 38mm

Target group: Skilled electricians

Zielgruppe : Elektrofachkraft

Intended application: Emergency lighting, not suitable for private use.

Verwendungszweck: Notbeleuchtung, nicht für privaten Gebrauch.

+ 40 °C

- 20 °C

For working on the installation, please ensure first the emergency lighting system is blocked, the battery operation

is interrupted, and the mains is OFF.

Stellen Sie bei Arbeiten an der Installation sicher, dass zuerst das Notbeleuchtungssystem blockiert, der

Batteriebetrieb unterbrochen und das Stromnetz ausgeschaltet ist.

37 mm 112 mm 33 mm

12M

20M

30M

37 mm 89 mm 37 mm

46 mm 91 mm 44 mm

12/20m: x 2

30m: x4 x2

Ø 5mm

2,5 mm PZ0

x 1

In order to ensure proper aging of the product, use one of the framed cable entries.

Verwenden Sie eine der gerahmten Kabeleinführungen, um eine ordnungsgemäße Alterung

des Produkts zu gewährleisten.

2FLEXITECH EXIT WALL 12M CG-S ZNO2058300 A 04/2021 www.eaton.com

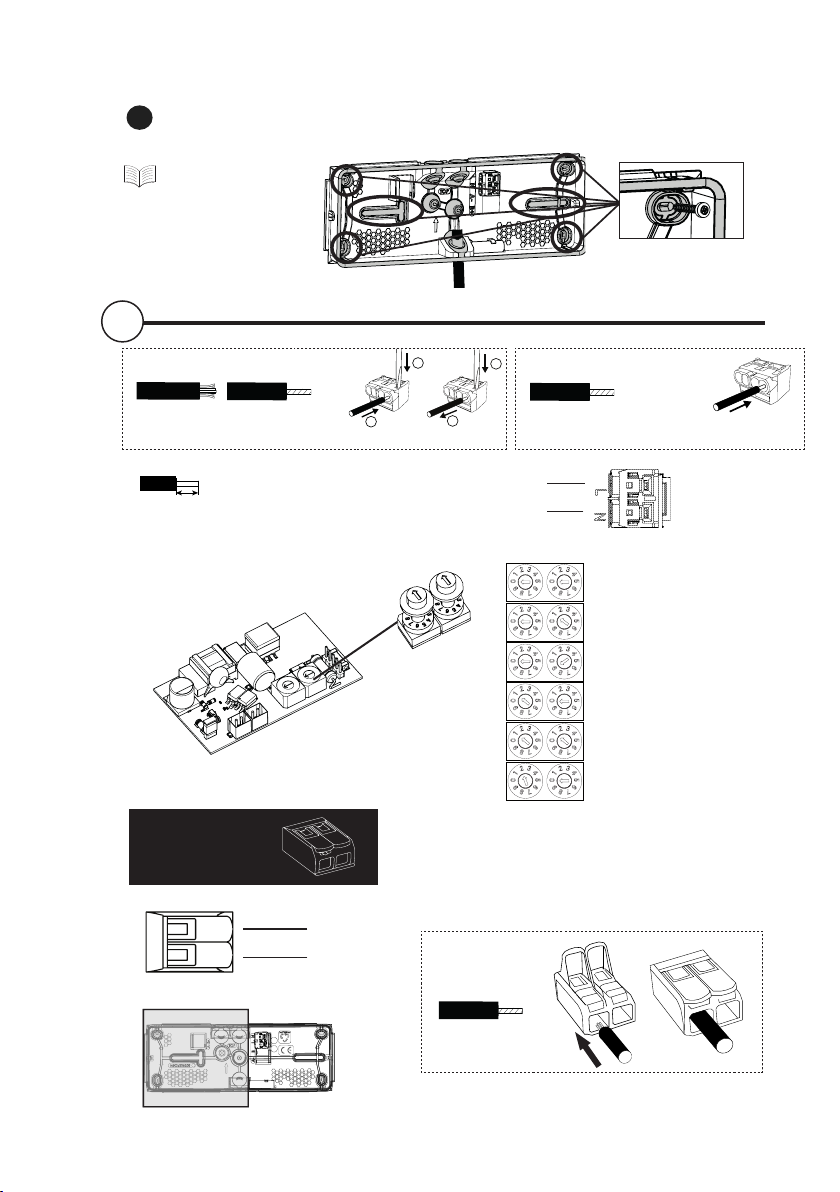

min. 8 mm

S < 1,5 mm²

220-240V AC - 50/60 Hz

176-275V DC

0 + 0 =

0 + 1 = 1

0 + 9 = 9

1 + 0 = 10

1 + 1 = 11

2 + 0 = 20

Max. 20

Addressing/Adressierung

Use screwdriver to place and remove wire

Stecken und Entfernen der Leitungen mittels Schraubendreher

No screwdriver required for connection

Stecken der Leitung ohne Schraubendreher möglich

No address (without CG-S monitoring)/

Keine Adresse (ohne CG-S Überwachung)

Optional

0,5 < S < 2,5 mm²

1,5 < S < 2,5 mm²

IN OUT

cDrill in the honeycomb zones (IP43) or in the 4 f lexible material parts (IP66).

Bohren Sie in den Wabenzonen (IP43) oder im flexiblen Material (IP66).

For corner ﬁxing, use 4

screws.

Zur Befestigung in den

Ecken vier Schrauben

verwenden.

3FLEXITECH EXIT WALL 12M CG-S ZNO2058300 A 04/2021 www.eaton.com

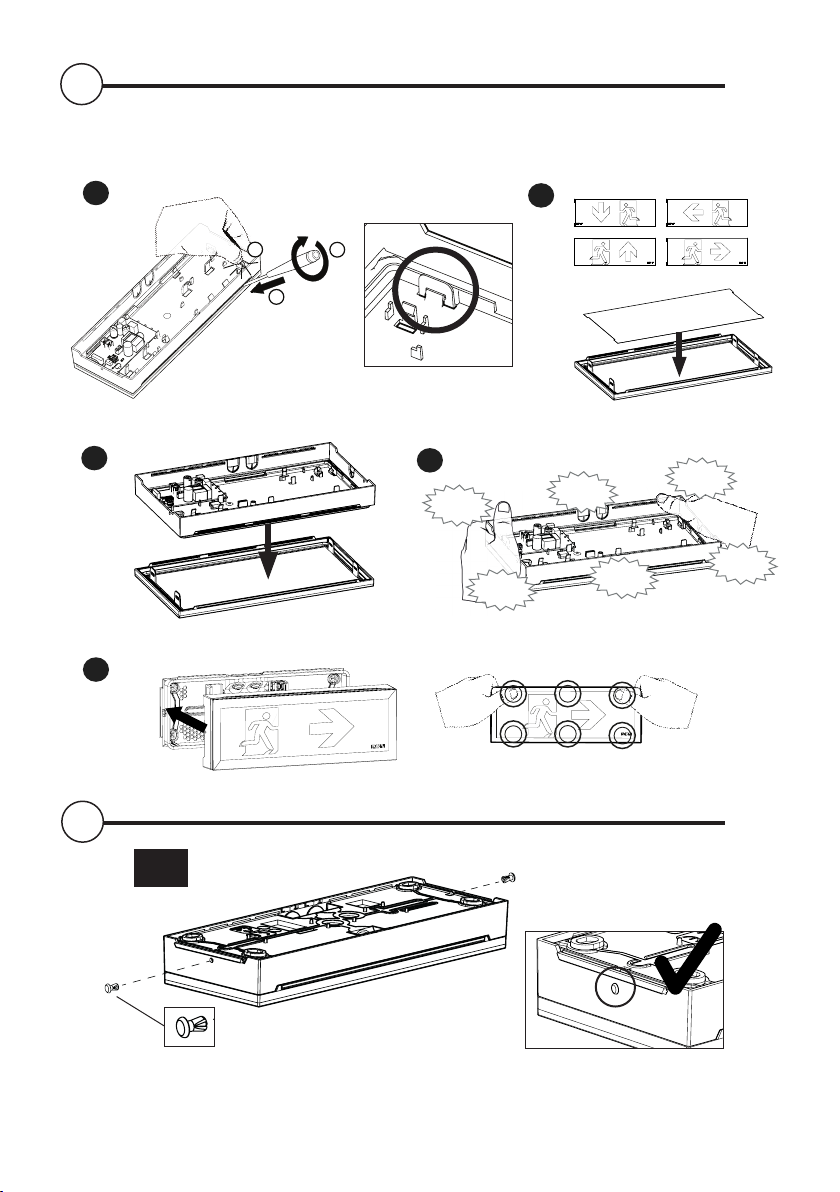

PICTOGRAM CONFIGURATION

PIKTOGRAMM-KONFIGURATION

x 2

12m

CLICK x6

CLICK

x 4

Eaton

Cooper Sécurité SAS

PEE II - Rue Beethoven - BP10184

63204 RIOM CEDEX FRANCE

Tél. +33 (0)825 826 212 (0,15 € TTC/min)

www.cooperfrance.com

www.eaton.com

Eaton

EMEA Headquarters

Route de la Longeraie 7

1110 Morges, Switzerland

Eaton.eu

ZNO2058300 A- 04/2021

Eaton is a registered trademark.

All trademarks are property

of their respective owners.

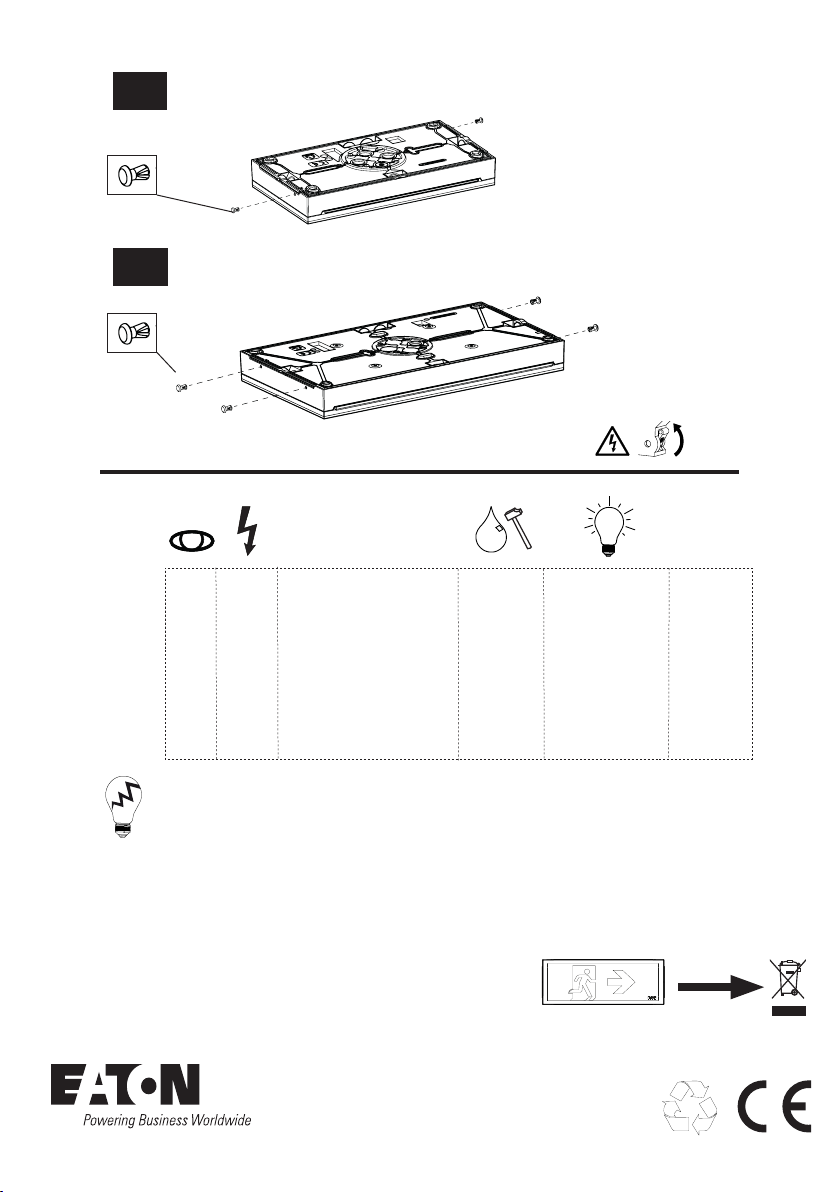

Not replaceable

Nicht austauschbar

IP43 / IK07

220-240Vac, 50/60Hz, 176-275Vdc

EN60598.1

EN 60598.2.22

EN1838/ISO30061

FT1EW4ICGSIP

FT1EW4ICGS 16 x LED 3V 100mA

IP66 / IK07 16 x LED 3V 100mA

12m

IP43 / IK07

FT2EW4ICGSIP

FT2EW4ICGS 16 x LED 3V 180mA

IP66 / IK07 16 x LED 3V 180mA

20m

IP43 / IK07

FT3EW4ICGSIP

FT3EW4ICGS 24 x LED 3V 360mA

IP66 / IK07 24 x LED 3V 360mA

30m

When the life time of light source is over, replace the luminaire.

Wenn das Lebensdauerende der Lichtquelle erreicht wurde, ersetzen Sie

die Leuchte.

3VA /1W

Power consumption mains operation

(apparent/eective power)

Anschlussleistung Netzbetrieb

(Scheinleistung / Wirkleistung)

100 %

Eaton.com/recycling

WEEE: Contact your local dealer

3VA /1W

3.5VA /1.4W

4.6VA /2.1W

x 2

x 4

20m

30m
