Eaton Power Xpert PXGX Manuale di programmazione

Eaton®Power Xpert®Gateway (PXGX) UPS Card

Quick Start Instructions

Package Contents

lPower Xpert Gateway (PXGX) UPS Card

lUSB Cable

lQuick Start Instructions

Power Xpert Gateway

PXGX UPS

EMP Upstream Downstream

100100 Act Act Setup

Restart

Status

DHCP

Ident

Power

Help Desk Numbers

United States 1-800-356-5737 or 1-800-843-9433

Canada 1-800-461-9166 ext 260

All Other Countries Call your local service representative

Web Site www.eaton.com/pxgx

NOTE: On the Web site opening page, click Support and select the

Customer Service link for more information.

Eaton, Power Xpert, PredictPulse and X-Slot are registered trademarks of Eaton

Corporation or its subsidiaries and affiliates. Google Chrome is a trademark of

Google Inc. Linux is a registered trademark of Linus Torvalds. Microsoft and

Windows are registered trademarks of Microsoft Corporation. Mozilla and

Firefox are registered trademarks of the Mozilla Foundation. All other trademarks

are property of their respective companies.

part of this document may be reproduced in any way without the express written

approval of Eaton Corporation.

Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2 1

TABLE OF CONTENTS

Section 1 Installation Checklist ........................................................................ 2

Section 2 Install the Card ................................................................................. 3

Section 3 Connect the Card to the Computer .................................................. 5

Section 4 Install the Driver Software .............................................................. 8

Section 5 Obtain a DHCP-Assigned IP Address ............................................. 13

Section 6 Assign an IP Address Manually ..................................................... 16

Section 7 Disable Browser Compatibility Mode ............................................ 19

Section 8 Register a PredictPulse Subscription ............................................. 21

2 Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2

Section 1 Installation Checklist

1. Verify that the following items are available:

oPower Xpert Gateway (PXGX) UPS Card package contents (card, cable,

Quick Start Instructions)

oPhillips®screwdriver

oAvailable USB port on a computer running Microsoft®Windows®

oWeb browser (Microsoft Internet Explorer® version 8.0 and higher,

Mozilla®Firefox®, or Google Chrome™ are recommended)

2. If you are going to use Dynamic Host Configuration Protocol (DHCP), provide

your local network administrator with the card's MAC address. The MAC

address is located on either the shipping box label or the label on this card.

oMAC Address _____________________________________________

3. If you are not going to use DHCP to provide any of the settings listed below,

contact your local network administrator for the settings.

In the table below, check the DHCP check box or enter the values for manual

configuration.You will reference this data later in the procedure.

4. If you need e-mail functionality, obtain the SMTP IP address or host name.

If using the SMTP host name, verify that you also have the Name Server IP

address (see Step 3).

oSMTP (mail server) IP Address

or Host Name _______________________________

Item DHCP* Manual Configuration

IPv4 oCard IP Address: ________________________

Netmask: ________________________

Gateway: ________________________

DNS – Name Servers oName Server #1: ________________________

Name Server #2: ________________________

Name Server #3: ________________________

DNS – Domain oDomain: ________________________

* The network administrator normally sets up the DHCP server to provide a static IP address each time

the card makes a DHCP request.

Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2 3

Section 2 Install the Card

Note: The hot-swappable PXGX UPS card can be installed without turning off

the UPS or disconnecting the load.

To install the PXGX UPS card:

1. Verify that all six DIP switches on the card are in the OFF position (see

Figure 1).

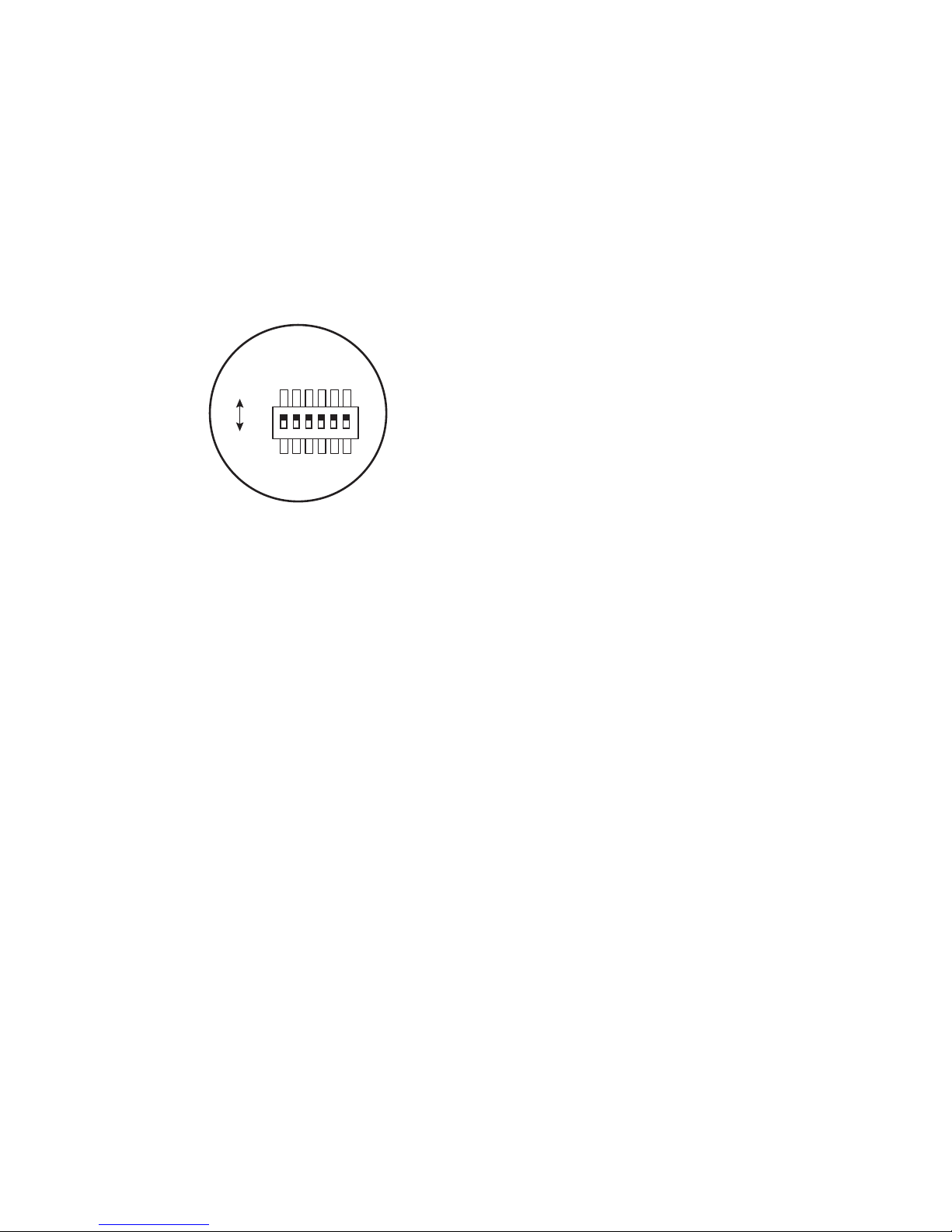

Figure 1. Verify DIP Switches are OFF

2. If not already done, record the MAC address for future reference (see the

“Installation Checklist” on page 2).

3. Remove the X-slot®cover from the UPS. Retain the screws.

Note: If another card is already installed with an attached communication

cable, disconnect the cable and then remove the card.

4. To prevent electrostatic discharge (ESD), place one hand on a metal surface,

such as the UPS panel.

6 5 4 3 2 1

OFF

4 Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2

5. Slide the card into the open slot and secure with the screws removed in

Step 2 (see Figure 2).

Figure 2. Secure the PXGX UPS Card

6. From your laptop, go to www.eaton.com/pxgx.

7. On the Features tab, click the Download Configuration File link to

download the configuration file.

8. Save the driver configuration file (powerxpert.inf) to the C: drive using the

default location or a folder you select. Note the path of the downloaded file

on your computer. (Never download the file to your desktop.)

Power Xpert Gateway

PXGX UPS

EMP Upstream Downstream

100100 Act Act Setup

Restart

Status

DHCP

Ident

Power

Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2 5

Section 3 Connect the Card to the Computer

To connect the card to the computer:

1. Plug the small connector at the end of the supplied USB configuration cable

into the setup port on the card (see Figure 3).

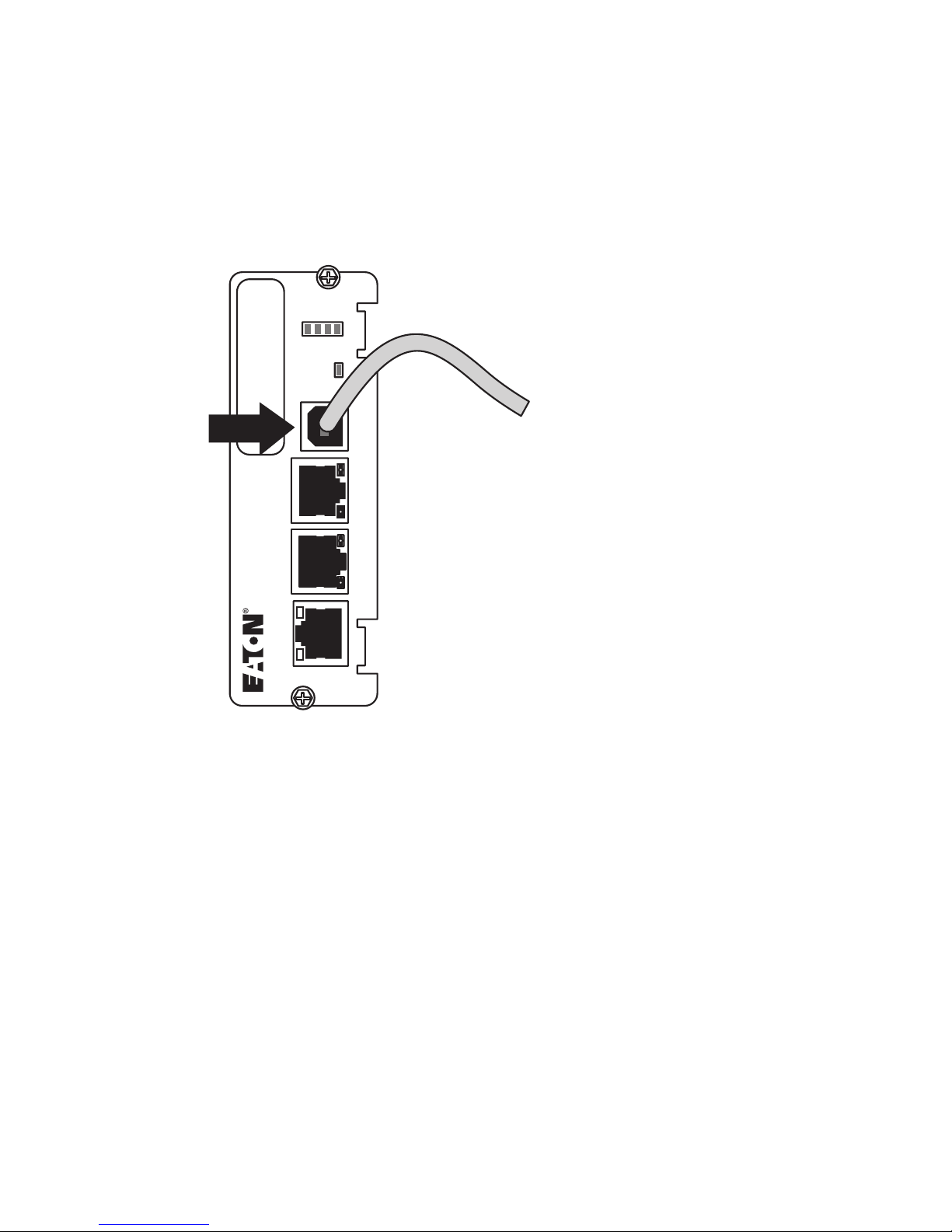

Figure 3. Install the USB Cable

2. Plug the other end of the USB cable into the USB port on the computer. The

Windows operating system detects new hardware.

Note: If a message indicates that the device driver software was not

successfully installed, click Ignore.

Note: You may see a pop-up message window that shows “Found new

hardware.” This indicates that the hardware installed successfully.

Power Xpert Gateway

PXGX UPS

EMP Upstream Downstream

100100 Act Act Setup

Restart

Status

DHCP

Ident

Power

6 Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2

3. Connect an active Ethernet cable (not supplied) to the Upstream Ethernet

connector on the PXGX UPS card (see Figure 4).

4. If you are connecting to another PXGX UPS card or other Ethernet device,

connect an Ethernet cable (not supplied) to the Downstream Ethernet

connector on the PXGX UPS card.

Figure 4. Install the Ethernet Cable

5. Wait for the power light and status light on the installed card to illuminate.

This takes about two minutes.

6. Open a Web browser and type the default IP address (192.168.200.101).

Power Xpert Gateway

PXGX UPS

EMP Upstream Downstream

100100 Act Act Setup

Restart

Status

DHCP

Ident

Power

Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2 7

7. Did the Power Xpert Gateway software open to the PXGX UPS card page?

lIf yes, the driver has already been installed automatically. Either verify the

IP address assigned through DHCP or manually enter a static (fixed) IP

address for the card’s network connection:

a.To verify the DHCP-assigned IP address, go to page 13.

b.To manually enter a fixed IP address, go to page 16.

lIf no, the driver has not been installed. Go to the next section, "Install the

Driver Software" on page 8 in order to confirm that you have the most

current USB Driver software. If not, you need to install or update the USB

Driver software.

8 Eaton Power Xpert®Gateway PXGX UPS Card Quick Start Instructions 164950240—Rev 2

Section 4 Install the Driver Software

The steps you use to install the driver software depend on your operating system

(OS). This procedure provides instructions for installing driver software on a

Windows 7 OS.

Note: Windows 8 steps are basically the same as Windows 7, although the

dialog displays may differ somewhat.

Note: The PXGX UPS and PXGMS cards use the same driver.

Note: You can use either the Device Manager path or the Devices and Printers

path to browse for the driver software and install it. This procedure uses

the Device Manager.

To install the driver from the Device Manager:

1. Click Start in the Start bar. Type Device in the search box.

2. Select Device Manager from the list above the search box. The Device

Manager opens.

3. Locate RNDIS/Ethernet Gadget under either Other Devices or Network

Adapters (see Figure 5).

lIf you do not see RNDIS/Ethernet Gadget in either list, you do not have a

cable connected to the card. Connect the computer to the card. Go back to

Step 1.

lIf RNDIS/Ethernet Gadget is listed under Other Devices, the driver is not

installed. Go to Step 4.

lIf RNDIS/Ethernet Gadget is listed under Network Adapters, a driver is

installed already, but it may not be the most up-to-date driver. Go to Step 4.

and continue this procedure to ensure the most current driver is installed.
