Ebbe INNI E6100-25 Manuale utente

Patents: US14626581, US15192379, US1549663

Visit www.ebbe-america.com Or go to

ebbe America on YouTube for installation videos.

801-820-7200 Hours: M-F 9AM -5PM MST

Orders@ebbe-america.com

IMPORTANT: Always obtain approval from local code

official before installation.

TABLE OF CONTENTS

INNI PARTS LIST....................................................................................................................... 3

INNI DRAIN TERMINOLOGY………………………………………………………………………………………………. 4

CHOOSE AND PREP THE INSTALLATION LOCATION………………………………………………………….. 5

CUTTING THE INNI TO SIZE…………………………………………………………………………………………….. 6

ASSEMBLING THE INNI…………………………………………………………………………………………………… 7-10

WATER TESTING THE INNI …………………………………………………………………………………………….. 11

INSTALLING THE INNI……………………………………………………………………………………………………… 12

CREATE SLOPE AND WATERPROOF SHOWER………………………………………………………………......... 13

ACCESS COVER INSTALL - LARGE TILE………………………………………………………………………………….. 14

ACCESS COVER INSTALL - SMALL TILE………………………………………………………………………………….. 15

IN-SHADOW INSTALLATION DETAILS…………………………………………………………………………………. 16

AT-WALL INSTALLATION DETAILS………………………………………………………………………………………. 17

IN-SIGHT INSTALLATION DETAILS…………………………………………………………………………………….. 18

INNI ACCESSORIES……………………………………………………………………………………………………………. 19

INNI CARE AND MAINTAINENCE GUIDE…………………………………………………………………………….. 20-21

TOOLS AND SUPPLIES NEEDED FOR INSTALL……………………………………………………………………… 22

All Rights Rights Reserved © Ebbe America 2020

INNI PARTS LIST ( FOR KITS E6100-25 E6100-38 AND E6100-50)

TRIM KITS WILL INCLUDE ONE SET OF 14"

⁄−38"

⁄−OR 12"

⁄TRIMS

Congratulations on your purchase of the INNI Line Drain. We

believe you’ll find the INNI to be the best linear drain available.

The INNI drain is the perfect addition to complete your dream bathroom.

These instructions are designed to guide you through:

•Choosing the best installation location for your INNI

•Custom cutting and assembling the INNI to fit your shower.

•Water testing the assembled INNI to ensure no water leaks

•Installing the Trim to create a clean, finished look

22 INNI HAIR TRAP 1 HDPE

INNI DRAIN TERMINOLOGY

The area highlighted in red is the “Collector.” A 4”x6”rectangular hole needs to be made

through the subfloor so the Drain Body can sit flat on the subfloor.

DRAIN BODY

Drain Outlet fits over 2”

ABS waste pipe

For more information visit ebbe-america.com

SUPPORT RIB

DRAIN BODY

ACCESS OPENING

DRAIN OUTLET

MAIN CHANNEL

RAIL

4” X 6” Collector

cut out (See pg. 4)

Drain pipe center based on 1/2”

Wallboard and 3/8” thick wall tile.

Adjust as needed for diﬀerent tile

thickness so the face of wall tile

aligns with Drain Channel side face of

Access cover.

WALL TILE

FLOOR TILE

INNI DRAIN

WATER FLOW

AT-WALL Install

(WALL TILE FLUSH WITH DRAIN CHANNEL)

WATER FLOW

FLOOR TILE

WALL TILE

½” TILE BACKER

IN-SHADOW Install

(WALL TILE OVERHANGS DRAIN CHANNEL)

INNI DRAIN

IN-SIGHT Install

(AT ENTRANCE, CENTER OF SHOWER, ETC)

FLOOR TILE FLOOR TILE

WATER FLOW

INNI DRAIN

IN-SHADOW Plumbing Prep

IMPORTANT: At Entry install requires IN-SIGHT Trim &

shower enclosure. (See pg.18 for more information.)

IN-SIGHT Plumbing Prep

Drain pipe center based on 1/2”

Wallboard and 3/8” thick wall tile.

Adjust as needed for diﬀerent tile

thickness so wall tile will be flush

with Drain Channel when completed.

Your first decision is to determine where the INNI will be installed. Will it be at the entrance

or center of the shower? Will it be against a wall or curb? Will the Drain Channel be hidden

under the wall tile? Keep in mind that your installation options may be limited by obstructions, such

as floor joists, ducting, or plumbing. After you decide where you want to install the INNI, see below

to prepare the installation location. – (See pgs. 16,17,18 for Trim installation details)

All Rights Rights Reserved © Ebbe America 2020

CHOOSE AND PREP THE INSTALLATION LOCATION

4” X 6”

Collector cut

out (See pg. 4)

4” X 6”

Collector cut

out (See pg. 4)

AT-WALL Plumbing Prep

With End Sweeps, the INNI is 73-3/8” long. If your shower isn’t this exact size, cut the

Drain Body to fit your shower. If a longer length is needed, the Drain Coupler kit can be

used to join two INNI’s. (See pg. 19 for information on the Drain Coupler kit).

For more information visit ebbe-america.com

Mark the Final DrainBody Cut:

•Put the Drain Body in the desired location

•Place the left and right End Sweeps against

the left and right walls respectively.

•Use a square and pen to mark the Drain

Body at the End Sweep drop down location

as shown. The Drain Body is now ready for

the final cut.

Dry Fit the Drain:

After cutting, de-burr parts, dry-fit the

Drain Body and End Sweeps together and

verify the assembly fits the space. Adjust

as needed.

a Rough Cut the Drain Body:

Measuring from the center of the waste pipe, cut the Drain Body within 4” of each wall so it fits

into the space and connects to the waste pipe. Don’t worry the Drain Body is cut short of the

walls; the End Sweeps will make up the remaining distance.

4” MAX

cFinal Cut of the Drain Body:

Cuts can be made with a variety of tools,

however, make sure cuts made to the

Drain Body are NEAT andSQUARE.

CUTTING THE INNI TO SIZE

All Rights Rights Reserved © Ebbe America 2020

Remove Support Rib (Only if Needed):

IF the final cut intersects a Support Rib on the Drain Body, then you will need to remove the overhung

portion of the Support Rib on the Ramp so they won’t interfere with each other when the End Sweeps

are connected.

Bond Left and Right Transition Ramps into End

Sweeps

Bond the Ramps into the End Sweeps using the

Squeeze Bottle and ABS cement. Clean off any

excess cement.

Identify the Correct Transition Ramps:

On the under-side of the Drain Body you will see zones marked A,B,C, D (1). Transition Ramps (2) are also

marked A,B,C, or D. Choose the Ramp that matches the zone where the final cut has been made. Dry fit the

Ramps to each End Sweep. Ramps provide a smooth transition between the Main Channel and the End

Sweep.

ASSEMBLING THE INNI

Install the Transition Ramps to create a smooth internal flow surface, permanently connect

the End Sweeps to the Drain Body, install the End Sweep Decks and add aluminum Rails for

strength.

(1) (2)

Support Rib

1. Install Transition Ramps

Ribs may interfere depending

on Drain Body Cut

Drill First, Then Countersink for Screws

1. Use the Drill Guide and Drill Bit to create holes at the four corners of the Drain Body.The

drilled holes must align precisely with the pilot holes in the End Sweep.

2. Use the Countersink Guide to recess the holes for the Screw heads. The Countersink Guide limits

countersink depth and ensures the Screws will be flush with the Drain Body.

2. Attach Left and Right End Sweeps

Seat Drill Guide into

the corner of the Drain

Body. Holes Must Be

Accurately Located.

Prepare to Attach the End Sweep to the Drain Body:

1. Pour ABS cement into the Squeeze Bottle and apply two lines of ABS cement to the End

Sweep as shown below. Use sufficient cement to allow a small amount of "squeeze out."

2. Use Cotton Swabs to remove excess cement at inner drain seam.

IMPORTANT: Apply two lines of ABS cement as shown to provide for air escape during assembly.

If air is trapped by improper application, it can create a pathway for water escape.

Remove excess

cement from here.

1 2

For more information visit ebbe-america.com

Attach End Sweep to the Drain Body:

After applying ABS cement, you have approximately 30 seconds to join the End Sweep with the

Drain Body using the provided Screws. Remove any excess ABS cement from the Main Channel

flow surfaces.

Fill Gaps with ABS Cement

“Caulk”the back side of the End

Sweep and Drain Body joint with

ABS cement. Fill any visible gaps

with ABS cement and let cure.

Prep for End Sweep Deck:

Apply ABS cement to the top of the curved

Rib and Support Ribs as shown.

3. Install End Sweep Decks

Install the End Sweep Deck:

Push the Deck into position. When fully

seated, the Deck should sit flush with

the surrounding surfaces.

CAUTION: Attempting to adjust the End Sweep/Drain Body alignment after the ABS

cement has cured will cause a joint failure.

Place the INNI on a block at the

joint to prevent misalignment

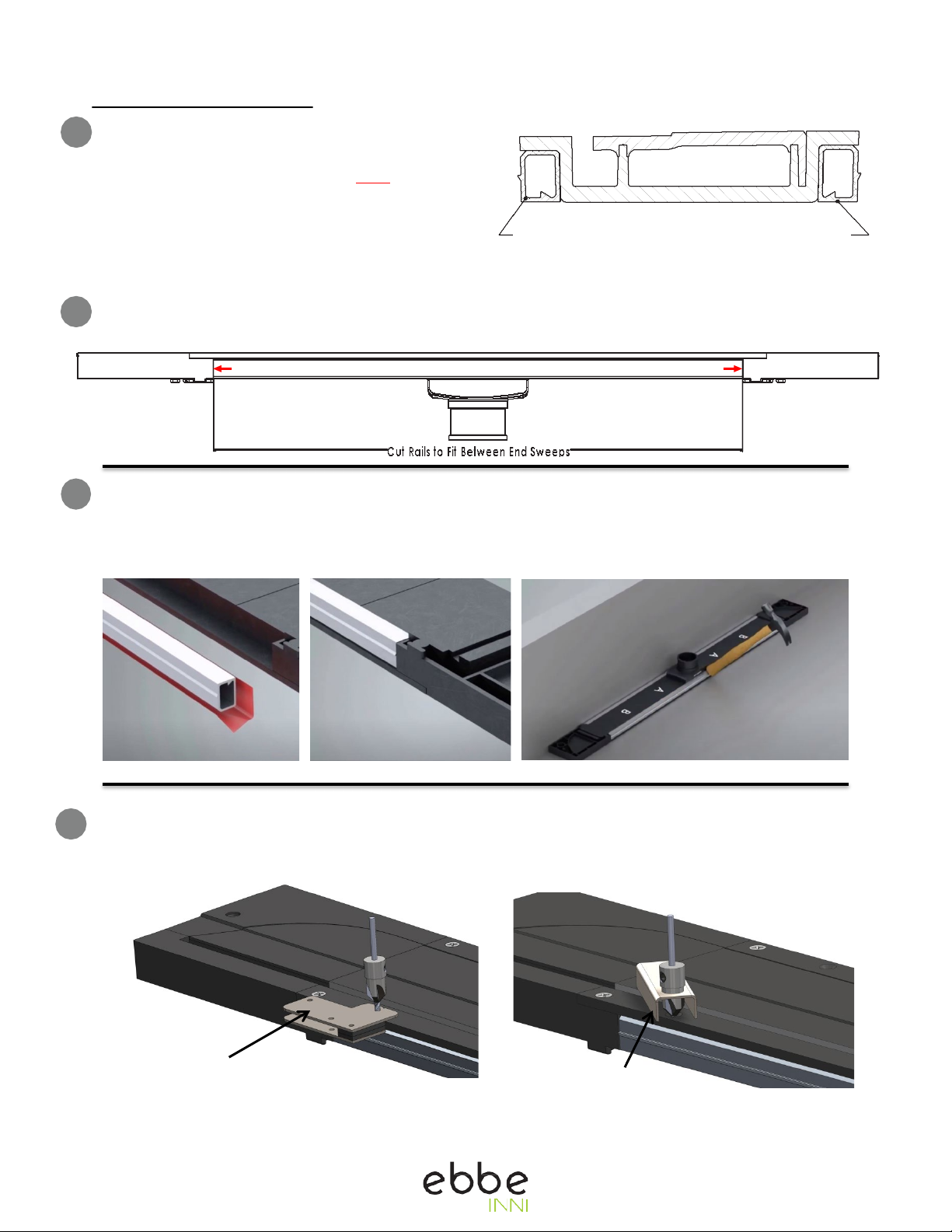

IMPORTANT: Two aluminum Rails are provided

with the INNI and will need to be shortened if the

drain has been cut. The Rails are NOT the same

height. The Drain Channel Rail (short) is labeled.

You can verify that the Rails are in the correct

locations if they are flush with the bottom of the

Drain Body.

Drill and Countersink for Rail Attachment Screws: Use the Drill Guide, Countersink Guide, and Drill Bit

to make six countersunk holes through the Drain Body and Rails. Screws should be roughly placed at

each end and center of both Rails. Do not over-tighten the Screws.

Congratulations! Assembly is complete.

3. Install Stiffening Rails

Measure and Cut Rails: Measure the distance between the End Sweeps and cut the Rails to length.

Both Rails should be the same length.

bClean Surfaces and Install Rails: Clean the surfaces where the Rails will be mounted. Remove the

pink release liner from one Rail and forcefully install the Rail into position. Use a piece of wood

to push and rub along the length of the Rail to make sure it is completely seated. Repeat this

process for the opposite rail.

Drill Guide Countersink

Guide

Drain Channel Rail Main Channel Rail
