Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

Contents

Disclaimer............................................................................................................................................................. 3

1. Overview...........................................................................................................................................................4

1.1 Brief Introduction.................................................................................................................................... 4

1.2 Features....................................................................................................................................................4

1.3 Application...............................................................................................................................................4

2. Specification and parameter..............................................................................................................................5

2.1 Limit parameter........................................................................................................................................5

2.2 Operating parameter................................................................................................................................ 5

3. Size and pin definition...................................................................................................................................... 6

4. Recommended circuit diagram......................................................................................................................... 7

5. Hardwar design.................................................................................................................. 错误！未定义书签。

6. FAQ................................................................................................................................................................... 8

6.1 Communication range is too short........................................................................................................... 8

6.2 Module is easy to damage........................................................................................................................8

6.3 BER(Bit Error Rate) is high.....................................................................................................................8

7. Production guidance..........................................................................................................................................9

8. E30 series.......................................................................................................................................................... 9

9. Antenna guide....................................................................................................................................................9

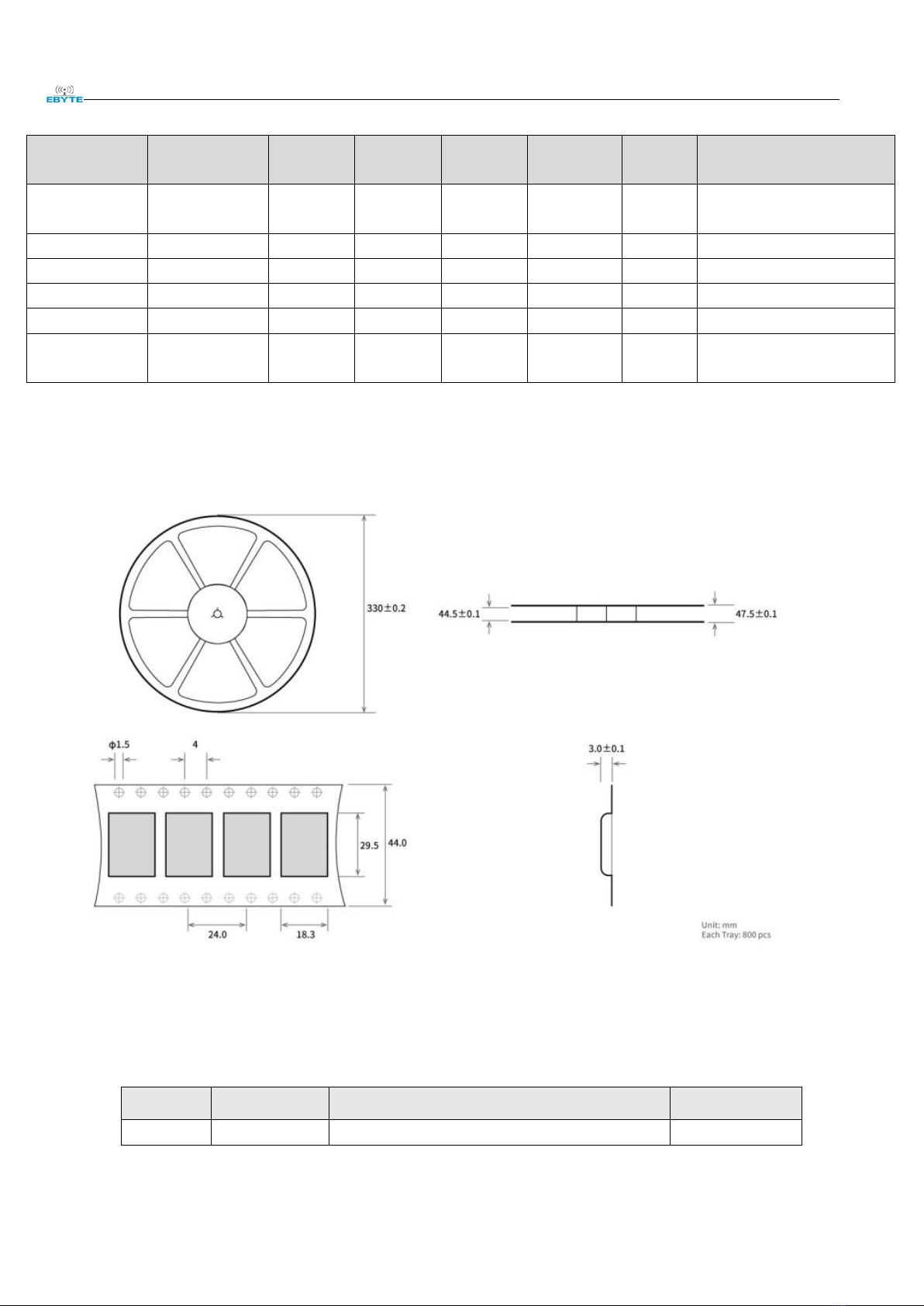

10. Package method for bulk order..................................................................................................................... 10

Revision history.................................................................................................................................................. 10

About us.............................................................................................................................................................. 11

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

Disclaimer

The information in this document, including the URL address for reference, is

subject to change without notice. The document is provided "as is" without any

guarantee responsibility, including any guarantee for marketability, suitability for a

specific purpose, or non-infringement, and any guarantee for any proposal,

specification or sample mentioned elsewhere. This document does not bear any

responsibility, including the responsibility for infringement of any patent rights caused

by the use of the information in this document. This document does not grant any

license for the use of intellectual property rights in estoppel or other ways, whether

express or implied.

The test data obtained in the article are all obtained by the Ebyte laboratory, and

the actual results may vary slightly.

We hereby declared that all brand names, trademarks and registered trademarks

mentioned in this document are the property of their respective owners.

The final interpretation right belongs to Chengdu Ebyte Electronic Technology

Co., Ltd.

Notice :

Due to product version upgrades or other reasons, the contents of this manual may be changed. Ebyte

Electronic Technology Co., Ltd. reserves the right to modify the contents of this manual without any

hint or noticet. This manual is only used as a guide. Chengdu Ebyte Electronic Technology Co., Ltd.

makes every effort to provide accurate information in this manual. However, we does not guarantee

that the contents of the manual are completely free of errors. All statements, information and

suggestions in this manual do not constitute any express or implied guarantee.

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

1 OVERVIEW

1.1 Brief Introduction

E30-400M20S is a hardware module (SPI) based on the SI4463 RF chip

imported from Silicon Labs. It is a half-duplex, SMD integrated transceiver

with transparent transmission available. With working frequency band 425～

525MHz, transmitting power 100mW, it is suitable for a variety of

environments. The original imported SI4463 RF chip from Silicon Labs(USA)

features high receiving sensitivity and strong anti-interference, supporting the

development of low power consumption as well. It has been widely used in

various industries and has the characteristics of stable performance, long

transmission distance, and strong ability of penetration and diffraction, etc.

1.2 Features

The measured communication distance can reach 2500m;

Maximum transmission power: 100 mW;

Support 425-525MHz ultra-wide frequency band;

Support air date rate of 1k～25kbps;

Support 1.8～3.6V power supply, power supply over 3.3 V can guarantee the best performance;

Industrial grade standard design, support -40 ~ 85 °C for working over a long time;

1.3 Application

Home security alarm and remote keyless entry;

Smart home and industrial sensors, etc.;

Wireless alarm security system;

Building automation solutions;

Wireless industrial-grade remote control;

Intelligent agriculture and oilfield solutions;

Health care products;

Advanced Meter Reading Architecture(AMI);

Automotive industry applications.

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

2 Specification and Parameter

2.1 Limit Parameter

Main parameter

Performance

Remark

Min

Max

Power supply（V）

1.8

3.6

Voltage over 3.6V will cause permanent damage to

module

Blocking power（dBm）

Chances of burn is slim when modules are used in

short distance

Operating temperature（℃）

-40

+85

Industrial grade

2.2 Operating Parameter

Main parameter

Performance

Remark

Min

Typical

Max

Operating voltage（V）

1.8

3.3

3.6

3.3 V ensures output power

Communication level（V）

3.3

For 5V TTL, it may be at risk of burning down

Operating temperature（℃）

-40

+85

Industrial grade

Operating frequency（MHz）

425

525

Power

Consump

- tion

TX current（mA）

100

130

Instant power consumption

RX current（mA）

16.5

Sleep current （μA）

2.5

Max TX power（dBm）

Receiving sensitivity（dBm）

-113

-115

-116

Air data rate is1kbps

Main parameter

Description

Remark

Reference distance

2.5Km

Test condition：clear and open area, antenna gain: 5dBi，

antenna height: 2.5m，air data rate: 1kbps

Modulation

GFSK

Communication Interface

SPI

Max. rate 10Mbps

Package

SMD

Interface method

Stamp Hole

Size

20*14mm

Antenna

IPEX/STAMP

50 ohm impedance

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

3 Size and Pin definition

Pin No.

Item

Direction

Description

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GPIO_2

Output

Configurable universal GPIO port (see SI4463manual for details)

GPIO_3

Output

Configurable universal GPIO port (see SI4463manual for details)

GPIO_1

Output

Configurable universal GPIO port (see SI4463manual for details)

VCC

Power supply, 2.5~3.6V, 3.3V is recommended (It is also recommended to add

external ceramic filter capacitor)

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GND

Ground wire, connected to the power reference ground

GPIO_0

Output

Configurable universal GPIO port (see SI4463manual for details)

IRQ

Output

SPI interrupt request

SDN

Shutdown Input Pin. It is low level when working

(See SI4463 manual for more details)

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

MISO

Output

SPI master output slave input

MOSI

Input

SPI master input slave output

SCK

Input

Serial Clock Input

nSEL

Input

SPI Chip select for starting SPI communication

GND

Ground wire, connected to the power reference ground

ANT

Input/Output

Antena

GND

Ground wire, connected to the power reference ground

4 Recommended circuit diagram

5 Hardware design

It is recommended to use a DC stabilized power supply. The power supply ripple factor is as small as possible and the

module needs to be reliably grounded;

Please pay attention to the correct connection of the positive and negative poles of the power supply, reverse connection

may cause permanent damage to the module;

Please check the power supply to ensure that between the recommended supply voltage, if exceeding the maximum, the

module will be permanently damaged;

Please check the stability of the power supply. Voltage can not fluctuate greatly and frequently;

When designing the power supply circuit for the module, it is often recommended to reserve more than 30% of the

margin, so the whole machine is beneficial for long-term stable operation;

The module should be as far away as possible from the power supply, transformers, high-frequency wiring and other

parts with large electromagnetic interference;

Bottom Layer High-frequency digital routing, high-frequency analog routing, and power routing must be avoided under

the module. If it is necessary to pass through the module, assume that the module is soldered to the Top Layer, and

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

the copper is spread on the Top Layer of the module contact part(well grounded), it must be close to the digital part

of the module and routed in the Bottom Layer;

Assuming the module is soldered or placed over the Top Layer, it is wrong to randomly route over the Bottom Layer or

other layers, which will affect the module's spurs and receiving sensitivity to varying degrees;

It is assumed that there are devices with large electromagnetic interference around the module that will greatly affect

the performance. It is recommended to keep them away from the module according to the strength of the

interference. If necessary, appropriate isolation and shielding can be done;

Assume that there are traces with large electromagnetic interference (high-frequency digital, high-frequency analog,

power traces) around the module that will greatly affect the performance of the module. It is recommended to stay

away from the module according to the strength of the interference.If necessary, appropriate isolation and shielding

can be done;

If the communication line uses a 5V level, a 1k-5.1k resistor must be connected in series (not recommended, there is

still a risk of damage);

Try to stay away from some physical layers such as TTL protocol at 400MHz;

The mounting structure of antenna has a great influence on the performance of the module. It is necessary to ensure that

the antenna is exposed, preferably vertically upward.

When the module is mounted inside the case, use a good antenna extension cable to extend the antenna to the outside;

When the antenna is installed inside a metal case, it will cause the transmission distance to be greatly weakened.

6 FAQ

6.1 Communication range is too short

The communication distance will be affected when obstacle exists;

Data lose rate will be affected by temperature, humidity and co-channel interference;

The ground will absorb and reflect wireless radio wave, so the performance will be poor when testing near ground;

Sea water has great ability in absorbing wireless radio wave, so performance will be poor when testing near the sea;

The signal will be seriously affected when the antenna is near metal object or put in a metal case;

Power register was set incorrectly or air data rate is set as too high (the higher the air data rate, the shorter the distance);

The power supply low voltage under room temperature is lower than our recommendation, the lower the voltage, the

lower the transmitting power;

Due to antenna quality or poor matching between antenna and module.

6.2Module is easy to damage

Please check the power supply source, ensure it is 1.8V~3.6V, voltage higher than 3.6V will damage the module;

Please check the stability of power source, the voltage cannot fluctuate too much;

Please make sure anti-static operation when installing and using, high frequency devices have electrostatic

susceptibility;

Please ensure the humidity is within limited range, some parts are sensitive to humidity;

Please avoid using modules under too high or too low temperature.

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

6.3 BER(Bit Error Rate) is high

There are co-channel signal interference nearby, please be away from interference sources or modify

frequency and channel to avoid interference;

Poor power supply may cause messy code. Make sure that the power supply is reliable;

The extension line and feeder quality are poor or too long, so the bit error rate is high.

7 Production guidance

This product is a SMD module. When soldering the module, the soldering personnel must work in accordance with

the anti-static operation specification;

This product is an electrostatic sensitive product. If the module is not welded according to the specification, the

module may be permanently damaged.

8 E30 series

Model No.

Frequency

power

dBm

Distance

Air data rate

bps

Package

Size

Antenna

E30-170T20D

SI4463

170M

2.0

1k～25k

DIP

21 * 36

SMA-K

E30-170T27D

SI4463

170M

5.0

1k～25k

DIP

24 * 43

SMA-K

E30-433T20S3

SI4438

433M

2.5

1k～25k

SMD

16 * 26

IPEX/STAMP

E30-433T20S

SI4438

433M

2.5

1k～25k

SMD

17 * 30

IPEX/STAMP

E30-433T20D1B

SI4438

433M

2.5

1k～25k

DIP

21 * 36

SMA-K

E30-490T20S

SI4438

490M

2.5

1k～25k

SMD

17 * 30

IPEX/STAMP

E30-490T20D

SI4438

490M

2.5

1k～25k

DIP

21 * 36

SMA-K

E30-780T20S

SI4463

780M

2.5

1k～25k

SMD

17 * 30

IPEX/STAMP

E30-868T20D

SI4463

868M

2.5

1k～25k

DIP

21 * 36

SMA-K

E30-868T20S

SI4463

868M

2.5

1k～25k

SMD

17 * 30

IPEX/STAMP

E30-915T20D

SI4463

915M

2.5

1k～25k

DIP

21 * 36

SMA-K

E30-915T20S

SI4463

915M

2.5

1k～25k

SMD

17 * 30

IPEX/STAMP

9 Antenna recommendation

The antenna is an important role in the communication process. A good antenna can largely improve the communication

system. Therefore, we recommend some antennas for wireless modules with excellent performance and reasonable price.

Chengdu Ebyte Electronic Technology Co.,Ltd E30-400M20S User Manual

10 Package method for bulk order

Revision history

Version

Date

Description

Issued by

1.0

2021-06-09

Content updated

Linson

Model No.

Type

Frequeny

Interface

Gain

dBi

Hight

Cable

Function feature

TX433-JZLW-15

Rubber

433M

IPEX 1

3.0

165

150

Rubber antenna for cabinet,

omnidirectional

TX433-FPC-5711

FPC

433M

IPEX 1

2.5

Cost-effective

TX433-PCB-3207

PCB

433M

IPEX 1

2.0

PCB antenna,

TX433-FPC-4516

FPC

433M

IPEX 1

2.0

120

Cost-effective

TX433-FPC-3208

FPC

433M

IPEX 1

2.0

Cost-effective

TX470-JZLW-15

Rubber

470MHz

IPEX 1

3.0

155

150

Rubber antenna for cabinet,

omnidirectional

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ebyte Modulo wireless

Ebyte

Ebyte E70-433NW14S Manuale utente

Ebyte

Ebyte E22-900T22S1C Manuale utente

Ebyte

Ebyte E18-MS1PA1-IPX Manuale utente

Ebyte

Ebyte E180-Z5812SP Manuale utente

Ebyte

Ebyte E10-433MS Manuale utente

Ebyte

Ebyte E220-900T30D Manuale utente

Ebyte

Ebyte E70-868T14S2 Manuale utente

Ebyte

Ebyte E32-170T30D Manuale utente

Ebyte

Ebyte E180-ZG120B Manuale utente

Ebyte

Ebyte E220-400T22S Manuale utente

Ebyte

Ebyte E30-433T20S Manuale utente

Ebyte

Ebyte E831-RTU Series Manuale utente

Ebyte

Ebyte E32 Series Manuale utente

Ebyte

Ebyte E18-MS1PA2-IPX Manuale utente

Ebyte

Ebyte E220-230T30D Manuale utente

Ebyte

Ebyte E49-400T20S Manuale utente

Ebyte

Ebyte E70-900T S Series Manuale utente

Ebyte

Ebyte E104-BT54S Manuale utente

Ebyte

Ebyte E22-230T30D Manuale utente

Ebyte

Ebyte E30-900M20S Manuale utente

Ebyte

Ebyte E220P-400T22S Manuale utente

Ebyte

Ebyte E49-400T30S Manuale utente

Ebyte

Ebyte E70-433T14S Manuale utente

Ebyte

Ebyte E220-400T30S Manuale utente

Manuali Modulo wireless popolari di altre marche

Laird

Laird RM024 Manuale utente

Laird

Laird BT830-SA Guida rapida alla configurazione

Fibocom

Fibocom FM101-NA-20 Istruzioni per l'installazione

Waldmann

Waldmann EnOcean TALK MODUL G2 Manuale utente

Smartech

Smartech LBT-1.DO4 Manuale utente

Cooper Wiring Devices

Cooper Wiring Devices ESPIRE RF RFAPM Manuale utente

Yuga

Yuga CLM920 Manuale utente

Waldmann

Waldmann TALK Bluetooth Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions UC864-G Manuale di installazione

Quectel

Quectel SC690A Series Supplemento

Panasonic

Panasonic INDUSTRY PAN9028 Guida rapida alla configurazione

LongSung Technology

LongSung Technology U9507E Manuale utente

Wistron NeWeb

Wistron NeWeb DNUR-S2 Manuale utente

RF-Star

RF-Star SimpleLink RF-BM-2652P1 CC2652P Manuale utente

CHIEF

CHIEF AVMW Manuale utente

Huawei

Huawei EM701 Manuale utente

SIYI

SIYI FTM30 Manuale utente

RF-Star

RF-Star RF-BM-4055B1L Manuale di istruzioni
