Eccotemp L10 Manuale utente

EccoTemp Systems, LLC

Volume EU1, Issue 1

THE FUTURE OF EFFICIENCY

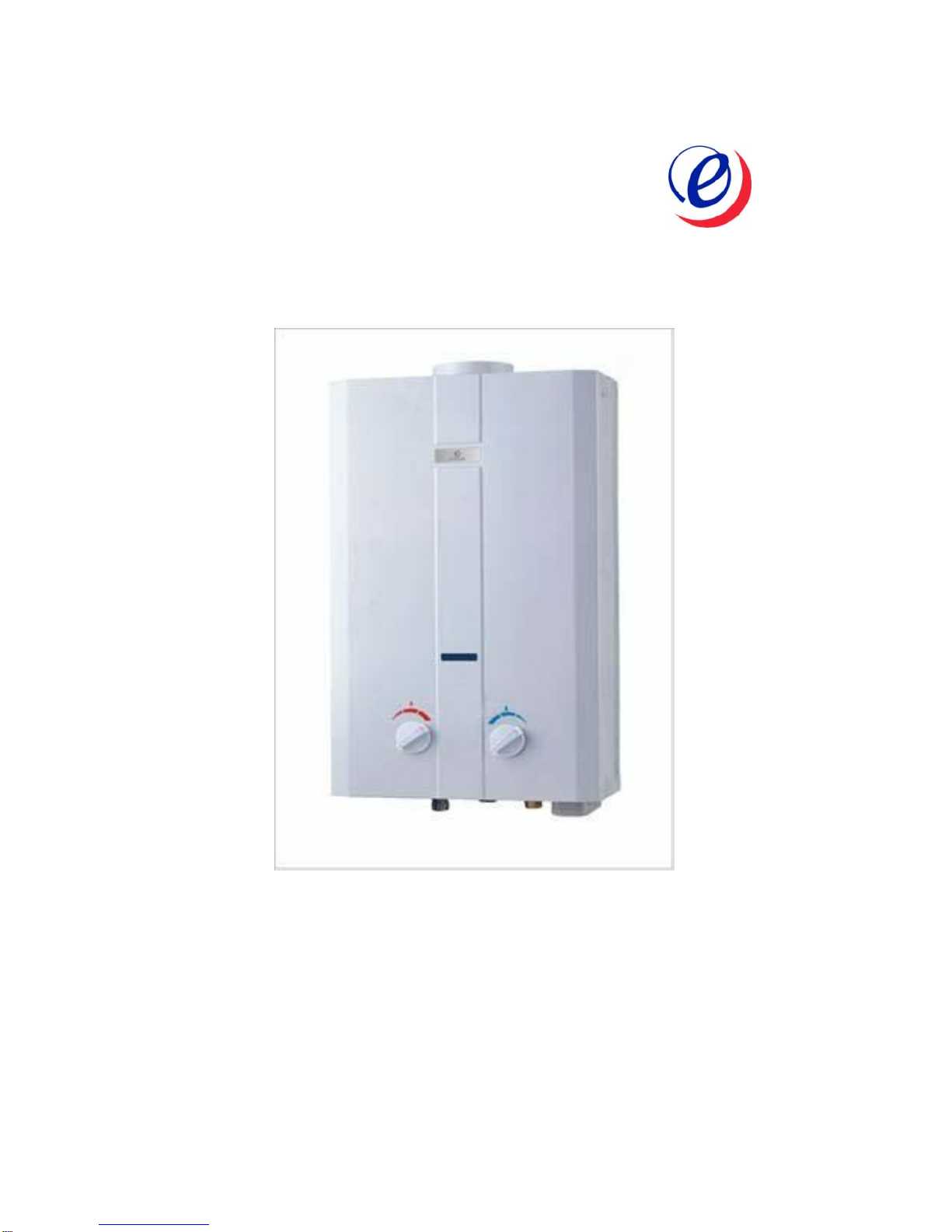

10 LITER OUTDOOR MOUNT LIQUID PROPANE WATER HEATER

L10 Liter Outdoor

Tankless Water Heater

Table of Contents

Use and Care Introduction.............................................................3

WARNINGS ...................................................................................4

The Purpose and Benefits of the L10............................................7

Functions and Features.................................................................8

Getting Started.............................................................................10

Installation/Use ............................................................................12

Adjustment…………………………………………………………….14

Troubleshooting……………………………………………………... 16

Additional Products......................................................................20

This water heater complies with Gas Appliance Directive

2009/142/EC (ex-90/396/EEC)

The purpose of this manual is twofold; one, to provide the installer

with the basic directions and recommendations for the proper

installation and adjustment of the water heater, and two, to the

owner operator, to explain the features, operation, safety

precautions, maintenance and troubleshooting of the water heater.

This manual also includes a parts list.

It is imperative that all persons who are expected to install,

operate, or adjust this water heater read the instructions carefully

so they may understand how to perform these functions. If you do

not understand these instructions or any terms within, seek

professional advice.

Any questions regarding the operation, maintenance service or

warranty of this water heater should be directed to Eccotemp

Systems, LLC or one of its International Distributors directly.

North America: Eccotemp Systems, LLC, 866.356.1992 Toll Free

or support@eccotemp.com

UK: Abbas Cabins, LTD, +44 01202 5900008,

abbascabins@eccotemp.com

Netherlands/Germany: KIIP, +0031 229582915,

kiip@eccotemp.com

Do not destroy this manual. Please read carefully and keep in a

safe place for future reference.

California Proposition 65 Warning: This product contains

chemicals known to the State of California to cause

cancer, birth defects, or other reproduction harm.

Use & Care Manual –L10

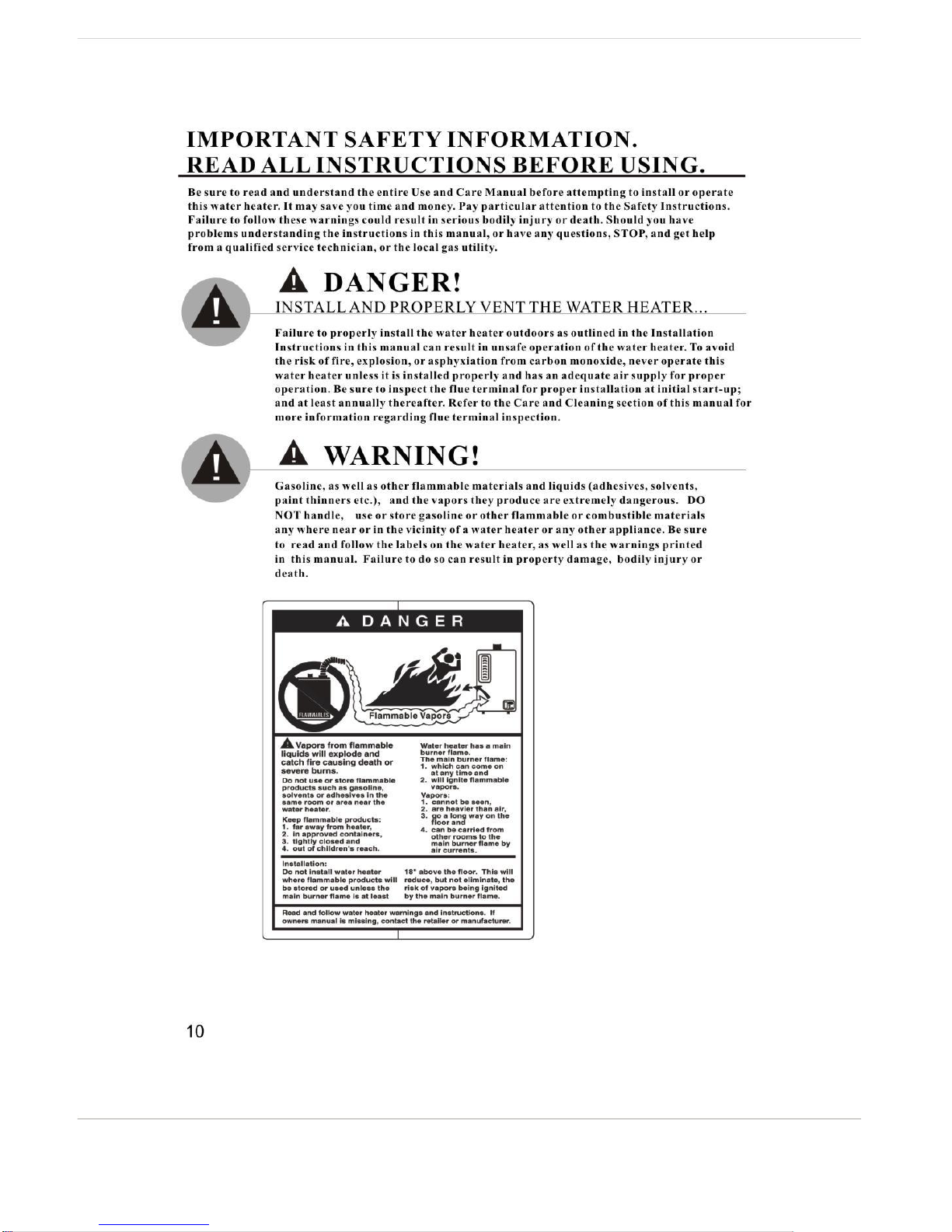

WARNING: If the information in these instructions is not followed

exactly, a fire or explosion may result causing property damage,

personal injury or death.

The Purpose and Benefits the L-10

The EccoTemp L-10 is a liquid propane fired water heater capable

of delivering 2 to 2.65 gallons of hot water almost anywhere. The

unit has standard 1/2“NPT pipe fittings and an adapter for using a

standard garden hose for inlet water supply.

The L-10 is not a toy. People around the world use similar units to

heat the water in their homes, safely, and reliably.

Gas is supplied from a standard 20 pound propane cylinder (not

included) such as used with outdoor grills. A regulator with hose is

furnished with the heater.

The unit includes a stainless steel rain cap that is to help venting

of the flue gases as well as protect it for outdoor usage.

Ignition is automatic and powered by 2 “D” cell batteries (not

included). Burners come on when water flows, and off when the

water is shut off. No pilot light!

NATURAL GAS AND LIQUIEFIED PRETROLEUM MODELS

Both LP and natural gas have an odorant added to aid in the

detecting a gas leak. Some people may not physically be able to

smell or recognize this odorant. If you are unsure or unfamiliar

with the smell of LP or NG, ask the gas supplier. Other conditions

such as “odorant fade”, which causes the odorant to diminish in

intensity, can also hide or camouflage a gas leak.

Water heaters utilizing LP gas are different from natural gas

models. A natural gas water heater will not function safely on LP

gas and vice versa

No attempt should ever be made to convert the water heater

from NG to LP gas. To avoid possible equipment damage,

personal injury, or fire, do not connect the water heater to a fuel

type not in accordance with the data plate.

LP gas must be used with great caution. It is heavier than air

and will collect first in lower areas making it hard to detect at

nose level.

Before attempting to light the water heater, make sure to look

and smell for gas leaks. Use a soapy solution to check all gas

fittings and connections. Bubbling at a connection indicates a

leak that must be corrected. When smelling to detect a gas leak,

be sure to sniff near the floor also.

Gas detectors are recommended in LP and NG applications and

their installation should be in accordance with the detector

manufacturer’s recommendations and/or local laws, rules,

regulations or customs.

DANGER!

ADDITIONAL WARNINGS

1. Do not leave unattended

2. The exhaust gas and top of the

unit is HOT! Do not place hands

or any foreign object near the top

of the heater.

3. Do not use in high wind

conditions

4. If the smell of gas is detected,

turn off the gas valve at the tank

immediately! Do not use flame for

leak detection.

5. Use only Liquid Propane

6. Use only outdoors

7. Do not over tighten the gas

regulator connection to the unit

with a wrench. This may cause a

crack in the gas regulator.

The Purpose and Benefits the L10

The EccoTemp L-10 is a liquid propane fired water heater capable

of delivering 2 to 2.65 gallons (up to 10 liters) of hot water almost

anywhere. The unit has standard 1/2“NPT (BSP for European

models) pipe fittings and an adapter for using a standard garden

hose for inlet water supply (North American models).

The L10 is not a toy. People around the world use similar units to

heat the water in their homes, safely, and reliably.

Gas is supplied from a standard propane cylinder (not included)

such as used with outdoor grills. A regulator with hose is furnished

with the heater.

You may also plumb it in to existing water lines and using a low

pressure LP gas regulator. Check local codes for proper

installation.

The unit includes a stainless steel rain cap that is to help venting

of the flue gases as well as protect it for outdoor usage.

Ignition is automatic and powered by 2 “D” cell batteries (not

included). Burners come on when water flows, and off when the

water is shut off. No pilot light!

Functions and Features

Water controlled automatic ignition: Water pressure

between 20-80 PSI /1.38-5.5 bar opens the ignition circuit

for easy and convenient operation

Auto-cut-off protection: The auto-cut-off protection will

shut the gas supply off immediately in the event of

flameout to reduce the risk of gas leakage. There is also

an automatic shut-off timer after 20 minutes of continuous

use (North American models only)

Energy savings: EF of 85%

Removable drain valve to avoid water pipe and regulator

damage caused by freezing water*

Anti-dry combustion protection: The unit will shut off the

gas supply in the event water stops flowing through the

unit

*Read the maintenance section on draining the unit

entirely to avoid freeze issues.

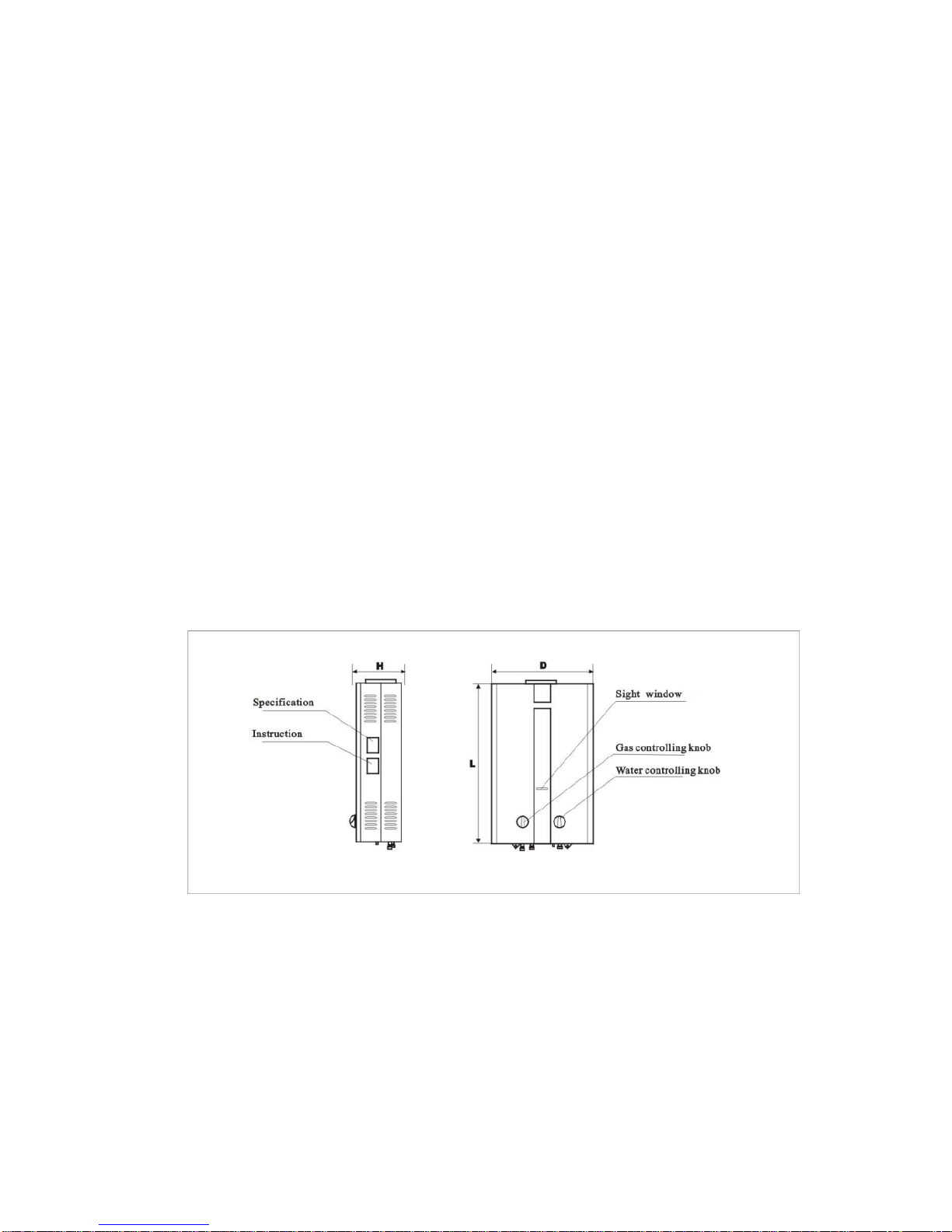

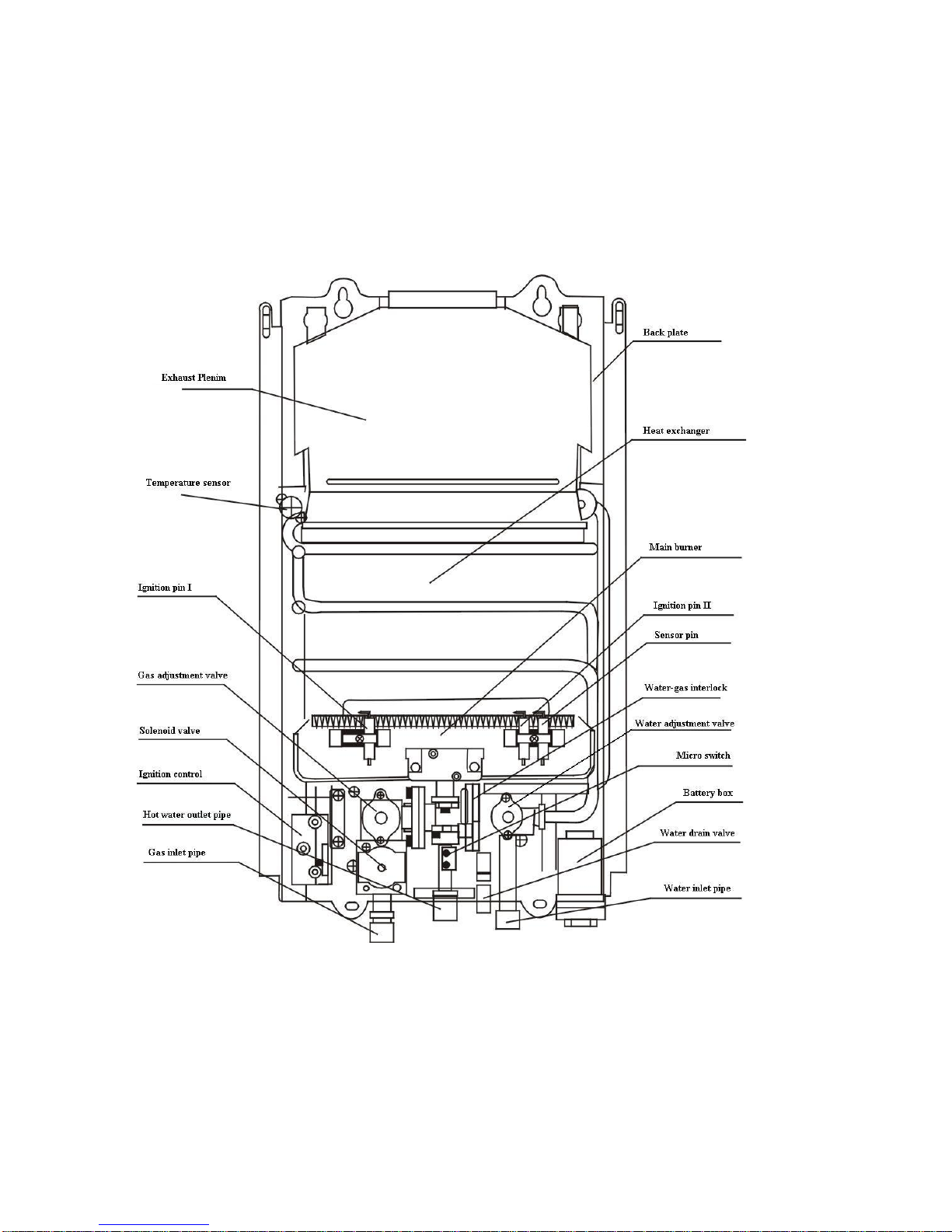

Construction and Name of Parts for the

L10 Flue Duct System

Getting Started

1. Check box for damage. Damages caused in shipment

must be reported immediately.

2. Make sure you have all the parts:

a. Water heater

b. LP gas regulator and hose

c. Rain cap

d. ½” NPT to garden hose adapter (North American

models)

e. Hardware pack

3. Install the rain cap to the top of the flue vent. The rain

cap should fit securely. It is recommended that a beaded

layer of high temperature sealant is used around the

perimeter of the seal between the rain cap and the flue

vent.

4. If using a standard garden hose, attach the ½” NPT to

garden hose adapter to the fitting marked with the blue

arrow (far right connection) on North American models

only. For European models, attached your water source

hose to the far right connection. Use “Teflon” tape or

other approved sealing method on the threads for a

secure, water tight fit. Check to make sure the screen

inside the water inlet is in place and clean. Then attach

your water input/garden hose.

5. Install gas supply line and regulator to the unit. DO NOT

OVER TIGHTEN. OVER TIGHTING MAY CRACK THE

GAS REGULATOR CAUSING A GAS LEAK! Check for
