Echo CS-6701(CE) Manuale di istruzioni

PARTS CATALOG

CHAIN SAW

CS-6701(CE)

1. Cylinder, Cr nkc se, Piston

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

3 101001-32431 1

CYLINDER ASSY

4 + 101010-32431 1

GASKET, CYL. BASE

5 900162-05020 6

BOLT, H.S. 5*20

5*20 W,SW

6 100000-32431 1

PISTON KIT

Sus. by 100000-

32432

6 100000-32432 1

PISTON KIT

7 + 100011-32430 2

RING, PISTON

Sus. by 100011-

32431

7 + 100011-32431 2

RING, PISTON

8 + 100013-32430 1

PIN, PISTON

8*12*33.8

9 + 100015-00230 2

CIRCLIP, PISTON PIN

10 + 100012-32430 1

BEARING, NEEDLE

12 130516-30830 1

BAND

13 130510-32430 1

ADAPTER, INTAKE

14 433016-11031 1

SCREW, TENSIONER

15 433028-11030 1

CLIP

16 433014-02830 1

TENSIONER

17 433000-19831 1

CATCHER KIT, CHAIN

18 + 900220-05018 1

SCREW 5*18

5*18

19 900600-00005 1

WASHER 5

20 100204-32432 1

CRANKCASE KIT

Sus. by 100204-

32435

20 100204-32433 1

CRANKCASE KIT

Sus. by 100204-

32435

20 100204-32434 1

CRANKCASE KIT

Sus. by 100204-

32435

- 1 -

CS-6701(CE)

1. Cylinder, Cr nkc se, Piston

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

20 100204-32435 1

CRANKCASE KIT

21 + 433011-19830 2

STUD, GUIDE BAR

22 + 100212-32430 1

OILSEAL (L)

25Z-15*39.9*7

23A + 436114-13930 1

VALVE, CHECK

Can be used on the

100204-32432 only

23B + 436114-13930 1

VALVE, CHECK

Can be used on the

100204-32433 only

24 + 900345-50010 1

PIN, SPRING 5*10SUS

5*10SUS

25 + 100215-02830 2

PIN, DOWEL

26 + 900810-36202 2

BEARING, BALL 6202

6202/C3

27 + 100242-32430 1

GASKET, CRANKCASE

28 + 100212-19830 1

OILSEAL

ISM 15*25*6

40 + V150-000570 1

PLATE,EYE

Can be used on the

100204-32433 only

41 + 900242-04008 1

SCREW

4*8 Can be used on the

100204-32433 only

29 100251-32430 1

CUSHION (A)

30 900162-05035 4

BOLT, H.S. 5*35

5*35 W,SW

31 100917-32430 1

CUSHION (B)

32 100100-32430 1

CRANKSHAFT ASSY

33 100142-30830 1

KEY, WOODRUFF

- 2 -

CS-6701(CE)

1. Cylinder, Cr nkc se, Piston

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

34 900162-05014 2

BOLT, H.S. 5*14

5*14 W,SW

Sus. by 900162-

05014 Q'TY:1

34 900162-05014 1

BOLT, H.S. 5*14

5*14 W,SW

35 436001-19833 1

CAP ASSY, OIL TANK

36 + 900725-02025 1

O-RING

JASO 2025

37 + 131050-19830 1

RETAINER, LINK

38 + 900246-03008 1

SCREW 3*8

3*8

39 + 131051-19830 1

LINK

60L

40 900238-05014 1

SCREW 5*14

5*14

44 900238-05020 5

SCREW 5*20

5*20

45 101506-32633 1

COVER, CYLINDER BS

Sus. by 101506-

32634

45 101506-32634 1

COVER, CYLINDER

49 890345-39230 1

LABEL,CAUTION

50 890631-38130 1

LABEL, CAUTION

- 3 -

CS-6701(CE)

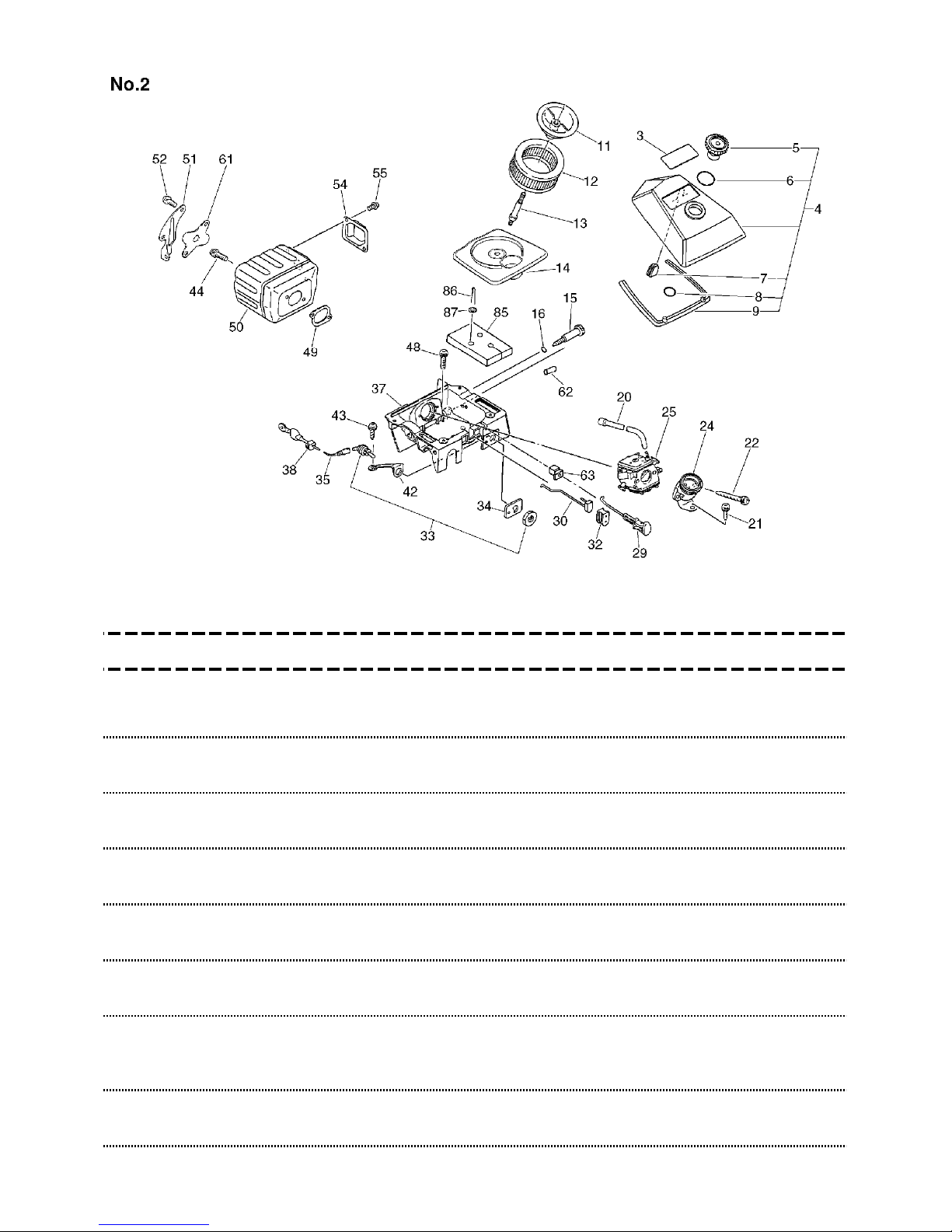

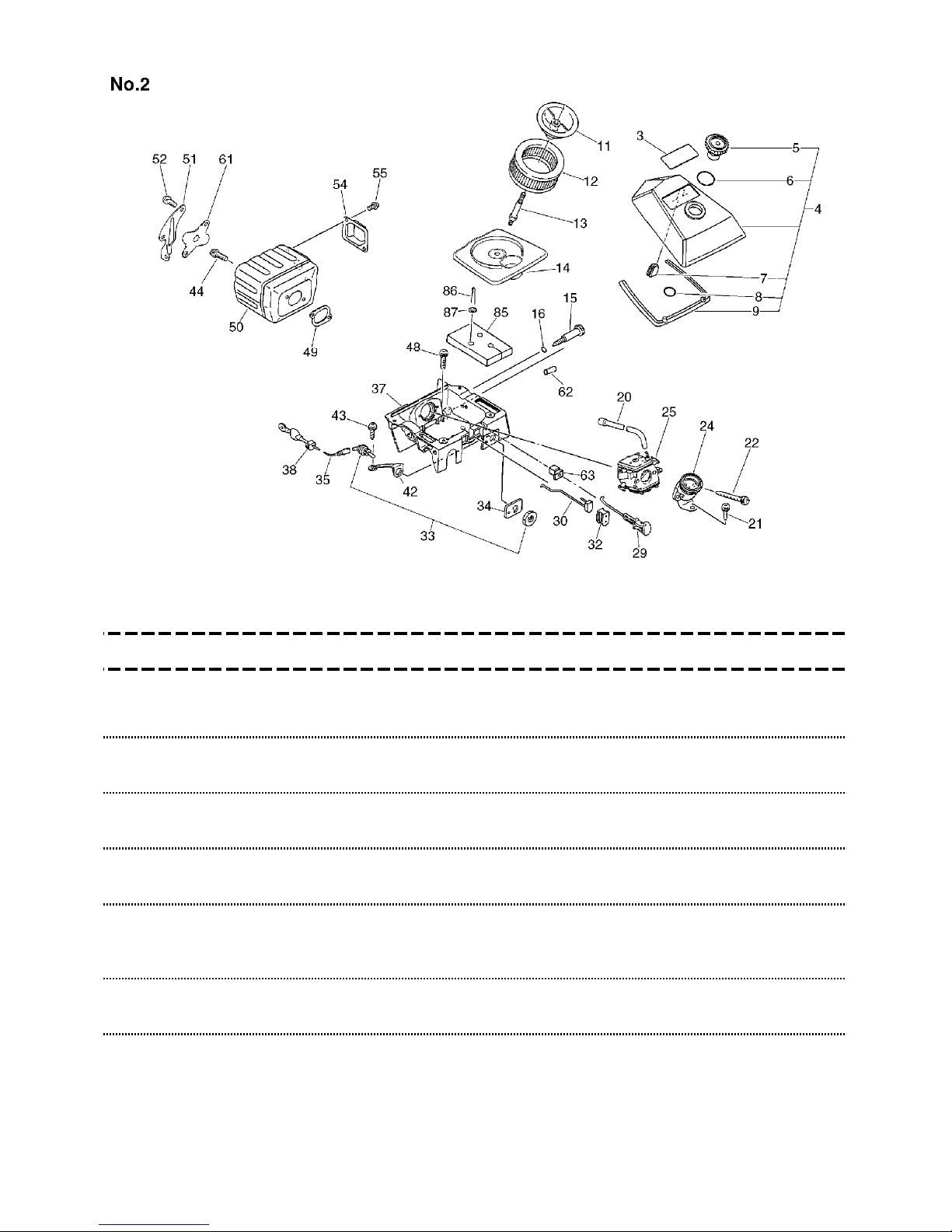

2. Air Cle ner, Muffler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

3 890151-38130 1

LABEL, MODEL

4 130302-38131 1

COVER ASSY, AIR CLN.

5 + 130406-33331 1

KNOB, CLEANER LID

6 + 900720-00021 1

O-RING 21

P-21

7 + 130338-32430 1

PLUG, COVER

8 + 900720-00011 1

O-RING P-11

P-11

9 + 130365-32430 1

RUBBER, AIR CLEANER

11 130405-38130 1

BRACKET, AIR CLEANER

12 130300-38130 1

CLEANER ASM., AIR

13 130325-39730 1

STUD, AIR CLEANER

14 130420-38131 1

BRACKET, AIR CLEANER

15 129013-30831 1

SCREW, IDLE SPEED

16 900720-20007 1

O-RING 7

P-7

20 130110-19830 1

PIPE, IMPULSE

21 900246-05014 1

SCREW 5*14

5*14

22 900252-05053 2

SCREW 5*53

5*53

24 130518-32431 1

FUNNEL, AIR

25 123000-32432 1

CARBURETOR HDA-76

HDA-76

29 178510-32330 1

ROD, CHOKE

30 178011-32630 1

ROD, THROTTLE

Sus. by C454-

000000

30 C454-000000 1

ROD,THROTTLE

32 178114-32630 1

HOLDER, THR. LEVER

33 163400-32430 1

SWITCH, IGNITION

34 890157-19830 1

LABEL, SWITCH

35 162021-32430 1

LEAD

- 4 -

CS-6701(CE)

2. Air Cle ner, Muffler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

37 130306-06062 1

CASE, CARBURETOR BS

38 156114-04920 1

GROMMET

42 156635-32430 1

PLATE, GROUND

43 900252-04010 1

SCREW 4*10

4*10

44 900162-05020 2

BOLT, H.S. 5*20

5*20 W,SW

48 900162-05020 4

BOLT, H.S. 5*20

5*20 W,SW

49 145510-32431 1

GASKET, MUFFLER

50 145610-32430 1

MUFFLER

51 145711-32430 1

BRACKET, MUFFLER

52 900162-05014 2

BOLT, H.S. 5*14

5*14 W,SW

54 145861-32430 1

LID, MUFFLER

55 900162-04010 2

BOLT, H.S. 4*10

4*10 W,SW

61 145813-31730 1

COVER, MUFFLER

62 129010-32430 1

GROMMET

63 178810-33330 1

GROMMET, CHOKE

Sus. by 178810-

33331

63 178810-33331 1

GROMMET, CHOKE

85 130320-32630 1

SEAL, CARB. CASE

86 900300-30018 1

PIN, SPLIT 3*18

3*18

87 433162-19930 1

WASHER

- 5 -

CS-6701(CE)

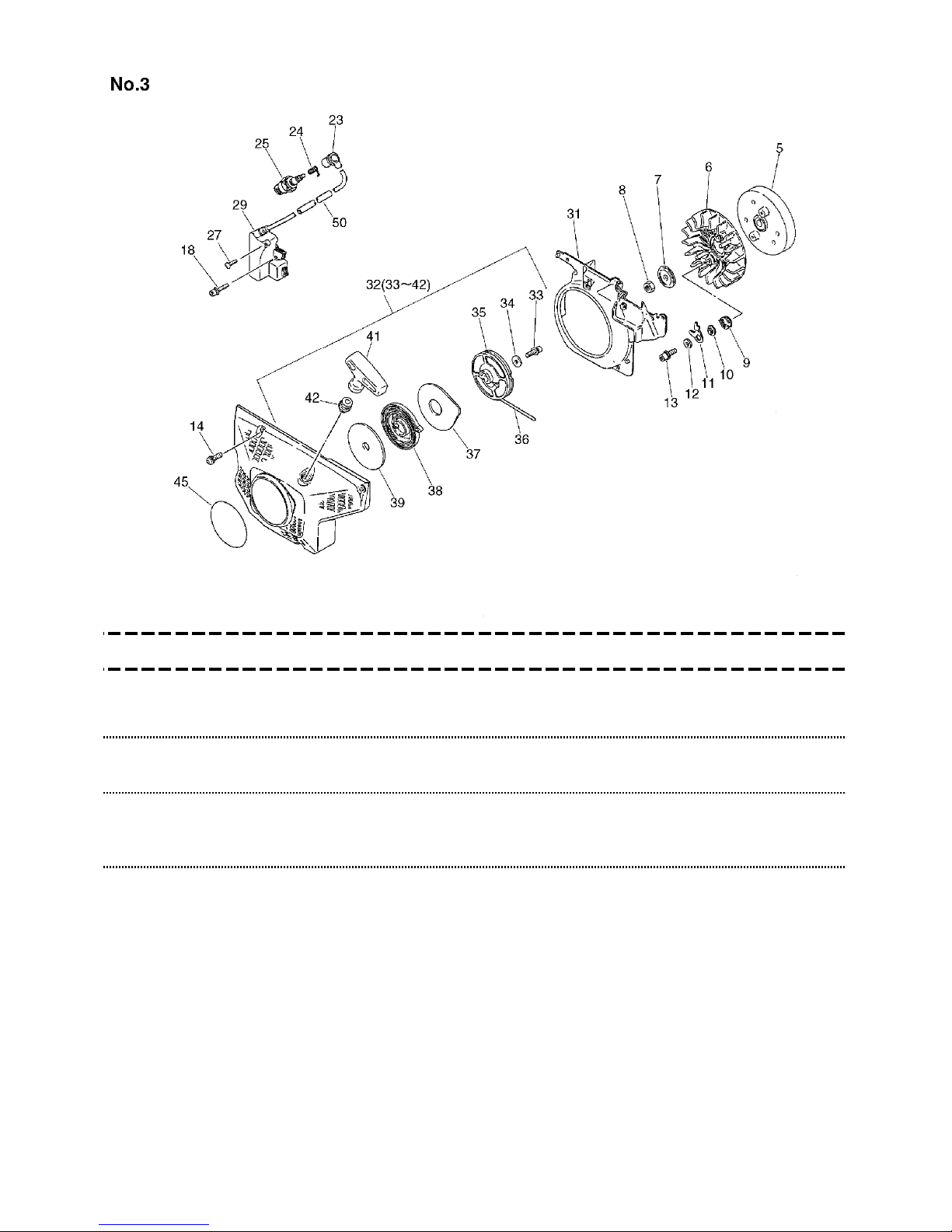

3. St rter, M gneto

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

5 156800-32631 1

ROTOR, MAGNETO

6 101521-32330 1

FAN, COOLING

7 100143-19830 1

WASHER

8.2*31*0.8

8 900500-00008 1

NUT 8

8*P1.25

9 177234-19830 2

SPRING, RETURN

Sus. by 177234-

19832

9 177234-19831 2

SPRING, RETURN

Sus. by 177234-

19832

9 177234-19832 2

SPRING, RETURN

10 177247-19830 2

SPACER, RATCHET

11 177218-32630 2

PAWL, STARTER

12 900603-00005 2

WASHER 5

5.5*12*0.8

13 900162-05014 2

BOLT, H.S. 5*14

5*14 W,SW

14 900238-05020 4

SCREW 5*20

5*20

18 900162-04020 2

BOLT, H.S. 4*20

4*20 W,SW

23 159012-03433 1

CAP, SPARK PLUG

24 159011-03432 1

COIL, SPARK PLUG

25 159017-31730 1

PLUG, SPARK RCJ-6Y

RCJ-6Y

27 900242-04008 1

SCREW

4*8

29 156601-32631 1

COIL, IGNITION

31 101535-32430 1

COVER, FAN

Sus. by 101535-

32431

31 101535-32431 1

COVER, FAN

32 177201-32436 1

STARTER ASSY

33 + 900238-05014 1

SCREW 5*14

5*14

34 + 900603-00005 1

WASHER 5

5.5*12*0.8

- 6 -

CS-6701(CE)

3. St rter, M gneto

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

35 + 177215-32330 1

DRUM, STARTER

36 + 177226-07060 1

ROPE, STARTER

4.0*950

37 + 177221-07060 1

PLATE, STARTER

38 + 177220-02834 1

SPRING, REWIND

39 + 177221-02830 1

PLATE, STARTER

41 + 177228-30830 1

GRIP, STARTER

42 + 177227-07060 1

GUIDE, ROPE

45 890112-38130 1

LABEL, ECHO

Sus. by 890118-

17930

45 890118-17930 1

LABEL, ECHO

50 150611-32430 1

TUBE

7*8.6*90

- 7 -

CS-6701(CE)

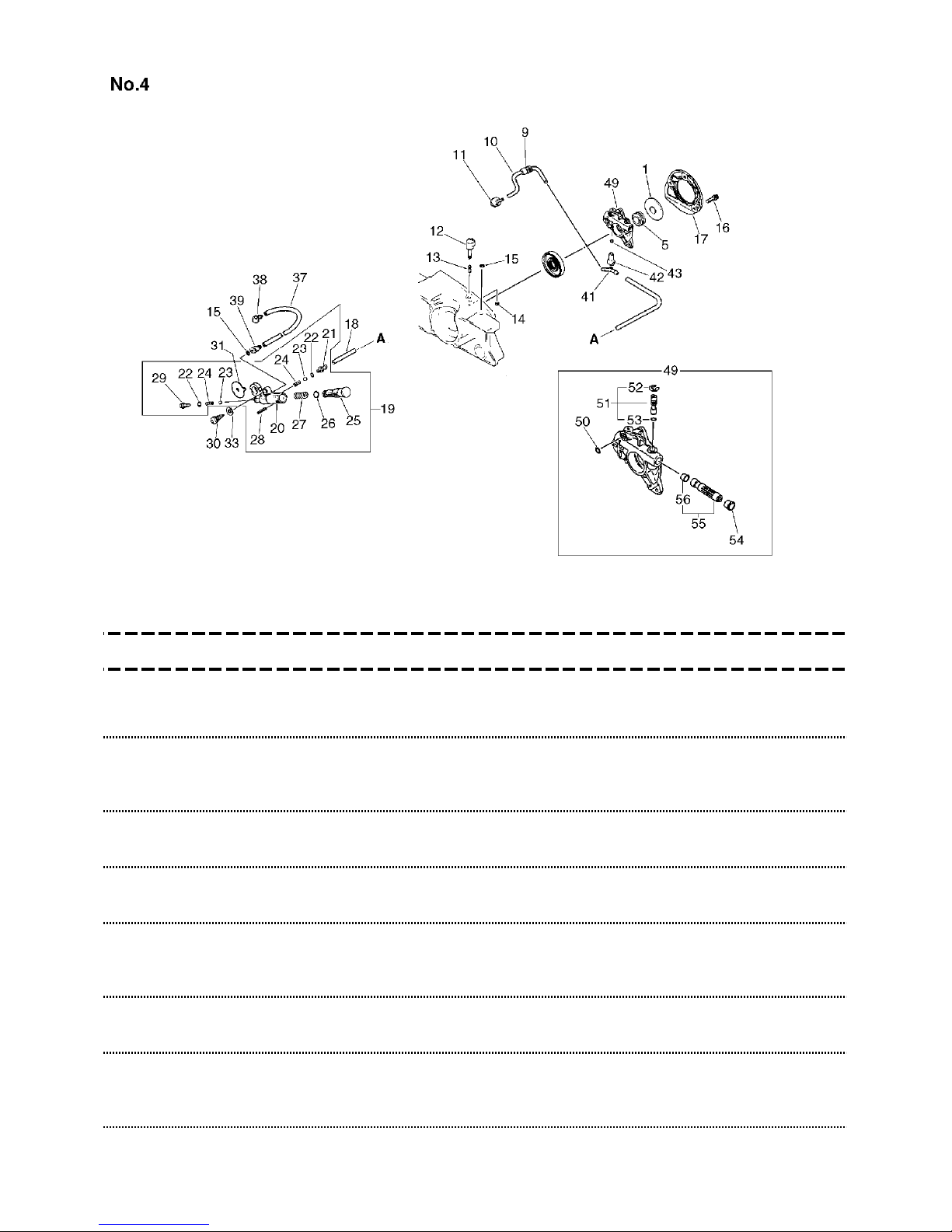

4. Auto-Oiler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

1 437066-30130 1

WASHER, CIRCULAR 12

5 437063-19930 1

WORM (P)

9 132115-12330 1

GROMMET

10 437210-32430 1

PIPE, OIL (INNER)

Sus. by 437210-

38330

10 437210-38330 1

PIPE, OIL

11 436205-14730 1

STRAINER, OIL

12 437039-19831 1

KNOB

13 437015-19830 1

SPRING

14 900700-00003 1

E-RING 3

CE-3

15 900720-00003 2

O-RING P-3

P-3

16 900162-04012 3

BOLT, H.S. 4*12

4*12 W,SW

17 437605-32430 1

COVER, OIL PUMP

18 437210-15130 1

PIPE, OIL

3*6*200L

19 437100-19831 1

OIL PUMP ASSY

Sus. by 437100-

19832

19 437100-19832 1

OILER ASY, MANUAL

20 + 437110-19831 1

BODY, OIL PUMP

21 + 437118-19830 1

NIPPLE

22 + 437122-03430 2

O-RING

23 + 437012-00330 2

VALVE, BALL

24 + 437013-00330 2

SPRING, VALVE

Sus. by V450-

000290

24 + V450-000290 2

SPRING,COMPRESSION

25 + 437112-19831 1

PISTON, MANUAL

26 + 900720-00007 1

O-RING 7

P-7

- 8 -

CS-6701(CE)

4. Auto-Oiler

KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS NOTE1

NOTE2

27 + 437111-19830 1

SPRING

28 + 900345-20016 1

PIN, SPRING 2*16SUS

2*16SUS

29 + 437121-10130 1

ADAPTER, OIL PUMP

30 900252-05020 1

SCREW 5*20

5*20

31 437413-19830 1

BARCKET, OIL PUMP

33 900603-00005 1

WASHER 5

5.5*12*0.8

37 437216-32630 1

PIPE, OUTLET

38 437232-32630 1

CONNECTOR, OIL PIPE

39 437212-32630 1

CONNECTOR, OIL PIPE

41 437212-32430 1

CONNECTOR, OIL PIPE

42 437211-32430 1

PIPE

43 132013-26630 1

CLIP

6.5MM

49 437002-37530 1

AUTO-OILER ASSY

50 + 900720-00003 1

O-RING P-3

P-3

51 + 437009-35430 1

PIN, CONTROL

52 ++ 437065-19830 1

CLIP

53 ++ 437030-19830 1

O-RING

54 + 437062-19830 1

CAP, PLUNGER

55 + 437006-32330 1

PLUNGER KIT

56 ++ 437020-32430 1

V-RING

- 9 -
