Overview

The Elaho Dual Tech Switch-mount Occupancy Sensor is a switch station

with a built-in sensor that uses passive infrared (PIR) and acoustic

detection to provide reliable occupancy and vacancy sensing for lighting

control.

The Dual Tech Switch-mount

Occupancy Sensor is available in

1–button and 2–button models, and

is available with white, black, cream,

or gray wall plate.

Each button is back lit by both blue and amber LEDs to show changes in

status. The sensor provides a 180 degree field of view with up to 13.7m

(45ft) radius for large motion detection.

This document guides you through the installation and local

configuration of the Dual Tech Switch-mount Occupancy Sensor.

Custom Configuration

For more information about the custom configuration options available

using ElahoAccess, reference the ElahoAccess Mobile App integrated help

system.

Note:

Settings made using ElahoAccess are applied only when

the function selection switch is set to Custom (middle position).

Reference Function Switch on page11.

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Prepare for Installation

Elaho Dual Tech Switch-mount Occupancy Sensors ship with electronics,

a decorator style wall plate, and a termination kit. The sensor may be

installed into an industry-standard back box (provided by others) or

surface-mounted back box (sold separately and available from Echoflex).

Environment

Ambient

For indoor, commercial controls use only. Indoor installation only. The

sensor operates in ambient temperatures of 0°C–40°C (32°F–104°F), with

a maximum of 90% non-condensing humidity.

Installation

Echoflex recommends paying special attention to the installation

environment:

• When operating in PIR only modes, the sensor must have an

unobstructed view of the room. Do not mount behind or near tall

cabinets, shelves, hanging light fixtures, etc.

• Do not install the sensor within 2.4m (8ft) of an HVAC airflow

duct/vent.

• Install the sensor where it cannot easily sense movement in areas

outside of the intended space, such as hallways, glass partitions, or

adjacent rooms.

Note:

In areas of increased noise activity, enabling PIR only mode

may allow for better vacancy detection results. Reference DIP

Switch Settings on page5.

Dual Tech Switch-mount Occupancy Sensor Page 2 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Wire Specification

The Dual Tech Switch-mount Occupancy Sensor connects to the

EchoConnect communication bus. EchoConnect is a bi-directional

protocol that uses one pair of wires (data+ and data–) for both data and

power. Echoflex recommends using Belden 8471 Class 2 wire (or

approved equal – see the Echoflex cable cross database

echoflexsolutions.com/files/Elaho_Data_Cable_Wire_Specs for equal

alternatives). The total combined length of an EchoConnect wire run

using Belden 8471 may not exceed 500m (1,640ft), with a maximum

distance of 400m(1,312ft) between any two devices.

Note:

All control wiring should be installed and terminated by a

qualified installer and should follow standard wiring installation

practices. Leave approximately 25.4cm (10in) of wiring in the

back box for connection and to allow slack for future service

needs.

Note:

Echoflex requires that all stations and devices be grounded

for ESDprotection. Pull an additional 2.5 mm2(14AWG) wire for

grounding when control wires are not installed in grounded metal

conduit.

Note:

When using Category 5 (or equivalent) cable on the

EchoConnect communication bus, please note the following:

• Cat5 wiring must be terminated using EchoConnect Cat5

Termination Kits and must be installed using a bus topology.

Refer to the instructions provided with the Cat5 Termination

Kit (8186A1207) for information to terminate Cat5 wiring.

• Not all topologies are supported using Cat5; careful

planning is required to ensure the proper termination kits

are available and the wire is pulled appropriately.

Parts and Supplies

The following parts and supplies are included with the sensor:

• mounting screws

• EchoConnect termination kit

• WAGO 221 Series LEVER-NUTS®(wire termination connectors)

• decorator style wall plate

Dual Tech Switch-mount Occupancy Sensor Page 3 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Installation

Installation should follow all local codes and standard electrical practices.

Note:

NEC Class 2 product to be wired in accordance to NEC

Article 725 and local jurisdiction requirements.

The back box should be installed plumb and square for best results.

Ensure that the box is clean and free of obstructions and that all wiring is

installed correctly.

Dual Tech Switch-mount Occupancy Sensors ship with a termination kit

for use with Belden 8471 (or equivalent wire), and include power and

ground wire pigtails, receptacle spacers, and all required wire termination

connectors for installation.

Connect Wiring

1. Pull all required wiring (data–, data+) into the back box. As needed,

pull an additional ESD ground wire (required only when the station

is not installed in grounded metal conduit).

2. Connect the station ESD ground wire pigtail (green/yellow).

a. Strip 11mm (7/16in) of insulation from the ends of the station

ground wire pigtail and the incoming ground wire.

b. Use one WAGO connector, provided in the termination kit, to

connect the station ESD ground pigtail and the incoming

ground. For stations using grounded metal conduit, connect the

ground pigtail to the metal back box ground location.

c. Install the ESD ground wire pigtail FASTON connector to the

mating receptacle on the station electronics.

3. Connect the EchoConnect data– (black) and data+ (white) power

pigtail wires to the installed control wires. EchoConnect is topology

free; you may install the wires in any combination of bus, star, loop,

or home-run.

a. Strip 11mm (7/16in) from the ends of each power pigtail wire

provided in the termination kit and the installed control wires.

b. Use the provided WAGO connectors to connect the power

pigtail wires and the installed control wires. One WAGO should

be used for the data– and another for the data+ wire pairs.

Open the terminal levers on the WAGO connector and insert the

installed Belden 8471 wire and the lead from the power pigtail

into the terminals, and then close the levers.

c. Install the two-pin connector from the power pigtail to the

mating receptacle on the station electronics.

Dual Tech Switch-mount Occupancy Sensor Page 4 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Rotary and DIPSwitches

Rotary and DIPswitch settings are accessible on the rear of the station.

Set Space and Address

The Dual Tech Switch-mount Occupancy

Sensor participates in an Elaho system using

the configured Space and Address, which are

provided on the selectable using the two

rotary switches on the back of the sensor.

Each sensor must be set to a unique station

address for the assigned space. By default,

these switches are set to Address 1, Space 1.

Commands are shared by all devices within an

assigned space.

1. Set the Space rotary switch to the desired number (1 through 16)

for the space you want the sensor to control.

2. Set the Address rotary switch to desired address (1 through 16) for

the sensor's identification in the selected Space.

Note:

Do not duplicate a device Address within the same Space.

DIP Switch Settings

DIP switches provide for designation of “Off” functionality, the ability to

disable amber button LEDs, and the ability to restore the sensor to its

factory defaults.

Switch # Use

1–button Dual Tech Switch-mount Occupancy Sensor only:

• When set to On, and the Function switch is set to Preset, enables

Sequence toggle mode. Default position is Off.

2–button Dual Tech Switch-mount Occupancy Sensor only:

• When set to On (default), and the Function switch is set to Preset,

the bottom button provides a Space Off command.

• When set to Off, the bottom button controls the next consecutive

preset after the preset assigned to the top button.

Amber LED Disable - provides the ability to disable use of the amber

button LEDs.

• When set to On, the amber button LEDs on the station are disabled.

Only blue LEDs will illuminate.

• When set to Off (default), the amber button LEDs on the station are

enabled. Amber LEDs are provided as the default so the station

glows in darkened spaces, allowing it to be easily located.

Dual Tech Switch-mount Occupancy Sensor Page 5 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Switch # Use

3 and 4

Vacancy Timeout

• 5min = Switches 3 and 4 are Off

• 15min = Switch 3 is Off and Switch 4 is On (default)

• 30min = Switch 3 is On and Switch 4 is Off

• Auto = Both switches are On

Detection LEDs

• When set to On (default), the occupancy detection LED illuminates

when movement is detected.

• When set to Off, the occupancy detection LED is disabled unless the

unit is in Walk Test mode.

PIR Only Mode

• When set to On, acoustic detection technology is disabled for the

sensor.

• When set to Off (default), both PIR and acoustic detection

technologies are used by the sensor.

7 Unused

Restore to Defaults at boot

• When set to On, then cycling power to the switch-mount station,

the unit restores to its factory default settings.

• Off is the default setting

Note:

When the sensor Function switch is set to Custom, only DIP

switch number 8 applies. All other DIP switch settings are ignored.

Reference

Station Configuration on page11

for local configuration

settings on your Dual Tech Switch-mount Occupancy Sensor. Reference

the ElahoAccess Mobile App integrated help system for details about

custom configuration using the ElahoAccess Interface.

Dual Tech Switch-mount Occupancy Sensor Page 6 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Install Button Legends

Elaho Dual Tech Switch-mount Occupancy Sensors ship with standard

button legends installed beneath a clear lens.

Note:

Customize and print your own button legends on standard

transparency. Download the button legend template provided on

the Echoflex website echoflexsolutions.com.

Each button can have a legend, installed beneath the button lens. To

remove, install, or replace a button legend you must first remove the

bezel and button lens from the station electronics.

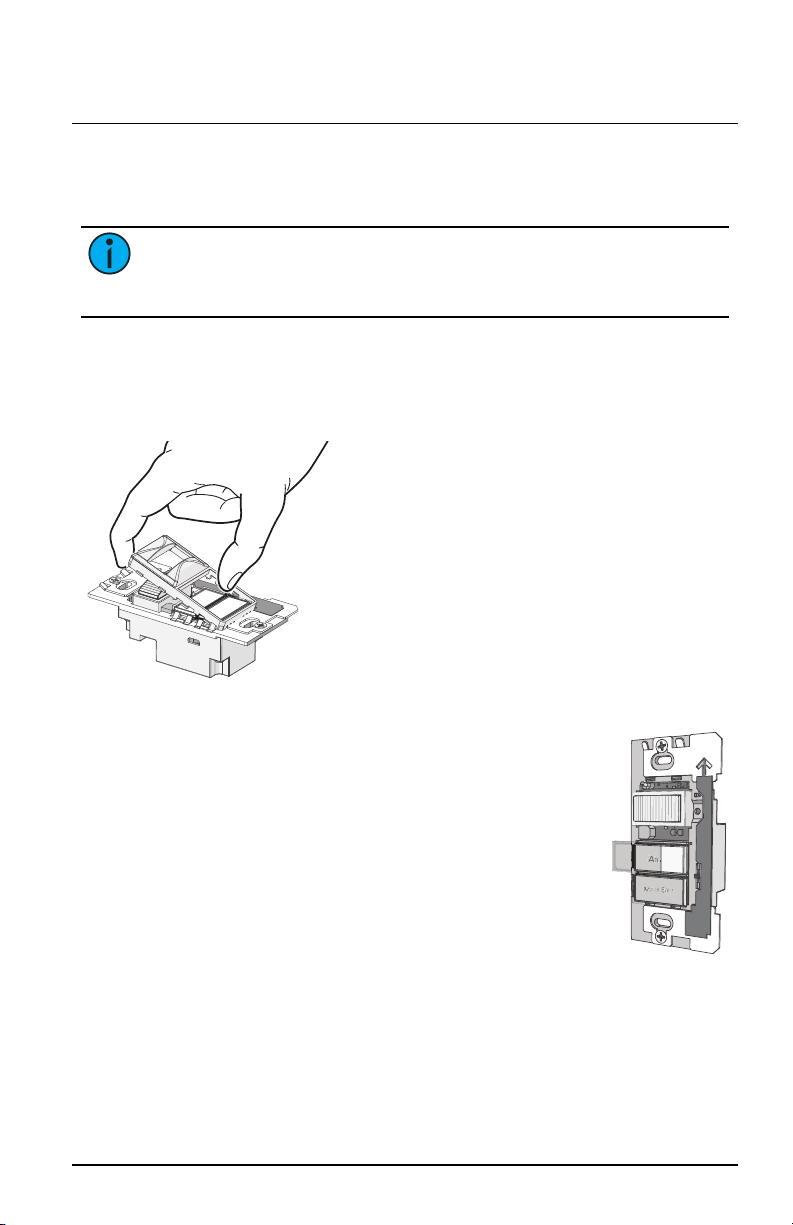

1. Remove the bezel from the station

electronics.

• Each corner of the bezel is provided

with a notch to assist with bezel

removal. Use a finger nail to lift a

corner free, then gently remove the

bezel from the station.

2. Remove the button lens.

• Using the pad of your thumb, press on the

lens and slide the lens left, toward the hinge

points.

3. Once the lens is removed, remove the existing

legend and insert a custom legend.

4. Replace the lens onto the button by aligning the

grooves of the lens to the button, then sliding the

lens in place starting at the hinge. Slide the lens

until it covers the entire button and clicks into

place.

5. Replace the bezel to the station electronics when all legends and

lenses are in place.

Dual Tech Switch-mount Occupancy Sensor Page 7 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Install the Station

Receptacle spacers are provided for use in flush mount applications to

help align the station and cover flush against the wall.

Optional spacers

1. Insert the station electronics

and wiring into the back

box. To install multiple

stations (multi-gang), insert

the station electronics into

the box from the right to the

left side for the best

alignment and fit. The

alignment bracket will

slightly overlap the station to

the right when properly

installed.

2. Use spacers as needed to provide a flush mounted station.

a. Fold the spacer in a zig-zag fashion and press the stack together

to achieve the thickness needed to fill the gap between the

station, wall surface, and the back box.

b. Cut off and discard the excess.

c. Place the stack between the station electronics and the flush

mounted back box.

3. Secure each station electronics in place using the two screws

provided. If using spacers, insert the screws through the spacers as

well.

CAUTION: To improve successful station and wall plate

installation, do not over tighten the screws. If screws are

over tightened, button activation can be negatively

impacted.

Dual Tech Switch-mount Occupancy Sensor Page 8 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

Install the Wall Plate

The wall plate is secured to the station with built-in magnets.

1. Align the top of the wall plate to the station and

angle the bottom approximately 20 degrees.

2. Hook the top of the wall plate to the tabs

located on the station electronics assembly. To

ensure the wall plate is hooked properly on the

top hook, wiggle it slightly side to side.

3. Swing the bottom of the wall plate down until

the magnets engage.

4. If the wall plate does not fully attach

automatically, wiggle the bottom of the plate

until all of the magnets are seated properly to

the station and the plate is secure.

Note:

When installing a multi-gang wall plate and the stations

are misaligned in the mounting box, the wall plate will not attach

properly. Loosen the screws that secure the station to the box,

adjust each station to improve the alignment, secure the screws,

then retry wall plate installation.

Power Up and Test

Power Up

All EchoConnect terminations in the system must be made before

applying power to the system and sensor. When the sensor is powered,

the PIR and acoustic detection LEDs illuminate for one minute for

calibration and warm-up, and then return to normal operation according

to the configuration.

Both the PIR and acoustic detection features of the sensor will

automatically adjust the sensitivity threshold to eliminate nuisance

tripping. During this time, configuration is not allowed and no events are

triggered.

Dual Technology Detection

When both PIR and acoustic detection are used, the following logic is

used:

• When the space is vacant, PIR detection and manual control can

switch the state to occupied.

• When the space is occupied, PIR, acoustic detection, and manual

control can reset the vacancy timeout.

• When occupancy in the space has only been triggered by acoustic

detection for 60 minutes, acoustic detection is disabled until the

next PIR detection event.

Dual Tech Switch-mount Occupancy Sensor Page 9 of 20 Echoflex

Echoflex Installation Guide

Dual Tech Switch-mount Occupancy Sensor

PIR (Only) Detection

When acoustic detection is disabled (DIP switch 6 set to On), the

following logic is used:

• When the space is vacant, PIR detection and manual control can

switch the state to occupied.

• When the space is occupied, PIR detection and manual control can

reset the vacancy timeout.

Walk Test

The sensor offers a Walk Test mode, which shortens the vacancy timer to

10seconds and allows for simple and quick verification of the sensor’s

coverage and range in the installed space.

Walk Test

1. Prepare the site for configuration.

a. Make certain the sensor and lighting loads are powered and

connected for control by the Elaho control system.

b. You will need direct access to the sensor in order to place it into

Walk Test mode.

2. Remove the sensor wall plate to gain access to the [Walk Test]

button.

3. Press the [Walk Test] button on the top right of the sensor to

enable the Walk Test feature. A green LED flashes, indicating Walk

Test is enabled and the vacancy timer is shortened to 10seconds.

4. Move throughout the space, including corners and areas that may

be obscured from line of sight to the sensor. Each time the sensor

detects movement, the lens illuminates red. If acoustic detection is

enabled, any sound detected illuminates the lens green.

5. Walk Test mode automatically exits and the sensor returns to

normal operation after five minutes. You can also manually

terminate by pressing the [Walk Test] button again.

Dual Tech Switch-mount Occupancy Sensor Page 10 of 20 Echoflex

Altri manuali per Elaho

Indice

Altri manuali echoflex Sensore di sicurezza

echoflex

echoflex E-VAC-SR Manuale utente

echoflex

echoflex E-DOC-C-SR Manuale utente

Manuali Sensore di sicurezza popolari di altre marche

THORLABS

THORLABS PDA10JT Manuale utente

Waeco

Waeco UV-DETECT Manuale utente

Intermatic

Intermatic IOS-DSIMF Manuale utente

urmet domus

urmet domus 1083 Manuale utente

Siemens

Siemens AZL66 Series Manuale utente

BTI

BTI Profiline Multi Finder Manuale utente

Challenger

Challenger SL01 Manuale utente

DMP Electronics

DMP Electronics 1122INT Manuale utente

Rielta

Rielta Ladoga MK-RK Manuale utente

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuale utente

Bosch

Bosch DS835 Manuale utente

DBI SALA

DBI SALA EZ Stop Manuale dell'operatore

Lamptime

Lamptime ST05C Manuale utente

Ubiquiti

Ubiquiti MFI-MSC Manuale utente

Subsite

Subsite 910R Istruzioni per l'installazione

Satel

Satel OPAL Pro Manuale utente

Aleph

Aleph XC-1XTEU Manuale utente

Pima

Pima LARIS QUAD Manuale utente

echoflex Elaho Manuale utente

Manuali Sensore di sicurezza popolari di altre marche
