EchoNous AI Station 2 User Guide 1
Introduction
The EchoNous AI Station 2 is a stand that lets you easily mount and remove
Kosmos Bridge for mobile use.
Use this guide in conjunction with the following documents that come in the
box with the AI Station 2 (you can also find them on the USB flash drive):
•AI Station 2 Installation Guide, Core Stand
•AI Station 2 Installation Guide, Kosmos Bridge Mount
Installing and removing Kosmos Bridge
Installing Kosmos Bridge on the AI Station
To install Kosmos Bridge on the AI Station:

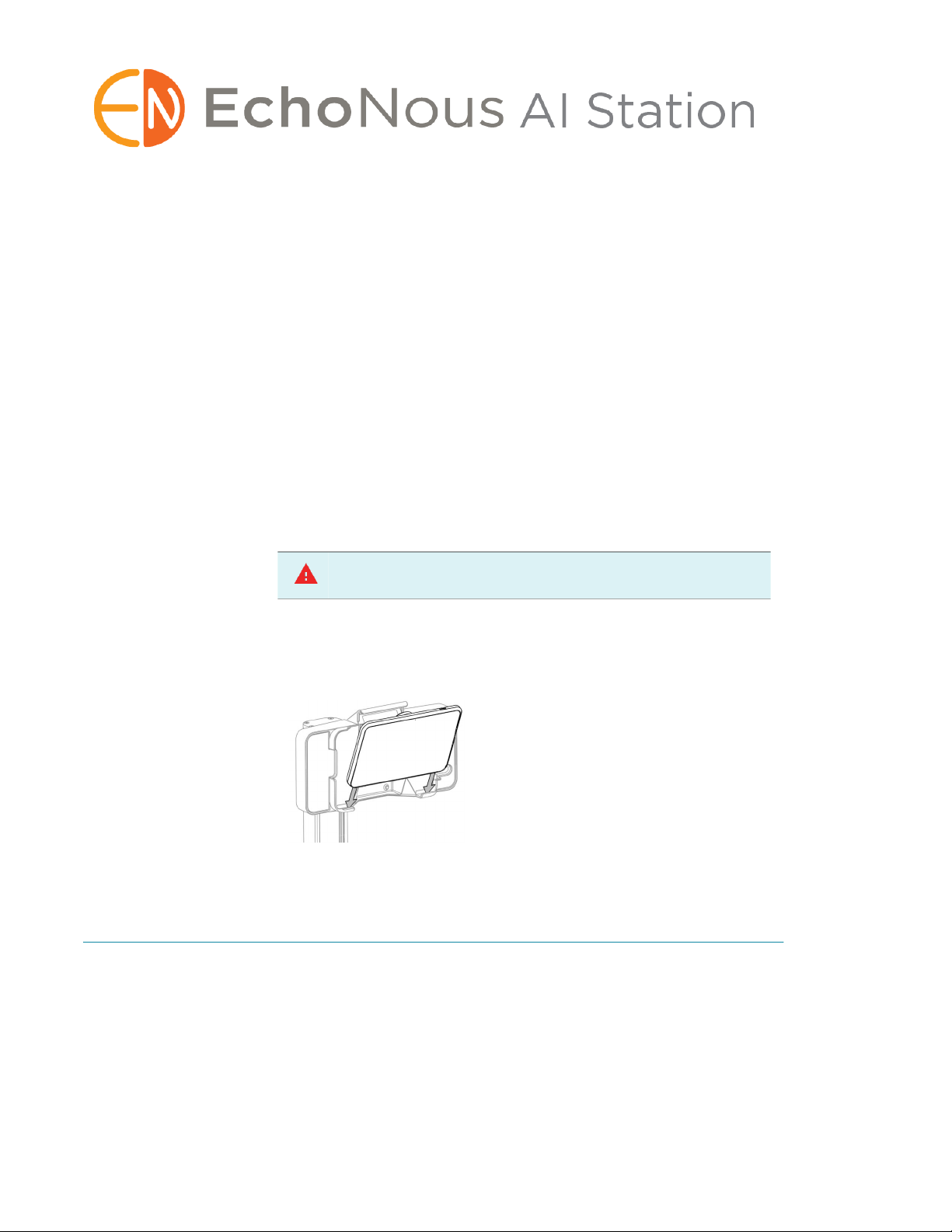

1. Align Kosmos Bridge so that the bottom edge rests on the corner tabs of the
tablet mount.
Ensure the latch is fully closed so Kosmos Bridge does not fall out and
cause injury or damage.
AI Station 2 User Guide
2EchoNous AI Station 2 User Guide

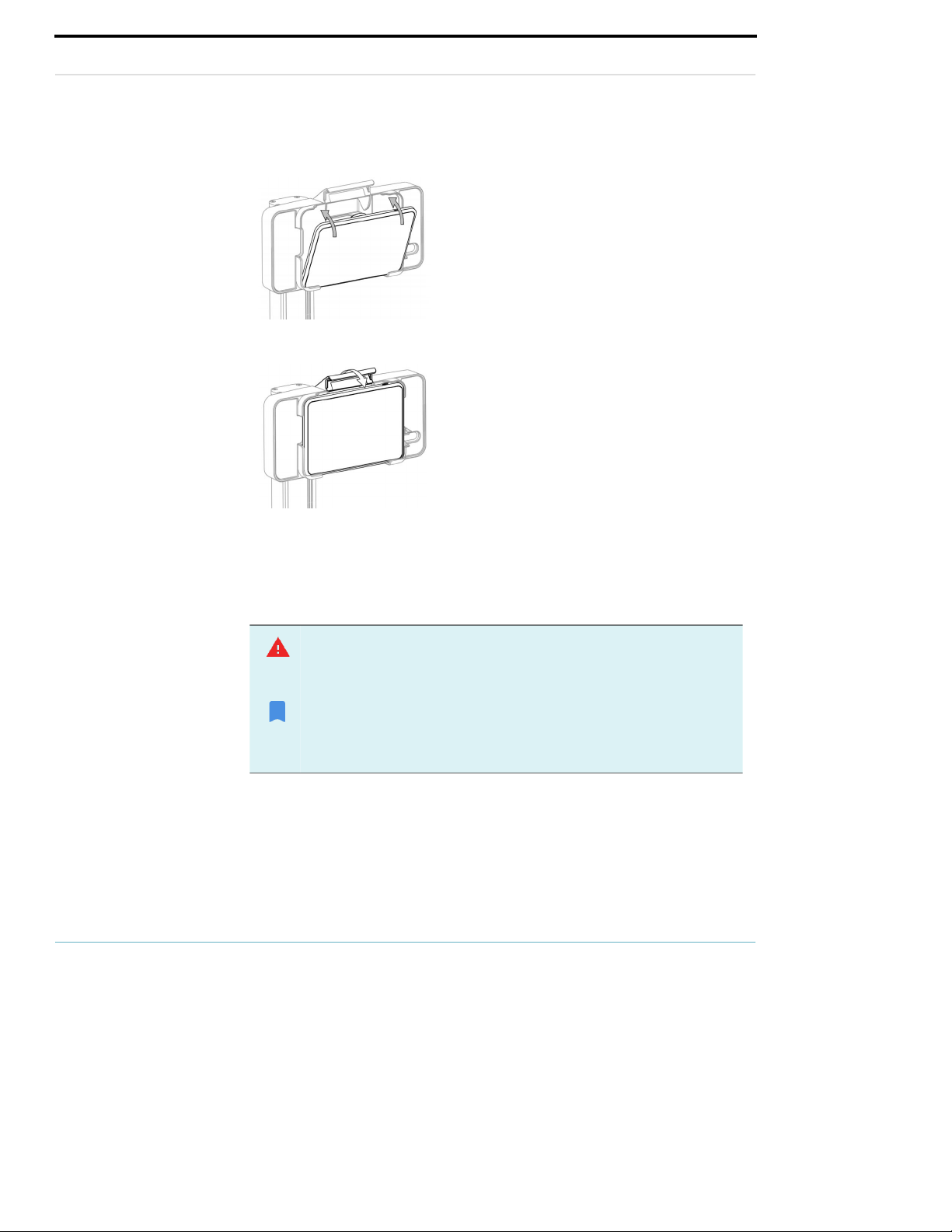

2. Tilt Kosmos Bridge back into the tablet mount, and press it in. There may be
minor resistance as you press the handle into the slot.
3. Press down on the latch until it clicks.
Removing Kosmos Bridge from the AI Station
The release button is intentionally hidden to improve security.
To remove Kosmos Bridge from the AI station:
1. Make sure that Kosmos Bridge is facing straight forward and not tilted
downward.
When removing Kosmos Bridge from the mount, adjust the holder so it is
not tilted downward before you push the release so it does not fall to the
ground.
• The release button simultaneously releases both the latch and the USB
cable.
• Press the release button quickly and completely – this ensures the USB
cable properly releases.
EchoNous AI Station 2 User Guide 3
AI Station 2 User Guide

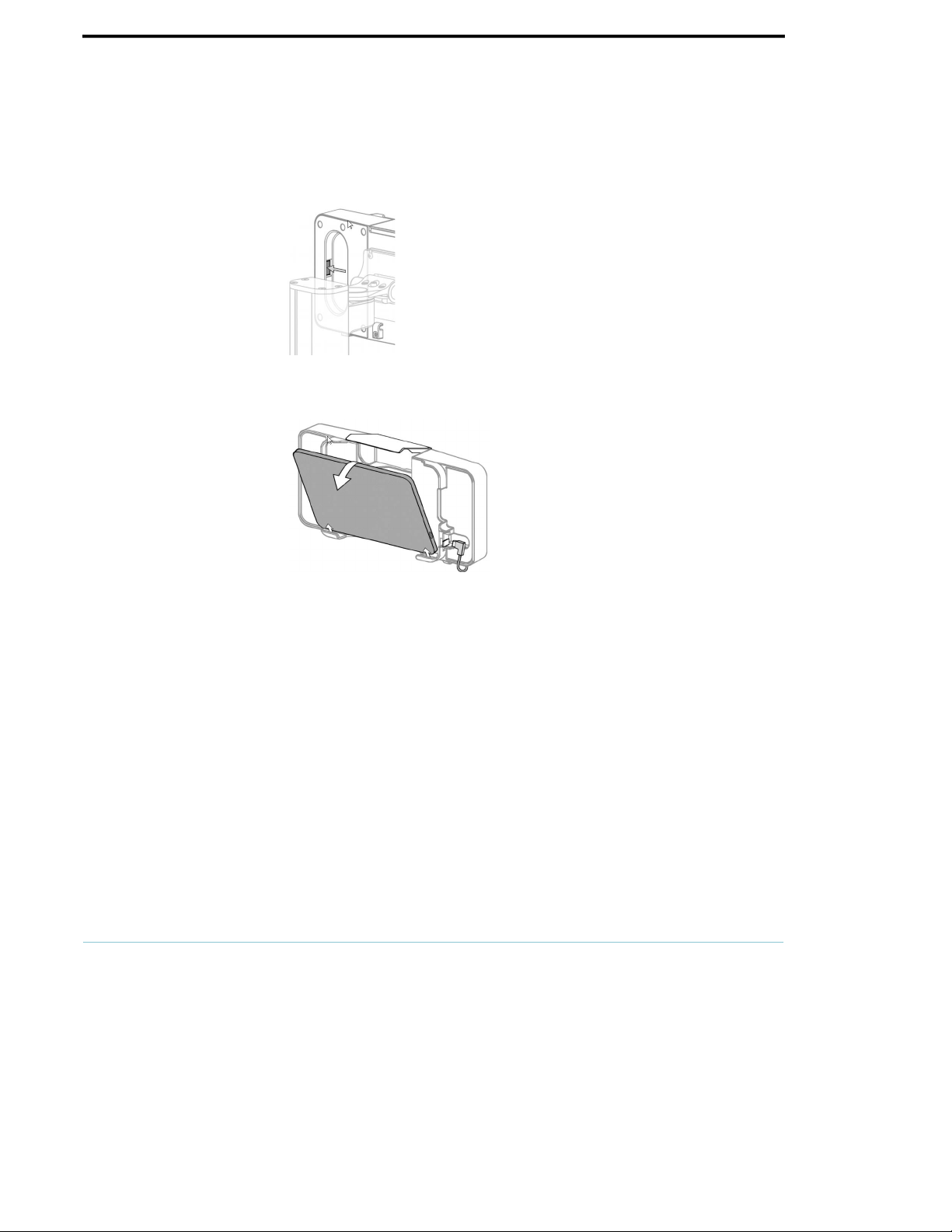

2. Support Kosmos Bridge with one hand, and use your other hand to press the
release button quickly and completely on the back upper right slot of the AI
Station.
3. Holding the top of Kosmos Bridge, tilt it forward and lift up to remove it from
the mount.
Locking the release button (optional)
If you want to keep Kosmos Bridge in the AI Station, you can lock the release
button to ensure the latch does not open.
To lock the release button:
4EchoNous AI Station 2 User Guide

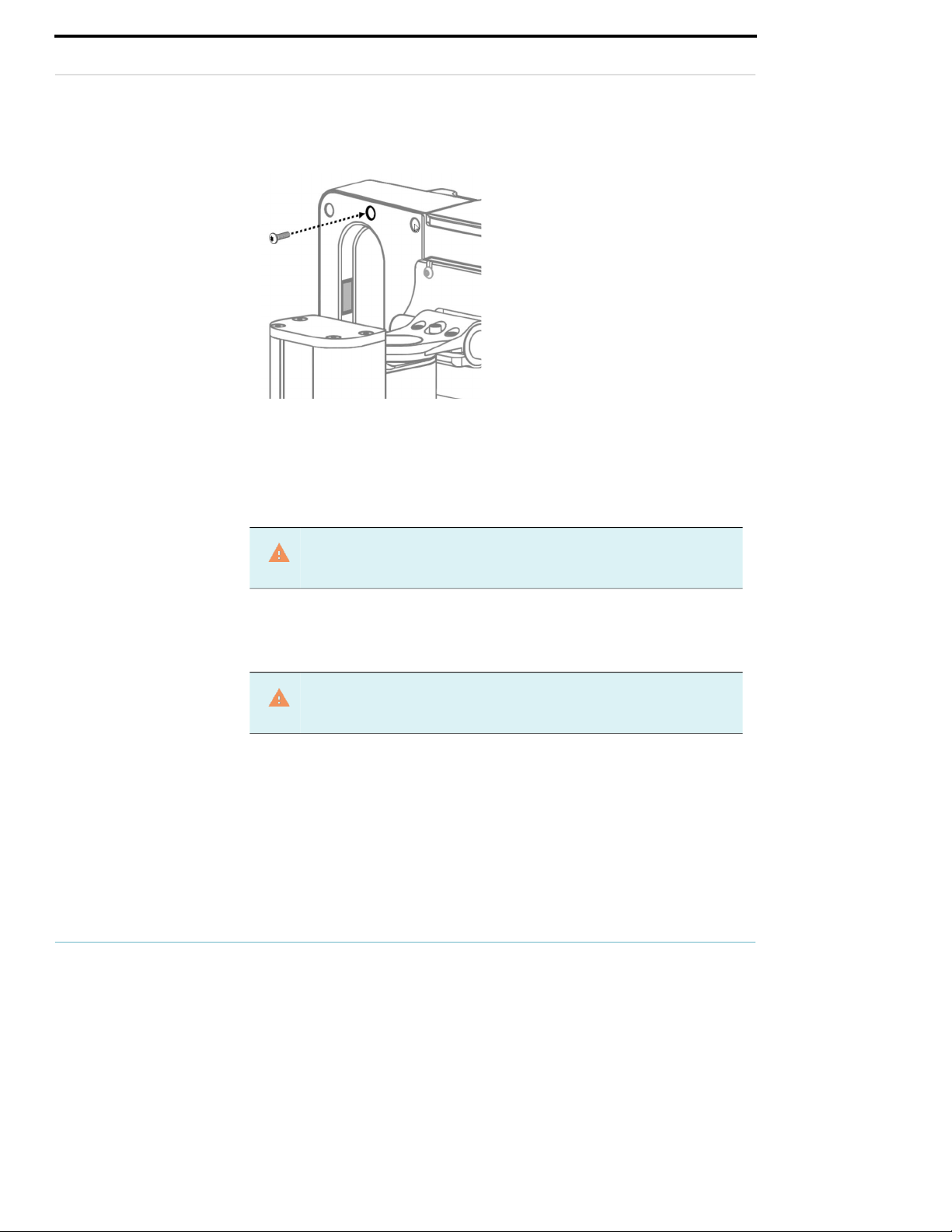

After installing Kosmos Bridge on the AI Station, use a T-10 Torx to install the
M3 x 8mm BHTS screw into the back of the tablet holder.
Adjusting the tablet hinge
You can adjust the tablet mount so it tilts up and down (+30/-15 degrees) and
swivels left and right (+/- 90 degrees).
If the mount is too loose or too tight, you can adjust it as described in the AI
Station 2 Installation Guide, Kosmos Bridge Mount.
The downward tilt is intentionally limited to reduce the likelihood that
Kosmos Bridge will fall if the latch is accidentally opened.
Be sure to support the tablet while adjusting the tension; if the tension is
too loose, the tablet mount could suddenly tilt down.
EchoNous AI Station 2 User Guide 5
AI Station 2 User Guide
Installation and Using the Kosmos Hub
While using the Kosmos Bridge on the AI Station, the Kosmos Hub allows you to
simultaneously scan and charge when Lexsa is connected or when both Torso/
Torso-One and Lexsa are connected.
The Kosmos Hub with the Lexsa grab-and-go feature, enables easy grab-and go
access of the Lexsa probe.
Below are instructions on how to set up Kosmos Hub and the Kosmos Hub with
the Lexsa grab-and-go feature.
Please note that not all features are available in all markets. Reference the
user guide of your region or country for all available features before use.
While scanning with Lexsa, do not disconnect the AC power if it is already
connected.
The enclosure box should not be open while in the patient environment.
6EchoNous AI Station 2 User Guide

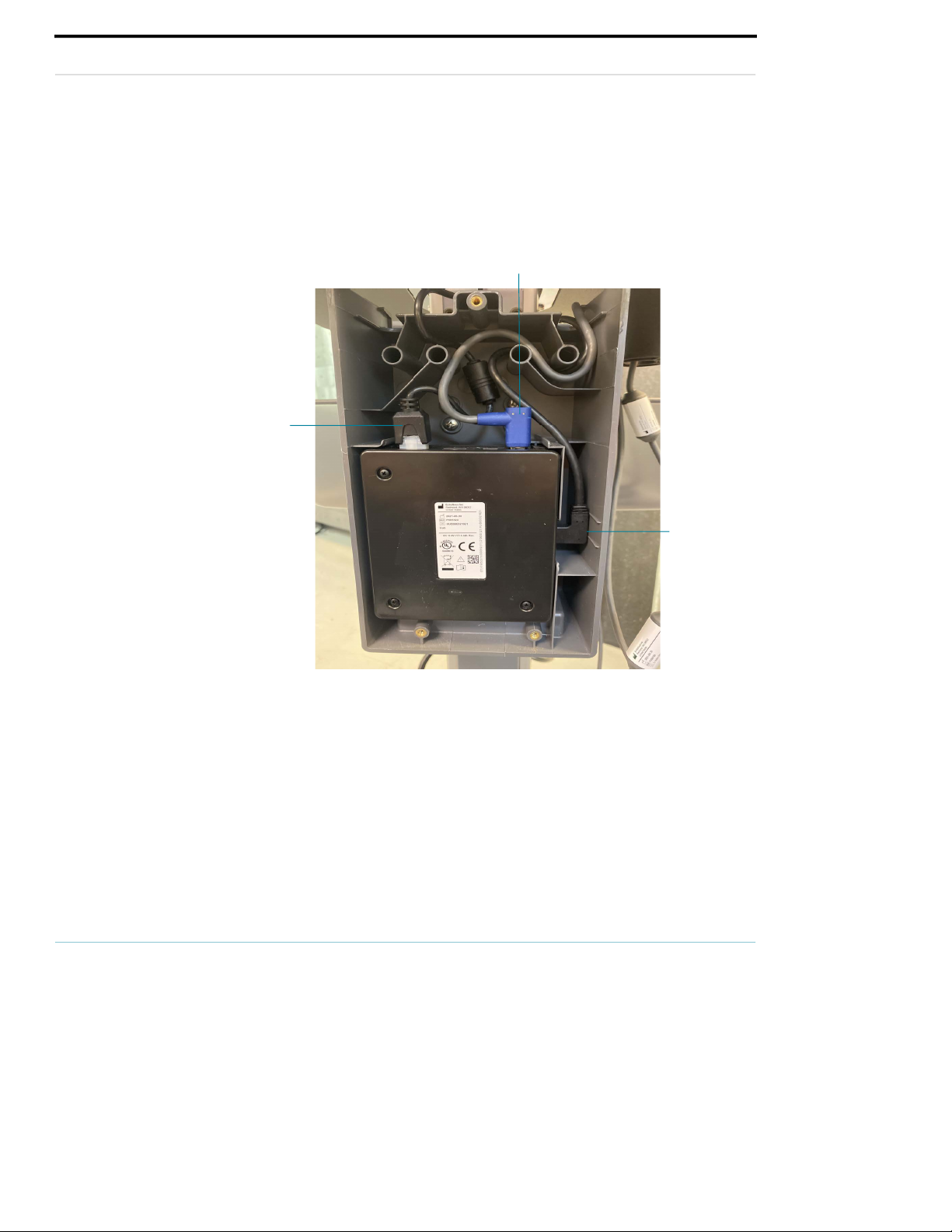

To install the Hub:
Reference the image above when installing the Hub
1. Connect Kosmos Lexsa
2. Connect the Hub power supply cable
3. Connect the Hub to Kosmos Bridge
Kosmos Lexsa Cable
Power Supply
Cable
Cable that
connects to
Kosmos Bridge
(USB-C)
EchoNous AI Station 2 User Guide 7
AI Station 2 User Guide

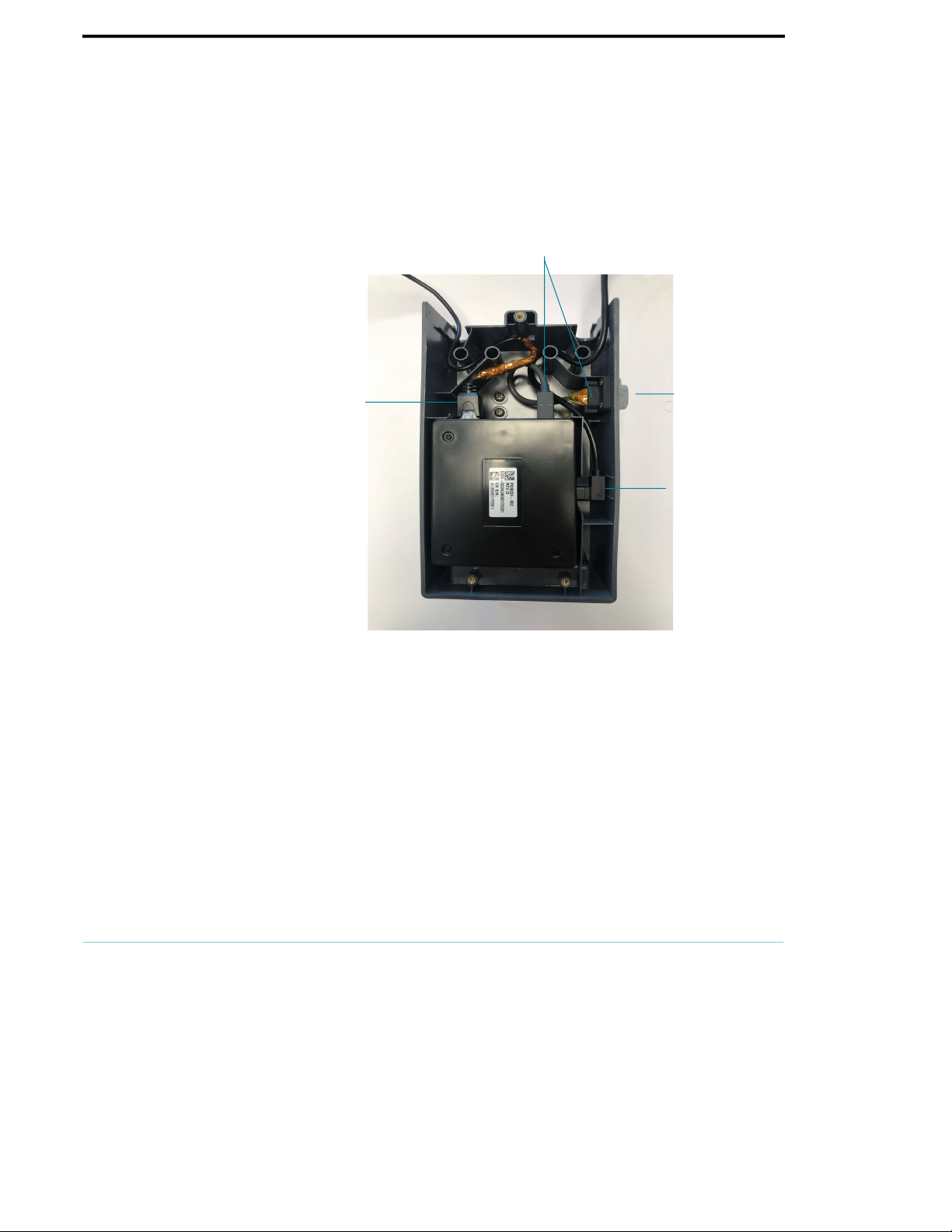

To install the Hub with Lexsa grab-and-go:
Reference the image above when installing the Hub with the Lexsa grab-and-go
feature
1. Connect Kosmos Lexsa to the exterior port
2. Connect the Hub power supple cable
3. Connect the Hub to Kosmos Bridge
Exterior port for
Kosmos Lexsa
Extension cable (USB-C)
Power Supply
Cable
Cable that connects
to Kosmos Bridge
(USB-C)
8EchoNous AI Station 2 User Guide

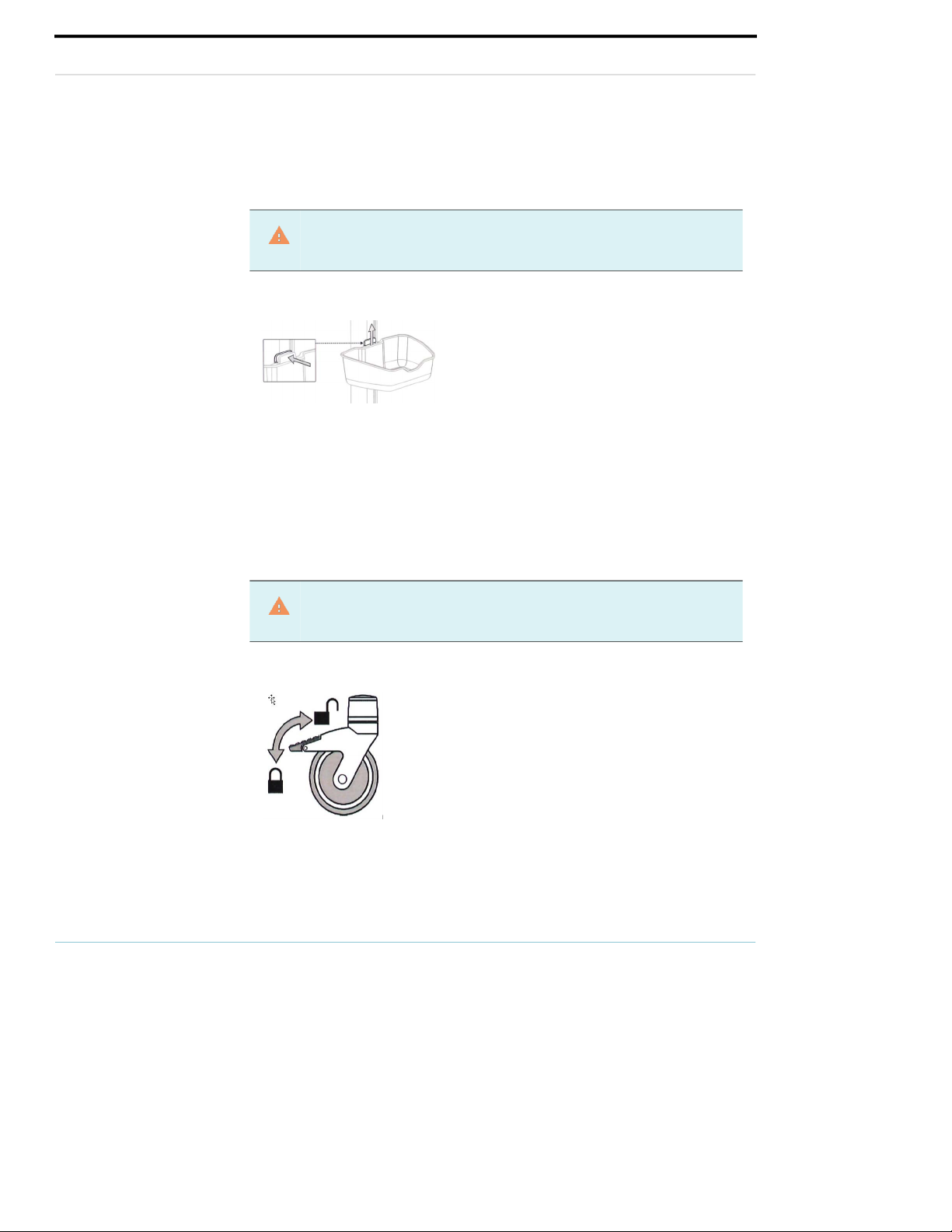

Using the utility bin
The utility bin can safely carry 4.5 kg.
To remove the utility bin for cleaning, press the tab, and slide the bin upward.
To reinstall the bin, align it with the top edge of the mounting bracket, and
slide the bin downward until it clicks into place.
Locking the casters
The AI Station has four locking casters.
To lock a caster, use your foot to push down on the tab.
Do not exceed the safe working load of the AI Station.
The AI Station is designed to roll freely; however, after you have placed it
where you want, lock the casters so it does not unintentionally move.
EchoNous AI Station 2 User Guide 9
AI Station 2 User Guide
Storing the AC power cord
To store the AC power cord, wrap the cord onto the cord wrap at the bottom
of the stand.
Cleaning and disinfecting
For cleaning and disinfection of the AI Station, refer to the manufacturer’s
instructions.
(https://assets.gcx.com/documents/documents/DU-CLEAN-01_Rev_A.PDF)
Routine Maintenance
Periodically inspect all fasteners associated with the mounting assembly.
Tighten or Adjust as necessary for optimal operation and safety.
Cleaning the Mounting Assembly
The mounting assembly may be cleaned with most mild, non-abrasive solutions
commonly used in the hospital environment (e.g. diluted bleach, ammonia, or
alcohol solutions).
The surface finish will be permanently damaged by strong chemicals and
solvents such as acetone or trichloroethylene.
Steel wool or other abrasive material should never be used.
Damaged caused by the use of unapproved substances or processes will not be
warranted. We recommend testing of any cleaning solution on a small area of
the mounting assembly that is not visible to verify compatibility.
Never submerge or allow liquids to enter the mounting assembly. Wipe any
cleaning agents off the mounting assembly immediately using a water-
dampened cloth. Dry the assembly thoroughly after cleaning.
10 EchoNous AI Station 2 User Guide
Specifications
Stand
•Weight: 24.5 kg
•Dimensions: 112 x 51 x 45 cm
Kosmos Hub
•Dimensions: 100 x 116 x 30 mm
Power Supply
•Input: 100-240V AC supply 50-60Hz
•Output: 5.0V ±0.25V at 2.0A maximum current
Hub to tablet cable length
•1800 mm (70.9”)
GCX makes no claims regarding the efficacy of the listed chemicals or
processes as a means for controlling infection. Consult your hospital’s
infection control officer or epidemiologist. To clean or sterilize mounted
devices or accessory equipment, refer to the specific instructions
delivered with those products.
