Eclipse Security Nubix Manuale utente
1
Thank you for using our product.
1. This is user's manual for High-end 4CH, 8CH and 16CH DVR (Digital Video
Recorder).
2. This manual contains product specification and introduction, installation guide,
operating guide and other necessary matters for easy understanding. Users should
read this user's manual carefully for proper use.
3. Contents in this manual may be changed according to the specification change and
feature improvement without any notification.
4. This user's manual shall never be copied without prior agreement and violating this
may be a reason for legal punishment on piracy.
5. If there is any incorrect or insufficient content in this user's manual, notify it to
Customer Support Center.
2
Contents
CH 1. Product Introduction
1-1. Product Contents 4
1-2. Specifications 6
1-3. Product Characteristics 8
1-4. Name of Each Part 10
1-4-1. 4CH 10
1-4-2. 8 and 16CH 12
CH 2. Installation Guide and Cautions
2-1. Cautions 14
2-2. Product Installation 16
2-2-1. Power Connection 16
2-2-2. Connecting External Device 16
2-2-3. Connecting External Device(8 and 16 CH) 20
CH 3. How to Use
3-1. LIVE Screen 24
3-1-1. INFORMATION Feature 25
3-1-2. Power off 26
3-1-3. Display mode change 27
3-1-4. PTZ (Pan, Tilt and Zoom) 28
3-2. Search Screen 32
3-2-1. Graphic Search 35
3-2-2. Log List 36
3-2-3 Text In Search 37
3-2-4. Time Search 38
3-2-5. Backup 39
3-2-6. File Search in Play Mode 40
3-2-7. INFORMATION Feature in Play Mode 40
3-2-8. Instant Replay 41
CONTENTS
3
Contents
3-3. Setup Menu Screen 42
3-3-1. A/V(Audio/Video) 42
3-3-2. Rec(Recording) 44
3-3-3. Event In 47
3-3-4. Alarm Out 50
3-3-5. Storage 51
3-3-6. NETWORK 53
3-3-7. SYSTEM 55
CH 4. Mouse Operation 57
CH 5. Client Program 59
5-1. Installing Client Program 59
5-2. How to use Client Program 64
5-2-1. Initial Screen 65
5-2-2. Connecting the DVR 69
5-2-3. Initial Screen after connection 70
5-2-4 WATCH-live viewing 71
5-2-5. Favorite – multiple DVR connection 72
5-2-6. SEARCH-playback 75
5-2-7. SETUP-remote setup of DVR 79
5-3. Firmware Upgrade 87
5-4. Web browser Monitoring and Playback 89
Trouble Shooting 90
Warranty 91
Appendix A How to Connect POS 92
Appendix B How to connect the DVR Controller (TBT) 94
CONTENTS
4
1-1. Product Contents
<4CH>
After removing packing materials of this product, check whether all following
contents are included.
Main Body (DVR):
This converts the analog video and audio signal
to the digital signal and saves on HDD.
Adapter:
This 12V adapter supplies power to the product.
Power Cable:
This connect the adapter and the power source.
Program CD:
This contains the User’s manual and Client
Program for DVR.
Remote Controller:
This is an IR remote controller for convenience.
Battery:
These are 2(two) AA size battery for the remote
controller.
CH1. Product Introduction
CH 1 Product Introduction
5
<8 and 16 CH>
After removing packing materials of this product, check whether all following
contents are included.
Main Body (DVR):
This converts the analog video and audio signal
to the digital signal and saves on HDD.
Adapter:
This 12V adapter supplies power to the product.
Power Cable:
This connect the adapter and the power source.
Program CD:
This contains the User’s manual and Client
Program for DVR.
Remote Controller:
This is an IR remote controller for convenience.
Battery:
These are 2(two) AA size battery for the remote
controller.
CH 1 Product Introduction
6
1-2. Specifications
<4CH>
Image Input/Output : NTSC / PAL
Recording Speed :
NTSC - 1~123fps(based on 360X240)
PAL - 1~103fps(based on 360X288)
Compression Method : MPEG4 Technology
Recording Time : 48~17,780 hours (160G)
Power : DC12V, 4.5A (DC adapter)
Power Consumption : 34W
External Terminal : Video Input - BNC 4CH
Video Output - BNC 1CH, S-Video 1CH, VGA 1CH(optional)
Spot Out- BNC 1CH
Loop Out - Loop Through 4CH
Audio Input - RCA 4CH
Audio Output - RCA 1CH
Sensor Input - Terminal Block 4CH (Contact, TTL)
Sensor Output - Terminal Block 4CH (Dry Contact)
LAN Communication - RJ45 Port
Serial Communication - DSUB9(RS-232C)
Terminal Block(RS485)
USB 1.1 Type A
Temperature : 5~40℃(30~110 F)
Humidity : 20%~80%(Non-condensing)
Size : 277 (W) ×315 (D) ×80 (H) mm
Weight : Lighter than 4.5Kg(Supplements and Packing Materials Excluded)
Supplements : Adapter 1
Power Cable 1
Program CD 1
Remote Controller 1
Battery 2
CH 1 Product Introduction
7
<8CH / 16CH>
Image Input/Output : NTSC / PAL
Recording Speed :
NTSC -1~127(8ch), 1~135fps(16ch) : based on 360X240
PAL - 1~107(8ch), 1~115fps(16ch) : based on 360X288
Compression Method : MPEG4 Technology
Recording Time : 44~17,780 hours (160G, 16ch)
47~17,780 hours (160G, 8ch)
Power : DC12V, 8A (DC adapter)
Power Consumption : 96W
External Terminal : Video Input - BNC 8CH / 16CH
Video Output - BNC 1CH, S-Video 1CH, VGA 1CH
Spot Out- BNC 1CH
Loop Out - Loop Through 8CH / 16CH
Audio Input - RCA 4CH
Audio Output - RCA 1CH
Sensor Input - Terminal Block 8CH (Contact, TTL) / 16CH
(Contact, TTL)
Sensor Output - Terminal Block 8CH (Dry Contact 4CH) /
12CH (Dry Contact 4CH)
LAN Communication - RJ45 Port
Serial Communication - DSUB9(RS-232C)
Terminal Block(RS485)
USB 1.1 Type A
Temperature : 5~40℃(30~110 F)
Humidity : 20%~80%(Non-condensing)
Size : 430 (W) ×420 (D) ×88 (H) mm
Weight : Lighter than 5.5Kg(Supplements and Packing Materials Excluded)
Supplements : Adapter 1
Power Cable 1
Program CD 1
Remote Controller 1
Battery 2
CH 1 Product Introduction
8
1-3. Product Characteristics
1) High quality picture
This enables recording and playing high quality digital image based on MPEG4
compression method.
2) High reliability
With Embedded hardware and software design, this maintains higher product
reliability compared to common PC type products.
3) Simple usage
This allows users to use it conveniently by placing control buttons similar to existing
ones on VCR, and users can easily learn the usage.
4) Triplex System
Triplex System allows recording, backup, networking and playback simultaneously.
5) Selectable recording setup
For recording methods, users can select the frame rate, resolution and video quality
individually in order to be appropriate for user's environment.
6) Remote monitoring
With using exclusive line or Internet network, you can search or monitor recorded
images remotely by installing exclusive client program on PC.
7) Backup
You can backup with USB, CD-RW and DVD-RW.
8) Audio recording
You can record four sound inputs simultaneously. Moreover, you can listen to the
sound in search and live monitoring and play mode.
9) Various recording methods
This provides convenient use with manual recording, recording by dates and days,
hourly schedule recording, sensor and motion detection event recording and others to
enable unmanned monitoring.
10) Various total monitoring features
You can use overall and economical security system through various sensor inputs
and contact output control.
11) Display information in easy-to-understand information method
This enhanced convenience of user by displaying information (date, time, recording
method, recording frame number, HDD capacity and others) in monitoring, recording
and playing mode in easy-to-understand way.
CH 1 Product Introduction
9
12) Spot monitoring
Spot out can be enable to monitor sequentially in other place.
13) P/T/Z control
By built in RS485, various P/T/Z cameras can be used.
14) Individual resolution setting
You can record in each channel by choosing 360X240, 720X240 and 720X480
individually.
15) Separate video transmission engine
DVR can send 60 fps (based on CIF) regardless of the local recording and viewing
setup regardless with recording setup.
16) Web browser support
You can monitor and playback the video and control the PTZ camera by internet
explorer.
17) Built in S.M.A.R.T.
You can automatically check the health of the hard disk drives.
18) Text inserter
You can operate with the POS and ATM.
19) Mirroring
If you install more than two HDDs, you can use the second HDD for backup for
maximum fault tolerance.
20) Language pack
Basically DVR has 5 language set, furthermore you can choose the language set if
you want.
CH 1 Product Introduction
Indice
Altri manuali Eclipse Security Registratore digitale
Eclipse Security
Eclipse Security ECL-CVDVR32 Manuale utente
Eclipse Security
Eclipse Security ECL-NVR16 Manuale utente
Eclipse Security
Eclipse Security 4 Channel Premium DVR Manuale utente
Eclipse Security
Eclipse Security Nubix HD Series Manuale utente
Eclipse Security

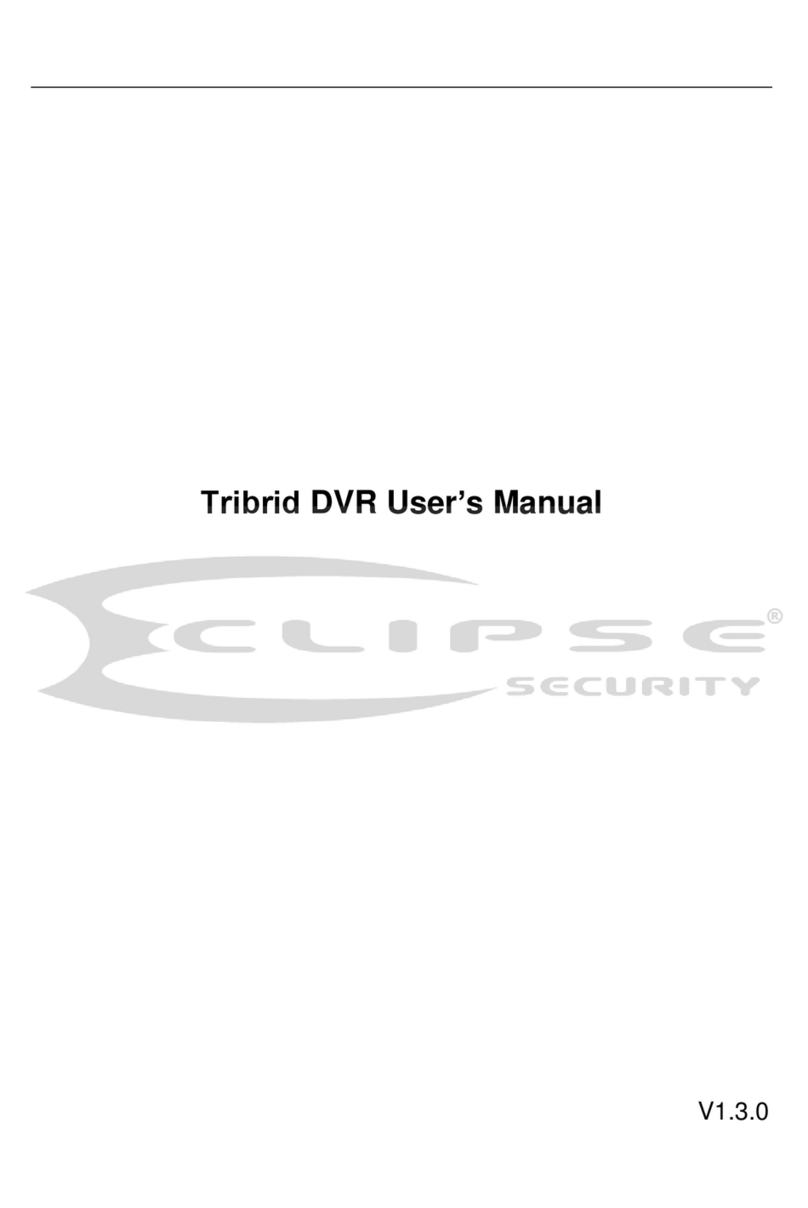

Eclipse Security Tribrid Manuale utente
