USERS MANUAL

I SERIES

DEHUMIDIFIER

Models

ECOI2LDT

ECO2OLDT

Read This Manual

Inside you will find many helpful hints on how

to use and maintain your dehumidifier properly.

Just a little preventative care on your part can

save you a great deal of time and money over

the life of your dehumidifier. You'll find many

answers to common problems in the chart of

troubleshooting tips. Review the chart of

Troubleshooting Tips before calling your

service engineer.



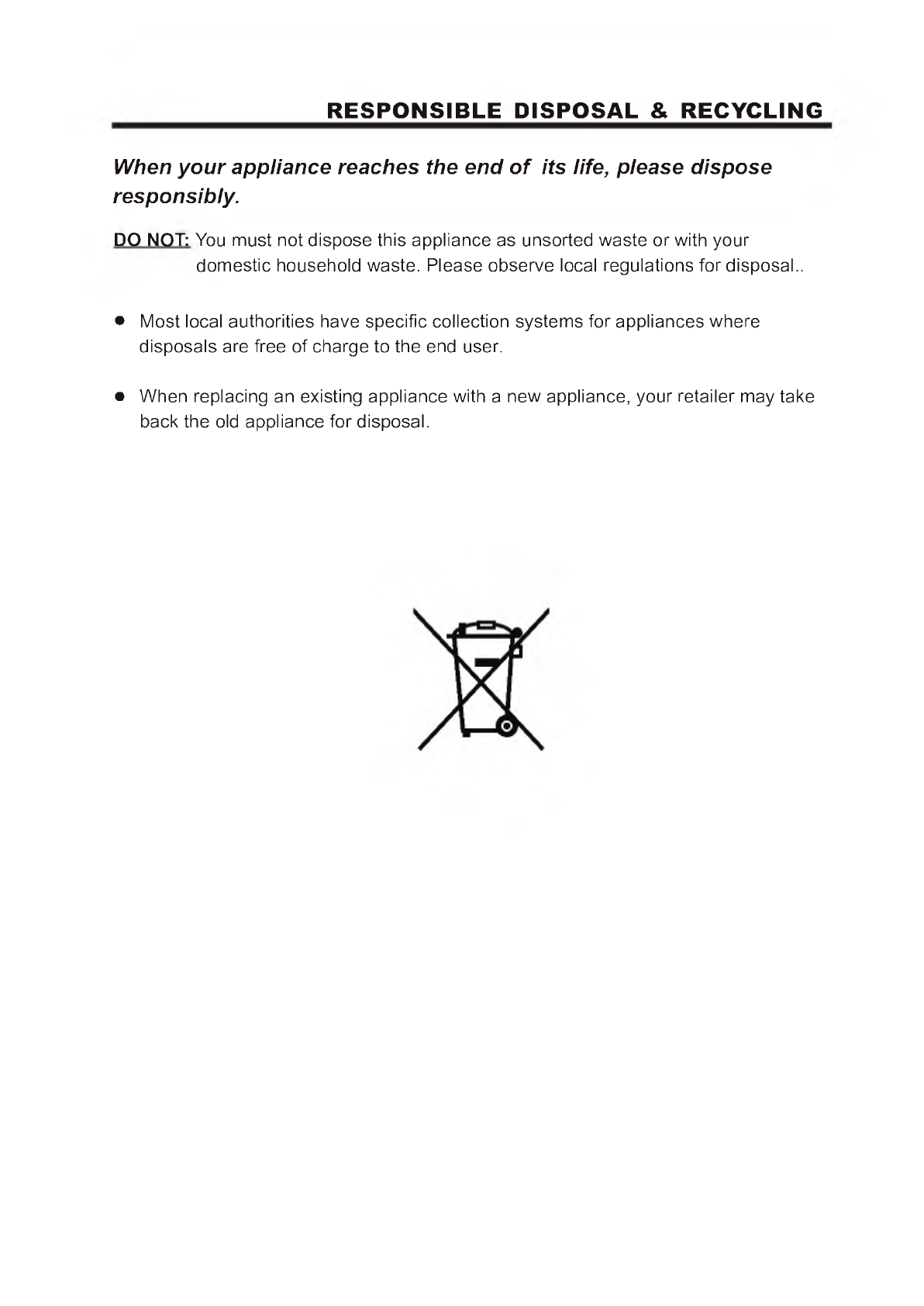

RESPONSIBLE DISPOSAL & RECYCLING

When your appliance reaches the end of its life, please dispose

responsibly.

DO NOT:

You must not dispose this appliance as unsorted waste or with your

domestic household waste. Please observe local regulations for disposal..

•

Most local authorities have specific collection systems for appliances where

disposals are free of charge to the end user.

•

When replacing an existing appliance with a new appliance, your retailer may take

back the old appliance for disposal.



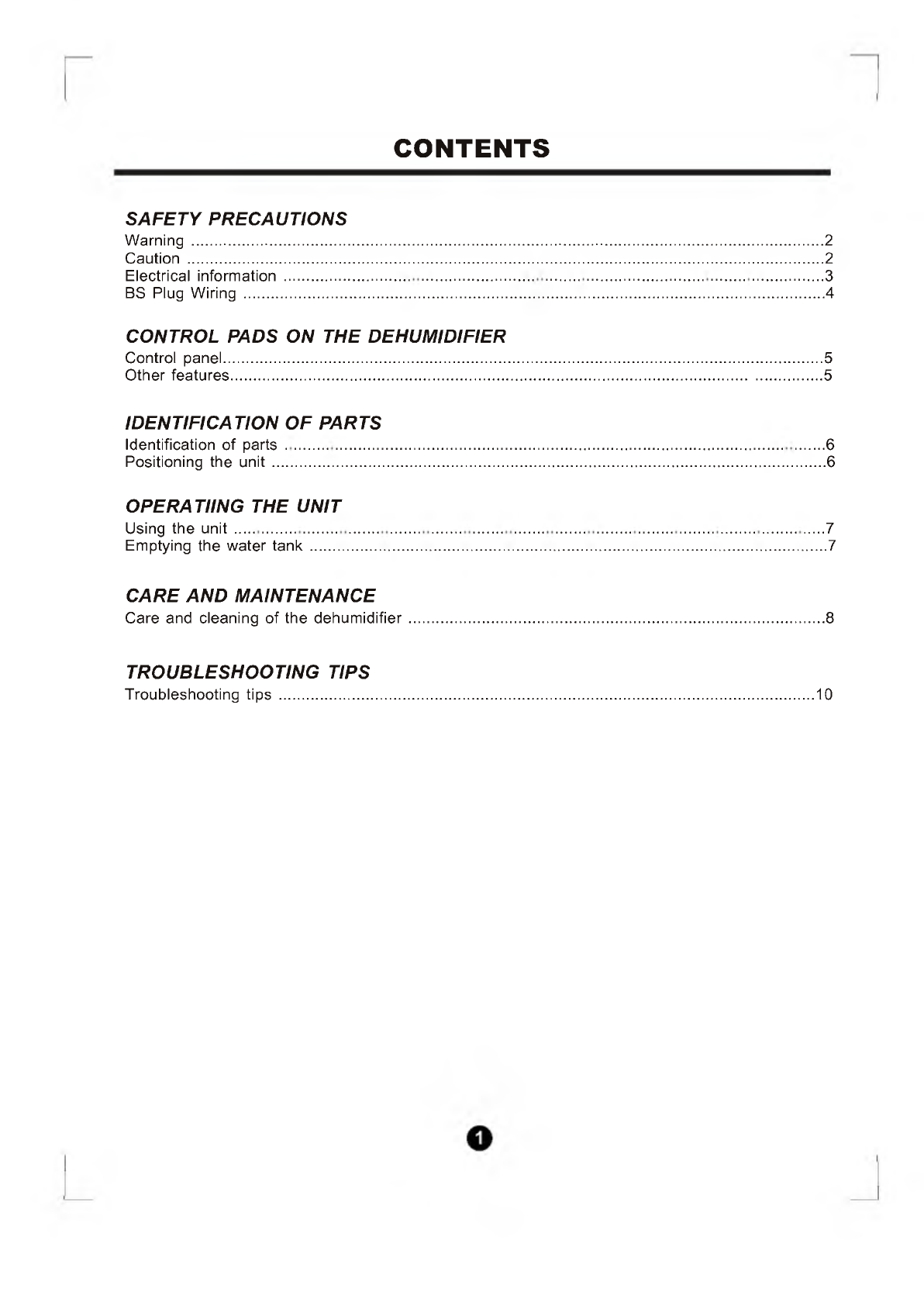

CONTENTS

SAFETY PRECAUTIONS

Warning..........................................................................................................................................2

Caution...........................................................................................................................................2

Electricalinformation ......................................................................................................................3

BSPlug Wiring ...............................................................................................................................4

CONTROL PADS ON THE DEHUMIDIFIER

Controlpanel...................................................................................................................................5

Otherfeatures .................................................................................................................



............... 5

IDENTIFICATION OF PARTS

Identificationof parts ......................................................................................................................6

Positioningthe unit .........................................................................................................................6

OPERA TIING THE UNIT

Usingthe unit .................................................................................................................................7

Emptyingthe water tank .................................................................................................................7

CARE AND MAINTENANCE

Care and cleaning of the dehumidifier ...........................................................................................8

TROUBLESHOOTING TIPS

Troubleshootingtips .....................................................................................................................10



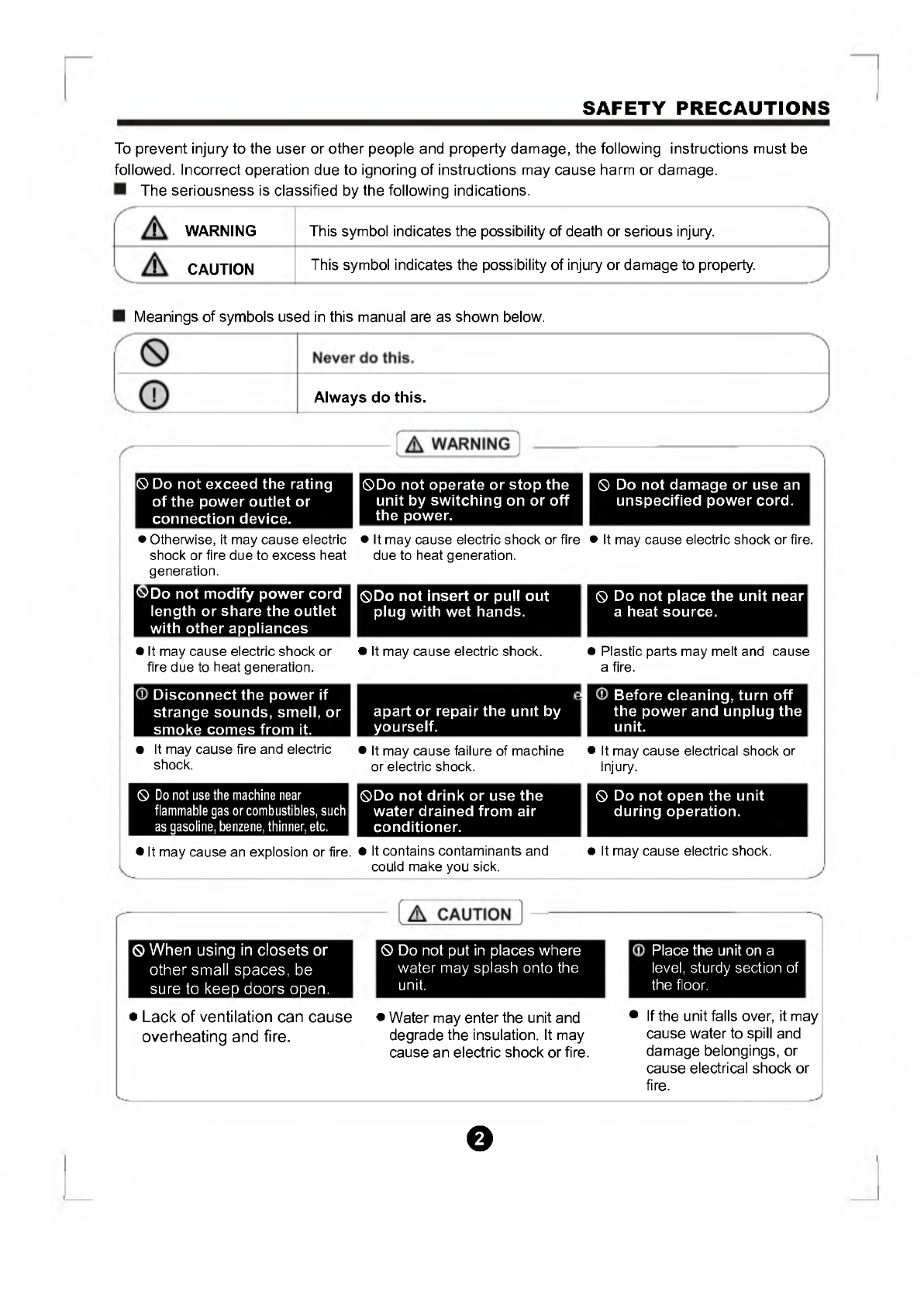

SAFETY PRECAUTIONS

To prevent injury to the user or other people and property damage, the following instructions must be

followed. Incorrect operation due to ignoring of instructions may cause harm or damage.

•

The seriousness is classified by the following indications.

WARNING



This symbol indicates the possibility of death or serious injury.

._LtI

CAUTION



This symbol indicates the possibility of injury or damage to property.

•

Meanings of symbols used in this manual are as

shown below.



Never do this.

~(D



Always do this.

WARNING

•

Otherwise, it may

cause electric

• It may cause electric shock or fire • It may cause electric shock or fire.

shock or fire due to excess heat



due to heat generation.

generation.

•

It may cause electric shock or



• It may cause electric shock.



• Plastic parts may melt and cause

fire due to heat generation.



a fire.

•

may

cause fire and electric



• It may cause failure of machine



• It may cause electrical shock or

shock.



or electric shock.



injury.

•

It may cause an explosion or fire.

It contains contaminants and



• It may cause electric shock.

could make you sick.



CAUTION

When using in closets or

sure to keep doors open.



unit.



g'Ft. p

laces

1..

wher

iPP"

other small spaces, be



water

• Lack of ventilation can cause



• Water may enter the unit and



• If the unit falls over, it may

overheating and fire.



degrade the insulation. It may



cause water to spill and

cause an electric shock or fire.



damage belongings, or

cause electrical shock or

fire.



SAFETY PRECAUTIONS

•

A lack of air flow can lead



Infants, children, elderly people,



. This will cause the unit

to overheating and fire.



and people not senstive to



deterioration due to

humidity.



chemicals and solvents

dissolved in the air.

•

Do not clean unit when

power is on as it may cause

fire and electric shock, it may

cause an injury.

•

There is danger of fire or

electric shock.

•

You may be injured if you

fall or if the unit falls over.

•

Operation without filters

may cause failure.

•

It may cause failure of

appliance or accident.

•

Water may spill inside th

unit, causing insulation

failure and electrical

shock or fire.

Do not, underany

circumstances, cut,

remove, or bypass

the earth lead.

This unit isgrounded through the

power cord plug when plugged

into a matching wall outlet.

Fig.1

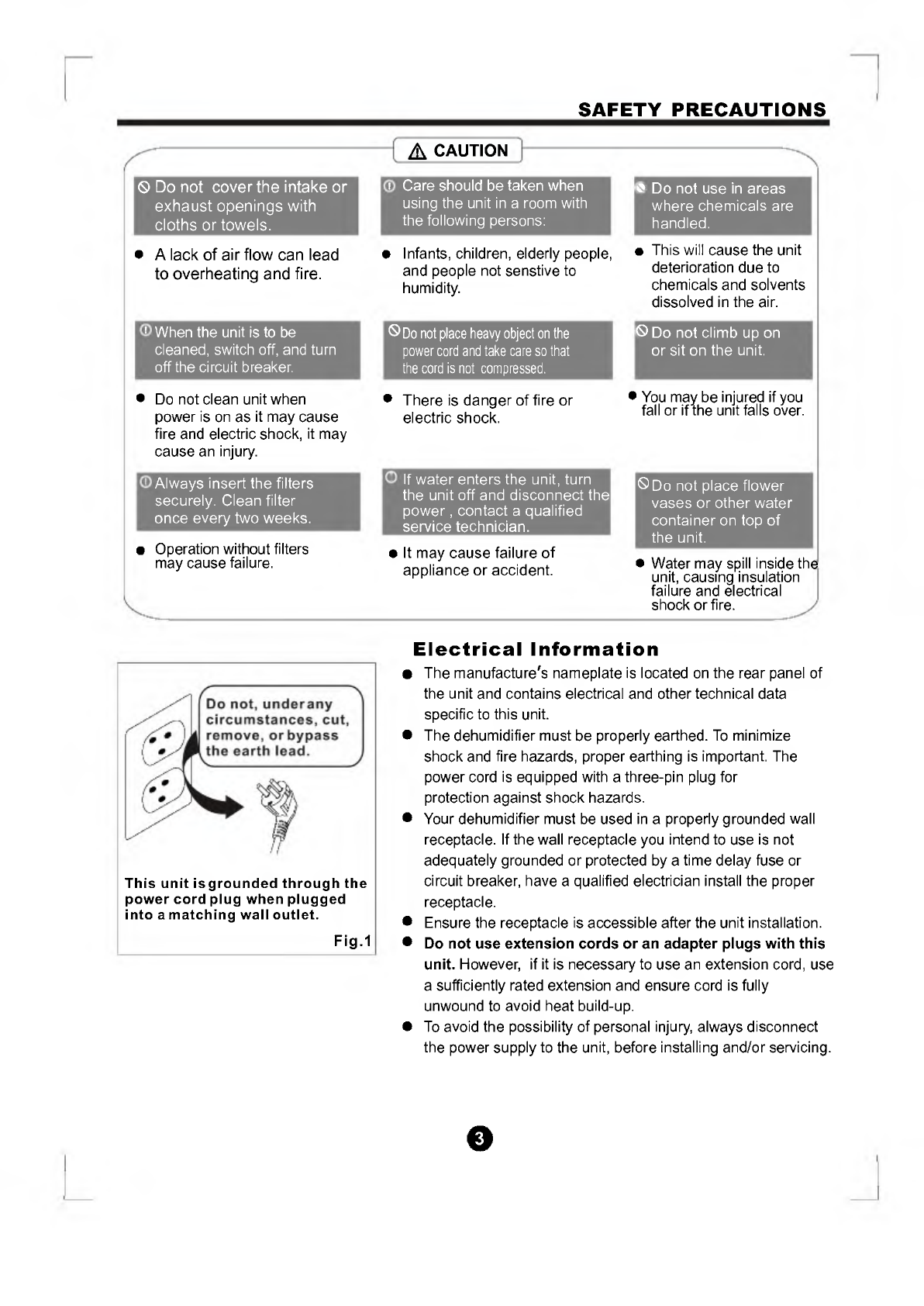

Electrical Information

•

The manufacture's nameplate is located on the rear panel of

the unit and contains electrical and other technical data

specific to this unit.

•

The dehumidifier must be properly earthed. To minimize

shock and fire hazards, proper earthing is important. The

power cord is equipped with a three-pin plug for

protection against shock hazards.

•

Your dehumidifier must be used in a properly grounded wall

receptacle. If the wall receptacle you intend to use is not

adequately grounded or protected by a time delay fuse or

circuit breaker, have a qualified electrician install the proper

receptacle.

•

Ensure the receptacle is accessible after the unit installation.

•

Do not use extension cords or an adapter plugs with this

unit.

However, if it is necessary to use an extension cord, use

a sufficiently rated extension and ensure cord is fully

unwound to avoid heat build-up.

•

To avoid the possibility of personal injury, always disconnect

the power supply to the unit, before installing and/or servicing.

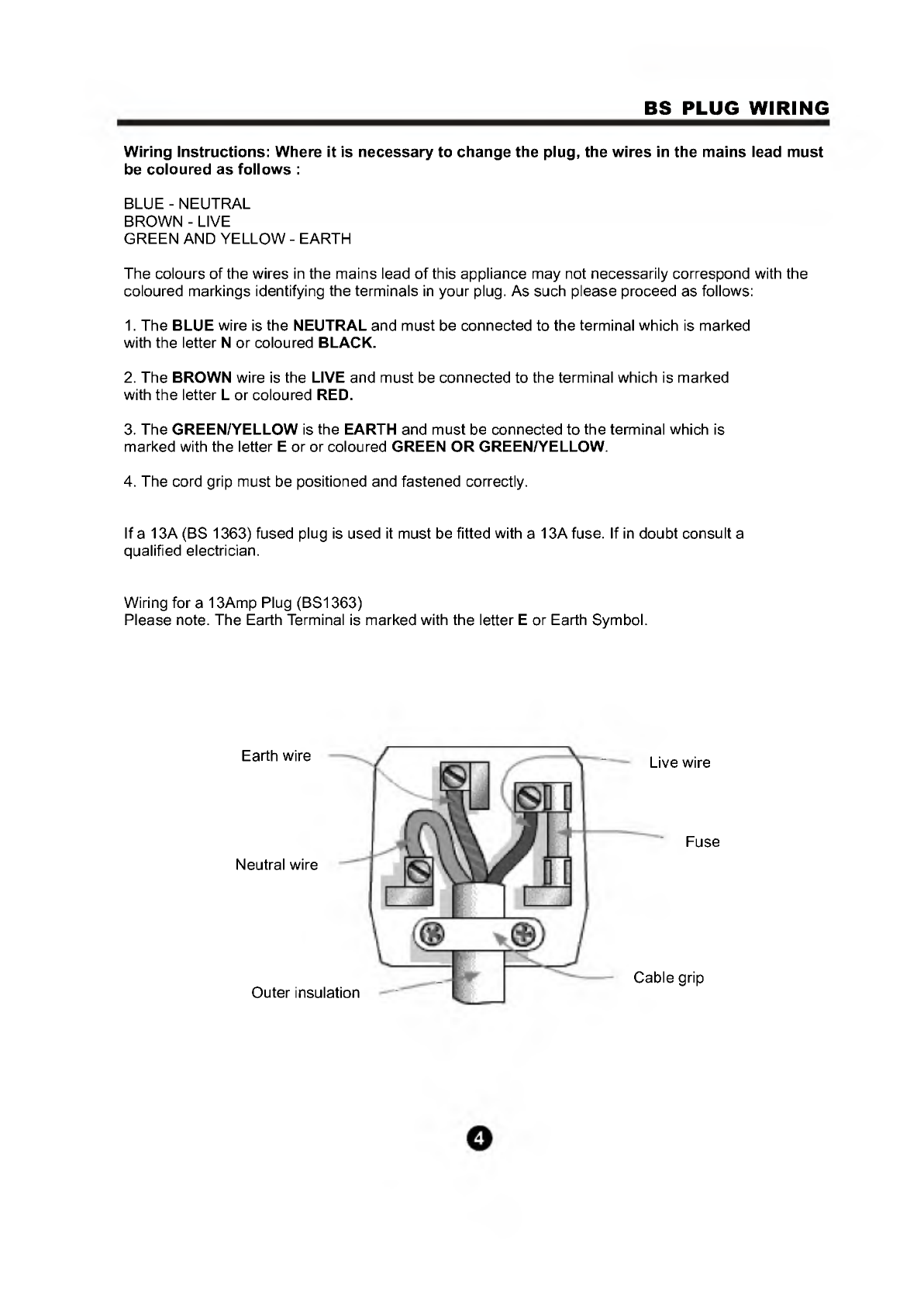

BS PLUG WIRING

Wiring Instructions: Where it is necessary to change the plug, the wires in the mains lead must

be coloured as follows:

BLUE - NEUTRAL

BROWN - LIVE

GREEN AND YELLOW - EARTH

The colours of the wires in the mains lead of this appliance may not necessarily correspond with the

coloured markings identifying the terminals in your plug. As such please proceed as follows:

The

BLUE

wire is the

NEUTRAL

and must be connected to the terminal which is marked

with the letter

or coloured

BLACK.

The

BROWN

wire is the

LIVE

and must be connected to the terminal which is marked

with the letter

or coloured

RED.

The

GREEN/YELLOW

is the

EARTH

and must be connected to the terminal which is

marked with the letter

or or coloured

GREEN OR GREEN/YELLOW.

The cord grip must be positioned and fastened correctly.

If a 13A (BS 1363) fused plug is used it must be fitted with a 13A fuse. If in doubt consult a

qualified electrician.

Wiring for a 1 3Amp Plug (BS1 363)

Please note. The Earth Terminal is marked with the letter

or Earth Symbol.

Earth wire



Neutral wire



Outer insulatio

- Live wire

Fuse

Cable grip



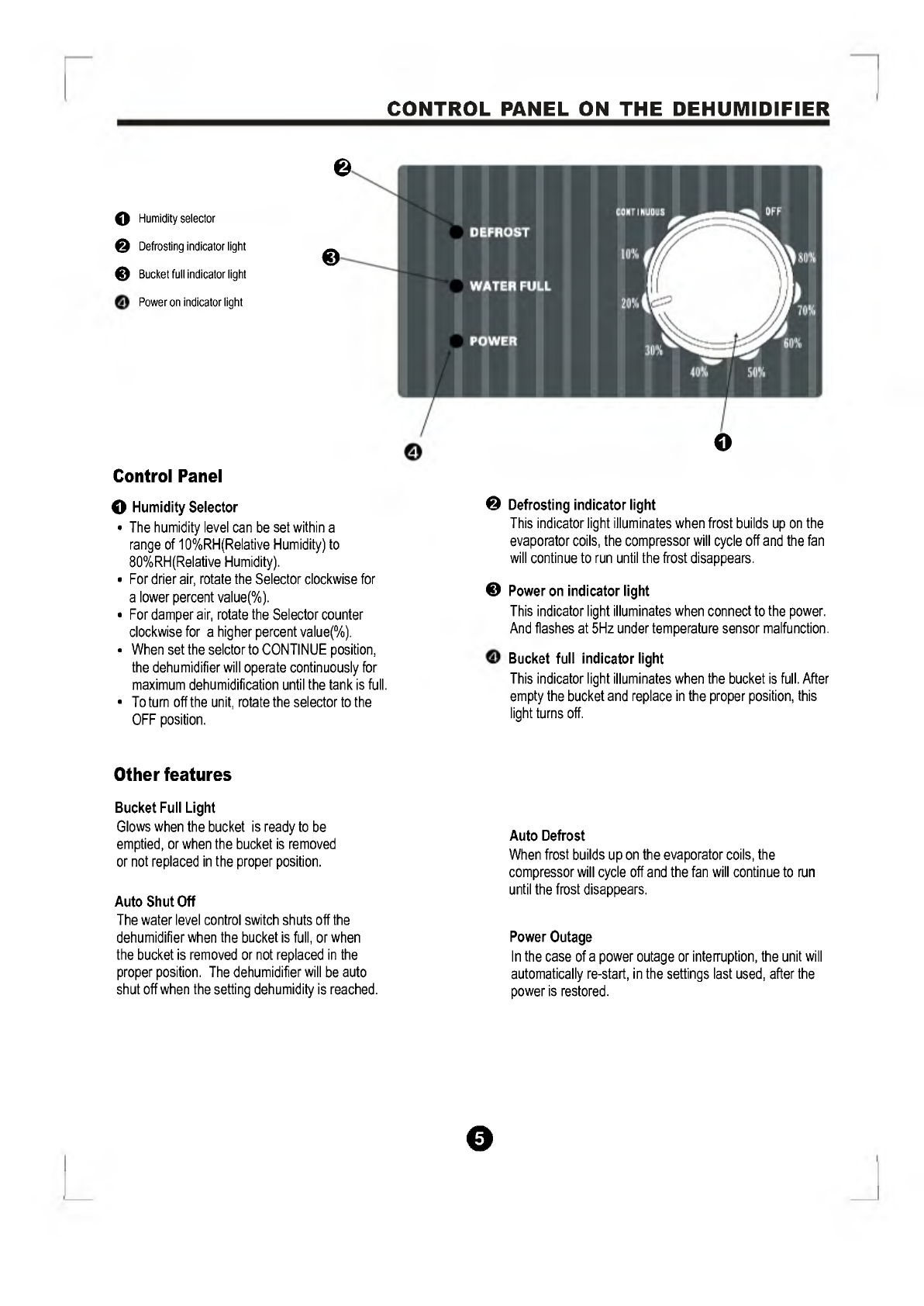

CONTROL PANEL ON THE DEHUMIDIFIER

Humidity selector

Defrosting indicator light

Bucket full indicator light

Power on indicator light

Control Panel



Humidity Selector

•

The humidity level can be set within a

range of 10%RH(Relative Humidity) to

80%RH(Relative Humidity).

•

For drier air, rotate the Selector clockwise for

a lower percent value(%).

•

For damper air, rotate the Selector counter

clockwise for a higher percent value(%).

•

When set the selctor to CONTINUE position,

the dehumidifier will operate continuously for

maximum dehumidification until the tank is full.

•

To turn off the unit, rotate the selector to the

OFF position.

Defrosting indicator light

This indicator light illuminates when frost builds up on the

evaporator coils, the compressor will cycle off and the fan

will continue to run until the frost disappears.

Power on indicator light

This indicator light illuminates when connect to the power.

And flashes at 5Hz under temperature sensor malfunction.

Bucket full indicator light

This indicator light illuminates when the bucket is full. After

empty the bucket and replace in the proper position, this

light turns off.

Other features

Bucket Full Light

Glows when the bucket is ready to be

emptied, or when the bucket is removed

or not replaced in the proper position.

Auto Shut Off

The water level control switch shuts off the

dehumidifier when the bucket is full, or when

the bucket is removed or not replaced in the

proper position. The dehumidifier will be auto

shut off when the setting dehumidity is reached.

Auto Defrost

When frost builds up on the evaporator coils, the

compressor will cycle off and the fan will continue to run

until the frost disappears.

Power Outage

In the case of a power outage or interruption, the unit will

automatically re-start, in the settings last used, after the

power is restored.



40cm or

Air inlet

grille

log

20cm or more

outlet grille

20cm or more



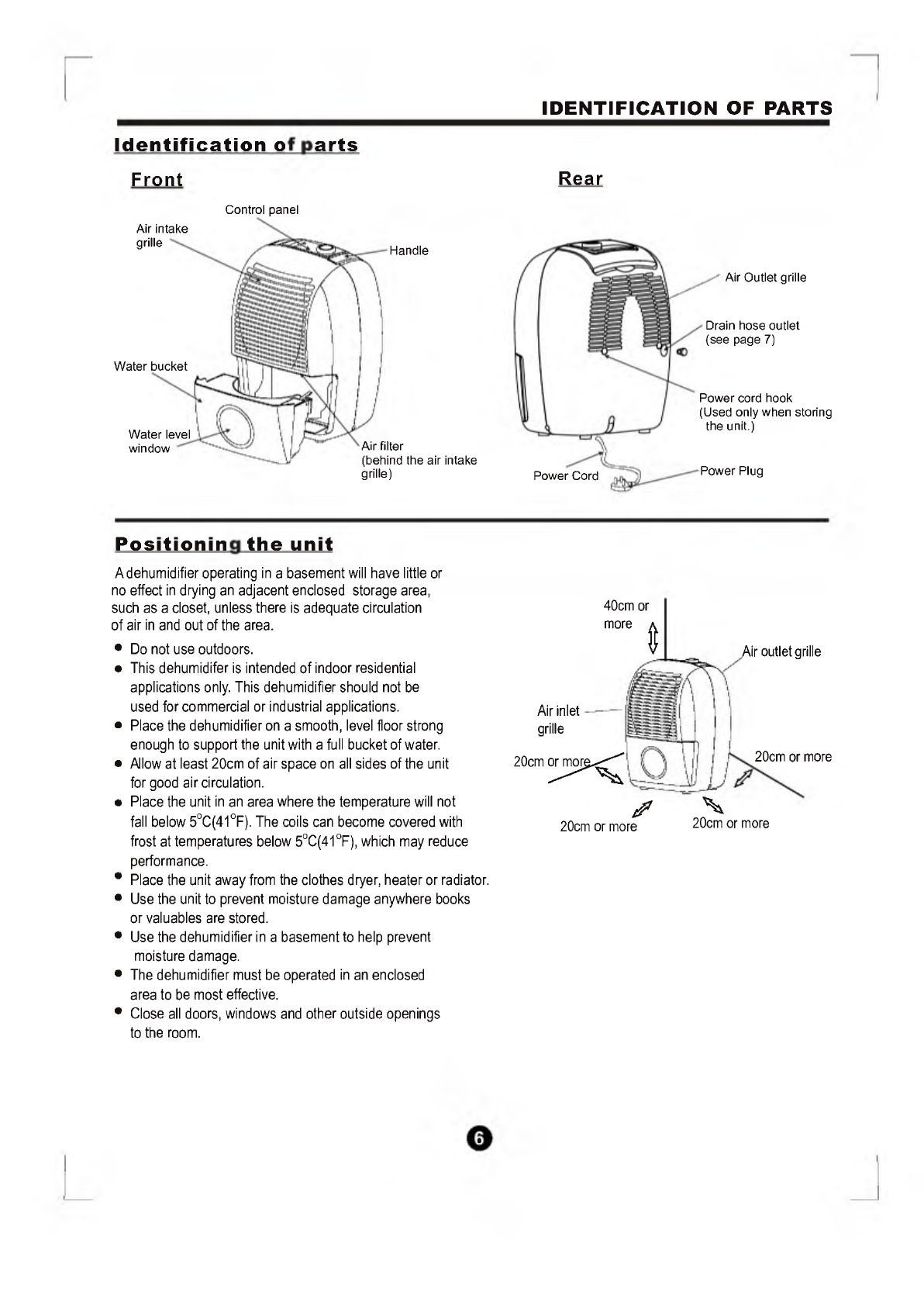

IDENTIFICATION OF PARTS

Identification of Darts

Front



Rear

Control panel

Handle

Air Outlet grille

. Drain hose outlet



(see page 7)

Power cord hook

(Used only when storing

the unit.)

ter

nd the air intake

grille)



Powe



Power Plug

Air

gri

Water

Wat

wi nC

Positioning the unit

A dehumidifier operating in a basement will have little or

no effect in drying an adjacent enclosed storage area,

such as a closet, unless there is adequate circulation

of air in and out of the area.

•

Do not use outdoors.

•

This dehumidifer is intended of indoor residential

applications only. This dehumidifier should not be

used for commercial or industrial applications.

•

Place the dehumidifier on a smooth, level floor strong

enough to support the unit with a full bucket of water.

•

Allow at least 20cm of air space on all sides of the unit

for good air circulation.

•

Place the unit in an area where the temperature will not

fall below 5

C(41

F). The coils can become covered with

frost at temperatures below 5

C(41

F), which may reduce

performance.

•

Place the unit away from the clothes dryer, heater or radiator.

•

Use the unit to prevent moisture damage anywhere books

or valuables are stored.

•

Use the dehumidifier in a basement to help prevent

moisture damage.

•

The dehumidifier must be operated in an enclosed

area to be most effective.

•

Close all doors, windows and other outside openings

to the room.



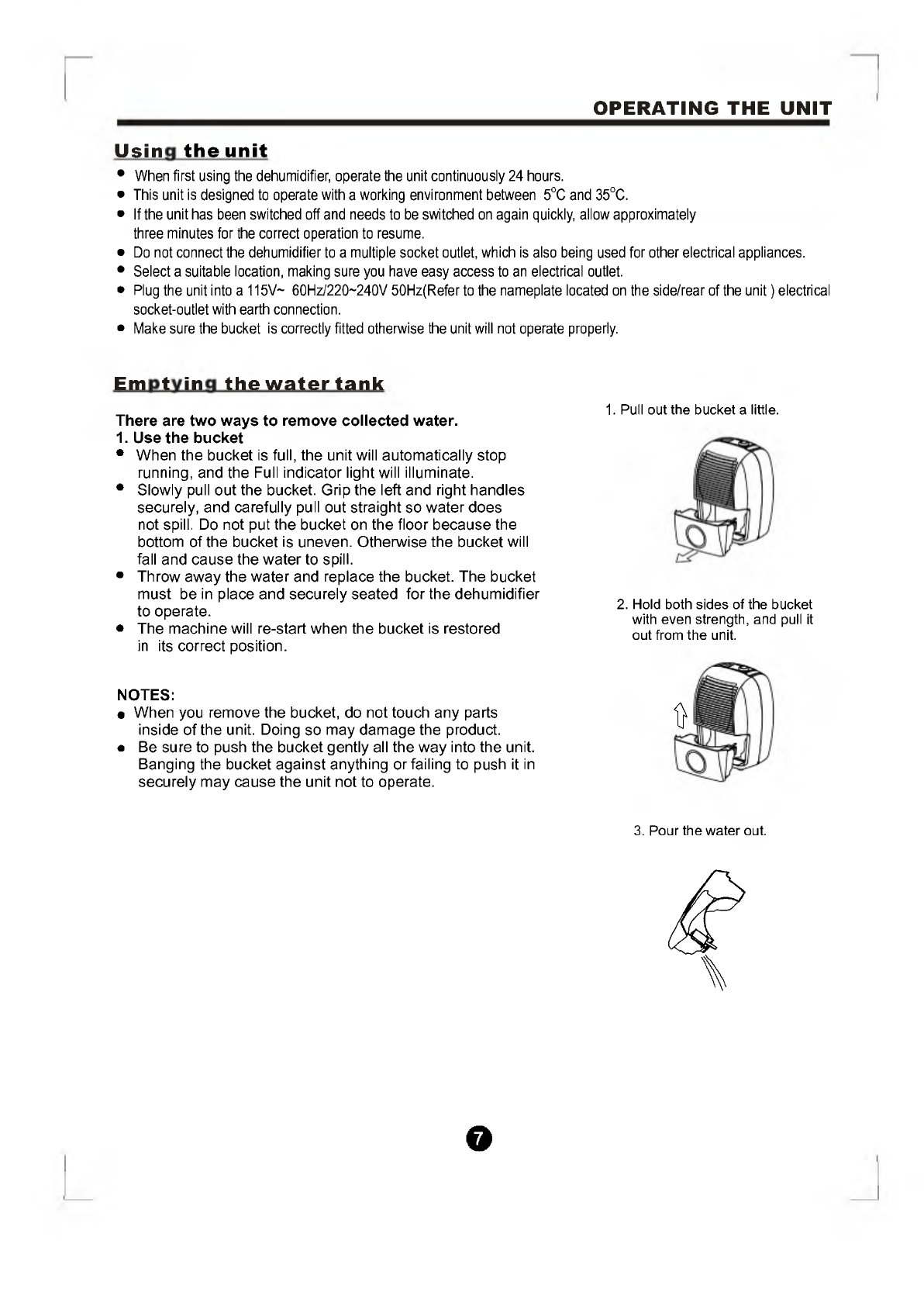

OPERATING THE UNIT

Using the unit

•

When first using the dehumidifier, operate the unit continuously 24 hours.

•

This unit is designed to operate with a working environment between 5

C and 35

•

If the unit has been switched off and needs to be switched on again quickly, allow approximately

three minutes for the correct operation to resume.

•

Do not connect the dehumidifier to a multiple socket outlet, which is also being used for other electrical appliances.

•

Select a suitable location, making sure you have easy access to an electrical outlet.

•

Plug the unit into a 11 5V- 60HzJ220-240V 50Hz(Refer to the nameplate located on the side/rear of the unit ) electrical

socket-outlet with earth connection.

•

Make sure the bucket is correctly fitted otherwise the unit will not operate properly.

Emptying the water tank

1. Pull

out the bucket a little.

There are two ways to remove collected water.

1. Use the bucket

•

When the bucket is full, the unit will automatically stop

running, and the Full indicator light will illuminate.

•

Slowly pull out the bucket. Grip the left and right handles

securely, and carefully pull out straight so water does

not spill. Do not put the bucket on the floor because the

bottom of the bucket is uneven. Otherwise the bucket will

fall and cause the water to spill.

•

Throw away the water and replace the bucket. The bucket

must be in place and securely seated for the dehumidifier

2. Hold both sides

the bucket

to operate.



with even strength, and

pull

•

The machine will re-start when the bucket is restored



out

from

the unit.

in its correct position.

NOTES:

•

When you remove the bucket, do not touch any parts

inside of the unit. Doing so may damage the product.

•

Be sure to push the bucket gently all the way into the unit.

Banging the bucket against anything or failing to push it in



securely may cause the unit not to operate.

3. Pour

the water out.



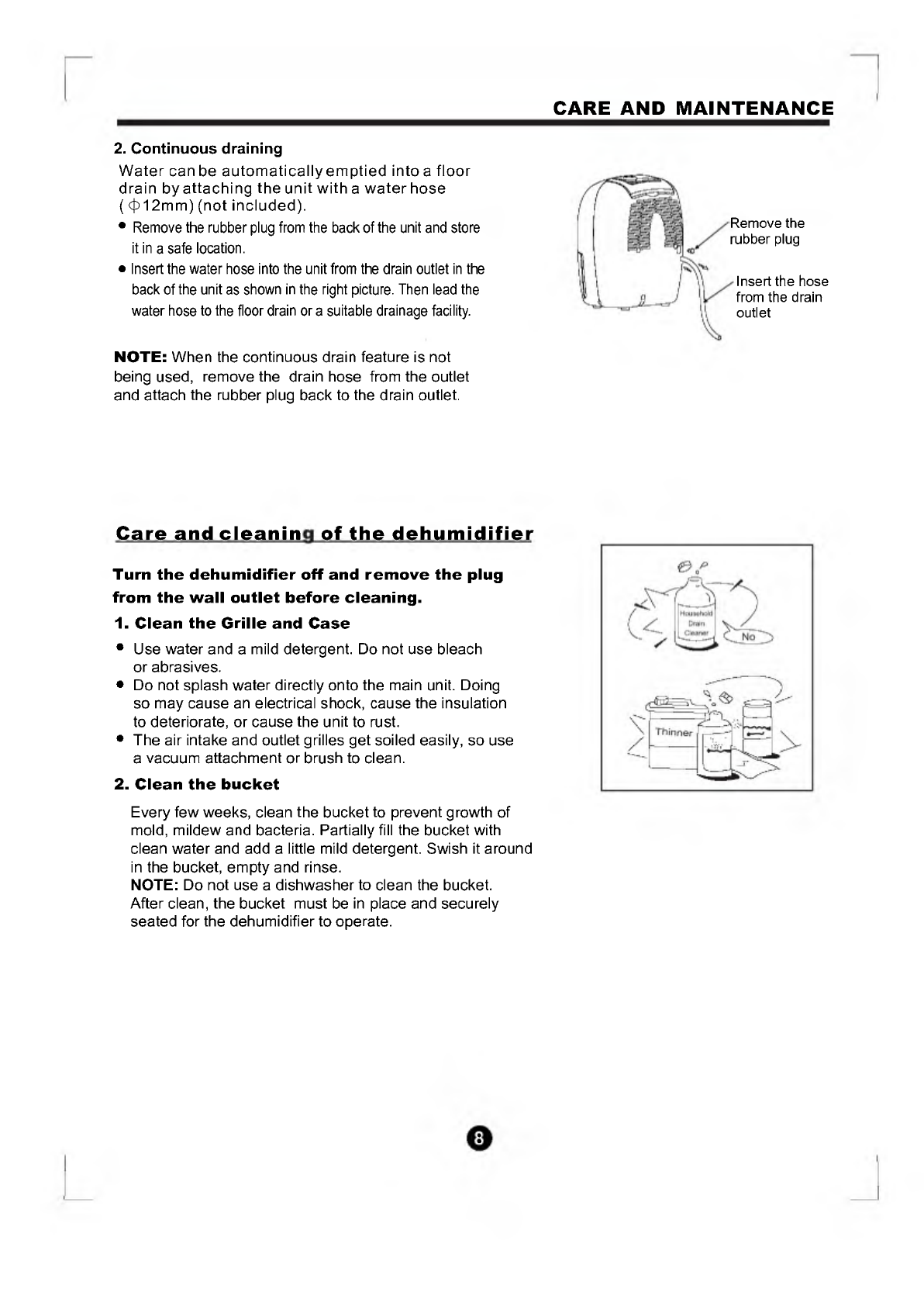

CARE AND MAINTENANCE

2. Continuous draining

Water can be automatically emptied into a floor

drain by attaching the unit with a water hose

(t 12mm) (not included).

•

Remove the rubber plug from the back of the unit and store

it in a safe location.

•

Insert the water hose into the unit from the drain outlet in the

back of the unit as shown in the right picture. Then lead the

water hose to the floor drain or a suitable drainage facility.

NOTE:

When the continuous drain feature is not

being used, remove the drain hose from the outlet

and attach the rubber plug back to the drain outlet.

Care and cleaning of the dehumidifier

Turn the dehumidifier off and remove the plug

from the wall outlet before cleaning.

1. Clean the Grille and Case

•

Use water and a mild detergent. Do not use bleach

or abrasives.

•

Do not splash water directly onto the main unit. Doing

so may cause an electrical shock, cause the insulation

to deteriorate, or cause the unit to rust.

•

The air intake and outlet grilles get soiled easily, so use

a vacuum attachment or brush to clean.

2. Clean the bucket

Every few weeks, clean the bucket to prevent growth of

mold, mildew and bacteria. Partially fill the bucket with

clean water and add a little mild detergent. Swish it around

in the bucket, empty and rinse.

NOTE: Do not use a dishwasher to clean the bucket.

After clean, the bucket must be in place and securely

seated for the dehumidifier to operate.

emove the

ubber plug

Insert the hose

from the drain

outlet

."'

—

Thinner



Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Ecoair Deumidificatore

Ecoair

Ecoair ECODC202 Manuale utente

Ecoair

Ecoair ECO DD322FW CLASSIC Manuale utente

Ecoair

Ecoair DD1S Black Edition Manuale utente

Ecoair

Ecoair ECO DD122 Mini Manuale utente

Ecoair

Ecoair ECO DD322FW CLASSIC Manuale utente

Ecoair

Ecoair ECO DD122FW CLASSIC Manuale utente

Ecoair

Ecoair DD3 SLIMLINE Manuale utente

Ecoair

Ecoair DD122 CLASSIC MK5 Manuale utente

Ecoair

Ecoair ECO20LDK Manuale utente

Ecoair

Ecoair DD2 SIMPLE Manuale utente

Ecoair

Ecoair DD122 Mini Manuale utente

Ecoair

Ecoair ECO DD322FW CLASSIC Manuale utente

Ecoair

Ecoair DD122 SIMPLE Manuale utente

Ecoair

Ecoair DD128 Manuale utente

Ecoair

Ecoair ECO DC12 Manuale utente

Ecoair

Ecoair ECO DD122FW CLASSIC Manuale utente

Ecoair

Ecoair ECO DD322FW CLASSIC Manuale utente

Ecoair

Ecoair DD1 SIMPLE MK3 Manuale utente

Ecoair

Ecoair ECO DD122FW SIMPLE MK2 Manuale utente

Ecoair

Ecoair ECOI 4LDG Manuale utente

Ecoair

Ecoair DD1 CLASSIC MK6 Manuale utente

Ecoair

Ecoair SUMMIT-S Manuale utente

Ecoair

Ecoair ECO DD322FW CLASSIC Manuale utente

Ecoair

Ecoair DD122 MK4 Manuale utente

Manuali Deumidificatore popolari di altre marche

Daitsu

Daitsu CD031IU-DFA Manuale utente

Fehom

Fehom PDGT701BE Manuale utente

Hitachi

Hitachi RD-190GX Manuale utente

Westpoint

Westpoint MDF1-30AE Manuale utente

SOLIS

SOLIS easy dry compact Manuale utente

ENVIROBOSS

ENVIROBOSS EB240 Manuale utente

Sinclair

Sinclair R-9112 Manuale utente

Kenmore

Kenmore 580.54701 Manuale utente

Demargo

Demargo DM828NF Manuale utente

Altrad Lescha

Altrad Lescha LDH 600 Manuale utente

BOMANN

BOMANN LE 1150 CB Manuale utente

SPT

SPT SD-46 Manuale utente

REMKO

REMKO SLN 40 Manuale utente

Haier

Haier HD458 Manuale utente

Logik

Logik L20DHW12 Manuale utente

Frigidaire

Frigidaire FDR30S1 - 30 Pint Capacity Dehumidifier Guida rapida

Blitz

Blitz HHD Series Manuale utente

Prem-I-Air

Prem-I-Air PD14DEN Manuale utente
