EcoFlow 160W Manuale utente
SOLAR PANEL
Contact Us:
ecoflow.com
NA/LA/APAC/MEA: support@ecoflow.com
EU: support.eu@ecoflow.com
AU: support.au@ecoflow.com
In The Box
How It Works
Protective Case
and kickstand
MC4 Output Controller
EcoFlow RIVER
(Sold Separately)
EcoFlow RIVER
(Sold Separately)
EcoFlow DELTA
(Sold Separately)
EcoFlow DELTA
(Sold Separately)
Solar Charging Cable XT60
INPUT PORT
Solar Panel
Solar Panel
Solar Panel
User Manual
& Warranty Card
Snap Hook
x 4 Solar Charging
Cable
Your Solar Setup
1
2
3
30° 80°
4
In order to increase the efficiency of the
EcoFlow 160W Solar Panel, use it in direct
sunlight, position it perpendicular to the
sunlight, and make sure the solar panels are
unobstructed.
This cable can only be used for connection between solar
panels and energy storage. It is prohibited to be used for
interconnection between solar panels or other connection
purposes.
MC4
Adapter Cable
Solar Panel
90°
5
6
For improved charging results, the Protective Case can also beused as a kickstand to propup the
solar panel at a 30°–80°angle.
Adjust the angle
1. Connect the positive poles of the two solar panels with the MC4
parallel cable and repeat the step for the negative poles.
2. Connect the parallel cable connectors (output side) with the
MC4 connectors of the Solar Charging Cable (MC4 to XT60
cable) respectively.
3. Connect the XT60 connector on the Solar Charging Cable(MC4
to XT60 cable) to the XT60 port on the portable power station
to recharge the unit.
(refer to the figure below)
Wire solar panels in parallel
Speed Up Solar Charging
The kickstand feature should only
be used before 10:00am or after
2:00pm. To use the product during
the midday sun, simply place the
solar panel flat on the ground.
Afternoon Morning
Noon
7
sw
*Formoreinformationandmethodsaboutsolarcharging,pleaserefertotheusermanualofthespecicportablepowerstation.
Solar MC4 parallel connection cable
Solar Panel A Solar Panel B
* Users have to buy the solar panels and other
parallel connection accessories seperately.
1 1
1 1
2
2
3
1. Snap the male connector of one solar panel into the female
connector of the other respectively to wire the three solar panels
in series.
2. Wire the two connectors that are unwired in step 1 with the Solar
Charging Cable (MC4 to XT60 cable) respectively.
3. Connect the XT60 connector on the Solar Charging Cable (MC4
to XT60 cable) to the XT60 port on the portable power station
to recharge the unit.
*Formoreinformationandmethodsaboutsolarcharging,pleaserefertotheusermanualofthespecicportablepowerstation.
(refer to the figure below)

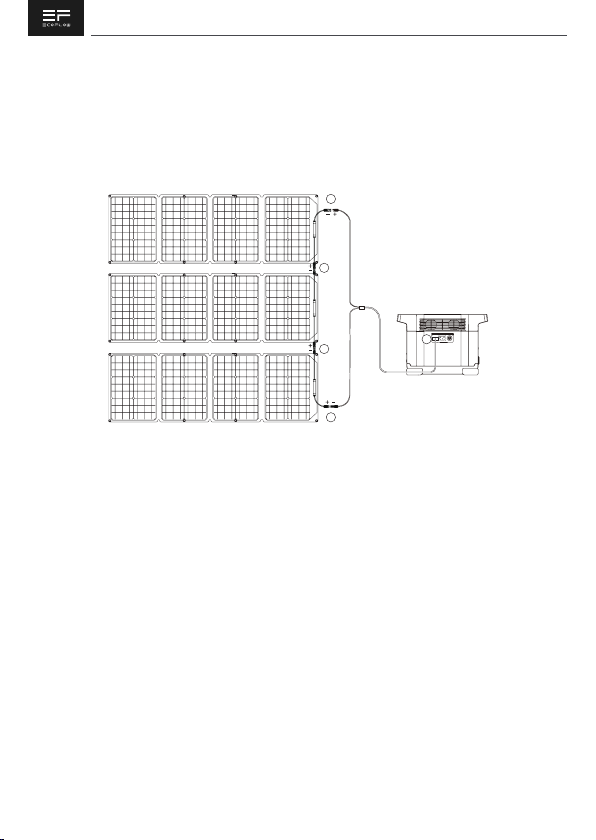

Wire solar panels in series
1
2
3
2
1
60W Solar Panel
General
Tested And Certified
Rated Power: 60W(+/-5W)*
Open Circuit Voltage: 21.6V
Running Voltage: 18.2 V
Short Circuit Current: 3.5A
Running Current: 3.3A
Efficiency: 21%-22%
Cell Type: Monocrystalline silicon
Connector type: MC4
Solar Panel: 5.5 lbs(2.5KG)
Unfolded Dimensions:
21.1*32.4*1.0 in(53.5*82.2*2.5cm)
Folded Dimensions:
21.1*16.7*1.0 in(53.5*42.5*2.5cm)
Warranty: 12 months
Technical Specifications
General
Tested And Certified
Rated Power: 160W(+/-5W)*
Open Circuit Voltage: 21.4V
Running Voltage: 18.2 V
Short Circuit Current: 9.6A
Running Current: 8.8A
Efficiency: 21%-22%
Cell Type: Monocrystalline silicon
Connector type: MC4
Solar Panel: Approx. 12.3 lbs(5.6KG)
Unfolded Dimensions:
26.9*62.6*1.0 in(68.5*159.0*2.5cm)
Folded Dimensions:
26.9*16.9*1.0 in(68.5*43.0*2.5cm)
Warranty: 12 months
*Standard Test Conditions:1000W/m2, AM1.5, 25°C
160W Solar Panel
TKPower -(0.39+/-0.02)%/k
TKVoltage -(0.33+/-0.03)%/k
TKCurrent +(0.06+/-0.015)%/k
Temperature Coecient Specifications
IP67
